Complete Grid-Tie Solar Kit - [6 x 400 Watt] Tier-1 Solar Panels + 3 x DS3 Microinverters | 2,400W of Solar + Includes Communication Gateway [MIK-PLUS]

This 2,400 watt microinverter solar kit is a great entry level option. The 6 x 400W solar panels will fit perfectly on almost any roof and the power they produce will be enough to offset a very meaningful amount of your electricity usage each month. From lighting, television and kitchen appliance uses to more. Easily expandable in the future as well if you ever want to add more solar panels.

The 300-400kWh of power generated by the MIK-PLUS solar kit is perfect for those looking to offset some, if not all of their electricity usage, depending on how conservative you are. The average American uses just over 900kWh of electricity per month. Based on that average, this system could provide 30-40% of that, for free. If you're a below average consumer, this solar power system might be all you need!

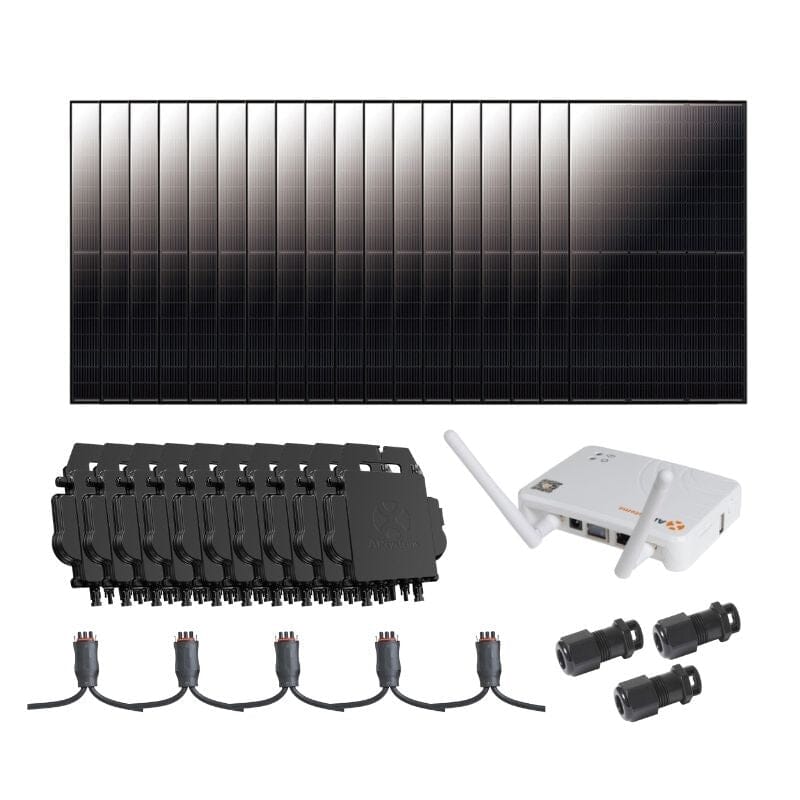

What's Included With Your Order?

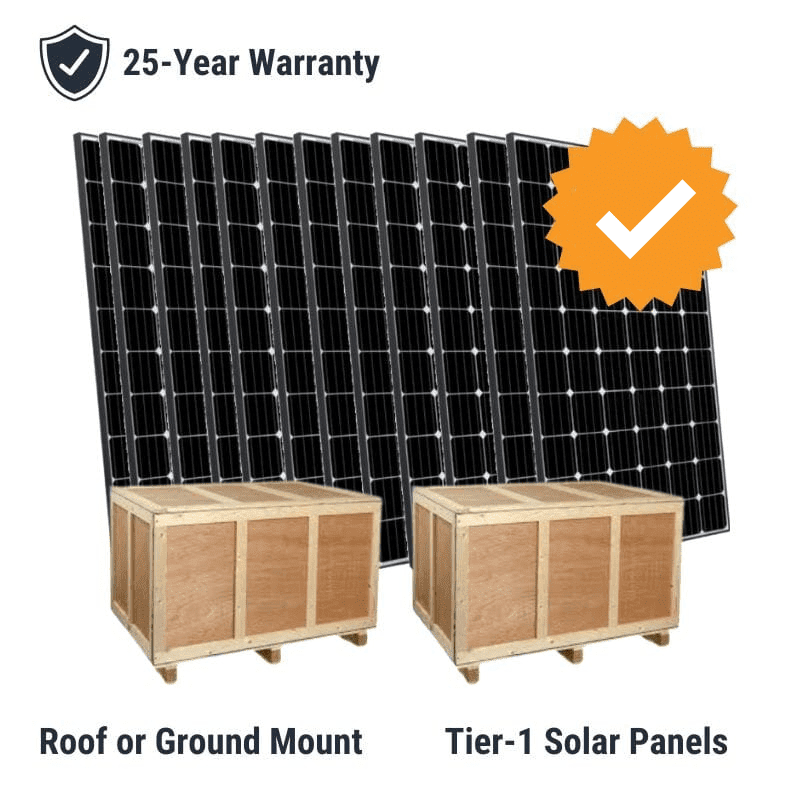

• 6 x 400W Tier-1 Monocrystalline Solar Panels - 12-Years Power Output Warranty

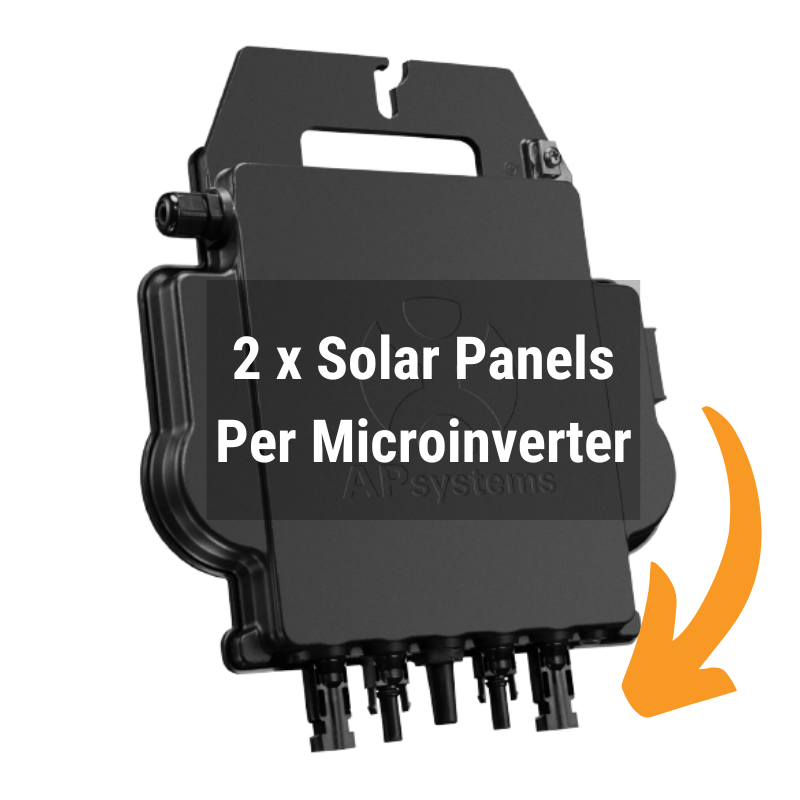

• 3 x APSystems DS3 Microinverters - 10 Years Warranty Standard, 25Years Optional (2 panels per microinverter)
• 3 x APSystems  Y3 Bus Cable - 2m - 12AWG
• 1 x  DS3/QS1/QT2 AC Bus End Cap
• 1 x APS ECU-R Gateway
• 1 x Standard Wiring Schematic and Setup Guide
• Lifetime Customer Support (Phone, Email, Live Chat)

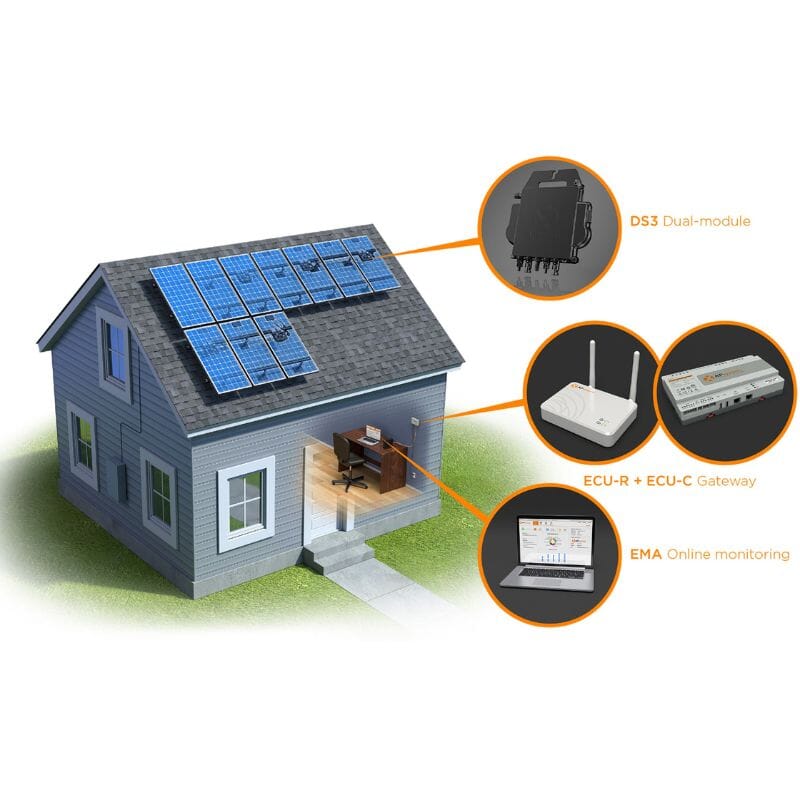

Why APsystems Microinverters?

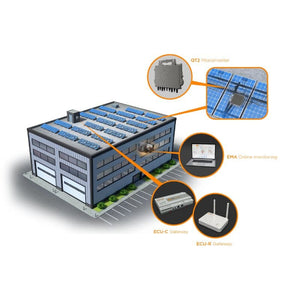

APsystems offers advanced, powerful solar microinverter technology for residential and commercial systems. The APsystems microinverter solution combines highly efficient power inversion with user-friendly monitoring to bring you reliable, sustainable energy.

POWERFUL

APsystems microinverter installations are typically 5-15 percent more efficient than comparable “string” systems. That’s like having more solar modules on your roof with the same-sized array.

SMART

The APsystems Energy Monitoring and Analysis, or EMA software allows around-the-clock management of your solar array through any web-enabled device, like your home computer or smartphone.

COST EFFECTIVE

The APsystems microinverter is the affordable, flexible solution for your solar power array. The compact, independent design allows easy installation on virtually any available surface, and because it is an integrated system, the APsystems microinverter solution simplifies system design. Solar arrays can be easily expanded at any time, hassle-free.

The savings don’t stop there – APSystems microinverters track multiple PV modules (2 panels per micro in this kit) meaning you need half the inverters and half the installation means real cost savings for your residential or commercial solar power system.

SAFE

APsystems Microinverters tie directly to the low-voltage DC module, enhancing homeowner safety and eliminating the possibility of high-voltage “arc” fires. All APsystems products undergo rigorous factory testing, evaluation and field tracking, and are built to a 25-year design life.

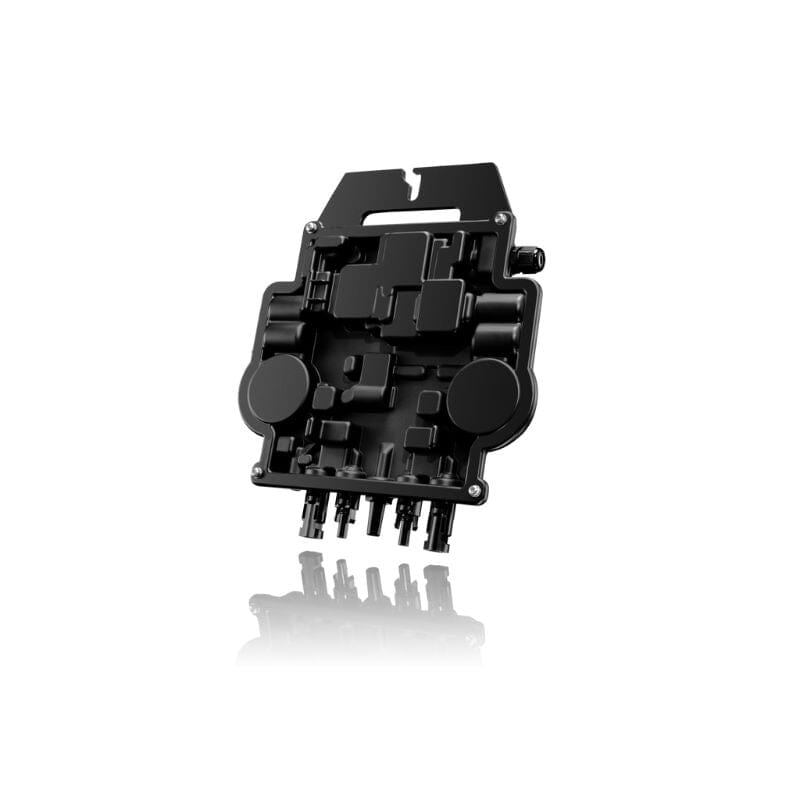

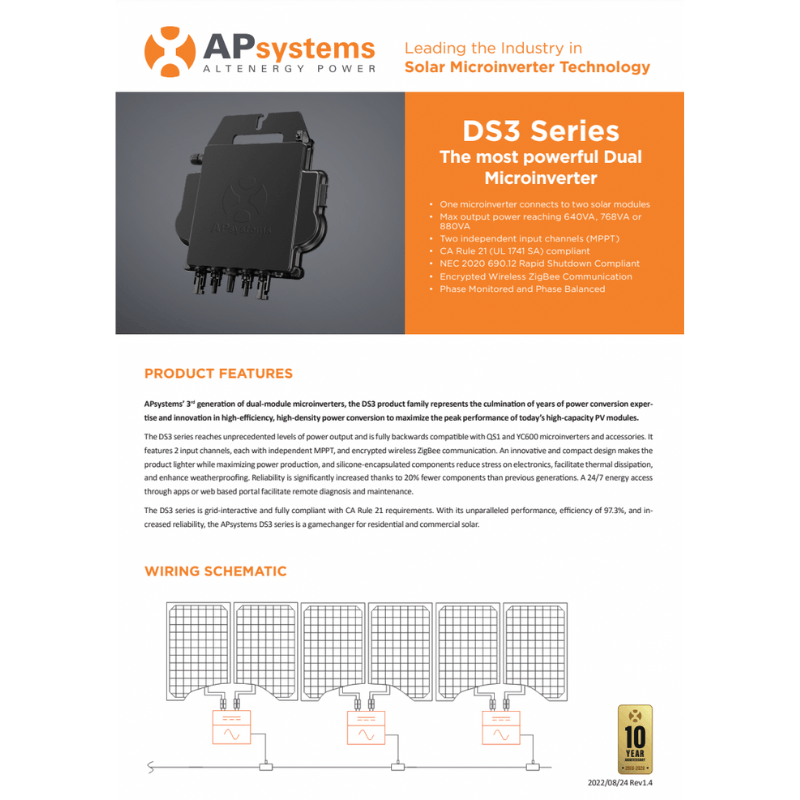

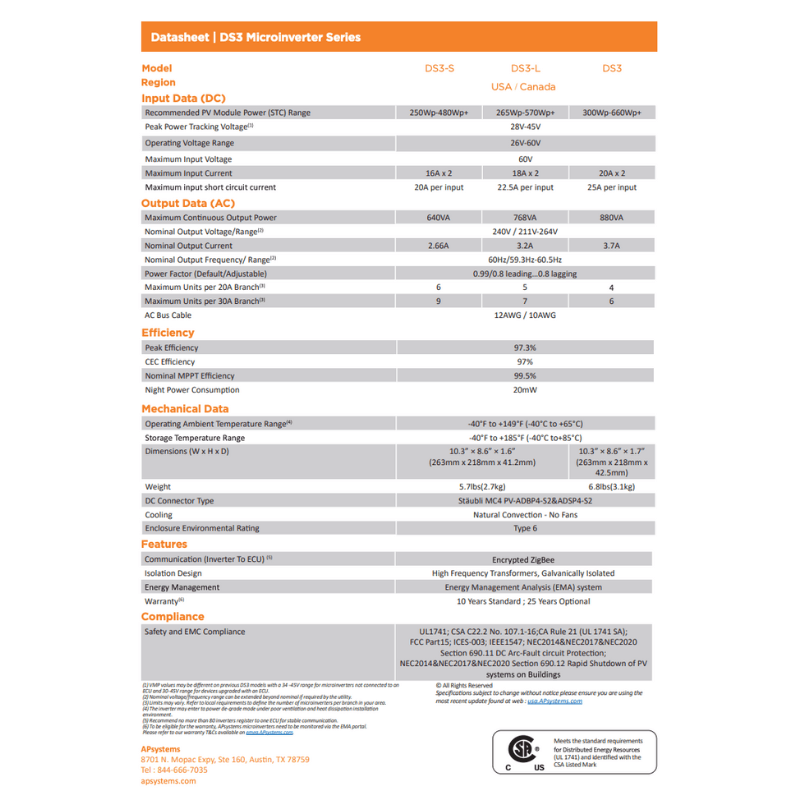

APSystems DS3 Microinverter Features:

• Efficiency - 97.0%
• Warranty - 25 Years
• Nominal Voltage - 240VAC
• Maximum Output Power - 0.88kW (880 Watts each)
• Built In Meter
• Panel-level Optimization
• Smart Inverter Phase 1
• Smart Inverter Phase 1 with Tested
• Minimum Voltage: 26.0VDC
• Maximum Voltage: 60.0VDC

Solar Panel Specs:

• Solar Cell: Mono PERC 182 mm
• No. of Cells: 108 (6 × 18)
• Dimensions: 1722±2 × 1134±2 × 30±1 mm
• Weight: 22.6kg (±5%)
• Cable Cross Section Size: 4mm2 (IEC),12 AWG(UL)
• Junction Box: IP68 rated (3 bypass diodes)
• Output Cables: Portrait: (-)350 mm and (+)160 mm in length or customized length
• Front/Back Glass: 2.0mm AR Tempered glass 2.0mm Semi-tempered glass
• Container: 36 pcs/Pallet, 936 pcs/ 40’HQ
• 12 Years Warranty

Operating Characteristics:

• Max. System Voltage: DC 1500V 792
• Operating Parameters: -40℃ ~ +85℃
• Max. Fuse Rated Current: 30A
• Front Static Load(snow,wind): 5400Pa(112lb/ft2 )
• Bifaciality: 70%±10%
• Fire Resistance: UL Type 1
• Back Static Load(wind): 2400Pa(50lb/ft2 )

Electrical Characteristics:

• Maximum Power at STC (Pmax): 400W
• Optimum Operating Voltage (Vmp): 31.01V
• Optimum Operating Current (Imp): 12.90A
• Open Circuit Voltage (Voc): 37.07V
• Short Circuit Current (Isc): 13.79A
• Operating Module Temperature: 20.5%
• Maximum System Voltage: Power Tolerance
• Operating Module Temperature: Maximum Series Fuse Rating

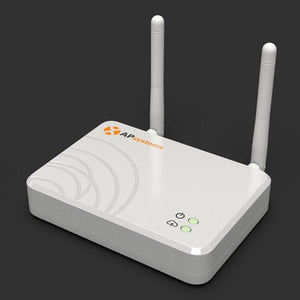

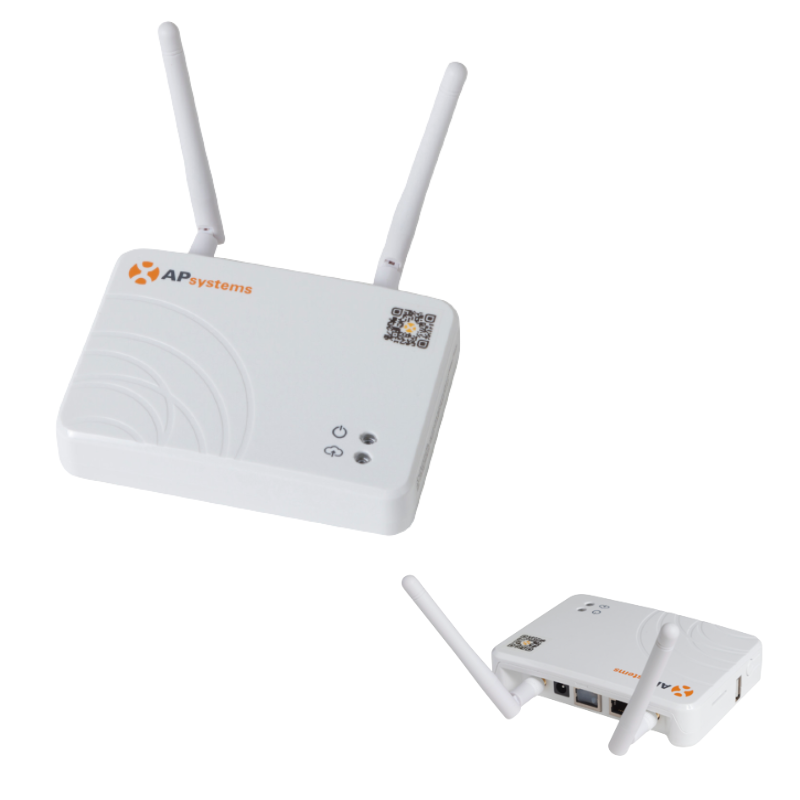

APsystems - ECU-R, Zigbee CommunicationGateway for YC600I

The APsystems ECU-R is a state-of-the-art Energy Communication Unit. It is the information gateway for your microinverters. The unit collects module performance data from each individual microinverter and transfers this information to an internet database in real time, requiring only a single data and power cable.

Through the APsystems EMA software, the APsystems ECU gives you precise analysis of each microinverter and module in your solar installation from any web-connected device. The APsystems ECU’s integrated http webserver offers the simplest and most flexible network integration of any data logger on the market.

The user-friendly browser-based interface lets you access your solar array in seconds.

Key Features

• Collects individual module and microinverter statistics
• Communicates in real time
• 3-Year Warranty

NOT INCLUDED:

• Wire, conduit, fittings, breakers, AC/DC Disconnects (if required), junction boxes and a sub panel (if required). All these items can be purchased at any electrical supply shop, Home Depot or Lowes, and will typically cost $300 to $500.
• Our technical support representative will provide a shopping list once your plans are complete.
• Plans, interconnection, and any other services are not included in this kit, but available for an additional fee.
