Rich Solar 200 Watt 24 Volt Solar Panel

Maximize your solar power with the RICH SOLAR MEGA 200 MAX, a high-efficiency 200-watt monocrystalline solar panel engineered for 24V battery systems. Designed for mobile, off-grid, and high-performance setups, it features a rugged weather-resistant build, plug-and-play installation, and enhanced voltage for optimized energy transfer.

Key Features:

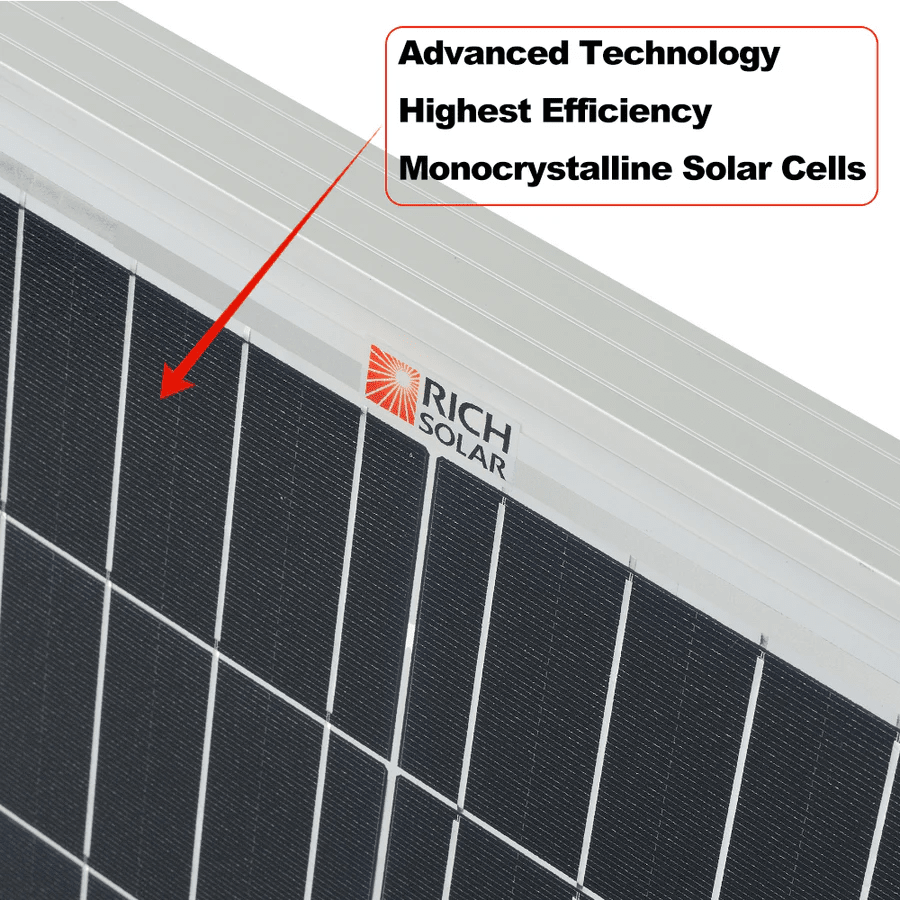

• 200W High-Efficiency Monocrystalline Output – Built for 24V systems, with higher voltage for efficient energy flow and reduced line loss.

• IP-Rated for Harsh Environments – Features an IP65 waterproof junction box and IP67 waterproof connectors to withstand the elements.

• Bypass Diodes Included – Integrated into the junction box to minimize power drop caused by shading.

• Quick, Flexible Installation – Pre-drilled holes fit standard Z brackets, tilt, pole, and ground mounts for fast DIY setup.

• Broad Compatibility – Works seamlessly with both off-grid and on-grid inverters.

Built-In Components:

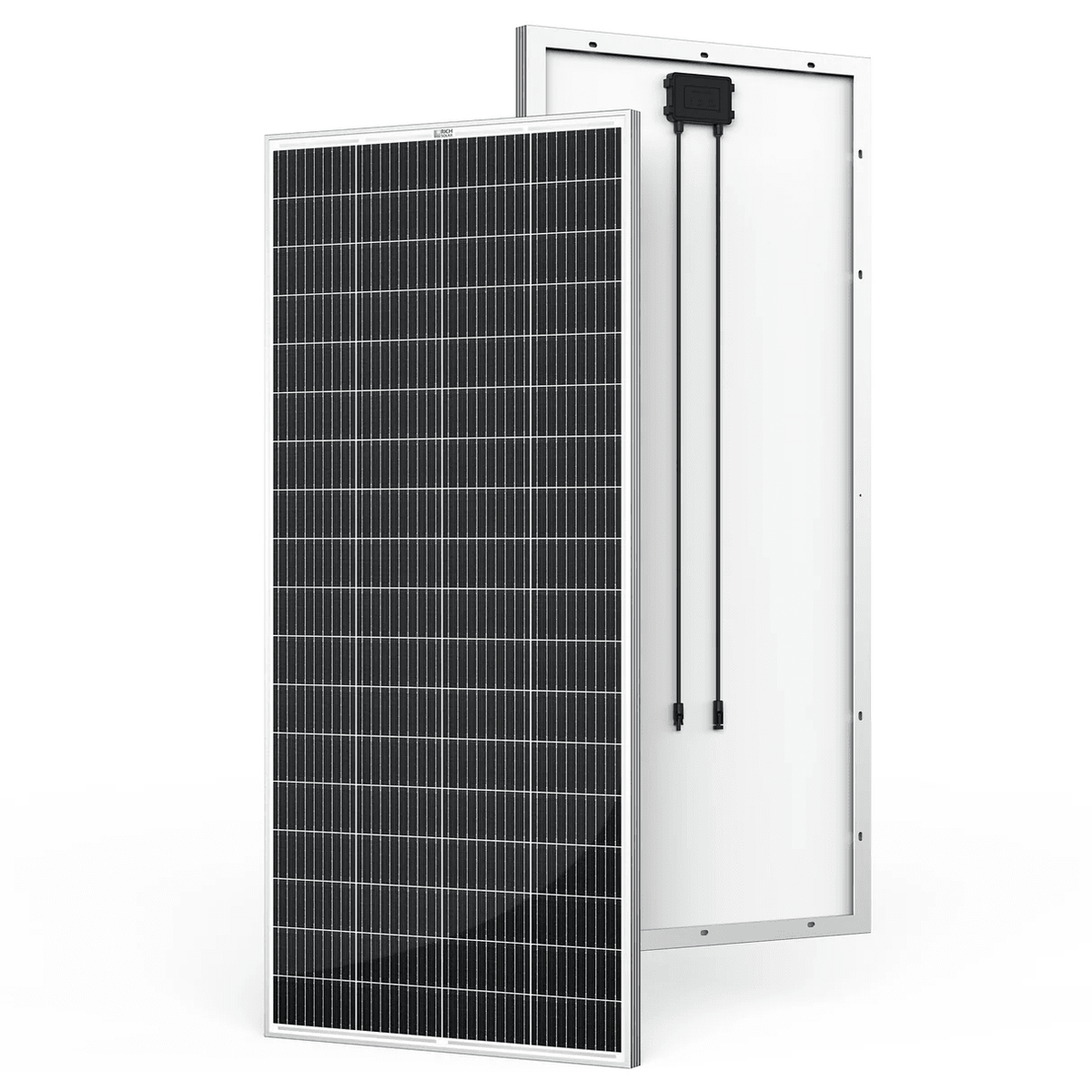

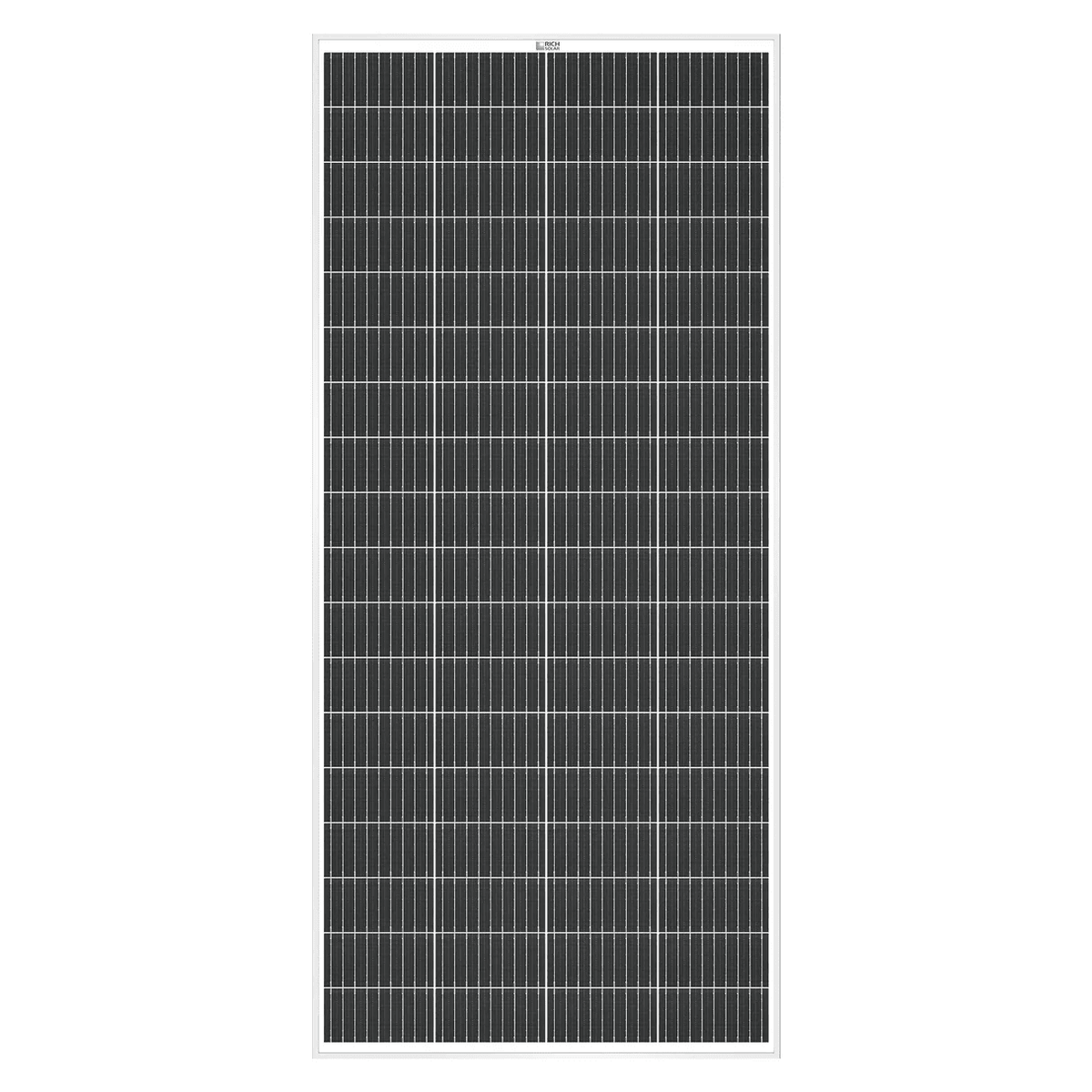

• RICH SOLAR 200W monocrystalline solar panel

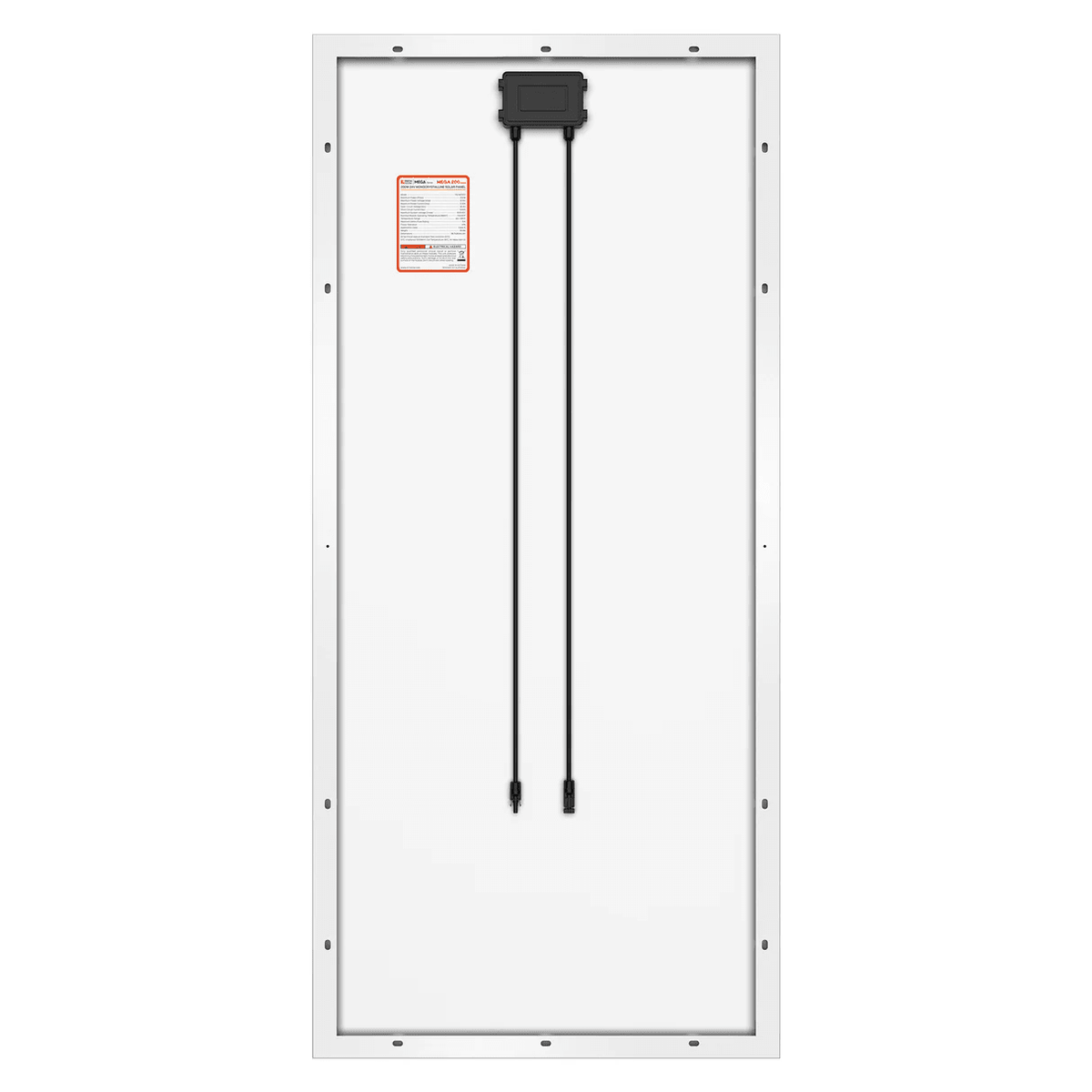

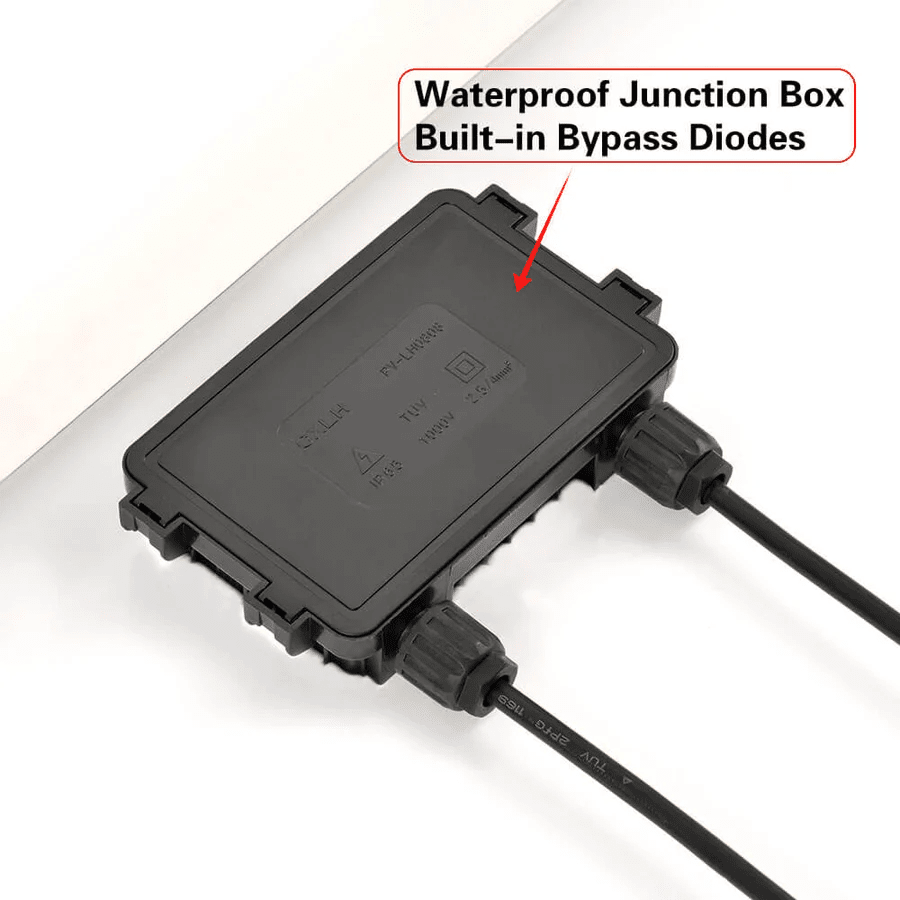

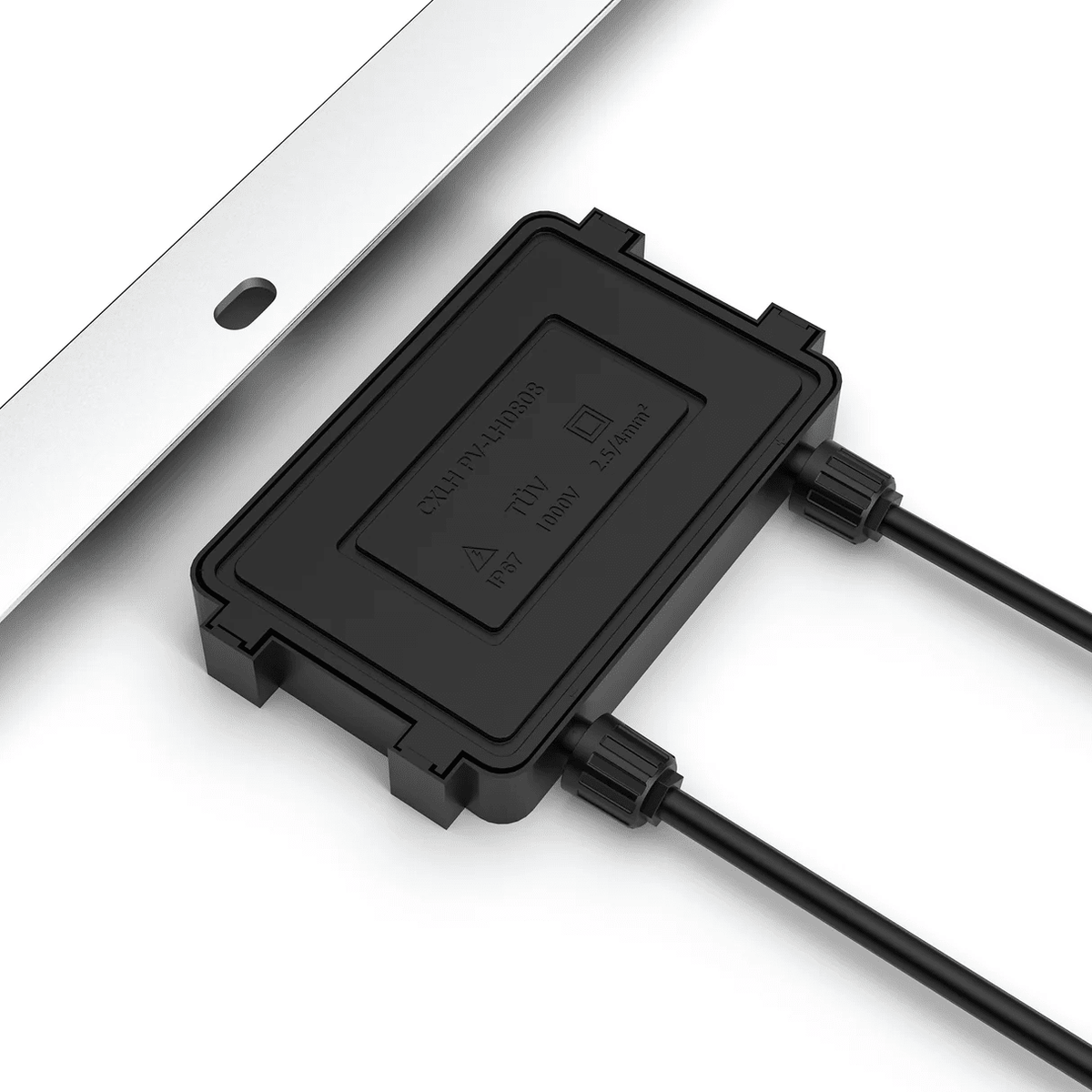

• IP65-rated waterproof junction box with bypass diodes

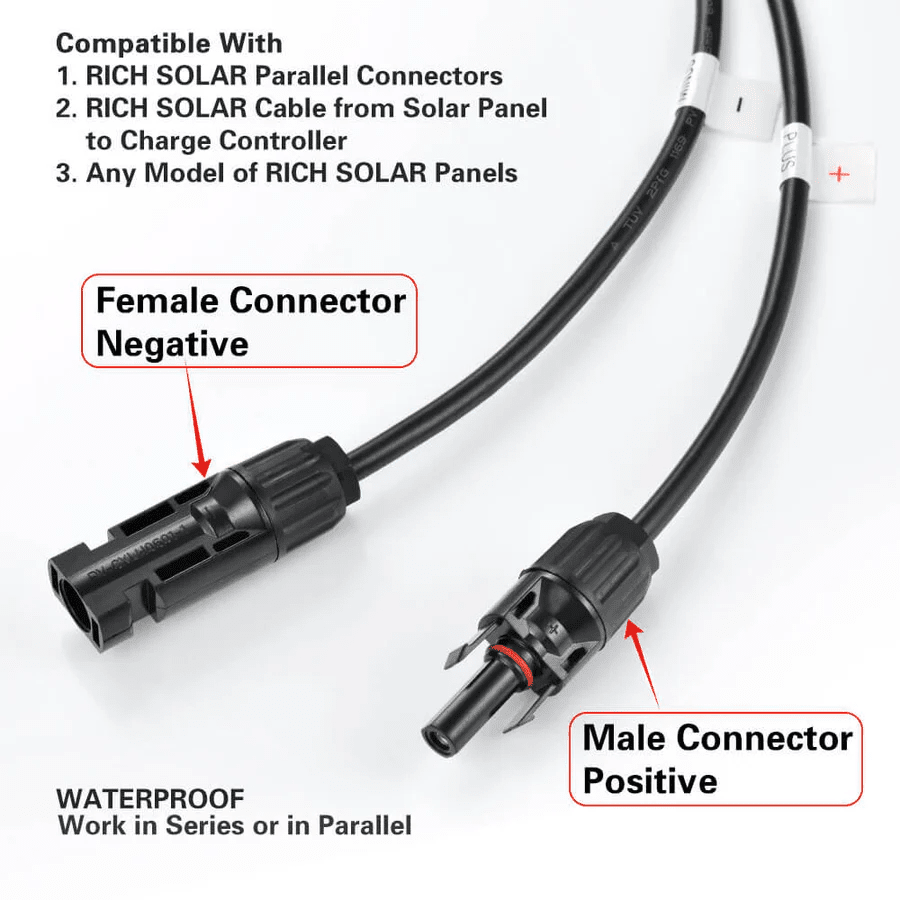

• IP67-rated waterproof solar connectors

• 3 ft panel leads (pair) for plug-and-play setup

Specifications:

• Maximum Power (Pmax): 200W

• Max Power Voltage (Vmp): 36.3V

• Max Power Current (Imp): 5.51A

• Open Circuit Voltage (Voc): 43.5V

• Short Circuit Current (Isc): 5.93A

• Nominal Operating Cell Temp (NOCT): 113 ± 35°F

• Temperature Range: -40°F to +185°F

• Panel Dimensions: 58.7 x 26.8 x 1.2 in

• Weight: 23.6 lbs

• Cable Length: ≈ 35 in

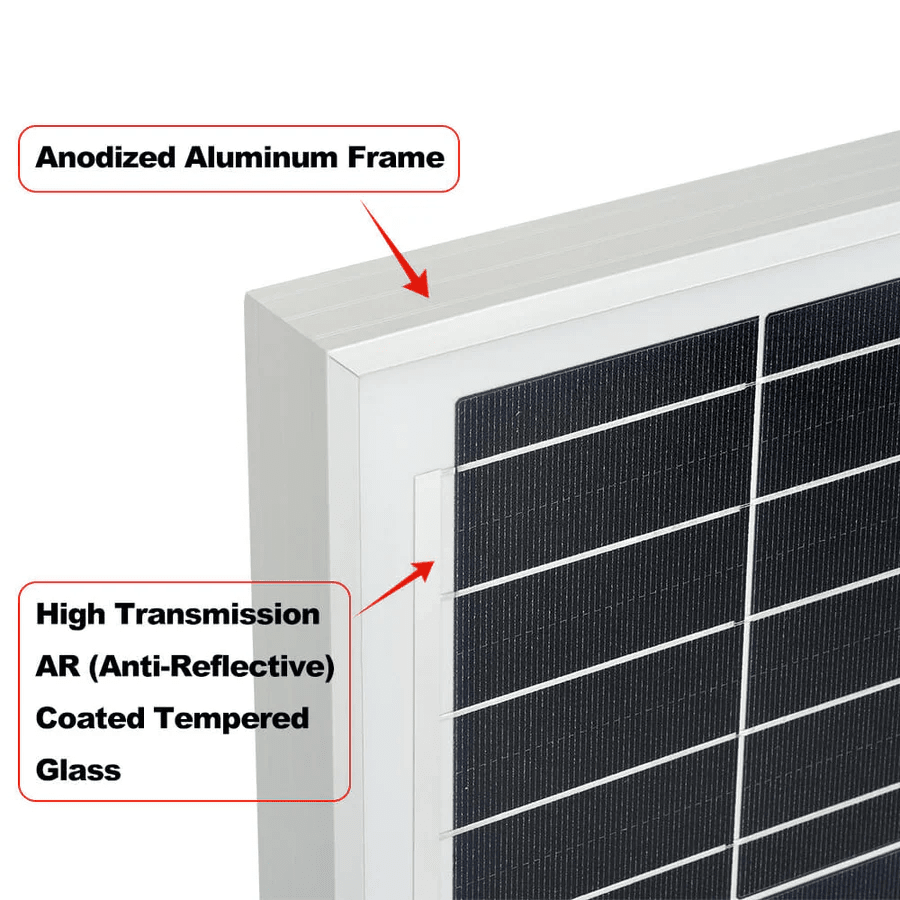

• Materials: Monocrystalline Silicon, Tempered Glass, Aluminum Frame

Engineered for high-end mobile, off-grid, and scalable energy systems, the MEGA 200 MAX delivers powerful, dependable performance—backed by a 25-year power output warranty and Shop Solar’s trusted support.
