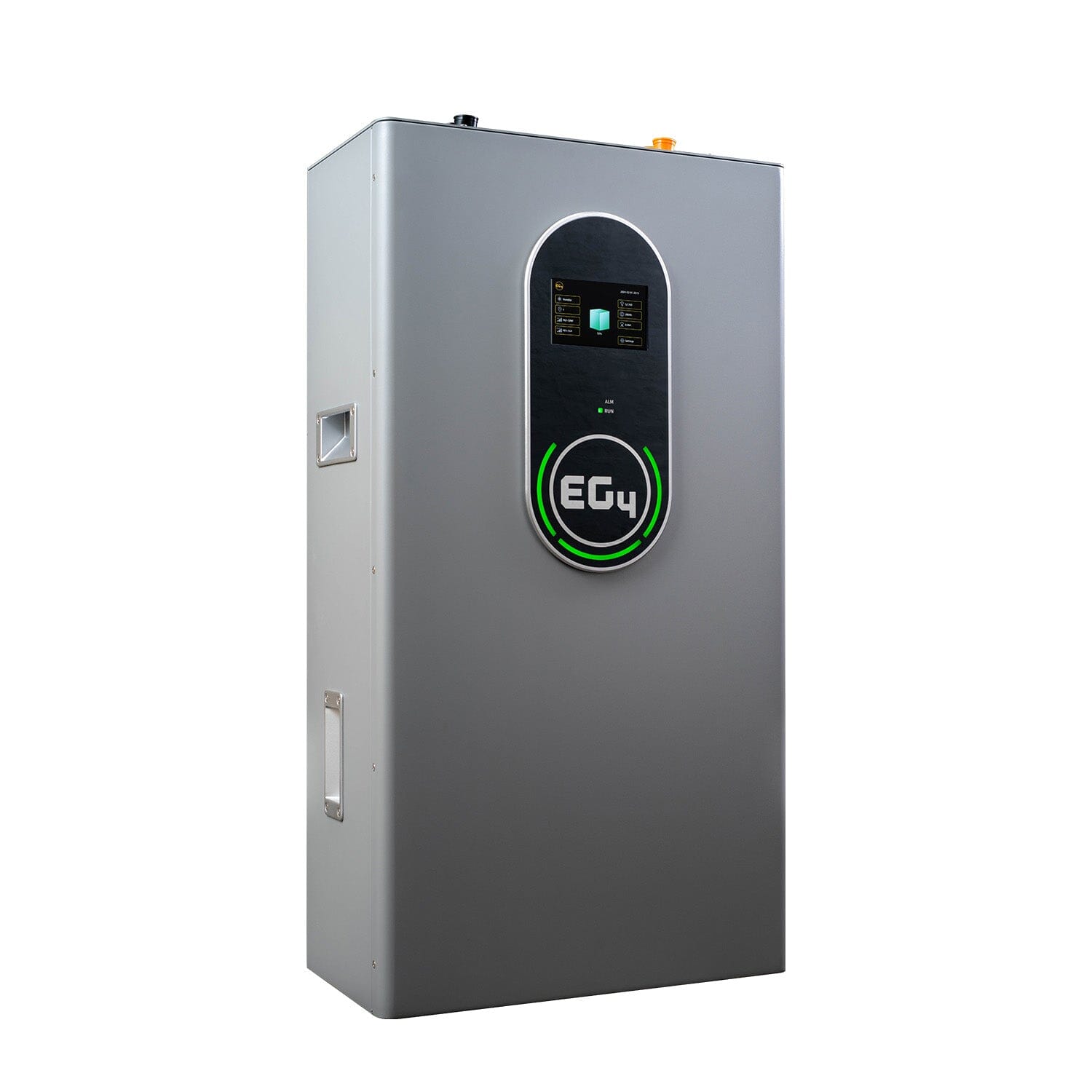

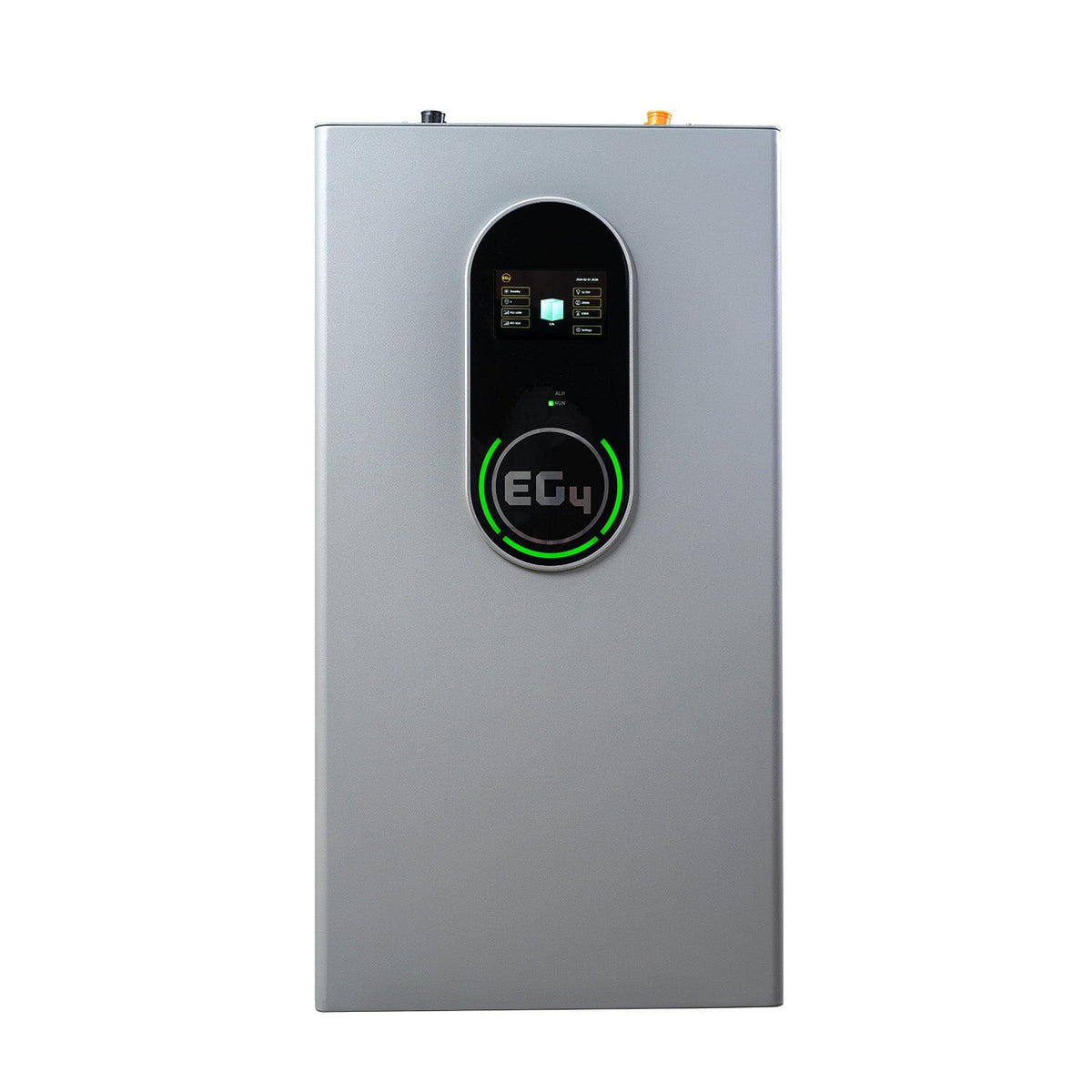

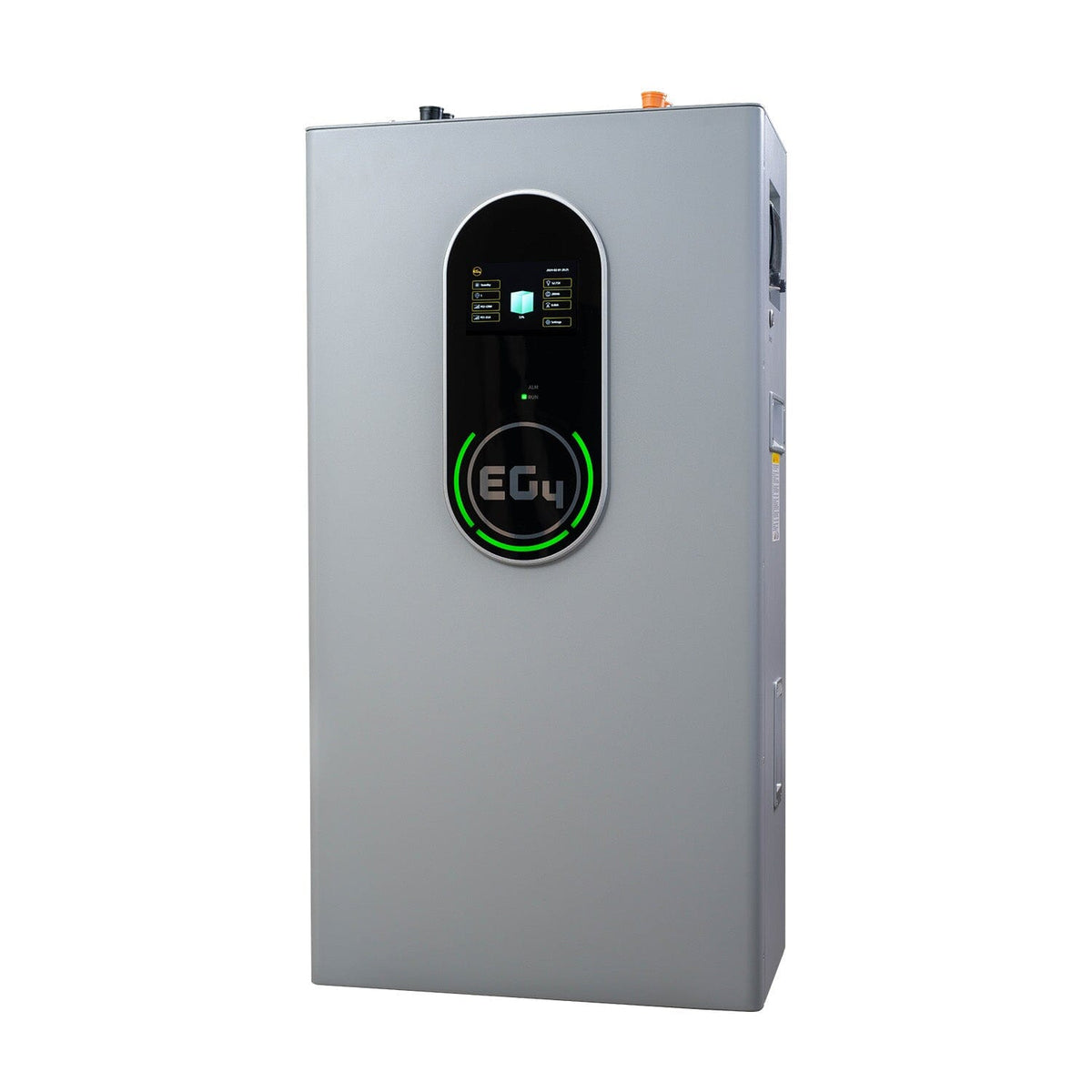

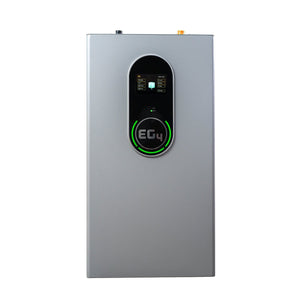

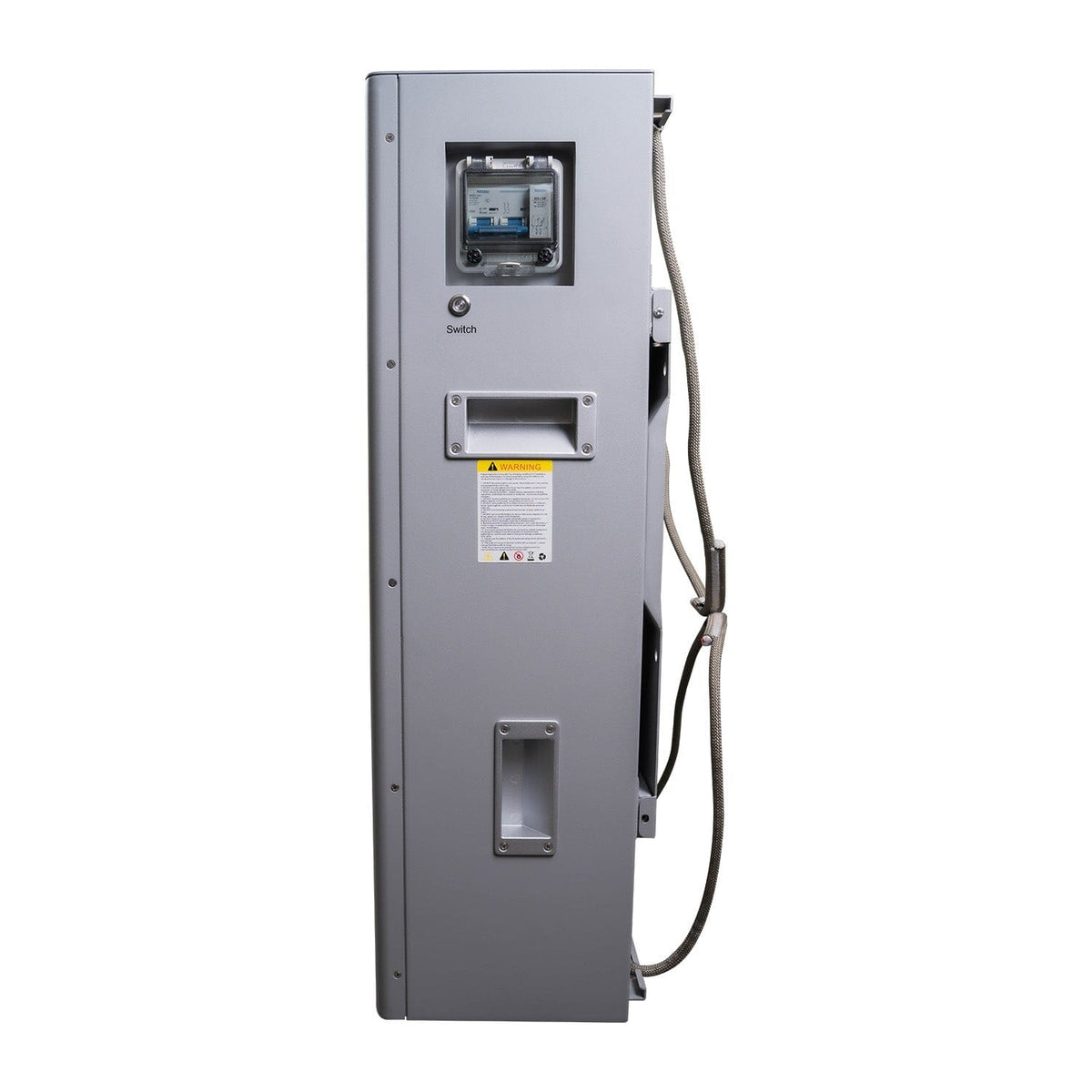

WALLMOUNT INDOOR LITHIUM BATTERY

The EG4 WallMount Indoor Lithium Battery are ideal for low- voltage residential outdoor energy storage system (ESS) applications. The batteries use lithium iron phosphate cells with the highest safety performance and an intelligent Battery Management System (BMS) that can monitor and record the voltage of each cell along with the current, voltage, and temperature of the module in real-time. The BMS also contains a passive balance function and an advanced battery control method, both of which improve the performance of the battery pack.

• BUILT-IN 200A BMS
• INTEGRATED 600A BUSBARS
• 82.6MWh LIFETIME PRODUCTION*
• 10 YEAR WARRANTY > 8000 CYCLES @ 80% DOD

ON-BOARD LCD TOUCH SCREEN

Easy to see BMS monitoring, and selectable closed-loop communications with EG4, Schneider, Sol-Ark, Victron, Growatt, Megarevo, Luxpower, and Deye inverters.

DUAL ON-BOARD FIRE ARRESTORS

Offer fail-safe protection against thermal runaway.

INTEGRATED SELF-HEATING FEATURE

Heats the battery when the ambient temperature is low.

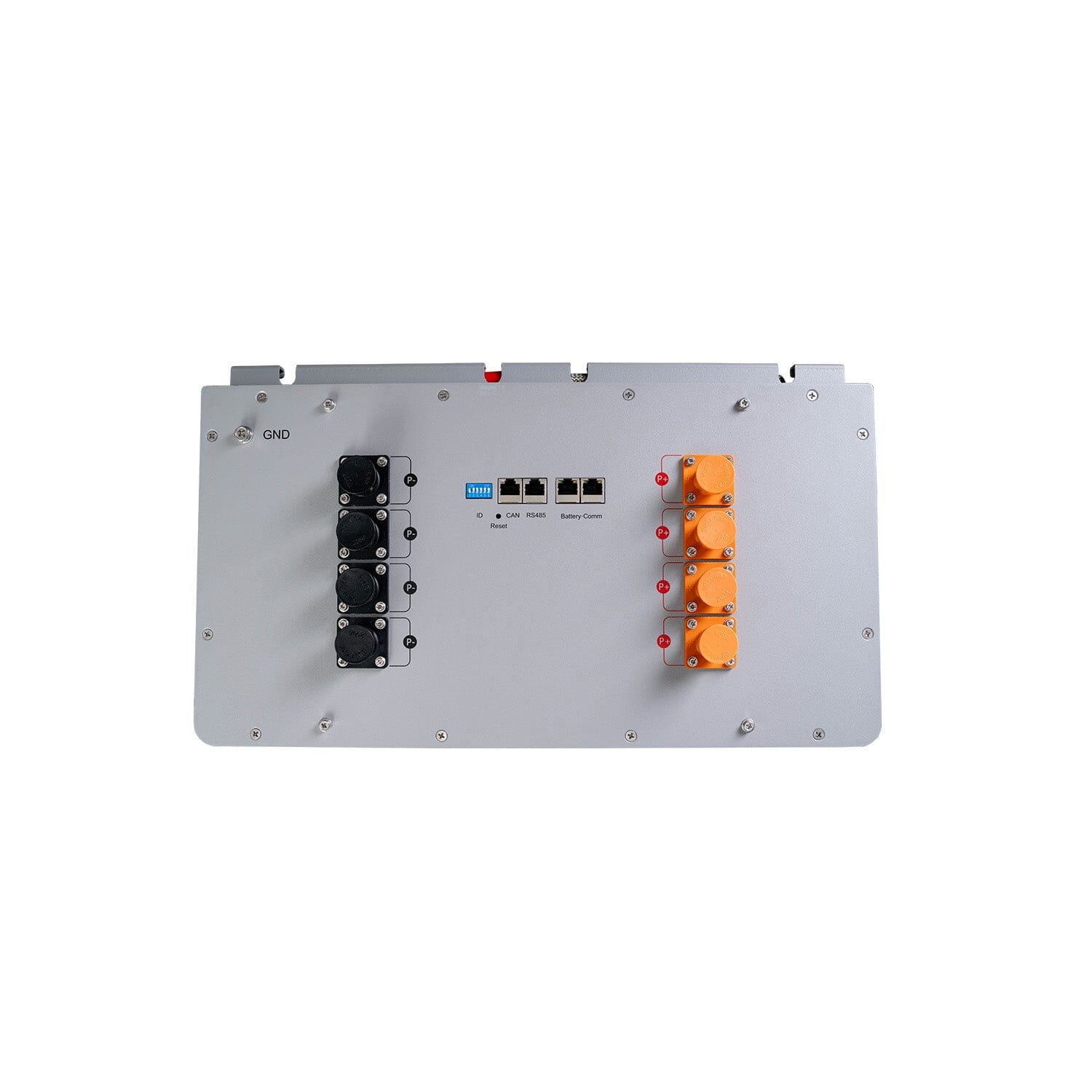

INTEGRATED BUSBARS

The battery design comes manufactured with 600A internal busbars with multiple terminals (4 positive & 4 negative) eliminating the need for external busbars when paralleling batteries and/or multiple inverters.

INNOVATIVE EMERGENCY STOP FUNCTION

The optional ESS disconnect can shut down all batteries and inverters (if equipped with rapid shut down capability) with the press of a button.

THE PERFECT PARTNER TO EG4 INVERTERS

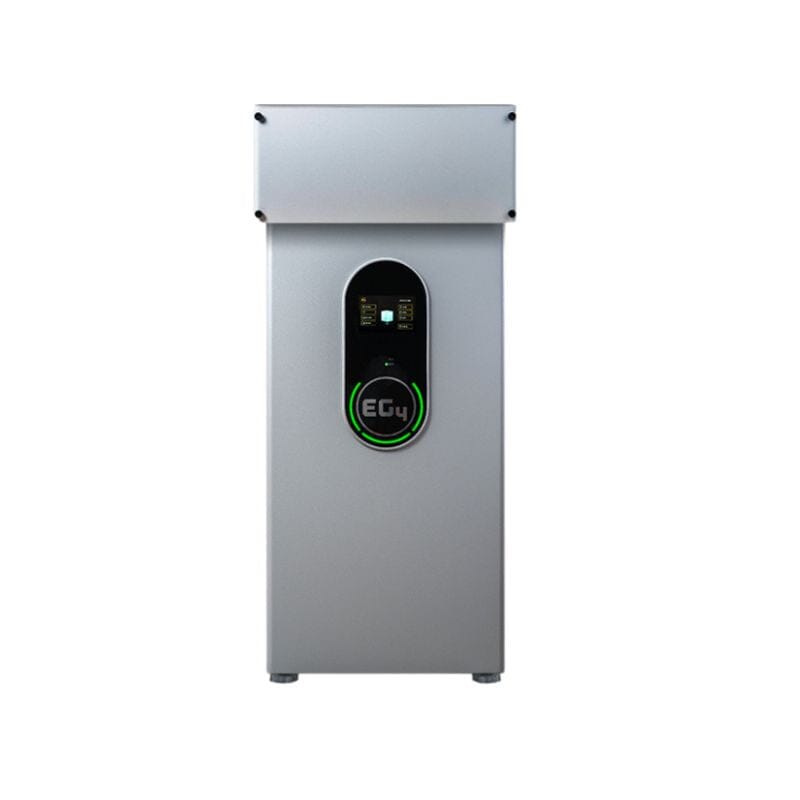

The optional conduit box mates up directly to the connection ports of EG4 inverters allowing a sleek and efficient installation. For other inverters or stand-alone battery installation, the conduit box plugs should be installed.

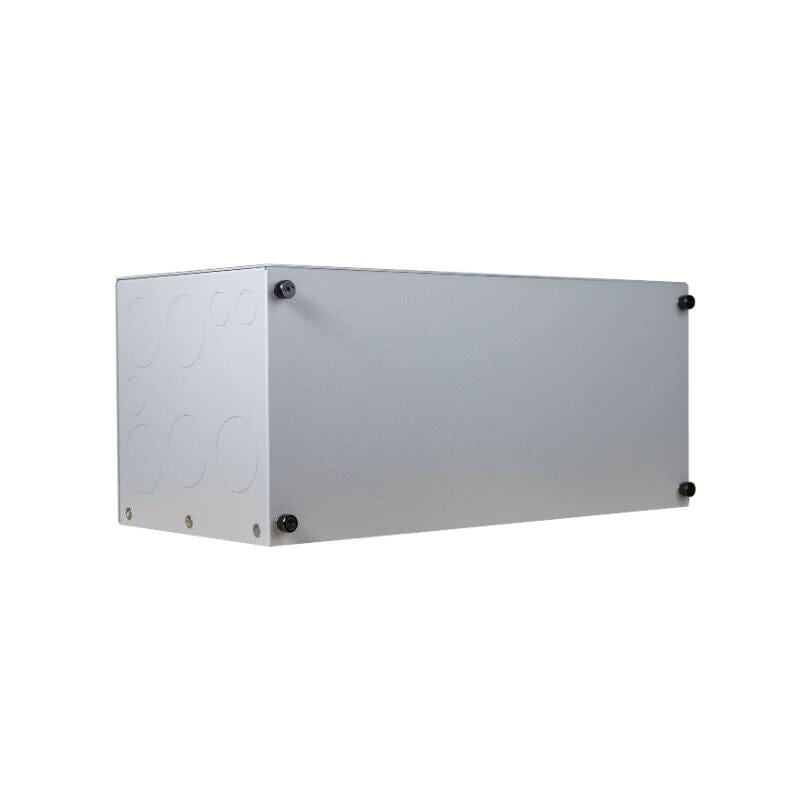

The EG4 Indoor Buildable Conduit Box guards cables and connections between your battery and inverter, for added safety and protection against accidental damage. The conduit box is designed to pair the EG4 WallMount Indoor 280Ah Lithium Battery with EG4 18kPV, 12kPV, or 6000XP inverters, ensuring a versatile fit for your energy storage system. The unit is equipped with side knockouts for battery-to-battery cable runs between paralleled batteries.

FEATURES AND BENEFITS

• Direct fit combination of EG4 18kPV, 12kPV, or 6000XP inverters with EG4 WallMount Indoor 280Ah Lithium Batteries
• Protects cables and connections between EG4 inverters and batteries
• Protects cables and connections on paralleled batteries, with side knockouts for battery-to- battery cable runs
• Multiple side and top knockouts for custom use with non-EG4 inverters
• Box size allows for proper wire spacing per NEC code
• Easy and rapid assembly with included hardware
• Compact flatpack for easy shipping

EG4 WallMount Indoor Lithium Battery Specifications

• Voltage 51.2V
• Capacity 280Ah
• Charging Voltage (BULK/ABSORB) 56.0V (+/-0.8V)
• Low DC Cutoff 44.8V
• Charging Current 100/140/200A
• Discharging Current 200A (Max. continuous)
• Charging Range 32° to ≈113°F (0°C to ≈45°C)
• Discharging Range -4°F to ≈122°F (-20°C to ≈50°C)
• Storage Range -4°F to ≈122°F (-20°C to ≈50°C)
• Ingress Protection IP20
• Cell Balance 120mA
• Temperature Accuracy 3%
• Voltage Accuracy 0.5%
• Current Accuracy 3%
• SOC 5%
• Power Consumption Sleep & Off Mode <300uA
• Power Consumption Operating Mode <25mA
• Communication Ports RS485/CAN
• Voltage 56V
• Power Consumption 224W
• Internal Battery Temperature ≤32°F (0°C)/≥41°F (5°C)
• Dimensions (H×W×D) 36.4 in.×18.1 in.×9.6 in. (92.5 cm×46 cm×24.5 cm)
• Weight 282 lbs. (128 kg)
• Design Life >15 Years
• Cycle Life >8000 Cycles, 0.5C 80% DOD
• Lifetime Production 82.6MWh*
