EG4 6K XP Off-Grid Inverter | 8,000W PV Input | 6,000W Output | 48V 120/240V Split Phase | All-In-One Solar Inverter

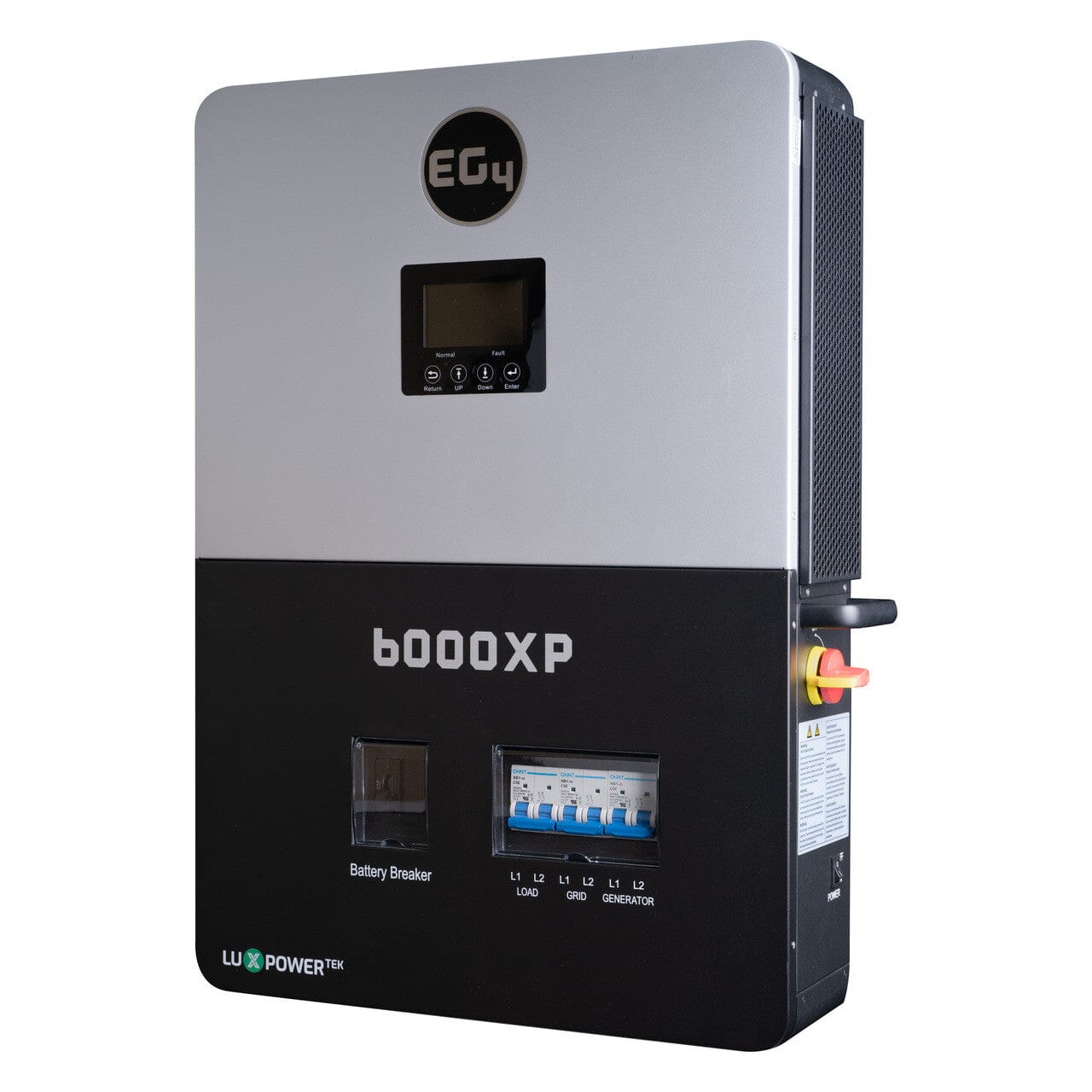

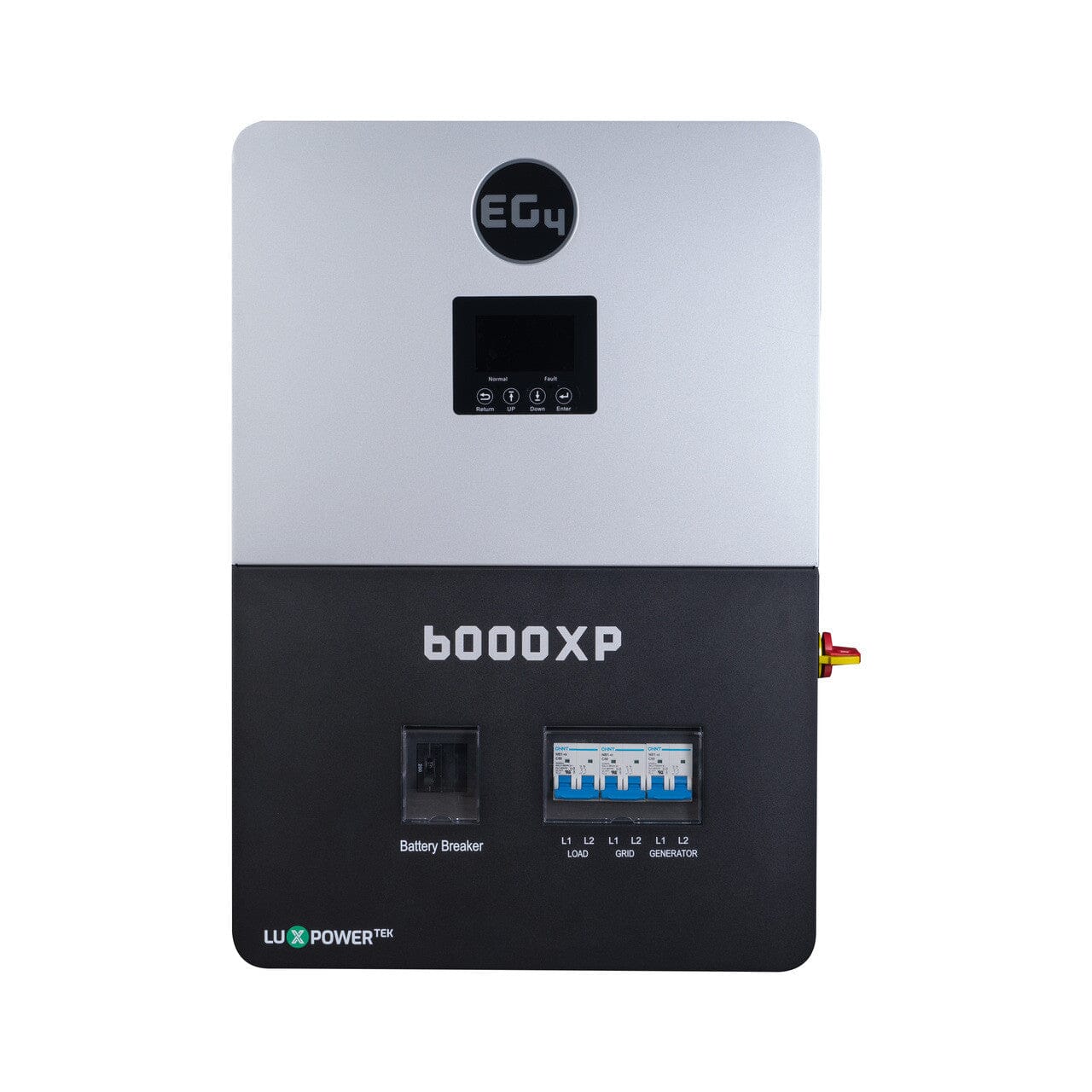

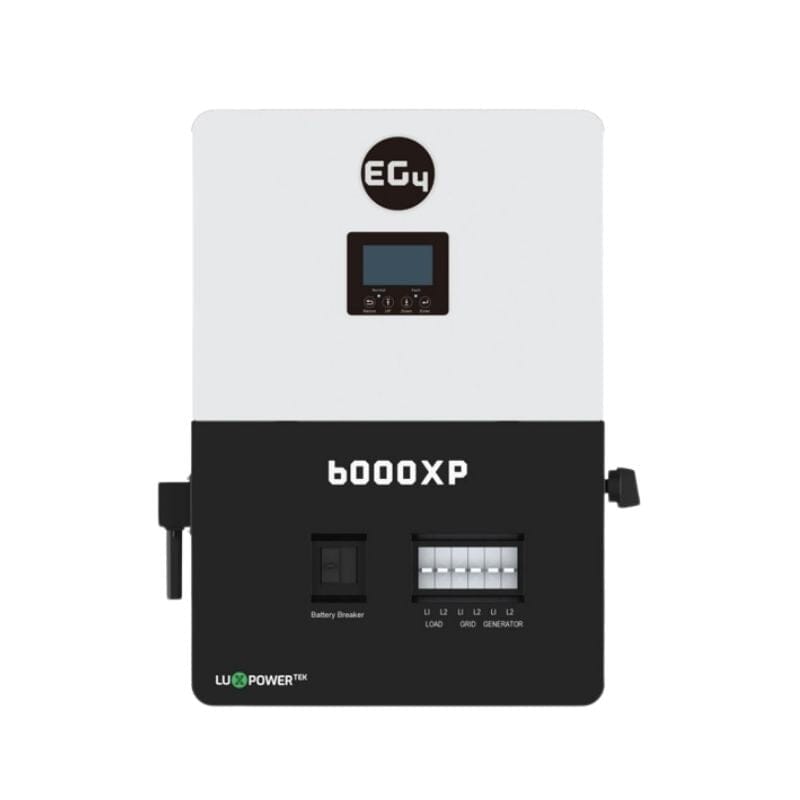

The EG4 6000XP Inverter is a 48V split-phase, off-grid inverter/charger capable of utilizing 8kW of PV and efficiently outputting 6kW of power while also charging your battery bank. Parallel up to 16 units for 96kWs worth of output power and control multiple stations and units using the new EG4 monitoring software.

Inverter Features

• Applicable for purely off-grid inverter/backup power situations.
• Integrated with 2 MPPT solar charge controllers with maximum PV input of 480V with an optimal range of 120VDC-385VDC.
• Rated for 6kW output, with a power factor of 1.
• Able to run without battery in off-grid mode.

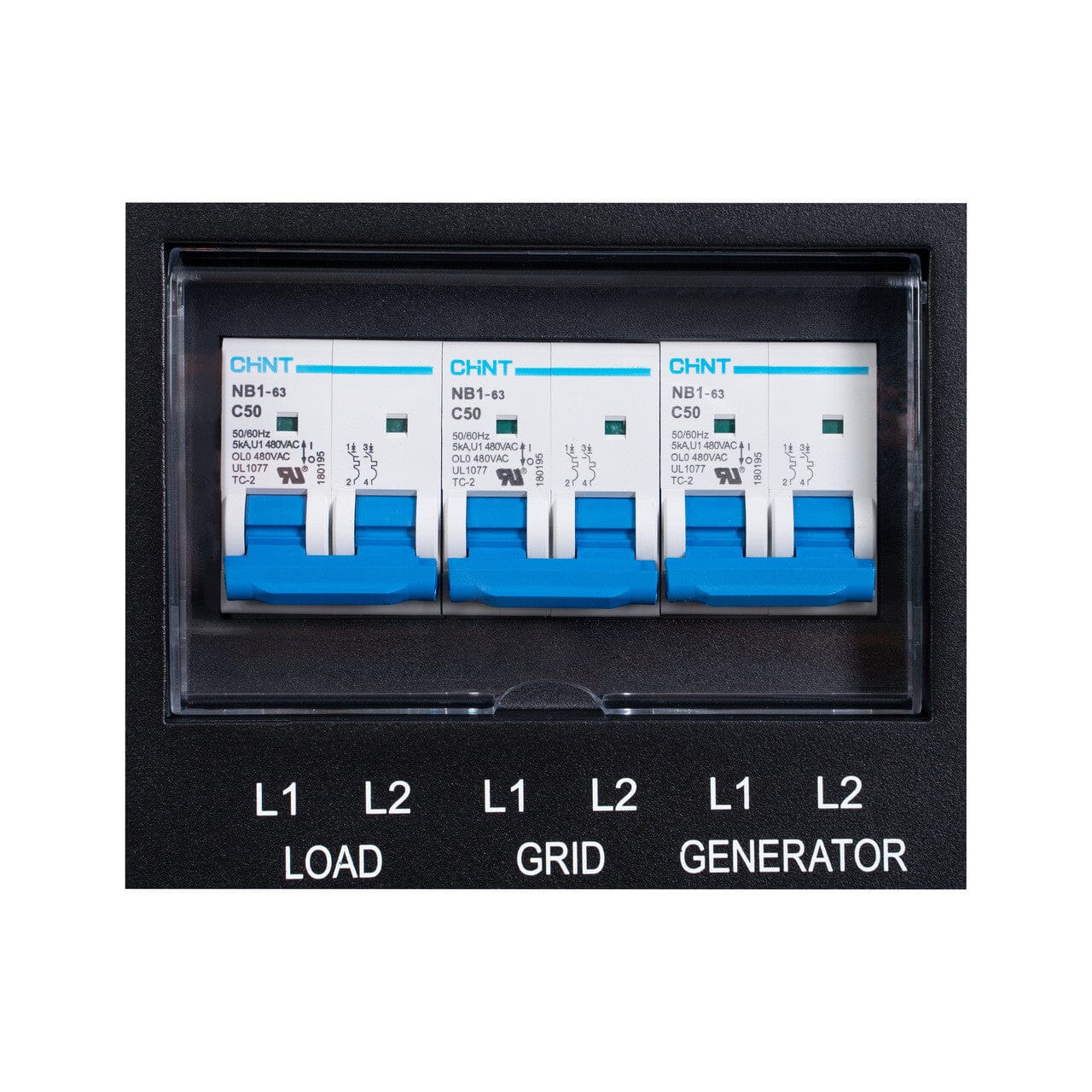

• Able to utilize generators with dedicated generator terminals.
• Supports paralleling for up to 16 inverters.
• Supports CAN/RS485 for Lithium battery communications.
• Features remote monitoring and firmware updates via mobile phone app or monitoring system website.
• Transformerless Split-Phase Design
• Remote Adjustment via EG4® Software
• 5-Year Warranty

All-In-One Solar Inverter

EG4 6000XP Inverter is capable of running entirely off the grid, or with grid input for supplemental charging and output power.

480VDC Max

The extra high voltage enables lower cable sizing for the 2 MPPTs and a maximum recommended PV input of 8,000W eliminating the need for a combiner box.

Mountable Wi-Fi Device

Enables wireless connection between our new monitoring platform and the 6000XP through the app or online website.

Closed-Loop Communications

Able to communicate with EG4® 48V batteries and other battery brands. *A firmware update is required for closed-loop communications with LifePower4 batteries.

High Frequency, Split Phase Output

Allows for 120/240V service application with only a single unit.

What's Included With Your Order?

• 1 x 6000XP Inverter
• 1 x User Manual
• 4 x Expansion Screws and Tubes
• 1 x Wi-Fi Module
• 2 x Cross Head Screws M6 x 16
• 4 x Cross Head Screws M3 x 10
• 1 x Mounting Template
• 1 x Inverter to Battery Comm. Cable (78 in. length)
• 1 x Inverter to Inverter Comm. Cable (78 in. length)
• Free Shipping
• Lifetime Customer Support (Email, Live Chat & Phone)

EG4 6000XP Inverter Specifications

AC Input Data

• Nominal AC Voltage 120-240VAC
• Frequency 50/60Hz
• Max. Continuous AC Current 37.5A @ 240VAC
• Max. AC Input Power 9000W

AC Grid Output Data

• Max. Continuous Output Current 25A
• AC Bypass (Grid) 60A
• Output Voltage 120/240VAC
• Nominal Power Output 6000W
• Output Frequency 50/60Hz
• Power Factor 0.99 @ full load
• Reactive Power Adjust Range (-0.8) – (+0.8) leading adjustable

Backup/UPS AC Output Data

• Rated Output Current @ 240V 25A
• AC Bypass (Generator) 60A
• Rated Output Power 6000W
• Max Cont. Line Wattage 3000W
• Surge Capacity 12,000W for ~25 seconds
• Operating Frequency 50/60Hz
• THD (V) <3%
• Switching Time <15ms @ Single / <30ms @ Parallel

PV Input Data

• Number of MPPTs 2
• Inputs per MPPT 1
• Max. Usable Input Current 17/17A
• Max. Short Circuit Input Current 25/25A
• DC Input Voltage Range 100-480 VDC
• Unit Startup Voltage 100 VDC ± 10 VDC
• MPP Operating Voltage Range 120-385 VDC
• Nominal MPPT Voltage 320 VDC
• Maximum Utilized Solar Power 8000W (4000W per MPPT)
• Recommended Maximum Solar Input 10,000W

Efficiency

• MPPT Efficiency 99%
• Battery Charging Efficiency 93%
• Battery Discharging Efficiency 93%
• Idle Consumption (Standby mode) w/ PV w/ Battery w/ AC <30W** <50W 10W

Battery Data

• Type Lead-acid/Lithium
• Max. Charge/Discharge Current 140A
• Nominal Voltage 48 VDC
• Voltage Range 46.4-60 VDC (Lithium); 38.4-60 VDC (Lead-Acid)
• Rec. Battery Capacity per Inverter >200Ah

EG4 6000XP Inverter General Data

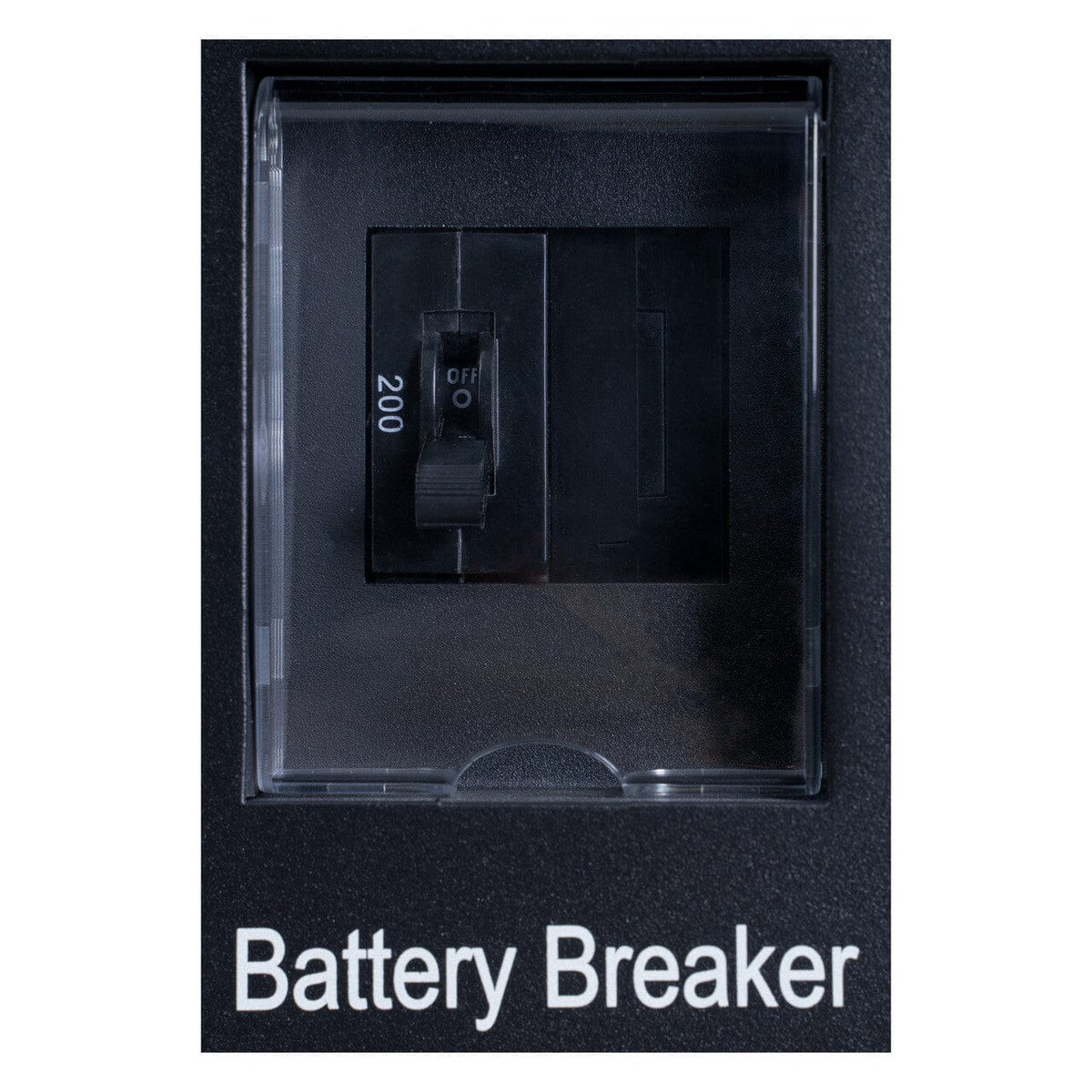

• Integrated Disconnect Yes
• DC Switch Rating for each MPPT Yes
• Dimensions 18×25.5×5.25 in (457×648×132mm)
• Weight 52.9 lbs (24kg)

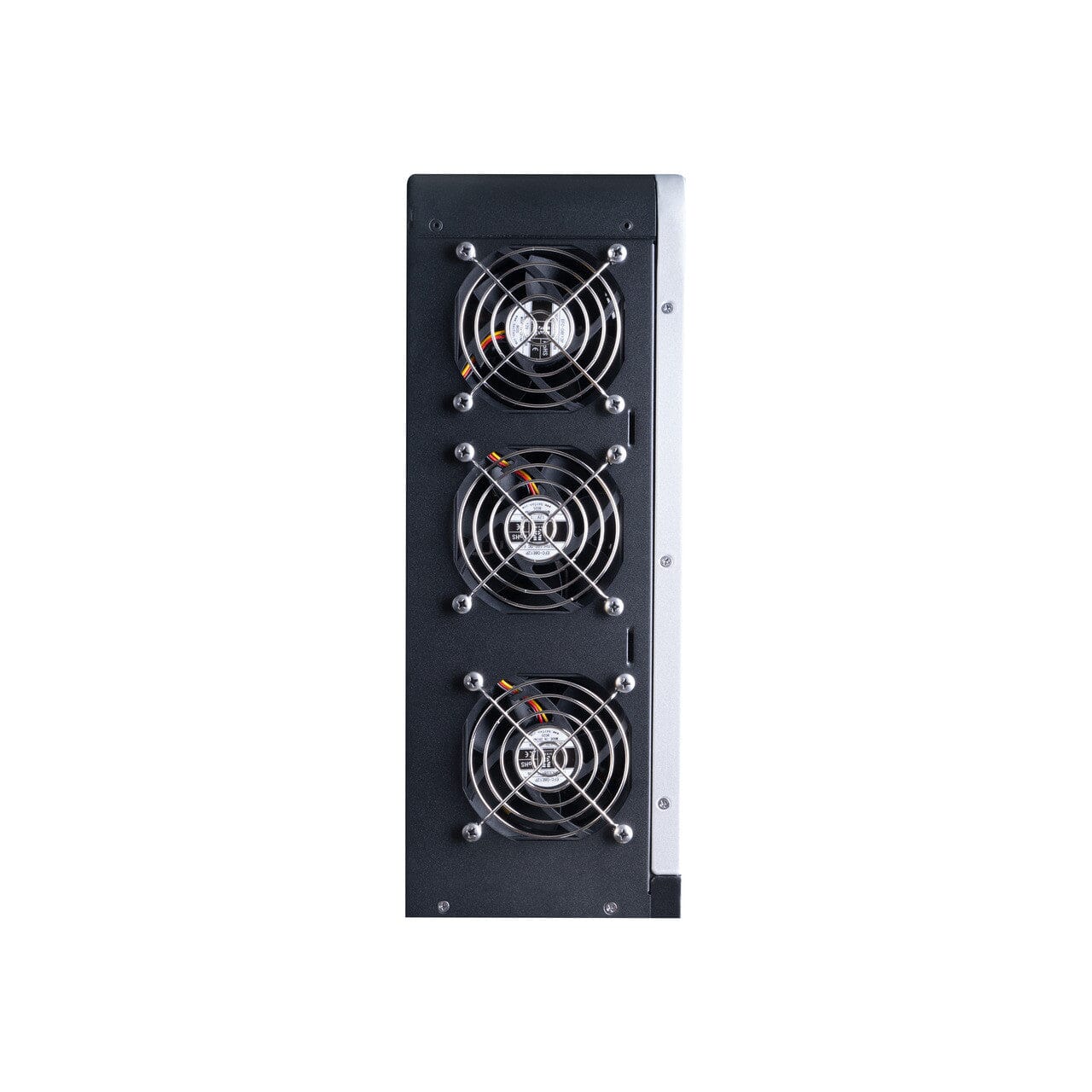

• Cooling Concept Fan
• Topology TL (Transformerless)
• Relative Humidity 5-95%
• Altitude <6561ft
• Operating Temperature Range 32 – 113°F (0 – 45°C)
• Storage Temperature Range 5 – 140°F (-15 – 60°C)
• Noise Emission (typical) <58 dB
• Display LCD + LED
• Communication Interface RS485/Wi-Fi/CAN
• Standard Warranty 5* year standard warranty
