General Overview

Sol-Ark's Sixth Generation of Hybrid Inverters

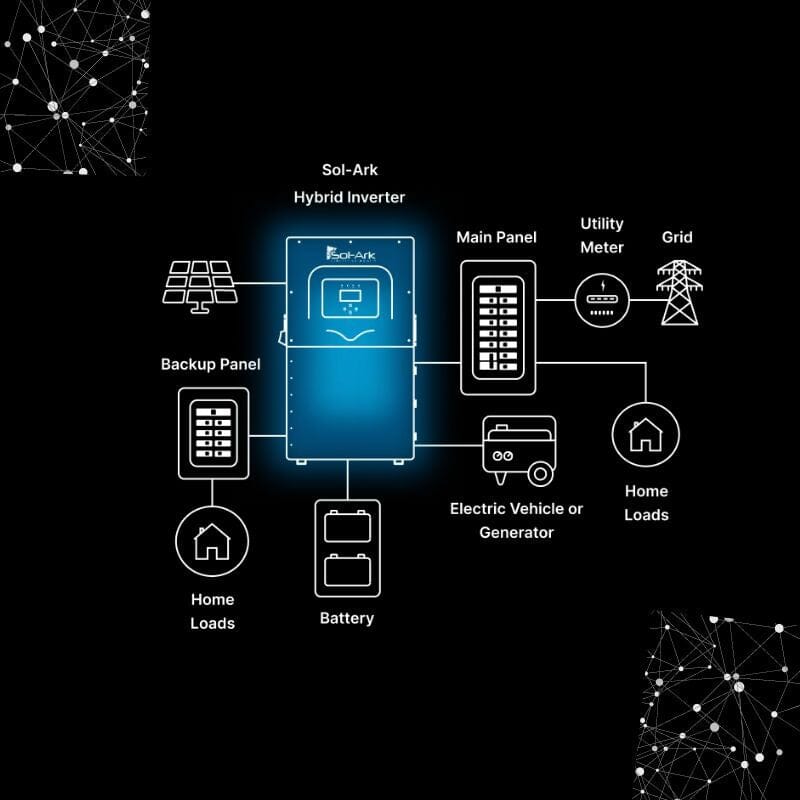

Whole Home Backup

Combined battery plus solar power handling of 15kW
A true whole home back-up in one box. Handles high (current or inductive) loads such as HVAC units and well pumps Hybrid Inverter

200A Grid Passthrough

Built-in to allow for cleaner, faster system installations. Eliminates the need to choose essential loads and route through a sub-panel
Less wiring needed
Fewer components simplify installation and reduce costs Residential Energy Storage Solutions 2x surge protection

2X Surge Protection

Inverter can handle sudden increases in power and supports a surge up to 24kW for up to 10 seconds
Handles heavy motors and inductive loads, including well pumps, HVAC & compressors

Dedicated Generator Passthrough

Incorporate a permanent or temporary generator system at any time with minimal wiring and low complexity
Get redundant back-up power with generator integration, the convenience of not having to physically start/stop generator and reduce fuel consumption Seamless Grid to Off-Grid Transfer Time

5MS Transfer Time

“No Glitch” seamless switching from grid to off-grid.

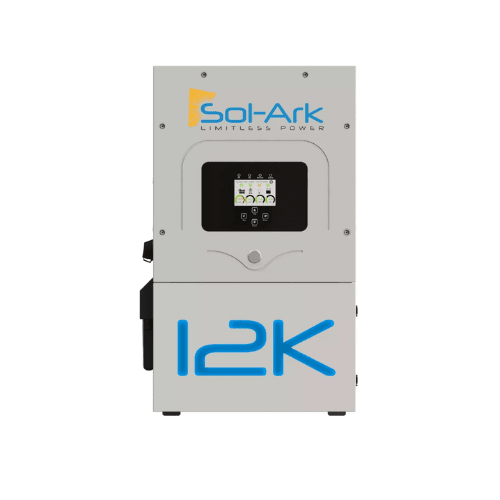

Sol-Ark 12K Specifications

Max. Allowed PV Power (STC): 13,000W
Rated MPPT Operating Voltage Range: 175 - 425V
MPPT Voltage Range: 150 - 500V
Startup Voltage: 125V
Max. DC Input Voltage: 500V
Max. Operating Input Current per MPPT: 20A (self-limiting)
Max. AC Coupled Input: 9,600W
Nominal AC Voltage: 120/240V, 120/208V, 220V
Grid Frequency: 50 / 60Hz
Real Power, max continuous: 9,000W
Max output current: 37.5A
Dimensions: 750 x 450 x 254 mm (29.5 x 17.7 x 10 in)
Weight: 35.4 kg / 78 lb.
Enclosure: IP65 / NEMA 3R
Ambient Temperature: -25~55°C, > 45°C Derating
Noise: < 30 dB @ 25°C (77°F)
Idle Consumption - No Load: 60W
Communication & Monitoring: Wi-Fi & LAN Hardware Included
Certification and Listings: UL1741-2010/2018, IEEE1547a 2003/2014,
FCC 15 Class B, UL1741SB, CA Rule 21, HECO Rule 14H

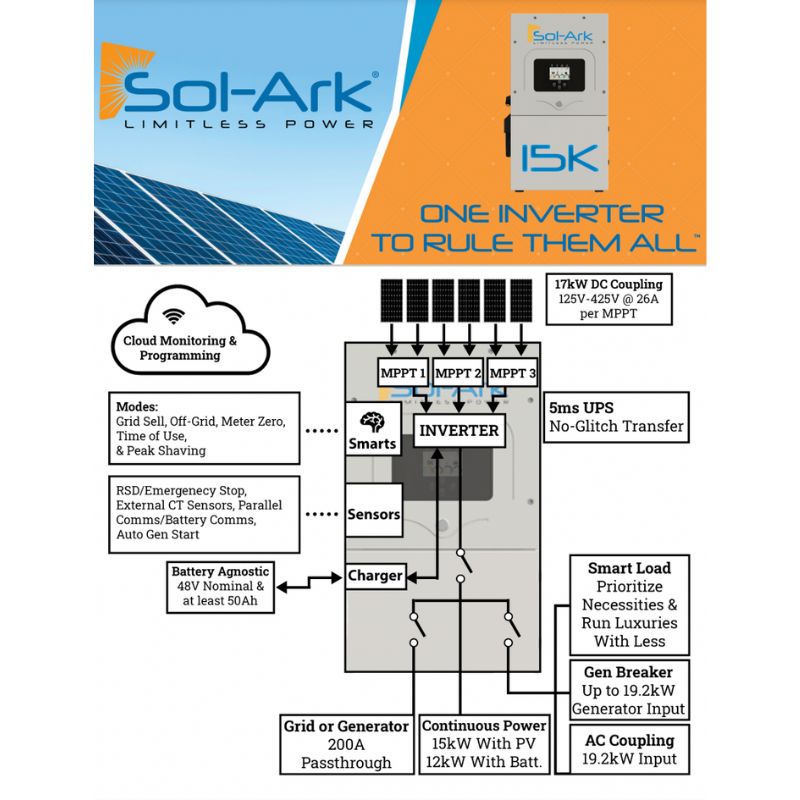

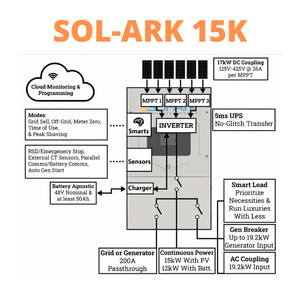

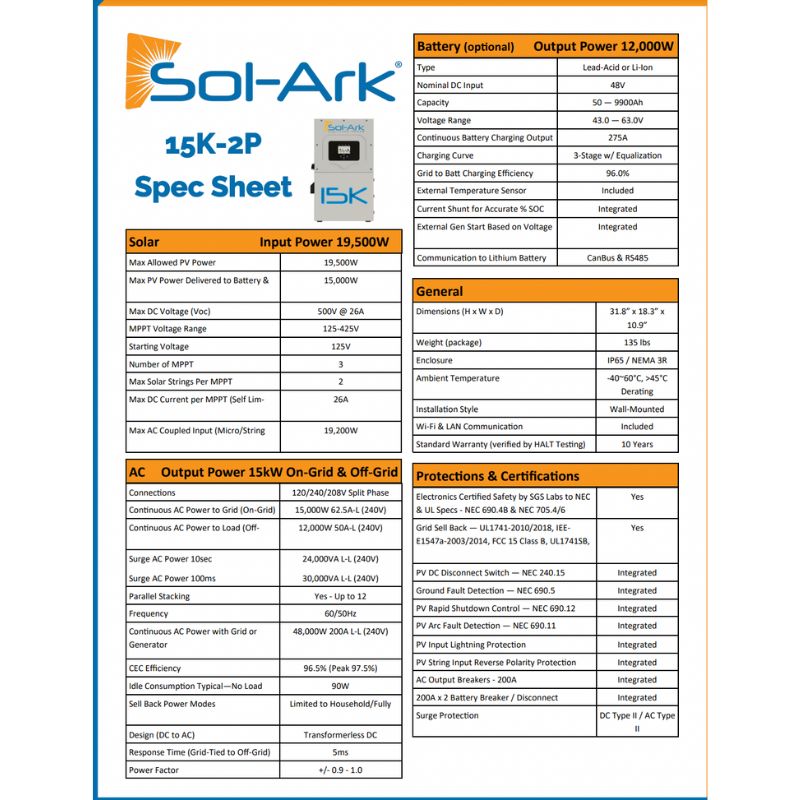

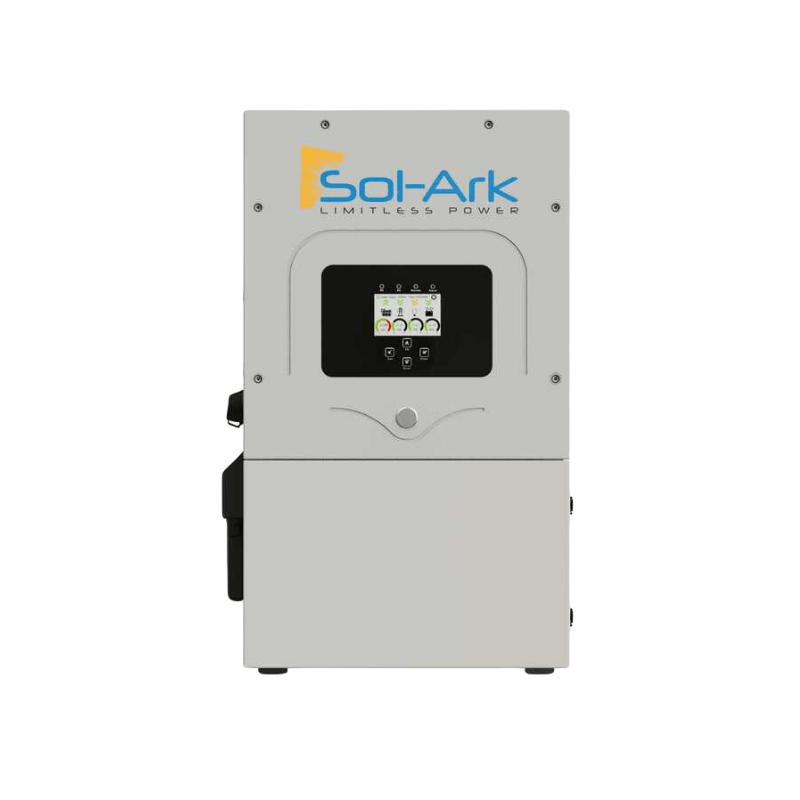

Sol-Ark 15K Specifications

Max. Allowed PV Power (STC): 19,500W
Rated MPPT Operating Voltage Range: 175 - 425V
MPPT Voltage Range: 150 - 500V
Startup Voltage: 125V
Max. DC Input Voltage: 500V
Max. Operating Input Current per MPPT: 26A
Max. Short Circuit Current per MPPT: 44A
Max. AC Coupled Input: 19,200W
Nominal AC Voltage: 120/240V, 120/208V, 220V
Grid Frequency: 50 / 60Hz
Real Power, max continuous: 15,000W
Real Power, max continuous (batteries only, no PV): 12,000W (50A @ 240V)
Max output current: 62.5A
Dimensions: 807 x 494 x 306 mm (31.8 x 19.4 x 12 in)
Weight: 61.2 Kg / 135 lb.
Enclosure: IP65 / NEMA 3R
Ambient Temperature: -25~55°C, > 45°C Derating
Noise: < 30 dB @ 25°C (77°F)
Idle Consumption - No Load: 90W
Communication & Monitoring: Wi-Fi & LAN Hardware Included
Certification and Listings: UL1741-2010/2018, IEEE1547a 2003/2014,
FCC 15 Class B, UL1741SB, CA Rule 21, HECO Rule 14H

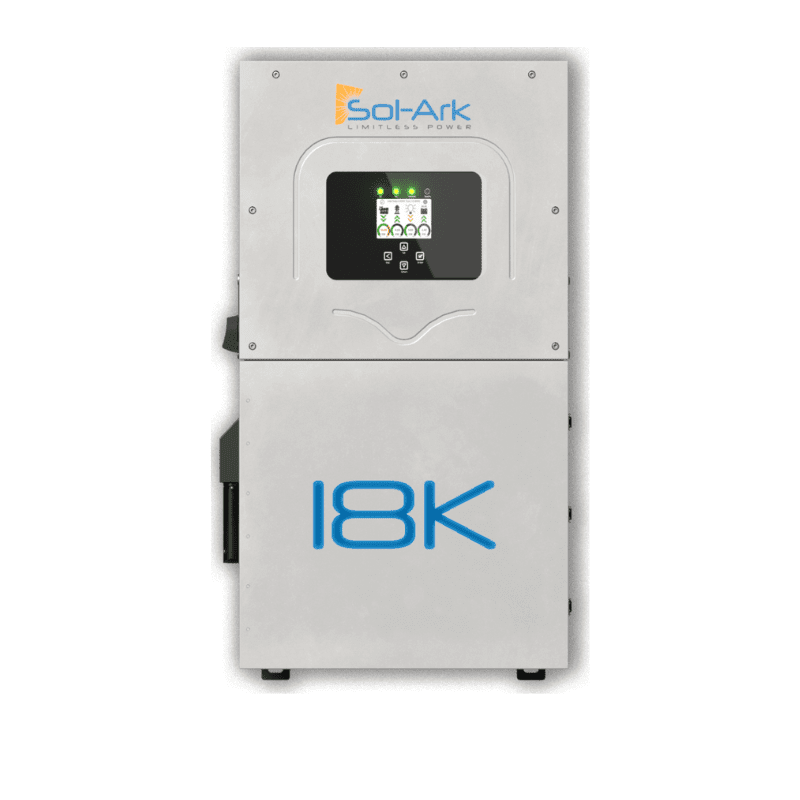

Sol-Ark 18K Key Features & Benefits:

⚡ 18,000W Continuous / 36,000W Surge Power – Ideal for whole-home backup and high-demand loads
☀️ Supports Over 40kW of Solar (AC Coupled) – Build massive arrays for maximum energy harvesting
🔋 350A Battery Charger – Fast, efficient charging for large 48V battery banks
⚙️ 3x MPPTs + 6x DC Inputs – Maximize solar efficiency and system flexibility
🔁 200A Grid Pass-Through + 5ms Auto Transfer – Seamless switchover during outages
🧠 Virtual Power Plant Ready + Time-of-Use Settings – Smart grid and off-grid compatible
🔐 DataLock Secure Firmware – U.S.-based engineering and secure communications
🔌 Generator Ready + Auto Start Capable – Integrated GEN port for additional resilience
🛡️ UL1741, IEEE1547 & NEMA 3R Rated – Fully certified for residential use
📦 DIY-Friendly Setup – Save thousands on install with included resources & support
🧰 Stackable Up to 12 Units – Expandable for large residential or commercial needs
✅ 10-Year Warranty + Legendary U.S. Support

User Manual / Documents:

Still Have Questions? Give us a call today 1-877-242-2792
