EG4 12K XP Off-Grid Inverter | 48V Split Phase | 24kW PV Input | 12kW Power Output | 5-Year Warranty - ShopSolar: Complete Solar Kits + Lifetime Customer Support

General Overview

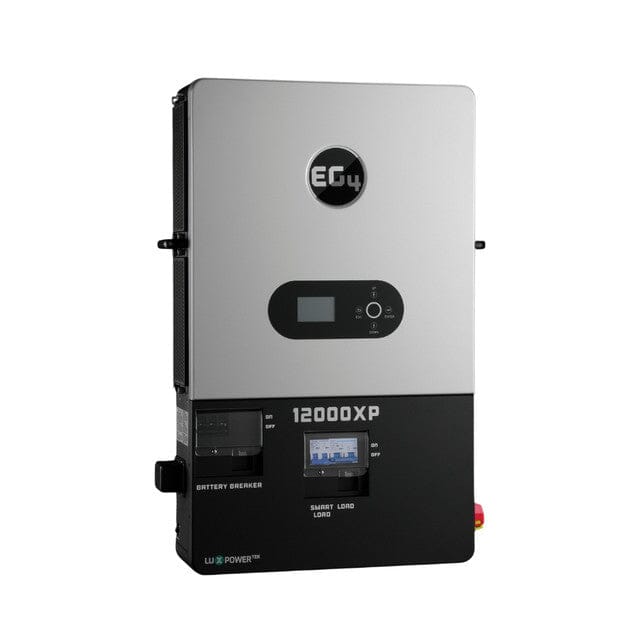

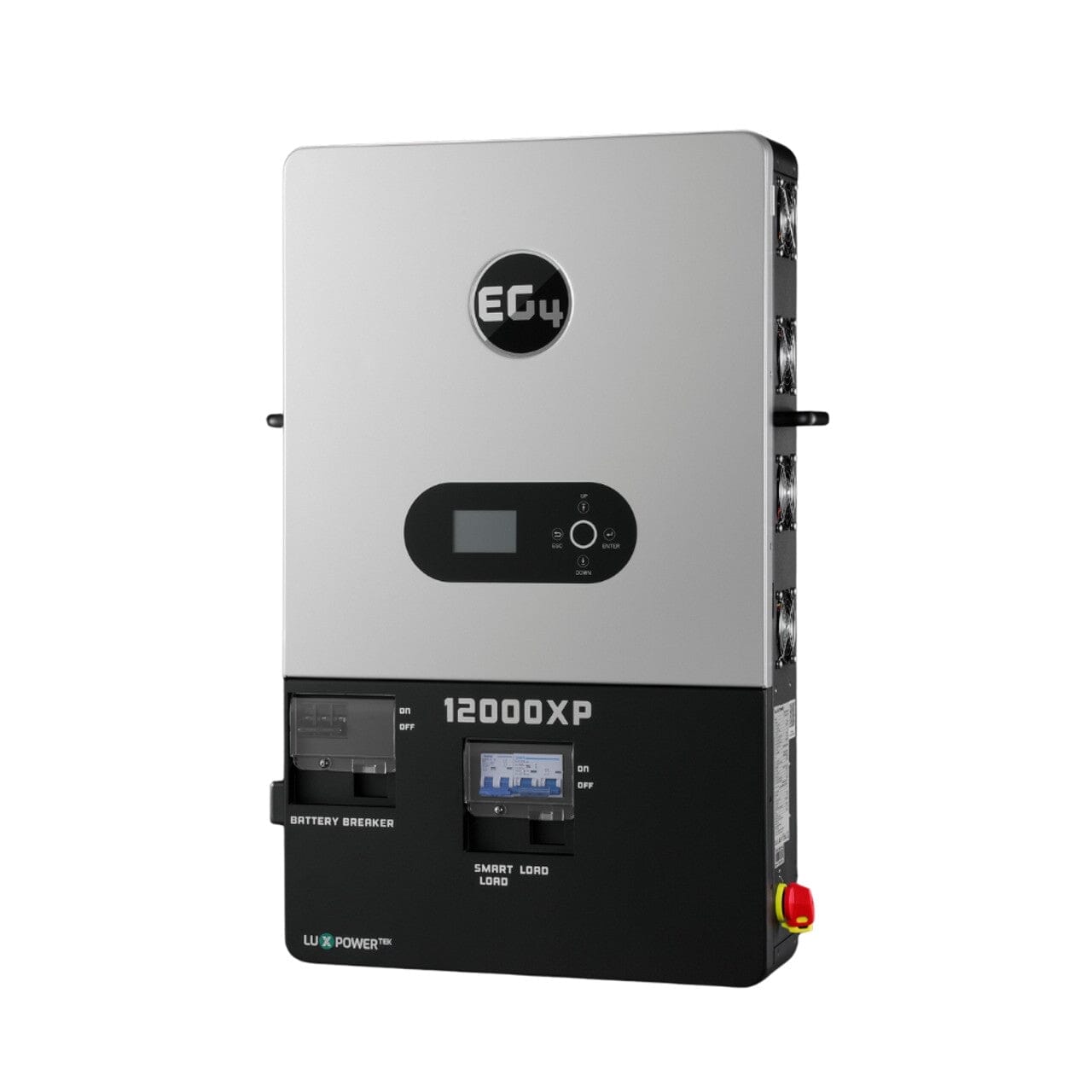

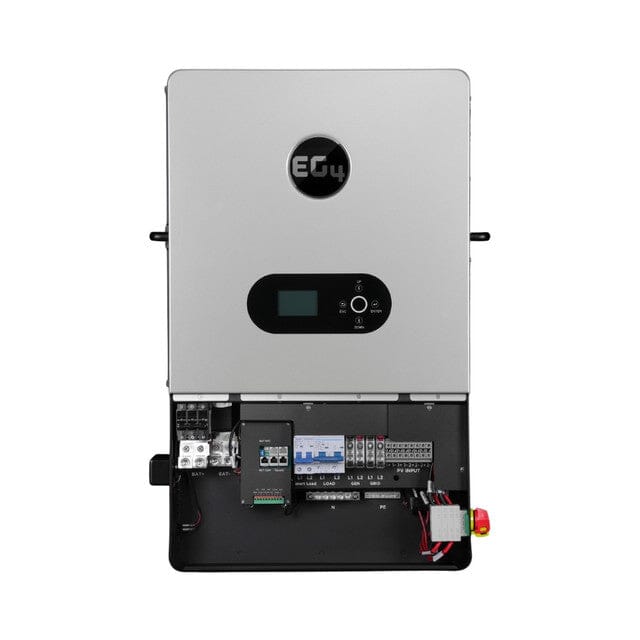

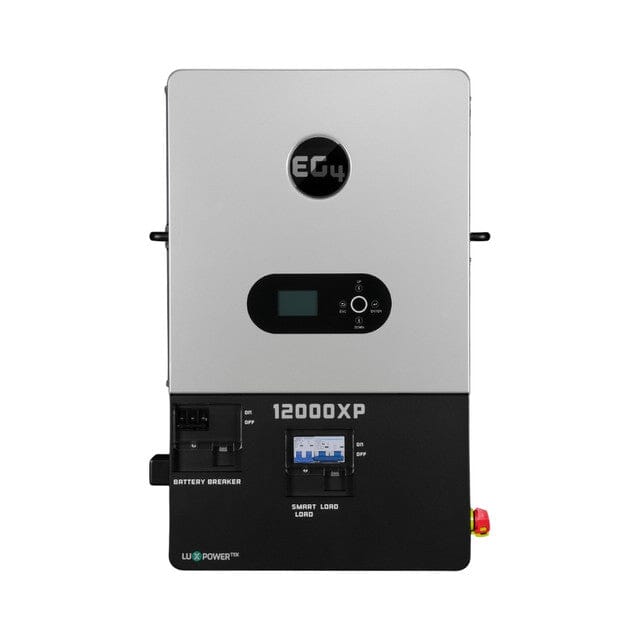

EG4 12,000XP Off-Grid Inverter V2

The EG4 12000XP V2 is designed for anyone seeking an efficient, all-in-one off-grid inverter with high power output, durable construction, and advanced communication features. Capable of running entirely off the grid or using grid electricity, this inverter is perfect for both residential and commercial setups.

Key Features

High Input Voltage (480VDC): Supports high-voltage input, reducing the need for extensive cabling and allowing for up to 24kW PV input without a combiner box.
Dual MPPT Design: Ensures optimal solar energy utilization, providing efficiency and stability under varying sunlight conditions.
Plug-in Wi-Fi Capability: Monitor and adjust settings remotely using the EG4 app or Monitor system, adding convenience and control from any location.
Closed-Loop Communication: Seamlessly integrates with EG4 48V batteries and other supported brands, offering enhanced system performance and safety.
Rapid Shut Down Compliance: Equipped with NEC 690.12-ready rapid shutdown (RSD) capabilities for compliance and peace of mind in critical situations.

Performance Highlights

12kW Power Output with Surge Capacity up to 18kW: Delivers robust, consistent power with the ability to manage heavy-duty appliances and equipment in off-grid settings.
Expandable Power Options: Parallel up to six units to reach a 72kW system, providing the flexibility to scale power output as needed.
High Efficiency Rates: Enjoy an impressive 99% MPPT efficiency, maximizing energy harvest and minimizing energy loss.

EG4 12000XP Off-Grid Inverter Technical Specifications

AC Input: 120/240VAC | 50/60 Hz
Max Continuous Output: 12kW
Surge Capacity: 18kW (5 seconds)
Battery Compatibility: Lead-Acid/Lithium, with a recommended minimum of 400Ah per inverter
Operating Temperature: 32°F – 113°F (0°C – 45°C)
Protection Features: PV Reverse Polarity, Over-Voltage, and Surge Protection
Warranty: 5 years

Ideal Applications

Residential Off-Grid Living: Perfect for homes wanting to break free from grid reliance.
Remote Worksites and Cabins: Ensures a steady power supply, even in isolated locations.
Commercial and Industrial Use: Robust enough to handle demanding off-grid requirements.

Why Choose the EG4 12000XP V2?

With high output power, advanced safety features, and remote management capabilities, the EG4 12000XP off-grid inverter V2 provides an industry-leading solution that meets all your off-grid energy needs. Engineered for efficiency and durability, this inverter is your best choice for reliable and scalable power.

Still have questions? Give us a call at 877-242-2792

General Overview

EG4 12,000XP Off-Grid Inverter V2

Key Features

High Input Voltage (480VDC): Supports high-voltage input, reducing the need for extensive cabling and allowing for up to 24kW PV input without a combiner box.
Dual MPPT Design: Ensures optimal solar energy utilization, providing efficiency and stability under varying sunlight conditions.
Plug-in Wi-Fi Capability: Monitor and adjust settings remotely using the EG4 app or Monitor system, adding convenience and control from any location.
Closed-Loop Communication: Seamlessly integrates with EG4 48V batteries and other supported brands, offering enhanced system performance and safety.
Rapid Shut Down Compliance: Equipped with NEC 690.12-ready rapid shutdown (RSD) capabilities for compliance and peace of mind in critical situations.

Performance Highlights

12kW Power Output with Surge Capacity up to 18kW: Delivers robust, consistent power with the ability to manage heavy-duty appliances and equipment in off-grid settings.
Expandable Power Options: Parallel up to six units to reach a 72kW system, providing the flexibility to scale power output as needed.
High Efficiency Rates: Enjoy an impressive 99% MPPT efficiency, maximizing energy harvest and minimizing energy loss.

EG4 12000XP Off-Grid Inverter Technical Specifications

AC Input: 120/240VAC | 50/60 Hz
Max Continuous Output: 12kW
Surge Capacity: 18kW (5 seconds)
Battery Compatibility: Lead-Acid/Lithium, with a recommended minimum of 400Ah per inverter
Operating Temperature: 32°F – 113°F (0°C – 45°C)
Protection Features: PV Reverse Polarity, Over-Voltage, and Surge Protection
Warranty: 5 years

Ideal Applications

Residential Off-Grid Living: Perfect for homes wanting to break free from grid reliance.
Remote Worksites and Cabins: Ensures a steady power supply, even in isolated locations.
Commercial and Industrial Use: Robust enough to handle demanding off-grid requirements.

Why Choose the EG4 12000XP V2?

Still have questions? Give us a call at 877-242-2792

EG4 12K XP Off-Grid Inverter V2 | 48V Split Phase | 24kW PV Input | 12kW Power Output | 5-Year Warranty

EG4 SKU: 1510979

Regular price: $2,589.00
Sale price: $2,589.00
Regular price: ~~$3,129.00~~

Product variants:

Quantity:

Request a Free Solar Proposal

No obligation — get a custom quote in minutes

Flat Rate ShippingCalculated at Checkout

Lifetime Customer SupportUnlimited lifetime support, always available.

Free ReturnsFree Returns within 30 Days of Purchase

Lifetime Support on Every Order, Guaranteed.

Instant Live Chat Available Now

877-242-2792 Call us now for help choosing

Info@shopsolarkits.com Email us for in-depth guidance

Mon-Thu: 10am-5:30pm EST | Fri: 10am-1pm EST

EG4 12K XP Off-Grid Inverter V2 | 48V Split Phase | 24kW PV Input | 12kW Power Output | 5-Year Warranty

$2,589.00

Testimonials

50,000+ Happy Customers

Join thousands of happy customers who made the switch to solar.

"Amazing experience from start to finish. The team was incredibly helpful and the system is performing beyond expectations. Couldn't be happier with our decision."

John D.

Texas, USA

Verified Buyer

"The whole process was seamless. From ordering to installation, everything was straightforward. Our electricity bill has dropped significantly!"

Sarah M.

California, USA

Verified Buyer

"Best investment we've made for our home. The customer support is outstanding — they walked us through every step of the setup process."

Mike R.

Florida, USA

Verified Buyer

"We compared prices everywhere and this was by far the best deal. The quality of the panels is top-notch and installation guidance was superb."

Emily T.

Arizona, USA

Verified Buyer

"Great product and even better customer service. They helped us design the perfect system for our needs. Highly recommend to anyone considering solar."

David L.

Colorado, USA

Verified Buyer

"From the free proposal to the final install, everything exceeded our expectations. We're producing more energy than we consume most months!"

Lisa K.

Nevada, USA

Verified Buyer

"Amazing experience from start to finish. The team was incredibly helpful and the system is performing beyond expectations. Couldn't be happier with our decision."

John D.

Texas, USA

Verified Buyer

"The whole process was seamless. From ordering to installation, everything was straightforward. Our electricity bill has dropped significantly!"

Sarah M.

California, USA

Verified Buyer

"Best investment we've made for our home. The customer support is outstanding — they walked us through every step of the setup process."

Mike R.

Florida, USA

Verified Buyer

"We compared prices everywhere and this was by far the best deal. The quality of the panels is top-notch and installation guidance was superb."

Emily T.

Arizona, USA

Verified Buyer

"Great product and even better customer service. They helped us design the perfect system for our needs. Highly recommend to anyone considering solar."

David L.

Colorado, USA

Verified Buyer

"From the free proposal to the final install, everything exceeded our expectations. We're producing more energy than we consume most months!"

Lisa K.

Nevada, USA

Verified Buyer

Support

Frequently Asked Questions

Can't find what you're looking for? Reach out to our friendly support team.

Contact Support

Can you help with system sizing and design?

Yes. Our team can help you choose the right solar kit based on your goals, power needs, and location. We provide personalized guidance before and after your purchase at no additional cost.

How does shipping work?

Most products ship directly to your door using the most cost effective ground shipping services depending on size. You’ll receive tracking details and delivery coordination as soon as your order ships.

Are your systems DIY-friendly?

Many of our customers complete the majority of installation themselves using our diagrams and support resources. For final electrical connections, a licensed electrician may be required depending on local codes.

Do you offer installation services?

While we do not directly install systems, we can help connect you with qualified local professionals and provide technical documentation to support your installer.

What is your return policy?

We stand behind our products. If you have specific questions about returns, eligibility, or specific product conditions, you can learn more in our help center linked below.

How do warranties work?

All components are backed by manufacturer warranties. In addition, our team provides free lifetime technical support to assist you throughout the life of your system.

Do you offer financing?

Yes! We offer a variety of flexible payment plans to fit any budget. Options include monthly financing with competitive interest rates, and some plans require no money down. Apply during checkout and get approved in minutes.

What happens if I need help after purchase?

You’ll have direct access to our support team via phone, email, and chat. Whether it’s setup guidance or troubleshooting years down the road, we’re here to help.

Flexible Payment Options

Buy Now, Pay Later

We offer a wide variety of payment plan options to meet each customer's needs.

Quick & Easy Application

Fill out a short application and we'll match you with multiple payment plan options instantly.

Poor Credit or No Credit?

Don't sweat it. We welcome all credit scores and a credit score is not required for approval.

No Money Down Today

Some payment plans offer as little as no money down, if you qualify.*

Applied at checkout

Write a Review

average rating 5.0 out of 5

Based on 1 review

5 Stars

1 Review
4 Stars

0 Reviews
3 Stars

0 Reviews
2 Stars

0 Reviews
1 Star

0 Reviews

100% of reviewers would recommend this product to a friend

Quality	Rated 5 out of 5
Easy to Use	Rated 5 out of 5

Customer photos and videos

Open user-uploaded photo and review in a modal

1 Review

Sort by

Reviewed by Jim R.

Verified Buyer

I recommend this product

Age Range

65+

Rated 5 out of 5

Review posted

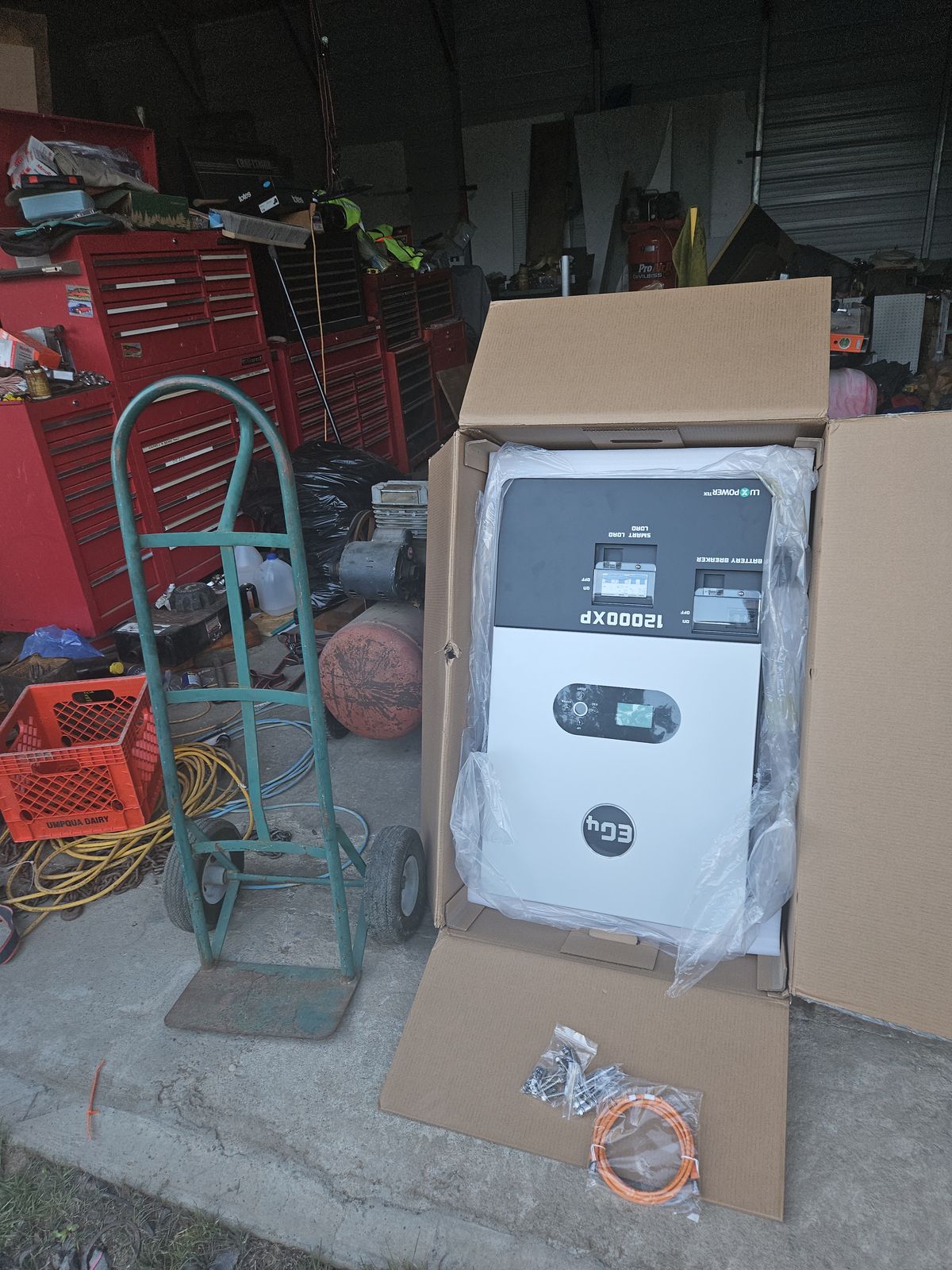

Finally an Inverter I can run my water heater and dryer on.

EG4 12K XP Off-Grid Inverter

Installed on June 2, 2025

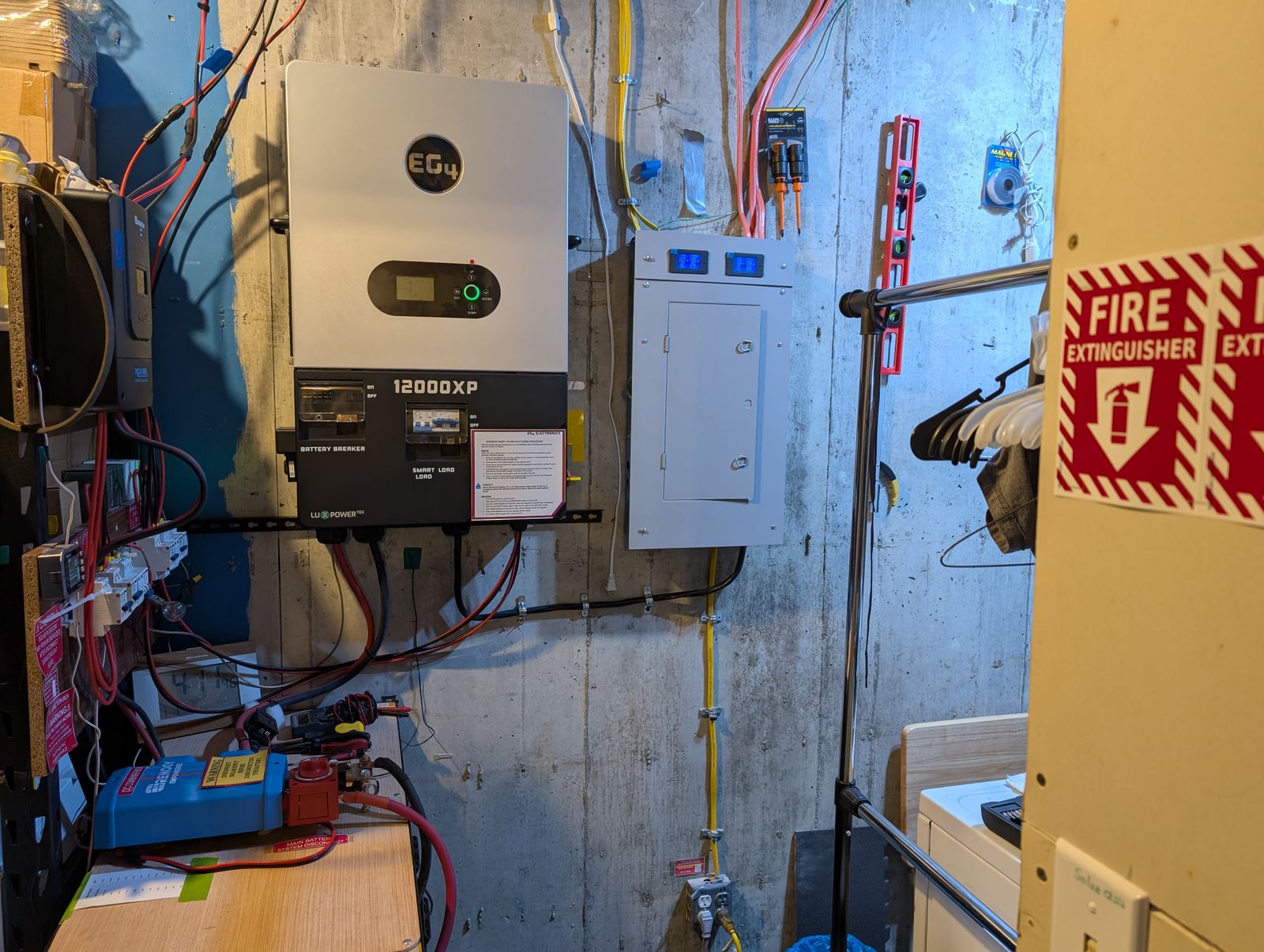

I have this set up in my utility room in an off grid setup .

No grid tie in. No gen tie in. Even tho it's capable.

Unit is on the heavy side.

Build quality looks great and was easy to set up.

I have around 5k watts of potential solar input to the EG4 12K ,

plus 800 watts from my Rover 60 all going to 1000 Ah's of battery storage.

I'm using a 40 amp service electrical box for what I think is critical to me during a grid failure.

It runs my living room entertainment center , kitchen refrigerator , freezer, water heater, a few lights,

washer and dryer, Wi-Fi and a dehumidifier.

Fan noise is acceptable as my max draw is around 30 + amps at 240vac. The dehumidifier's fan is a lot louder.

Does what I want.

So far so good. 1 month in.

Quality	Rated 5 out of 5
Easy to Use	Rated 5 out of 5
