Hysolis · Solar Generator

SKU: HYSOLIS-APOLLO-240-OCTO

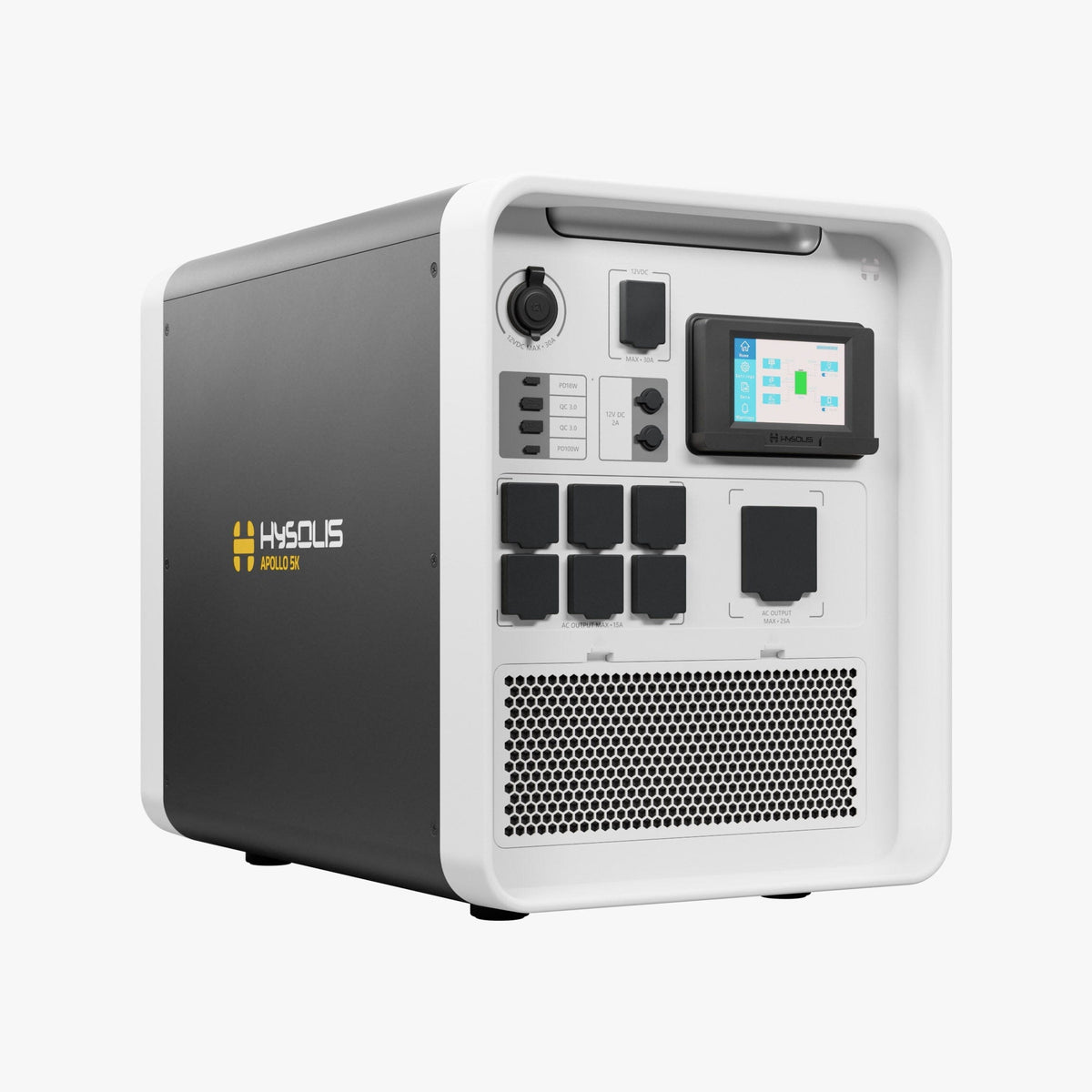

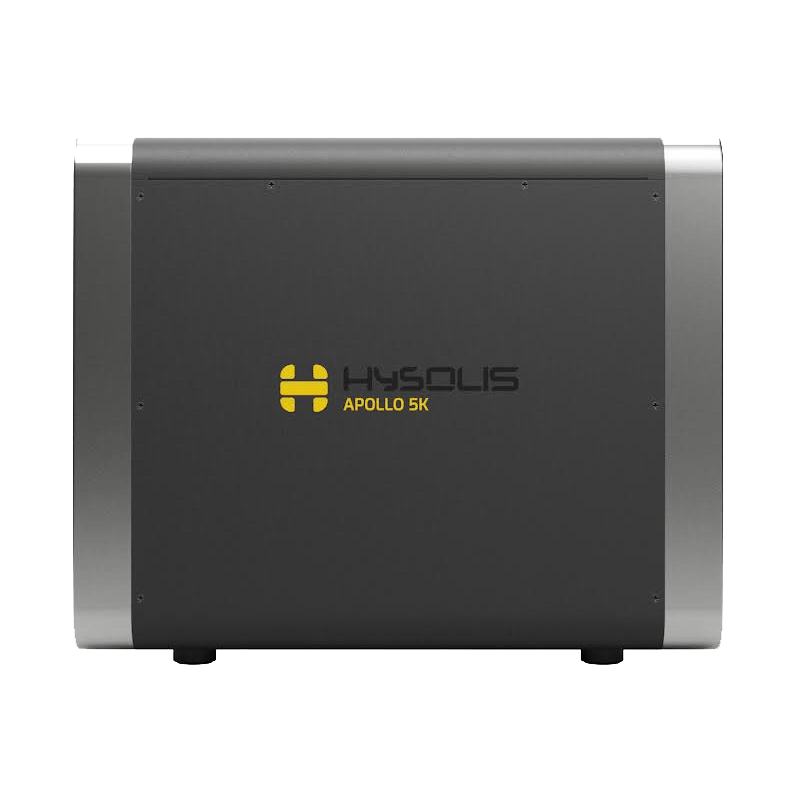

Hysolis Apollo 5K Complete Solar Kit

The Apollo 5K is a 5,376Wh modular power station; the standard split-phase 120V/240V kit pairs two units for 6,000W of combined continuous output, and you choose a bundle of rigid solar panels to go with it.

Capacity 5,376Wh per unit; the base split-phase kit uses 2 units (10,752Wh combined)

Output 3,000W continuous / 6,000W surge per unit — 6,000W continuous combined for the standard 2-unit split-phase kit

Solar charging 4,400W MPPT solar input per unit

Warranty 25-year warranty on included solar panels

Choose this kit if…

You want a modular power station you can start small with and expand later by adding more Apollo units or expansion batteries.

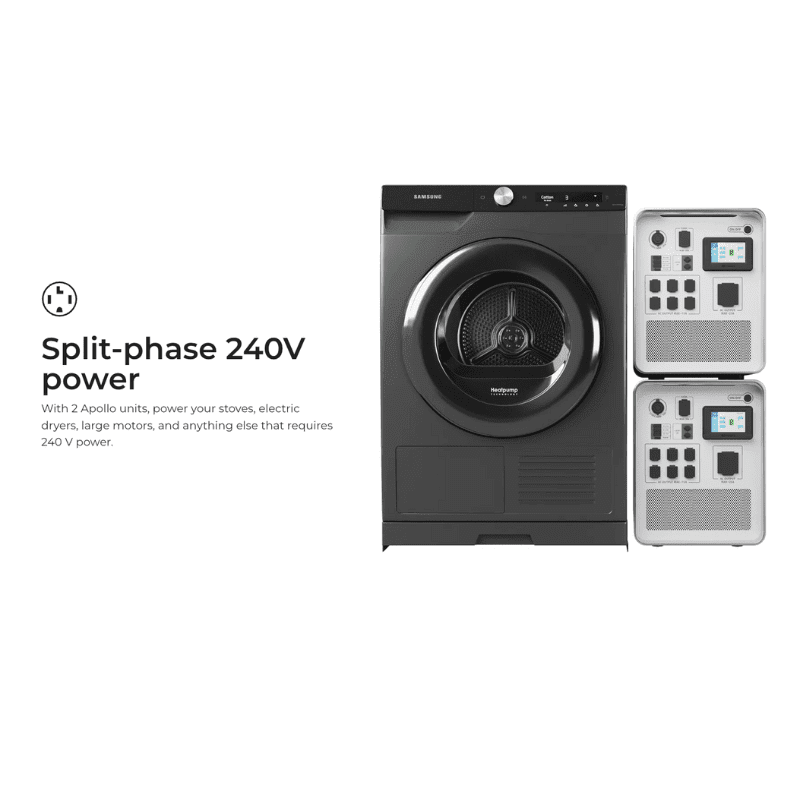

You need 120V/240V split-phase output to run larger appliances or well pumps, not just single-phase 120V devices.
You want off-grid, backup or business-site power with a UPS mode that switches instantly if grid power drops.

Your bundle

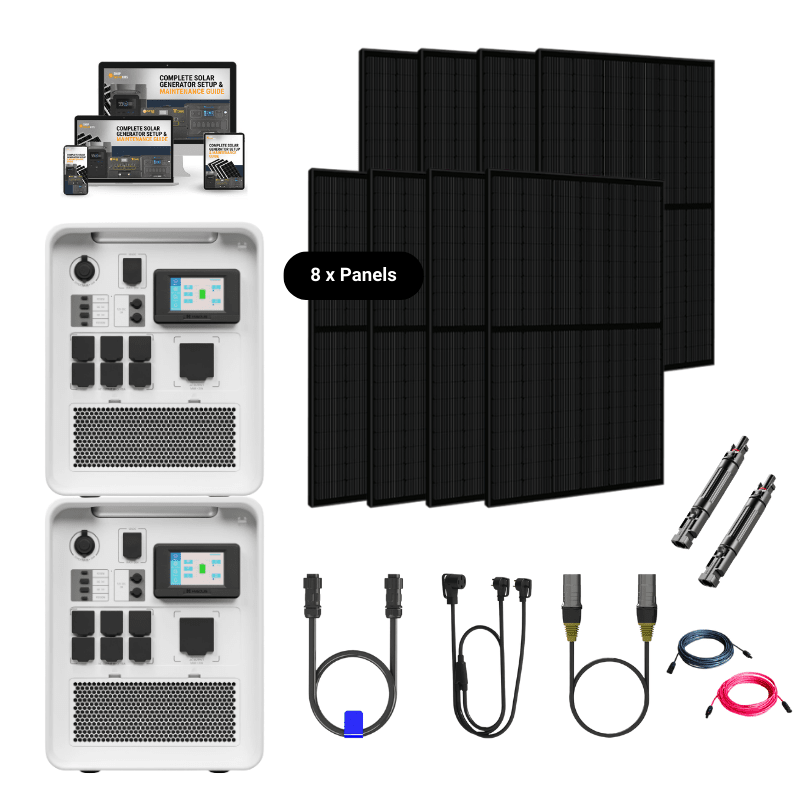

Hysolis Apollo 240 Octo Kit 8 x 400W Rigid Panels Base split-phase kit with 8 solar panels

Also available:

Choose your bundle

Every kit includes the same power station, its cables, our setup guide and lifetime support. What changes is the solar.

Hysolis Apollo 240 Octo Kit$9,787.84Best for base split-phase kit with 8 solar panels8 x 400W Rigid Panels~~$11,909.00~~Out of stock

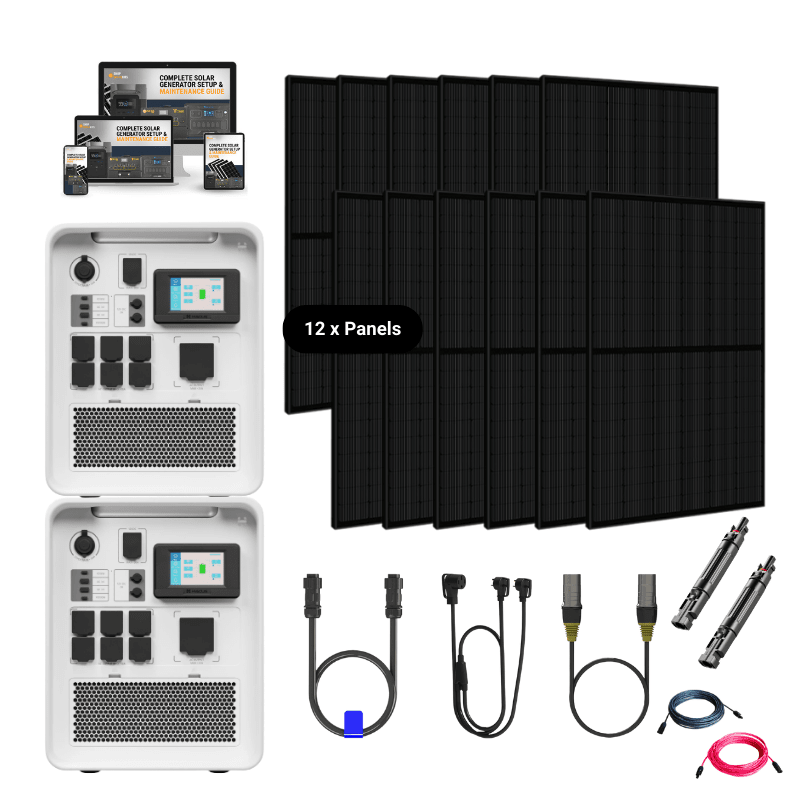

Hysolis Apollo 240 Dual Hex Kit$10,286.34Best for larger 12-panel array for more solar input12 x 400W Rigid Panels~~$12,619.00~~Out of stock

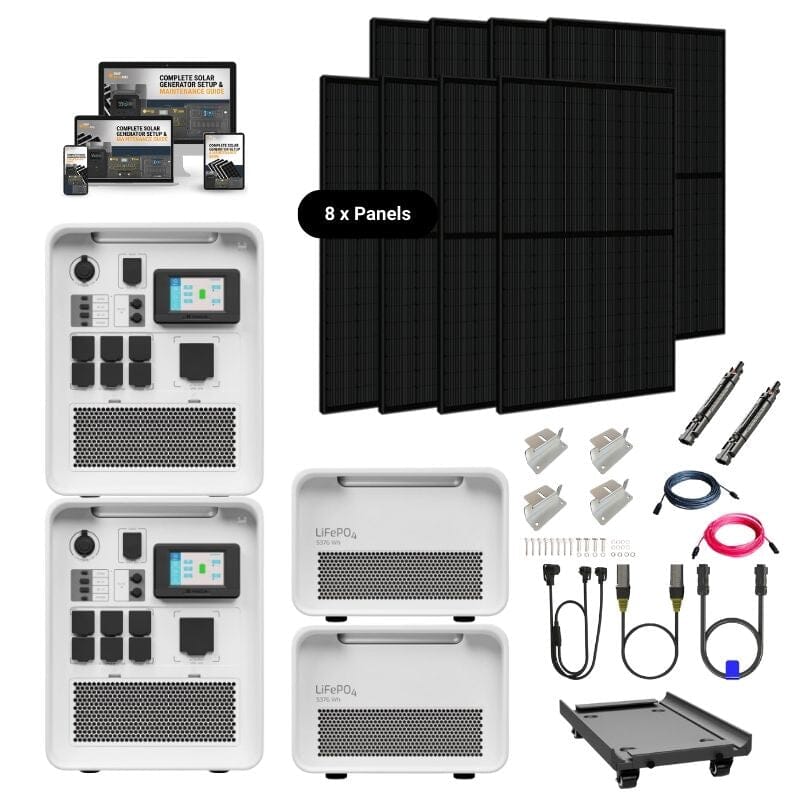

Hysolis Apollo 240 PLATINUM 1$15,528.93Best for premium tier with 8 panels8 x 400W Rigid Panels~~$19,039.00~~Out of stock

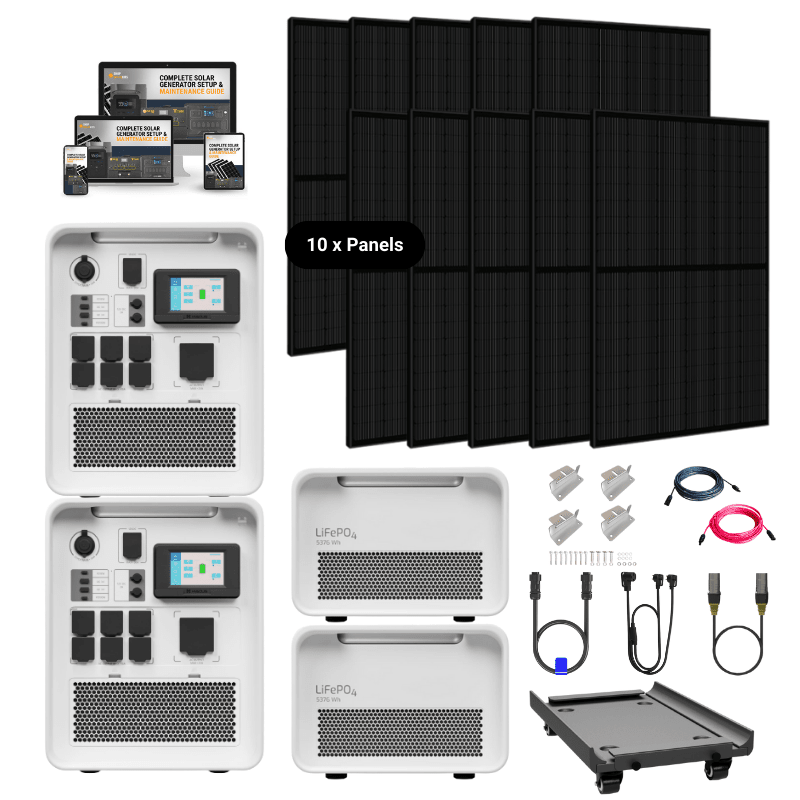

Hysolis Apollo 240 PLATINUM 2$15,884.61Best for premium tier with 10 panels10 x 400W Rigid Panels~~$19,589.00~~Out of stock

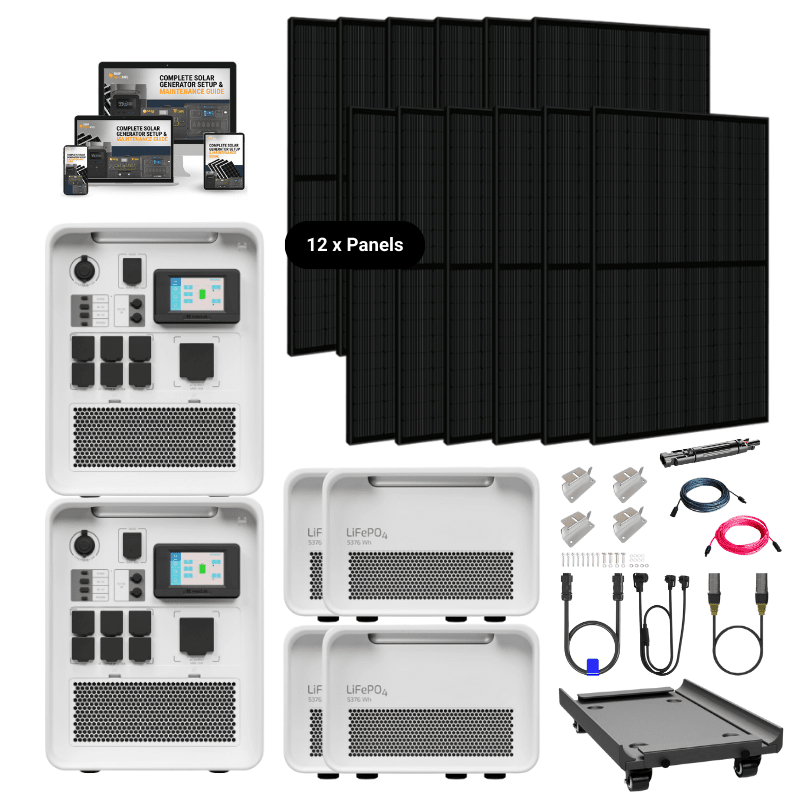

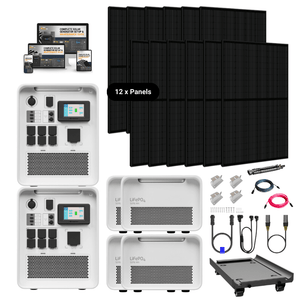

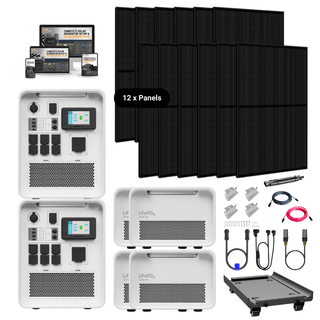

Hysolis Apollo 240 PLATINUM 3$20,985.91Best for premium tier with 12 panels, most solar input12 x 400W Rigid Panels~~$26,439.00~~Out of stock

2 x Hysolis Apollo 5K Units$7,807.41Best for units only, no solar panels — bring your own arrayUnits Only~~$10,699.00~~Out of stock

	Hysolis Apollo 240 Octo Kit	Hysolis Apollo 240 Dual Hex Kit	Hysolis Apollo 240 PLATINUM 1	Hysolis Apollo 240 PLATINUM 2	Hysolis Apollo 240 PLATINUM 3	2 x Hysolis Apollo 5K Units
Price	$9,787.84~~$11,909.00~~	$10,286.34~~$12,619.00~~	$15,528.93~~$19,039.00~~	$15,884.61~~$19,589.00~~	$20,985.91~~$26,439.00~~	$7,807.41~~$10,699.00~~
Panels & extras	8 x 400W Rigid Panels	12 x 400W Rigid Panels	8 x 400W Rigid Panels	10 x 400W Rigid Panels	12 x 400W Rigid Panels	Units Only
	2 x Hysolis Apollo 5K 5,376Wh / 5,000W Solar Power Stations 1 x Apollo 5K Split Phase Setup Kit 8 x 400W Monocrystalline Solar Panels - 25-Year Warranty All required cables, connectors and fuses	2 x Hysolis Apollo 5K 5,376Wh / 5,000W Solar Power Stations 1 x Apollo 5K Split Phase Setup Kit 12 x 400W Monocrystalline Solar Panels - 25-Year Warranty All required cables, connectors and fuses	2 x Hysolis Apollo 5K 5,376wH / 6,000W Solar Power Stations 2 x Hysolis Apollo 5K Expansion Battery 1 x Apollo 5K Split Phase Setup Kit 8 x 400W Monocrystalline Solar Panels - 25-Year Warranty 2 x Wheels Add-on All required cables, connectors and fuses	2 x Hysolis Apollo 5K 5,376wH / 6,000W Solar Power Stations 2 x Apollo Expansion Battery 1 x Apollo 5K Split Phase Setup Kit 10 x 400W Monocrystalline Solar Panels - 25-Year Warranty 2 x Wheels Add-on All required cables, connectors and fuses	2 x Hysolis Apollo 5K 5,376wH / 6,000W Solar Power Stations 4 x Apollo Expansion Battery 2 x Apollo 5K Split Phase Setup Kit 12 x 400W Monocrystalline Solar Panels - 25-Year Warranty 2 x Wheels Add-on All required cables, connectors and fuses	2 x Hysolis Apollo 5K 5,376Wh / 6,000W Solar Power Stations 1 x Apollo 5K Split Phase Setup Kit All required cables, connectors and fuses
Best for	Base split-phase kit with 8 solar panels	Larger 12-panel array for more solar input	Premium tier with 8 panels	Premium tier with 10 panels	Premium tier with 12 panels, most solar input	Units only, no solar panels — bring your own array

Hysolis Apollo 240 Octo Kit $9,787.84~~$11,909.00~~

Hysolis Apollo 240 Dual Hex Kit $10,286.34~~$12,619.00~~

Hysolis Apollo 240 PLATINUM 1 $15,528.93~~$19,039.00~~

Hysolis Apollo 240 PLATINUM 2 $15,884.61~~$19,589.00~~

Hysolis Apollo 240 PLATINUM 3 $20,985.91~~$26,439.00~~

2 x Hysolis Apollo 5K Units $7,807.41~~$10,699.00~~

Hysolis Apollo 240 Octo Kit selected $9,787.84

Regular price: $9,787.84
Sale price: $9,787.84
Regular price: ~~$11,909.00~~

You save $2,121.16

Talk it through with our team · 877-242-2792

Orders processed in 24–48 hours

Lifetime support by phone, chat & email

30-day returns

Full manufacturer warranty

Trusted by 50,000+ Customers powered since 2018

Lifetime Support Phone, email or live chat, for good

Price Match Found it cheaper? Tell us

Ships from the USA Warehouses in CA, TX and NY

Not sure which kit is right?

Tell us what you want to power and we will size the system with you, free, before and after you buy. The team picks up the phone Mon–Thu 10am–5:30pm and Fri 10am–1pm EST.

Get a free system proposal →info@shopsolarkits.com

Frequently bought together

Hysolis Apollo 5K · Hysolis Apollo 240 Octo Kit $9,787.84

Specifications

The numbers

Battery capacity: 5,376Wh per unit; the base split-phase kit uses 2 units (10,752Wh combined)
AC charging: 3,000W
Cycle life: 6,000+ cycles
Weight: Approx. 131 lbs
Warranty: 25 years warranty on included solar panels

In plain English

What that means for you

How long it lasts

What it can run

Charging speed

Moving it around

Room to grow

Scales are the ShopSolar team's read of the manufacturer's published specs.

Overview

Power that grows with you.

Hysolis Apollo 5K 120V 240V Kits

Largest LiFePO4 battery in any mobile solar generator

A whopping 5,376 LiFePO4 battery. Stores more energy to keep you powered up until the sun shines again. Featuring rectangular cell geometry.

5,376 Watt Hours
6000+ Life Cycles
20+ Years of Regular Use

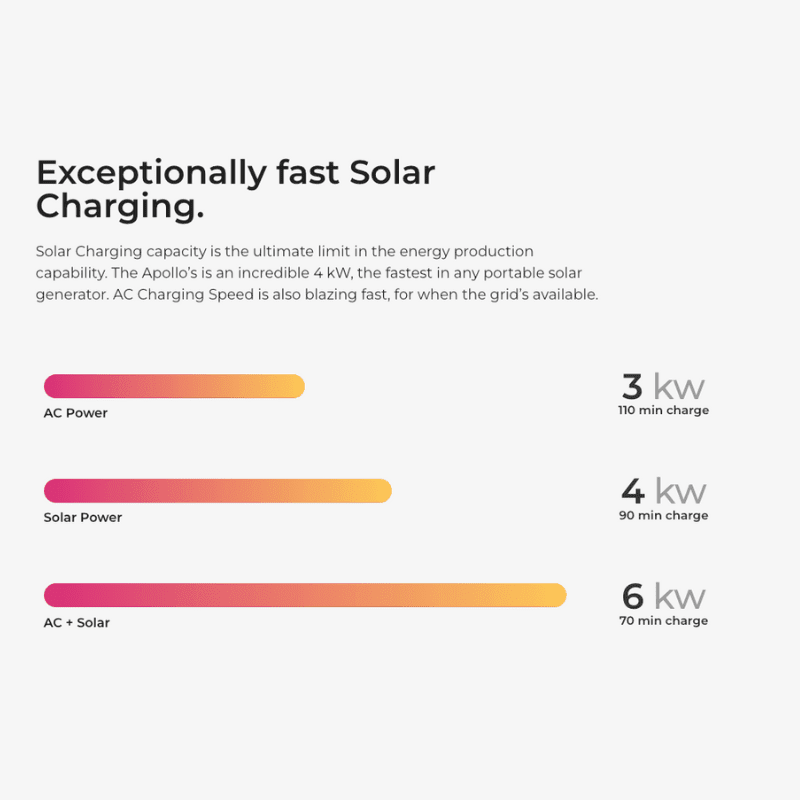

Exceptionally fast Solar Charging

Solar Charging capacity is the ultimate limit in the energy production capability. The Apollo’s is an incredible 4.4 kW, the fastest in any portable solar generator. AC Charging Speed is also blazing fast, for when the grid’s available.

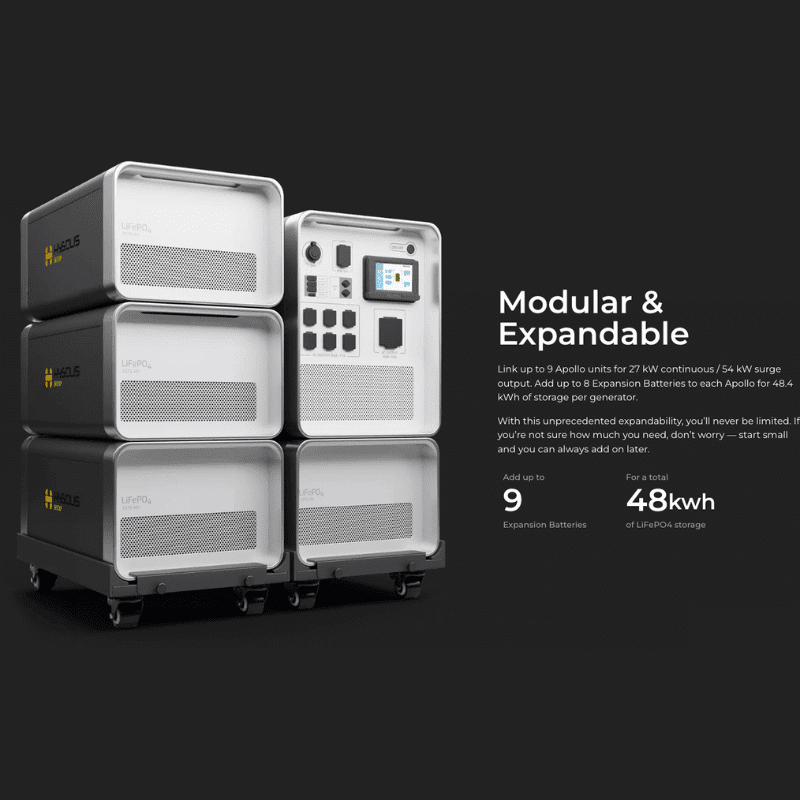

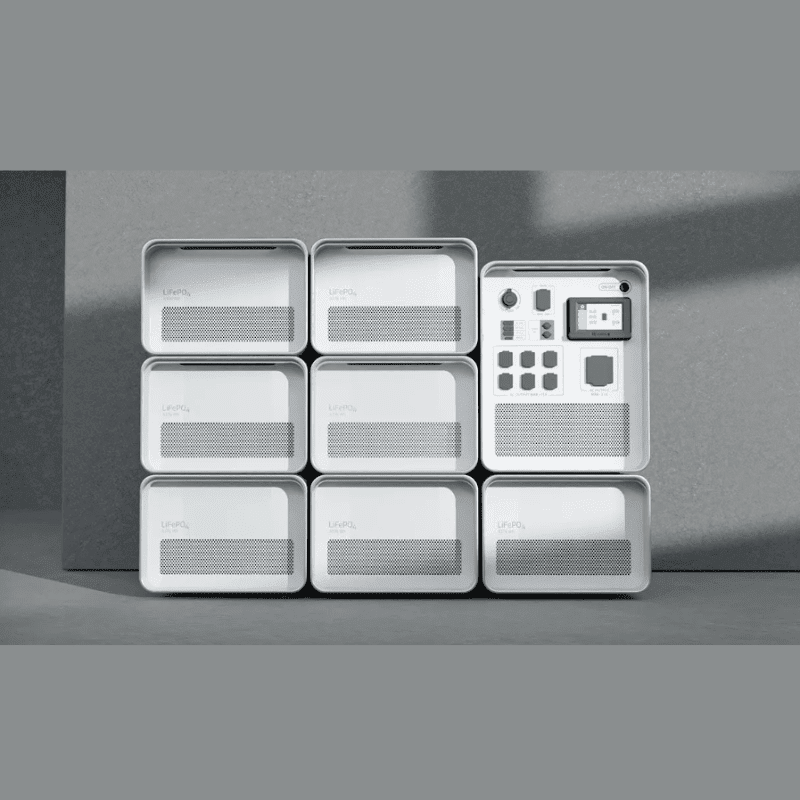

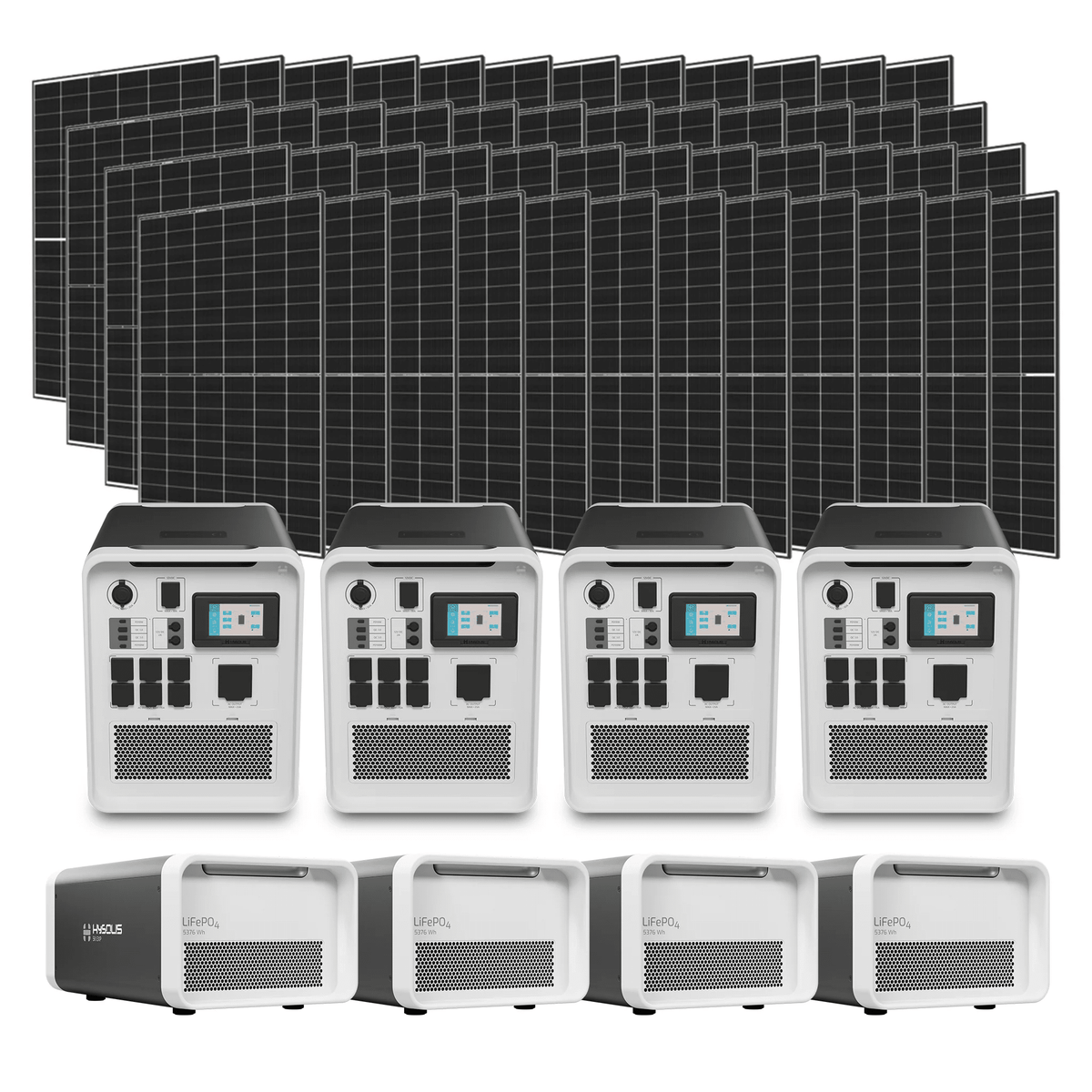

Modular & Expandable

Combine up to 12 Apollo units for 72 kW surge/36 kW continuous power and 65 kWh LiFePO4 storage. Add 10 Expansion Batteries for up to 118.3 kWh storage in a multi-unit system. A single Apollo can have 32.3 kWh storage with 5 Expansion Batteries. This incredible flexibility ensures you won't run out of power. Start small and easily expand as needed later.

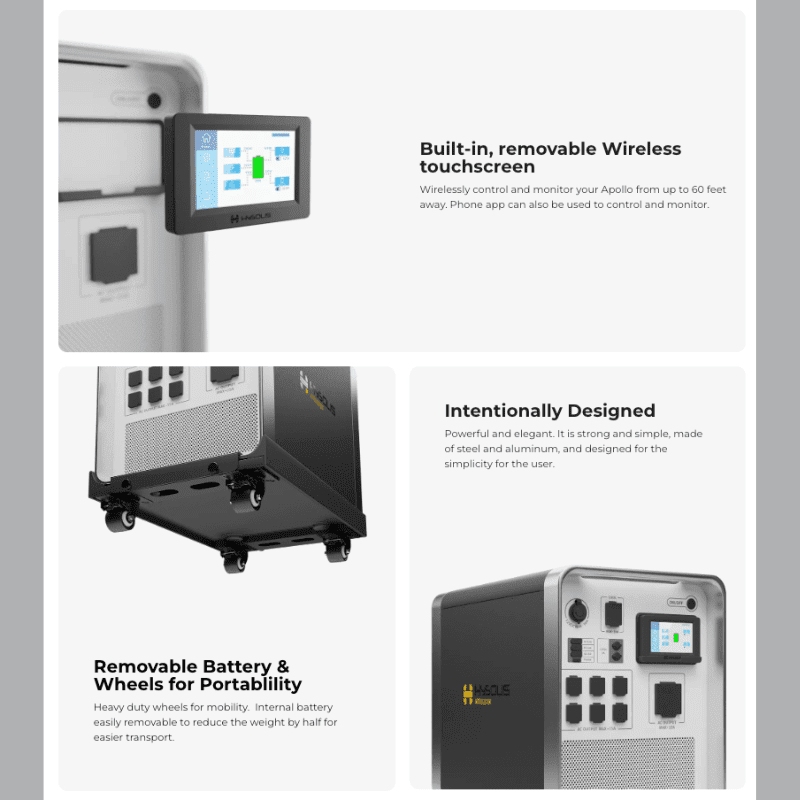

Built-in, removable Wireless touchscreen

Wirelessly control and monitor your Apollo from up to 60 feet away. Phone app can also be used to control and monitor.

Intentionally Designed

Powerful and elegant. It is strong and simple, made of steel and aluminum, and designed for the simplicity for the user.

Removable Battery & Wheels for Portablility

Heavy duty wheels for mobility. Internal battery easily removable to reduce the weight by half for easier transport.

NOTE: Wheels bought separately

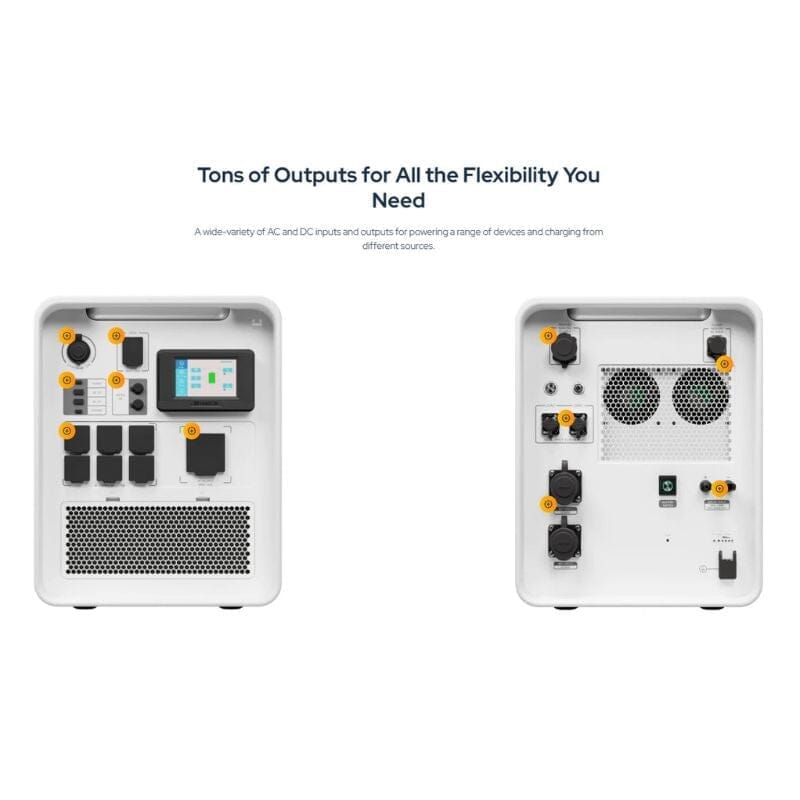

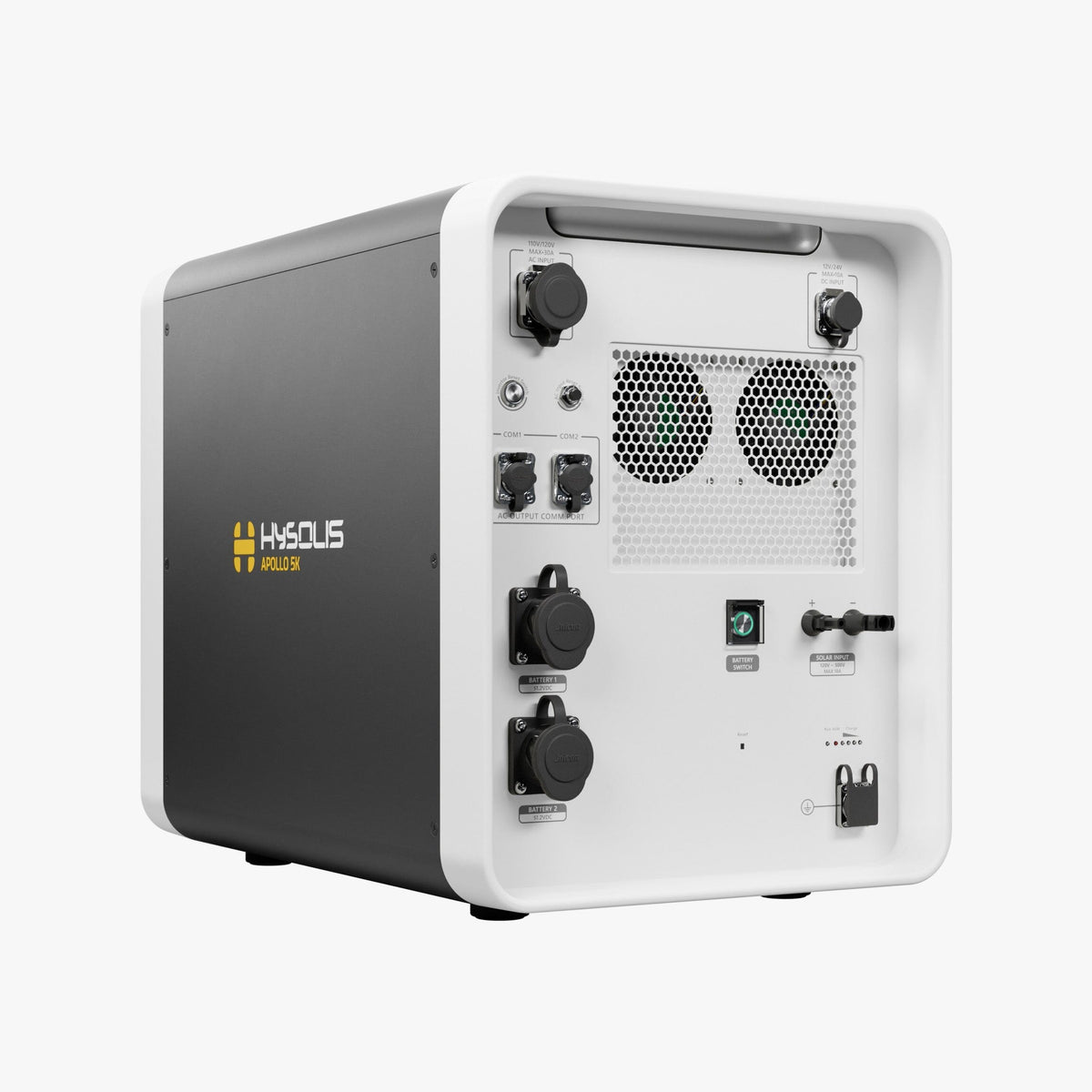

Tons of Outputs for All the Flexibility You Need

A wide-variety of AC and DC inputs and outputs for powering a range of devices and charging from different sources.

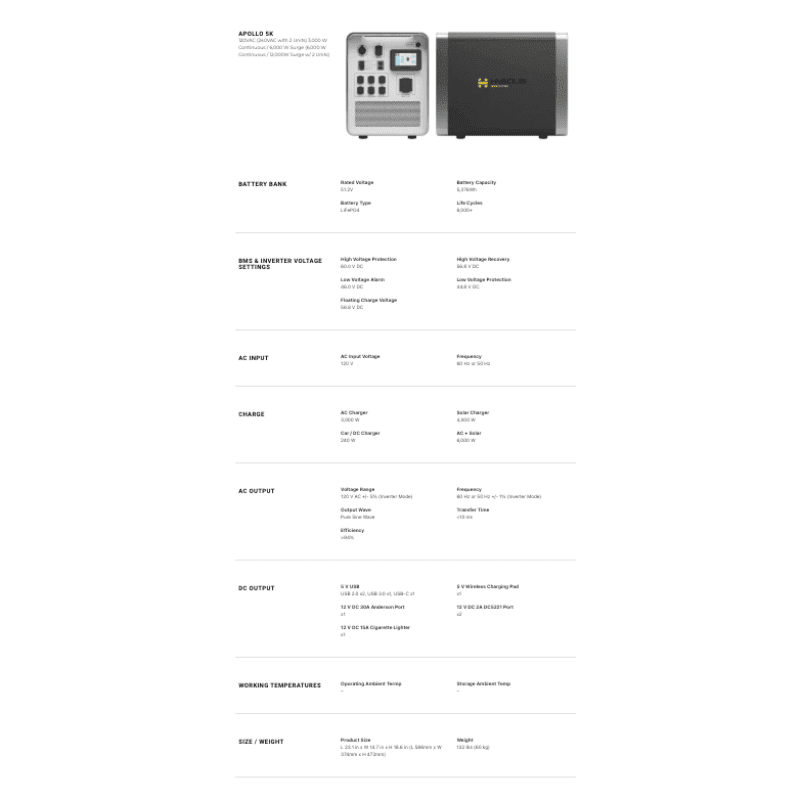

Apollo 5K Specifications:

BATTERY BANK

Rated Voltage	51.2V
Battery Type	LiFePO4
Battery Capacity	5,376Wh
Life Cycles	6,000+

BMS SETTINGS

High Voltage Protection	60.0 V DC
Low Voltage Protection	40.0 V DC
Low Voltage Recovery	44.8 V DC
Floating charge voltage	58.4 V DC
Max Current	105 A

AC INPUT

AC Input Voltage	65 V - 140 V
Frequency	60 Hz or 50 Hz (Auto detection)

CHARGE

AC Charger	3,000 W
Car / DC Charger	240 W
Solar Charger	4,400 W, MPPT Input Voc range 120 V DC - 500 V DC

AC OUTPUT

Voltage Range	120 V AC +/- 5% (Inverter Mode)
Output Wave	Pure Sine Wave
Efficiency	>94%
Frequency	60 Hz or 50 Hz +/- 1% (Inverter Mode)
Transfer Time	<20 ms (Typical load)

DC OUTPUT

5 V USB	USB 2.0 x2, USB 3.0 x1, USB-C x1
12 V DC 30A Anderson Port	x1
12 V DC 15A Cigarette Lighter	x1
5 V Wireless Charging Pad	x1
12 V DC 2A DC5221 Port	x2

WORKING TEMPERATURES

Operating Ambient Temp	+32 to +115 F (0 to +45 C)
Storage Ambient Temp	+14 to +115 F (-10 to +45 C)

SIZE / WEIGHT

Product Size	L 23.2 in x W 14.6 in x H 18.6 in (18.9 including feet) (L 589mm x W 371mm x H 472mm [480mm including feet])
Weight	131 lbs (59.5 kg)

MAX INPUT

AC Input (UPS + Charge)	3,600 W
Solar Input (Inversion + Charge)	5,000 W
AC + Solar (UPS + Charge)	7,400 W

Still Have Questions About The Hysolis Apollo 5K 120V 240V Kits? Give us a call today 1-877-242-2792

What arrives at your door

With the bundle you have chosen

2 x Hysolis Apollo 5K 5,376Wh / 5,000W Solar Power Stations
1 x Apollo 5K Split Phase Setup Kit
8 x 400W Monocrystalline Solar Panels - 25-Year Warranty
All required cables, connectors and fuses

From ShopSolar, with every order

Ships from the USA
Free shipping
Lifetime customer support by phone, live chat and email

Choose your kit

Build it around how you'll use it.

Every kit starts with the same power station. What changes is the panels, and whether it connects to your home.

Pick your starting point Choose the power station on its own if you already have panels, or a kit if you are starting from scratch.
Match the panels to your life Folding panels pack away for the RV and campsite. Rigid panels suit a cabin, shed or backyard. The transfer switch connects to your home.
Let us help you set it up Every order comes with our setup guide and lifetime support from the team, before and long after delivery.

Hysolis Apollo 240 Octo Kit $9,787.84~~$11,909.00~~

Hysolis Apollo 240 Dual Hex Kit $10,286.34~~$12,619.00~~

Hysolis Apollo 240 PLATINUM 1 $15,528.93~~$19,039.00~~

Hysolis Apollo 240 PLATINUM 2 $15,884.61~~$19,589.00~~

Hysolis Apollo 240 PLATINUM 3 $20,985.91~~$26,439.00~~

2 x Hysolis Apollo 5K Units $7,807.41~~$10,699.00~~

Every bundle compared side by side
	Hysolis Apollo 240 Octo Kit	Hysolis Apollo 240 Dual Hex Kit	Hysolis Apollo 240 PLATINUM 1	Hysolis Apollo 240 PLATINUM 2	Hysolis Apollo 240 PLATINUM 3	2 x Hysolis Apollo 5K Units
Price	$9,787.84~~$11,909.00~~ Save $2,121.16	$10,286.34~~$12,619.00~~ Save $2,332.66	$15,528.93~~$19,039.00~~ Save $3,510.07	$15,884.61~~$19,589.00~~ Save $3,704.39	$20,985.91~~$26,439.00~~ Save $5,453.09	$7,807.41~~$10,699.00~~ Save $2,891.59
Panels & extras	8 x 400W Rigid Panels	12 x 400W Rigid Panels	8 x 400W Rigid Panels	10 x 400W Rigid Panels	12 x 400W Rigid Panels	Units Only
Best for	Base split-phase kit with 8 solar panels	Larger 12-panel array for more solar input	Premium tier with 8 panels	Premium tier with 10 panels	Premium tier with 12 panels, most solar input	Units only, no solar panels — bring your own array
	2 x Hysolis Apollo 5K 5,376Wh / 5,000W Solar Power Stations 1 x Apollo 5K Split Phase Setup Kit 8 x 400W Monocrystalline Solar Panels - 25-Year Warranty All required cables, connectors and fuses	2 x Hysolis Apollo 5K 5,376Wh / 5,000W Solar Power Stations 1 x Apollo 5K Split Phase Setup Kit 12 x 400W Monocrystalline Solar Panels - 25-Year Warranty All required cables, connectors and fuses	2 x Hysolis Apollo 5K 5,376wH / 6,000W Solar Power Stations 2 x Hysolis Apollo 5K Expansion Battery 1 x Apollo 5K Split Phase Setup Kit 8 x 400W Monocrystalline Solar Panels - 25-Year Warranty 2 x Wheels Add-on All required cables, connectors and fuses	2 x Hysolis Apollo 5K 5,376wH / 6,000W Solar Power Stations 2 x Apollo Expansion Battery 1 x Apollo 5K Split Phase Setup Kit 10 x 400W Monocrystalline Solar Panels - 25-Year Warranty 2 x Wheels Add-on All required cables, connectors and fuses	2 x Hysolis Apollo 5K 5,376wH / 6,000W Solar Power Stations 4 x Apollo Expansion Battery 2 x Apollo 5K Split Phase Setup Kit 12 x 400W Monocrystalline Solar Panels - 25-Year Warranty 2 x Wheels Add-on All required cables, connectors and fuses	2 x Hysolis Apollo 5K 5,376Wh / 6,000W Solar Power Stations 1 x Apollo 5K Split Phase Setup Kit All required cables, connectors and fuses

What it powers

What it keeps running when the grid goes down.

Estimated run times on one fully charged unit, from the manufacturer's published figures. Add panels and it keeps topping itself up.

38days

LED lights · 10W

10days

CPAP machine · 40W

3days

50" TV · 110W

6days

Fridge · 120W

7days

Chest freezer · 100W

9.1hours

Microwave · 1,000W
