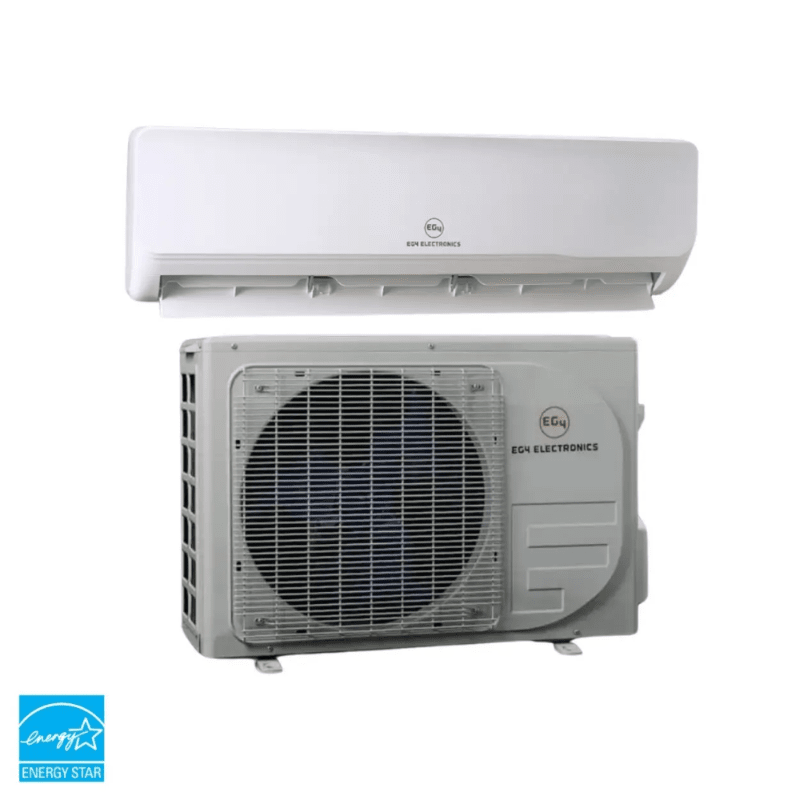

EG4 Hybrid Solar Mini-Split AC/Heat Pump

The EG4 Hybrid Solar Mini-Split is an innovative, energy-efficient solution for heating and cooling spaces up to 650 sq. ft. Designed for seamless integration with solar power systems, this unit operates on both AC and DC power, allowing for maximum flexibility and energy savings.

Key Features & Benefits:

• Hybrid AC/DC Operation: Utilizes solar power during the day and automatically switches to grid power when needed, ensuring uninterrupted comfort.

• Plug-N-Cool DIY Installation: Features pre-charged lines and quick-connect valves for easy, tool-free setup without the need for professional assistance.

• High Efficiency: Boasts a SEER2 rating of 22 and is Energy Star certified, contributing to lower energy bills and environmental impact.

• Smart Control: Compatible with the Solar Aircon app for remote monitoring and control, providing real-time energy insights.

• Wide Operating Range: Functions efficiently in temperatures ranging from -10°C to 58°C (14°F to 136°F), suitable for various climates.

Specifications:

• Weight: 110.22 lbs

• Rated BTU: 1 Ton / 12000

• SEER2: 22

• Hybrid AC/DC Operation: Runs on solar power during the day and grid power at night.

• 100% Solar-Powered Cooling & Heating: No inverter, battery, or charge controller needed.

• Plug-N-Cool DIY Installation: Quick-connect self-sealing valves eliminate the need for vacuum pulling.

• MC4 Solar Connector Compatibility: Directly connects to PV wires for easy integration.

• AC Grid Power Limiter: Adjustable from 0-600W for optimized efficiency.

• Versatile Power Supply Options: AC mode, DC mode, or a combination (AC/DC Auto Balance).

• Wide Operating Temperature Range: Functions in temperatures from -10°C to 58°C.

• Compact & Sleek Design: Ideal for off-grid, solar, and energy-efficient projects.

• Cooling Capacity: 12,000 BTU/h

• Heating Capacity: 12,500 BTU/h

• Power Input: 115VAC or 90-380VDC

• Recommended Solar Input: 1,000-1,600W (90VDC-380VDC)

• Refrigerant: R410A, pre-charged

• Coverage Area: Up to 650 sq. ft.

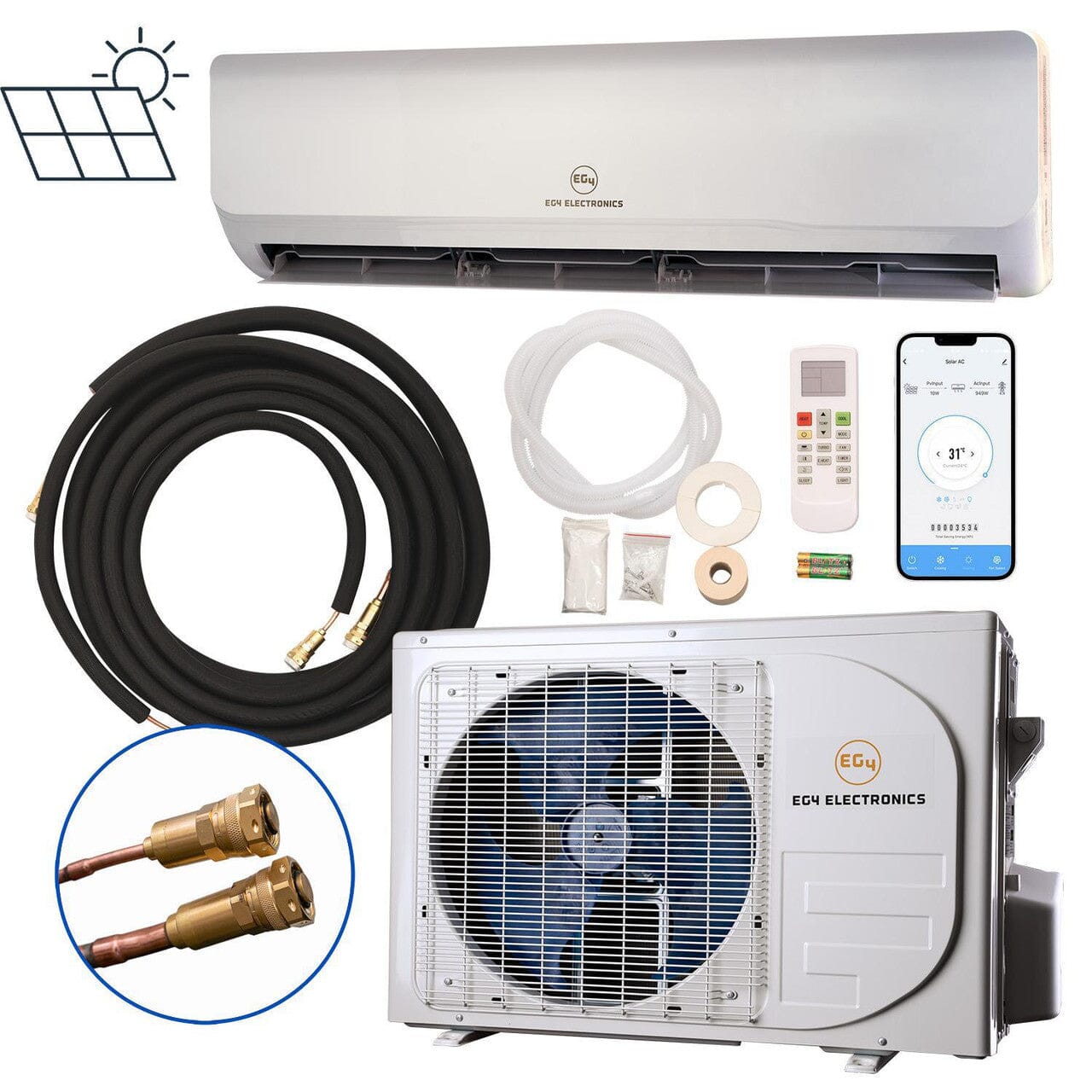

• Included Components: Indoor and outdoor units, 16.4 ft. pre-charged lineset, LCD remote control, installation accessories

Why Choose the EG4 Hybrid Solar Mini-Split:

• Energy Independence: Reduces reliance on the grid by harnessing solar energy, leading to significant cost savings.

• DIY-Friendly: Simplified installation process saves time and money on professional services.

• Versatile Application: Ideal for off-grid homes, cabins, workshops, and areas with unreliable power supply.

• Reliable Performance: Designed for durability and consistent operation in diverse environmental conditions

User Manual / Specifications:

• EG4 Hybrid Solar Mini-Split Air Conditioner Heat Pump AC/DC User Manual
• EG4 Hybrid Solar Mini-Split Air Conditioner Heat Pump AC/DC Spec Sheet
• EG4 Hybrid Solar Mini-Split Air Conditioner Heat Pump AC/DC Certification
