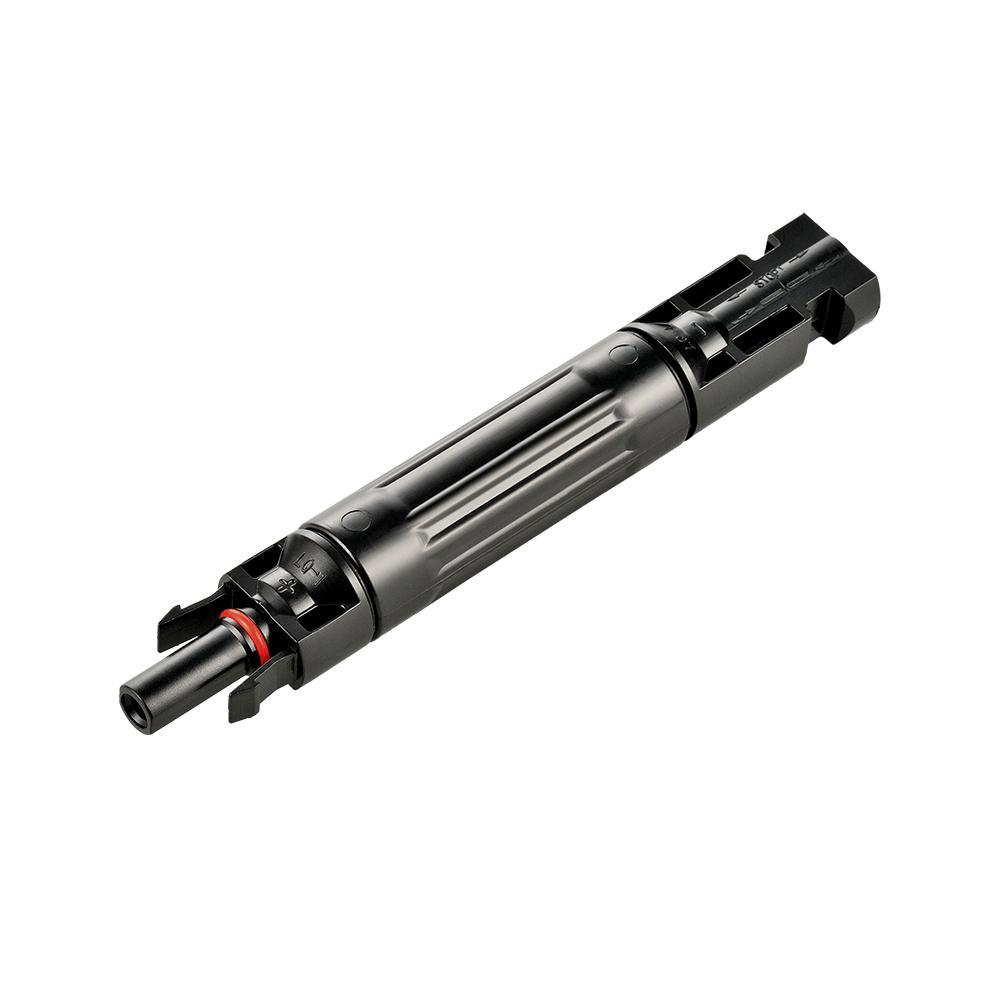

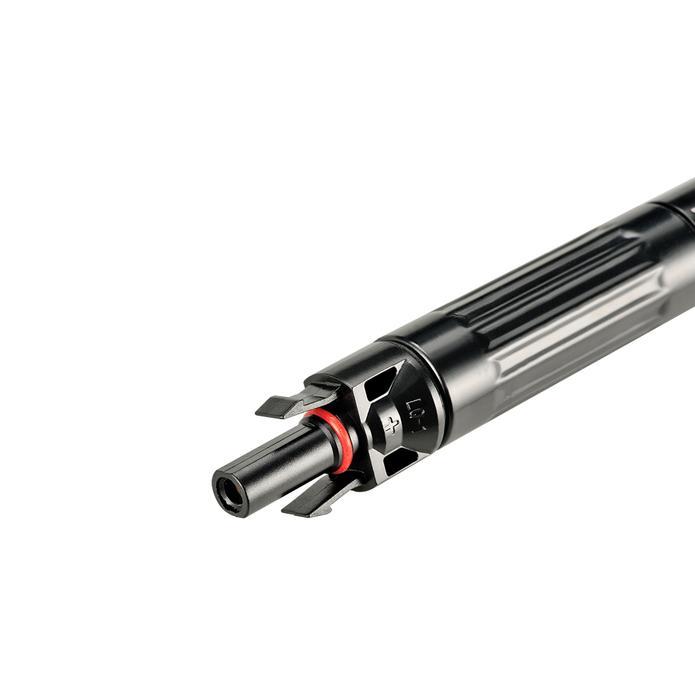

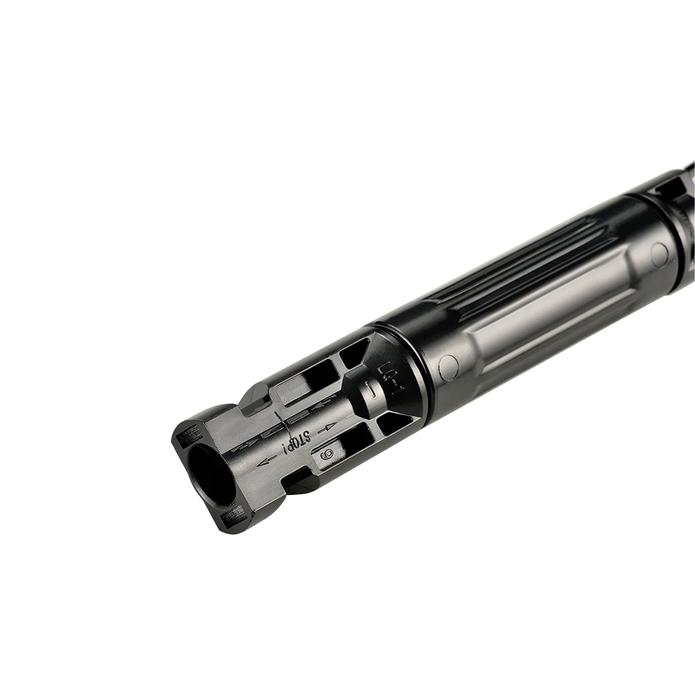

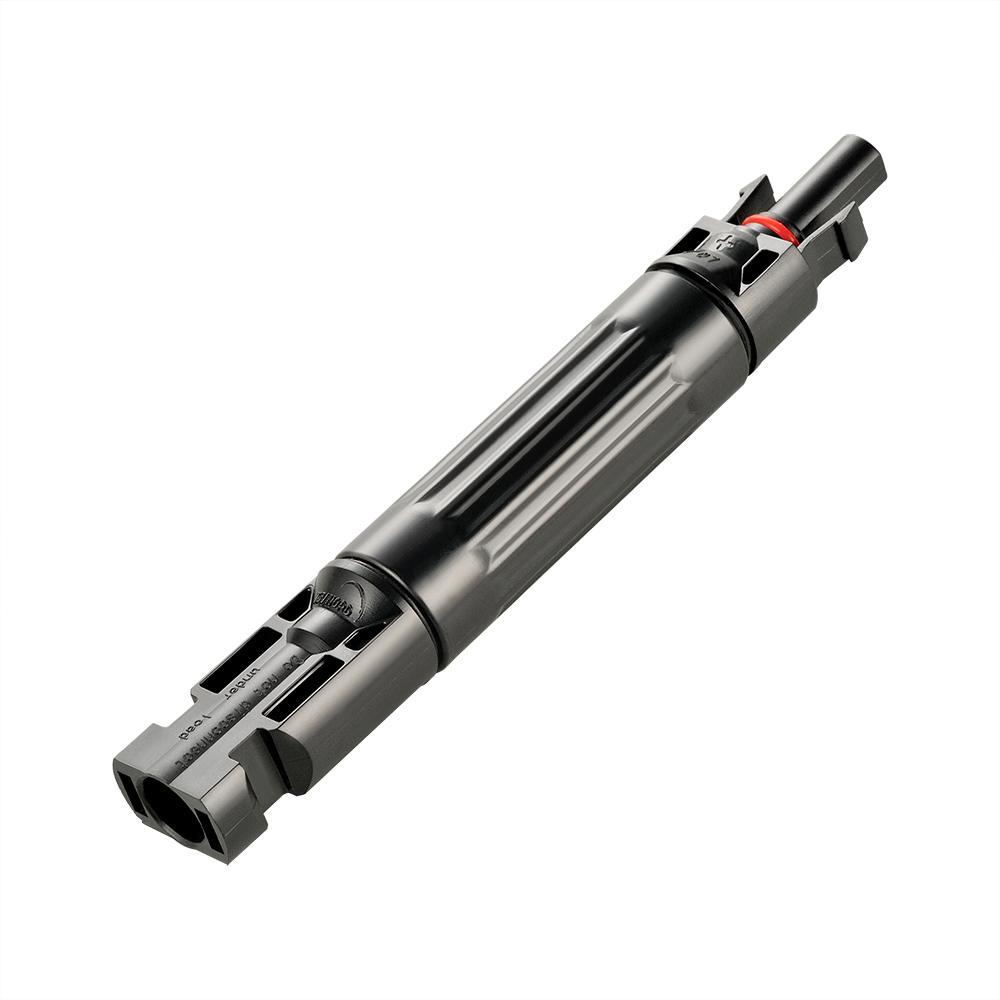

Inline Fuse Holder w/ Fuse | 10A, 15A, 20A, 30A

Rated 5.0 out of 5
Based on 5 reviews
Rated 5.0 out of 5
Based on 5 reviews

Your Price:
$19.99 $29.00
You Save: $9.01 32%
SKU: RS-SC10F

Choose Fuse Amps

Currently out of stock
Currently out of stock
Currently out of stock
Currently out of stock
Add to cart

 ✔ All Orders Processed In 72 Hours or Less!
 ✔ Best Online Price, Guaranteed.

 ✔ Lifetime Customer Support!

 ✔ Guaranteed Fast & Reliable Shipping.

What We Offer:

  • Image of

    Lifetime Customer Service

  • Image of

    Guaranteed Safe Delivery

  • Image of

    After-Sale Support

Have a question? We're here to help.

Friendly Phone Support: 877-242-2792
| Quick Quote | Mon-Fri 10am-6pm EST

Features

  • Fuse Can Replace

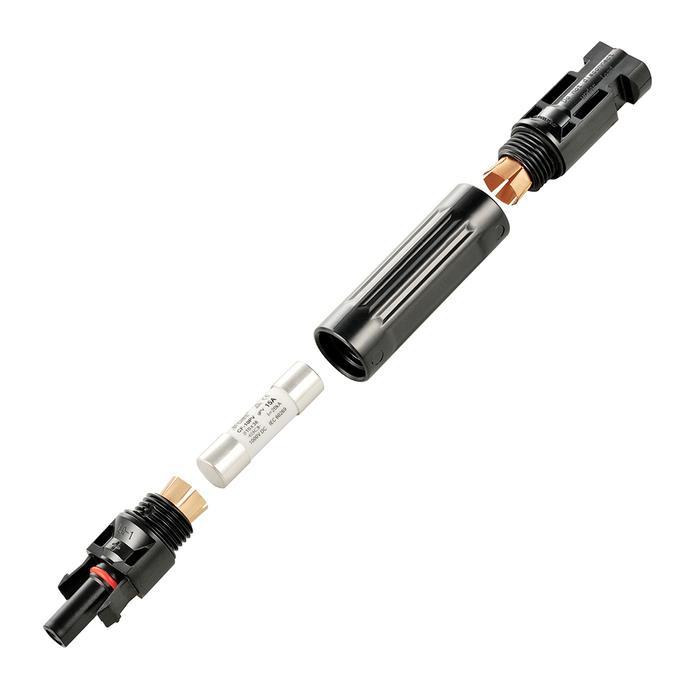

  • 10A/15A/20A/30A fuse embedded into a waterproof fuse holder, solar connector lead on each end.
  • Compatible with PV cables with different insulation diameters.
  • Designed for a wide range of DC applications.
  • Simple plug-and-play.
  • Auto-lock equipment of male and female points render connections easy and reliable.
  • Waterproof fuse holder - IP67 Class Protection.
  • Insulation material PPO.
  • High current-carrying capacity.
  • Prevent large currents from damaging the solar panels.
  • Designed to provide complete single circuit protection to your solar power array.
  • Protection Class II
  • Connector adopts touch and insertion of reed with inner-knob type.
  • Purchase this product for extra protection on your system.
Specifications
  • Rated Current: 10A/15A/20A/30A
  • Degree of Protection: IP2*/IP67
  • Rated Voltage: 1000 V DC
  • Flame Class: UL94-V0
  • Test Voltage: 6000V (50Hz,1 min)
  • Safety Class: II
  • Overvoltage Category: CATIII
  • Suitable Connector: Solar Connector
  • Contact Resistance of Plug Connector: 1mΩ
  • Insertion Force / Withdrawal Force: ≤50N / ≥50N
  • Contact Material: Copper, Silver Plated
  • Insulation Material: PPO
  • Temperature Range: -40 to +125°C
Shipping Times Estimated delivery time to your door for in-stock orders placed today is 5-10 business days.

Shipments & Lead Times: We process all orders within 72 hours. From there, we do our best to ship as quickly as possible. Shipping times vary depending on the product and size of your order. We will send you your tracking information to the e-mail and/or phone number on file.

With the incredible demand for solar products, our average delivery time to your door is between 7-10 business days from date of order. However, for some products, shipping can be as fast as 3-5 business days to your door. Please check specific product pages for the most accurate information.

*Please Note* - As a large retailer, our stock levels are healthy and shipments are moving quickly. If you place an order for something that is not in stock, or is on backorder, our team will reach out to you within 24-72 hours of placing your order to determine how you would like to move forward.

If you have any questions, give us a call at 877-242-2792 or reach out via email / live chat.

average rating 5.0 out of 5
Based on 5 reviews
  • 5 Stars
    5 Reviews
  • 4 Stars
    0 Reviews
  • 3 Stars
    0 Reviews
  • 2 Stars
    0 Reviews
  • 1 Star
    0 Reviews
100% of reviewers would recommend this product to a friend
Quality
Rated 5 out of 5
Easy to Use
Rated 5 out of 5
Customer photos and videos
5 Reviews
Reviewed by Rick H.
Verified Buyer
I recommend this product
Age Range
65+
Rated 5 out of 5
Review posted

easy to use

perfect for my application.

Loading...
Quality
Rated 5 out of 5
Easy to Use
Rated 5 out of 5
Was this helpful?
Reviewed by Greg H.
Verified Buyer
I recommend this product
Age Range
65+
Rated 5 out of 5
Review posted

Inline Fuse Holder

I like these for my next project. Better than what I have now.

Loading...
Quality
Rated 5 out of 5
Easy to Use
Rated 5 out of 5
Was this helpful?
Reviewed by Curtis H.
Verified Buyer
I recommend this product
Age Range
65+
Rated 5 out of 5
Review posted

I ordered the 20A inline fuse from shop solar kits because I trust their products are of best the Quality.

It works great for my set up.

Loading...
Quality
Rated 5 out of 5
Easy to Use
Rated 5 out of 5
Was this helpful?
Reviewed by Richard B.
Verified Buyer
I recommend this product
Age Range
45 - 54
Rated 5 out of 5
Review posted

Protection

Safeguards against over current issues

Loading...
Quality
Rated 5 out of 5
Easy to Use
Rated 5 out of 5
Was this helpful?
Reviewed by Jeff S.
Verified Buyer
I recommend this product
Age Range
55 - 64
Rated 5 out of 5
Review posted

Fuse Holder

Great product to install inline for protecting your PV system and components.

Loading...
Quality
Rated 5 out of 5
Easy to Use
Rated 5 out of 5
Was this helpful?

Product Description

Features

  • Fuse Can Replace
  • 10A/15A/20A/30A fuse embedded into a waterproof fuse holder, solar connector lead on each end.
  • Compatible with PV cables with different insulation diameters.
  • Designed for a wide range of DC applications.
  • Simple plug-and-play.
  • Auto-lock equipment of male and female points render connections easy and reliable.
  • Waterproof fuse holder - IP67 Class Protection.
  • Insulation material PPO.
  • High current-carrying capacity.
  • Prevent large currents from damaging the solar panels.
  • Designed to provide complete single circuit protection to your solar power array.
  • Protection Class II
  • Connector adopts touch and insertion of reed with inner-knob type.
  • Purchase this product for extra protection on your system.
Specifications
  • Rated Current: 10A/15A/20A/30A
  • Degree of Protection: IP2*/IP67
  • Rated Voltage: 1000 V DC
  • Flame Class: UL94-V0
  • Test Voltage: 6000V (50Hz,1 min)
  • Safety Class: II
  • Overvoltage Category: CATIII
  • Suitable Connector: Solar Connector
  • Contact Resistance of Plug Connector: 1mΩ
  • Insertion Force / Withdrawal Force: ≤50N / ≥50N
  • Contact Material: Copper, Silver Plated
  • Insulation Material: PPO
  • Temperature Range: -40 to +125°C
