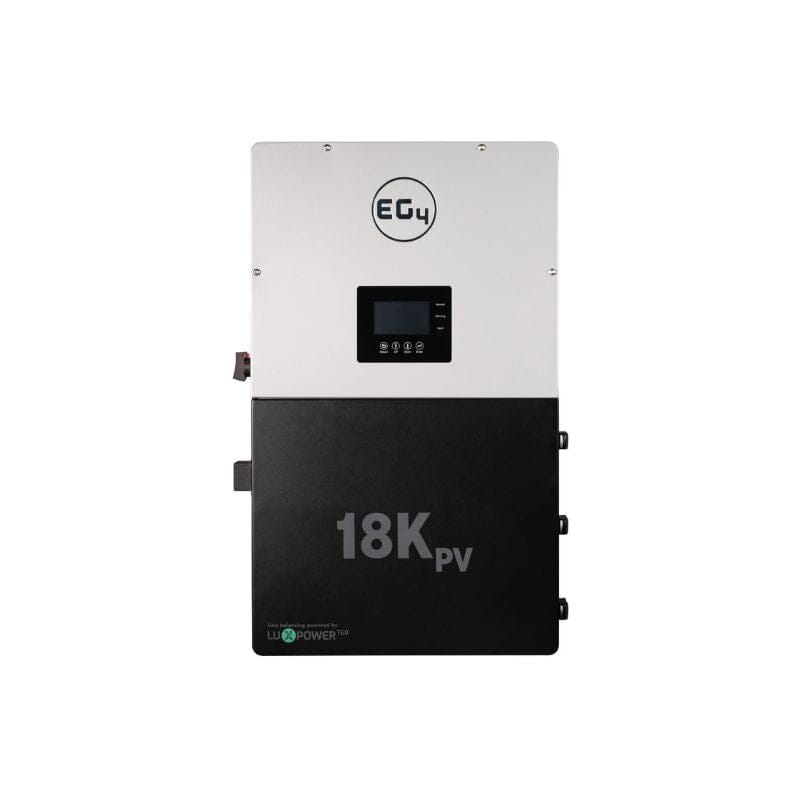

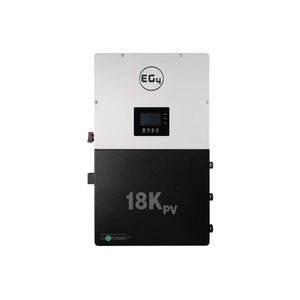

EG4 18k PV Hybrid Inverter | Outdoor-ready | All-In-One Solar Inverter | 18000W PV Input | 12000W Output | 48V 120/240V Split Phase | EG4-18KPV-12LV

Introducing this premium outdoor-ready inverter designed to empower you with reliable power solutions wherever you go. Here's why it's the perfect fit for your needs:

1. Weather-Resistant Design: Built to withstand outdoor conditions, ensuring durability and reliability in any weather.

2. Versatile Outdoor Installation: Specifically designed for outdoor use, providing flexibility in placement and ensuring seamless integration into your outdoor space.

3. Reliable Power: Offers consistent energy supply with efficient inverter technology for uninterrupted performance, giving you peace of mind in any outdoor setting.

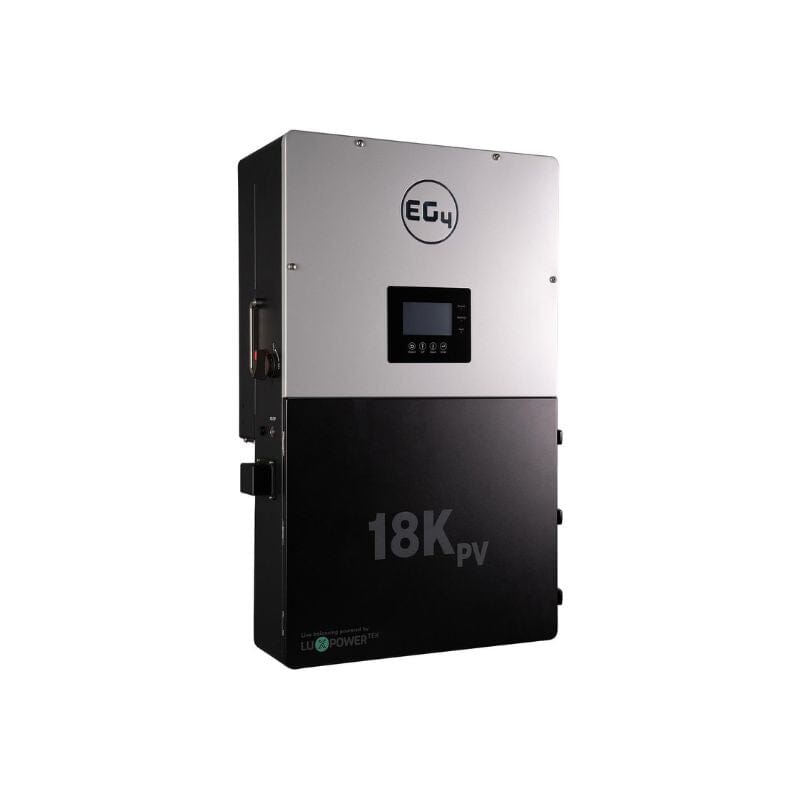

EG4 18k PV Hybrid Inverter

Introducing the EG4 18kPV All-In-One Hybrid Inverter - the ultimate power solution for any solar project! This innovative hybrid inverter combines the functionality of a grid-tied and off-grid system together while eliminating the need for charge controllers or transformers to create a convenient, independent, all-purpose powerhouse. It also boasts an extensive list of certifications and compliances, helping it meet typical electrical regulations.

Utilize solar power directly, battery storage, and grid power simultaneously to power your home, RV, or any other solar project with up to 12,000W of uninterrupted, continuous output. And in case of a power outage, the EG4 18kPV All-In-One Hybrid Inverter can be used as a backup power system without solar.

With remote monitoring capabilities, an improved UI, and a sleek design, this inverter is a top-of-the-line solution for your solar power needs. It boasts a user-friendly interface with an LCD display that offers user-configurable and easy-accessible button operation, including battery charging current, AC/Solar charger priority, and acceptable input voltage based on different applications.

Overall, with its easy plug-and-play installation, comprehensive certifications, and efficient management of power from solar, battery, and grid simultaneously, the EG4 18kPV All-In-One Hybrid Inverter is the ultimate solution for any solar power system. Don't compromise on utility - get the EG4 18kPV All-In-One Hybrid Inverter for uncompromising power and reliability!

Features:

Performance Components

• 18,000W PV input, 12,000W continuous output
• Stackable - Parallel multiple units together
• Closed loop communication with EG4 batteries
• Overload, short circuit & over temperature protection

All-In-One

• Everything needed to get started
• Simple plug-and-play install and inverter management
• Manages power from energy storage systems, and grid simultaneously
• 120/240V split phase

Comprehensive Certifications

• Safety - UL1741SA all options, UL1699B, CSA 22.2
• EMC - FCC Part 15 Class
• Grid connection - IEEE 1547, IEEE 2030.5, Hawaii Rule 14H, Rule 21 Phase I, II, III

Fully Remote monitoring & firmware upgrades

• Remotely Monitor & View Your System
• Dashboard shows solar yield, battery charging/discharging rate & import consumption
• Displays live energy data, battery charge and discharge limitations, and battery warning or fault.
• View the power curve from each day
• Displays key parameters over a 24-hour period
• Get historical data about your system for analysis and maintenance
• Update firmware remotely anywhere at anytime

EG4 18K PV Hybrid Inverter Specifications

AC Input Data

• Nominal AC Voltage 208/240VAC
• Frequency 60Hz
• Max. Continuous AC Current 50A
• Power Factor 1

AC Grid Output Data

• Nominal Output Current 50A
• Max. Output Current 50A
• AC Bypass (Grid) 200A
• Rated Voltage 240VAC
• Operating Voltage Range 180–270VAC
• Nominal Power Output (W) @240V 12,000W/@208V 10,400W
• Operating Frequency 60Hz
• Operating Frequency Range 55–65Hz
• Phase Shift 0.99@ full load
• Reactive Power Adjust Range (-0.8) – (+0.8) leading adjustable
• THDI (Total Harmonic Distortion Current) 3%
• Sync Inrush Current 35A

Backup/UPS AC Output Data

• Nominal Output Current 50A
• AC Bypass (Generator) 90A
• Nominal Output Voltage (V) 240 | 120/240 | 120/208 VAC
• Rated Output Power (VA) @240 VAC 12,000W/@208 VAC 10,400W
• Max Cont. Line Wattage 8,000W per 120V
• Surge Power (W) 14,000W (10 min.), 16,000W (5 min.)
• Operating Frequency 60Hz
• Peak Power (VA) 24,000VA (0.5s)
• THDV (Total Harmonic Distortion Voltage) <3%
• Switching Time <20ms

PV Input Data

• Max. Usable Input Current 25/15/15A
• Max. Short Circuit Input Current 31/19/19A
• Start Input Voltage 100 VDC
• Startup Voltage 140 VDC
• Full Power MPPT Voltage Range 230–500 VDC
• Nominal MPPT Tracker DC Voltage 360 VDC
• Nominal DC Voltage Range 100–600 VDC
• MPP Operating Voltage Range 120–500 VDC
• Maximum Utilized Solar Power 18,000W
• Recommended Maximum Solar Input 21,000W
• Number of MPPTs 3
• Inputs per MPPT 2/1/1

General

• Dimensions: H×W×D 34.3×20.5×11.2 in. (87×52×28.5 cm)
• Weight: 110.2 lbs. (50kg)
• Degree of Protection: NEMA4X/IP 65
• Cooling Concept: Fan
• Topology: TL (Transformerless)
• Relative Humidity: 0-100%
• Altitude: <2,000m
• Operating Temperature Range: -25~60°C, >45° derating
• Noise Emission: <50dB
• Display: Color touchscreen
• Communication Interface: Rs485/Wi-Fi/CAN
• Standard Warranty: 10-year standard warranty
