Titan Solar Generator [User Manual]: Everything You Need To Know About Your Titan Generator

CHARGE BEFORE USING OR STORING

Before using or storing, charge your Titan solar generator until it is fully charged.

IMPORTANT SAFETY INSTRUCTIONS

To avoid personal injury or damage to the solar generator or any connected products, carefully read, understand, and comply with all instructions before use. Keep this manual for future reference.

Observe all Input/Output watt ratings: To avoid fire or electrical shock hazard, observe all ratings on unit, and products you intend to use; check manuals for more information.

Use in a well ventilated area: Ensure proper ventilation while in use and keep away from any combustible materials or gases. Do not stack anything on top of the unit in storage or in use. Inadequate ventilation and/or improper storing may cause damage to the unit.

DO NOT operate in wet conditions: In order to avoid short circuits or electric shock do not allow unit to get wet. Let unit dry completely before using.

Keep the unit clean and dry: Inspect the unit for dirt, dust, or moisture on a regular basis.

Shock or Fire Hazard: This Point Zero Titan produces the same potentially lethal AC power as a normal household wall outlet. Please use caution when operating, just like using a normal AC outlet on the wall.

DO NOT insert foreign objects into outputs or ventilation holes.

DO NOT open the Titan solar generator; there are no user serviceable parts inside.

Any manipulation to the unit or its components will void all warranties.

General Information	2
Controls, Indicators, Connections………………………….	2-3
Technical Specifications……………………………………	4

Charging Your Titan Solar Generator……………………………… 5

Charging from solar………………………………………... 5

Charing from the wall……………………………………… 6

Charging from a cigarette port……………………………... 6

Operating instructions……………………………………………... 7

General operating and safety instructions…………………. 7

Initial Setup………………………………………………... 7

Adding Multiple Battery Packs……………………………. 8

Calibrating the Battery Meter……………………………… 8

Balancing the Batteries…………………………………….. 8

Using Your Titan Solar Generator…………………………. 9

Battery Meter………………………………………………. 10

Storage …………………………………………………………….. 11

Point Zero Energy Titan Kit Set Up Diagrams…………………….. 12-15

Troubleshooting……………………………………………………. 16-18

FAQ………………………………………………………………... 19-21

Warranty Information……………………………………………… 22

P. 1

GENERAL INFORMATION

Controls, Indicators, Connections

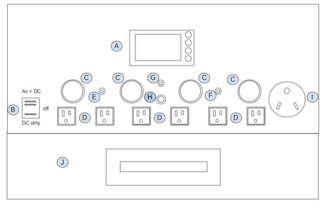

FRONT VIEW

(Figure 1)

A- Battery display

B- Power switch- down DC only, middle off, up AC and DC C- 12V DC sockets 20Amps max, each socket, or all combined.

D- 120V AC sockets 15A per set of 3 (left three combined 15A, and right 3 combined 15A max)

E- Reset breaker for left 3 outlets (15A)

F- Reset breaker for right 3 outlets (15A)

G- Reset breaker for RV outlet (30A)

H– 20A fuse for 12V DC sockets

I– 30A RV outlet (max 3,000 watts continuously 6,000 watts peak) J- 2,000 watt hour lithium battery pack

P. 2

SIDE VIEW

(Figure 2)

K– External battery port

L– 12V Car Charging Port and Battery Reset Port (input voltage 11-20V DC Max charging 160 watts)

M– AC Charging Ports. Max 50A per port @ 29.2V N– Solar input ports (per port).

Max charging 1,000 watts (more will not cause damage)

Max input amps: 30A

Max voltage (voc): 145V (voltage open circuit)

Min Voltage (vmp): 30V (lower voltage will not charge)

O– Battery latch. Make sure the battery is secure with all 4 latches before use

P. 3

Titan Solar Generator Technical Specifications

Titan Solar Generator Specifications

Battery Specs For Each Battery

Battery Voltage: 29.4V (only charged to 29.2)
Battery capacity: 74ah (usable) 2000 watt hours (usable)
Maximum charge current: 40A (approximately 1000 watts)
Maximum continuous Discharge: 100A (approximately 2500 watts)
Suggested continuous Discharge (for long life): 1500 watts
Maximum surge discharge current (10 seconds or less): 300A (approximately 7700 watts )
Weight: 35lbs approximately
Size: 12×18.5×4.5 in

Inverter Specs

Output Voltage: 120V AC (pure sine wave)
Continuous Power output: 3,000 Watts
Peak Power output: 6,000 watts
Inverter no load power consumption: 5-15 watts (typical 10 watts)
Size (Top portion not including the battery): 12X18.5X7.75 in
Weight: 35lbs (approximate)

Solar MPPT Charge Controller Specs

Dual MPPT controllers
Input Volts: 35V to 145VDC
Maximum input Amps: 30 amps per input port
Maximum charging amps: 80A (40A per port)
Charge rate: up to 2000W (using both ports, and with two or more batteries)

Other Specs

AC charging: 600 watts Per charger (up to 2 chargers max)
Car port charging: 150 watts
Number of outlets: 6-15A, and one 30A RV outlet
USB Ports: 6 smart USB, 2 USB C
12V ports: 4 – regulated at 13.8V (20A each with a maximum of 20A total)
Weight: 35/35 (estimated)
Dimensions: 18.5x12x12 (battery and Power module together)

*Maximum life span of battery based on ideal conditions. Actual life span will depend on factors such as charge rate, discharge rate, cycle depth of discharge, and usage and storage conditions.

P. 4

CHARGING YOUR TITAN SOLAR GENERATOR

There are three ways to charge your Titan solar generator: From solar, using an AC charger (wall charger), and from a car cigarette port charger. The Titan is capable of charging from all three sources at the same time.

*It’s critical to ensure that ALL THREE SOURCES OF CHARGING COMBINED does NOT EXCEED 1000 watts PER BATTERY.

Charging from Solar

There are two sets of Anderson plugs designated for solar charging. See Figure 2 under Controls, Indicators, Connections.

Each set is capable of charging up to 1000 watts. You can connect more than 1000 watts per set, however, the generator will limit charging to 1000 watts per set. This can be beneficial if your system has one battery and you want to limit the charge rate and get more power in low sun conditions.

* DO NOT EXCEED 145V of SOLAR INPUT.

If you purchase solar panels from Point Zero Energy, follow the diagrams contained in this user manual. If you purchase solar panels from another source, make sure it is configured to keep the open circuit voltage under 145V

SEE FIGURES 4-7 for wiring diagrams for Point Zero Energy’s solar kits.

Charging from solar

Place your solar panels where they will get as much direct sunlight as possible.
Connect solar panels to the generator using the correct configuration.
Your batteries are fully charged when the battery display monitor reads 100% (See section BATTERY METER on reading battery meter). It does not hurt to leave your solar panels connect even after the batteries are fully charged.

Charging from the wall

Ensure the AC battery charger is set to your correct grid voltage.

Plug the AC Battery Charger into any wall outlet using the included power cord.
Connect the red Anderson plug end of the AC Battery Charger to the Titan AC charging port.
Turn the AC battery charger switch to ON.

P. 5

Charging from car cigarette port

Using the included cigarette port adapter, plug the cigarette port end into the cigarette port of the car.
Plug the SAE end of adapter into the 12V charging port on the Titan solar generator (SEE FIGURE 2)

*CAUTION: THIS WILL DRAIN YOUR CAR BATTERY.

THIS METHOD OF CHARGING WILL USE UP TO 15 AMPS FROM YOUR CAR BATTERY. SOME CIGARETTE PORTS MAY NOT HAVE THE CAPACITY TO HANDLE CHARGING. PLEASE ENSURE YOUR VEHICLE HAS THE CAPACITY FOR CHARGING BEFORE YOU USE THIS METHOD. ALSO IF YOUR CAR BATTERY GETS TOO LOW, IT WILL BLOW THE IN-LINE 15A FUSE.

SAFETY MODE

When the battery has been depleted below normal operating levels, the Titan solar generator will go into safety mode. During safety mode, the Titan will not turn on with the power switch. To take it out of safety mode, the battery must be charged. To do this, first turn the Titan solar generator power switch to the OFF position. Next, charge the battery using one of three sources.

The easiest way is to use the AC charger and completely charge the battery. Second, is using solar charging. To do this, use ONE SOLAR PANEL connected to the MC4 to SAE adapter which is then plugged into the 12V charging port.

(CAUTION: DO NOT USE MORE THAN ONE 12V SOLAR PANEL)

Leave the solar panel plugged in for 5 minutes then turn the Titan power switch on to DC ONLY MODE. When turned on, if the voltage reads 20 volts or more, you can now remove the solar panel and continue to charge as normal from solar, connecting to the solar panel charging port.

If it doesn’t turn on or the voltage reads below 20 volts, turn the Titan solar generator back off, leaving it plugged in for another 5 minutes and check again.

Repeat this process until the generator reaches above 20 volts.

Third, plug the Titan solar generator to a 12V car port, using the included Car Charging Port Adapter. Warning: This may take a very long time and completely drain your car battery.

P. 6

OPERATING INSTRUCTIONS

GENERAL OPERATING AND SAFETY INSTRUCTIONS

For optimal performance, use your Titan solar generator in a cool, dry environment. Although the solar panels need to be kept in direct sunlight, keeping the generator away from any direct heat source, including direct sunlight, will keep the generator from over-heating and shutting off.

Keep well ventilated, away from any combustible materials or gases.

Do not open the Titan solar generator; there are no user serviceable parts inside.

INITIAL SET-UP

Because of it’s design, there is a specific way to initially setup the Titan solar generator. PLEASE FOLLOW INSTRUCTIONS CAREFULLY to keep your Titan functioning properly.

Connect the battery pack to the Titan Power Module

(FOR SYSTEMS WITH MORE THAN ONE BATTERY PACK, SEE SECTION ‘ADDING MULTIPLE BATTERY PACKS’)

First, ensure the power switch on the solar generator is in the OFF POSITION.
Stack the Titan Power Module on top of the battery pack, making sure the rubber feet of the generator are aligned on top of the circle indentations of the battery pack.
Tighten the four metal latches on the sides of the battery pack. You may need to press down on the generator to close the latch.

The battery is now connected.

Fully charge your batteries.

*IMPORTANT: Any time you add or replace batteries, you need to fully charge each battery pack so the system can calibrate correctly to the new battery configuration.

Turn the Titan Power Module on (DC or DC/AC)
Fully charge your battery using the provided AC charger.

P. 7

ADDING MULTIPLE BATTERY PACKS

*IMPORTANT: When adding multiple battery packs, it’s critical that you follow the instructions listed below so that

1.) The battery meter is calibrated to read the correct state of charge, and

2.) The battery packs are all balanced BEFORE connecting them together with the solar generator.

*CONNECTING UNBALANCED BATTERIES TOGETHER IN A SYSTEM WILL DAMAGE ONE OR MORE OF THE BATTERIES.

CALIBRATING THE BATTERY METER

Connect the first battery by stacking the Titan Power Module on top of the battery pack, making sure the rubber feet of the generator are aligned on top of the circle indentations of the battery pack.

Tighten the four metal latches on the sides of the battery pack. You may need to press down on the generator to close the latch.
The battery is now connected.
Turn the generator on (DC or DC/AC).
Program the battery meter to the correct amp-hours of all the battery packs combined that will be in use.

Each Point Zero Energy Lithium Ion battery pack is 74 amp-hours. For example, if you have 3 battery packs, you will need to set the amp-hours on the meter to 222 amp-hours (3 X 74 amp-hours=222 amp-hours). SEE SECTION BATTERY METER on programming the battery meter).

Fully charge the battery using the provided AC charger.
Turn off the Titan solar generator and remove the battery.
The Titan solar generator is now calibrated for all battery packs that will be in use.

BALANCING THE BATTERIES

Repeat steps 1-8 on CALIBRATING THE BATTERY METER (excluding step 5) for each remaining battery.
Add all batteries to the system.

*This process of ADDING MULTIPLE BATTERY PACKS will need to be followed every time the battery configuration is changed.

P. 8

USING YOUR TITAN SOLAR GENERATOR

After initial setup, your Titan solar generator is ready to use. The Titan solar generator has two modes of use: DC ONLY and DC/AC. These two modes can be selected using the power switch.

Middle selection is OFF, down is DC ONLY, and up is DC/AC.

DC Mode: If you only need DC power for charging cellphones, tablets, lights, etc., you can save power by using the DC ONLY mode. However, none of the AC outlets will work in this mode.

The DC mode turns on the battery display and the four 12v ports on the front of the solar generator. You can also optionally use the included USB adapters in these four 12v ports.

IMPORTANT: The four 12v ports are capable of up to 20 amps each, however, they are also limited to a combined amperage of 20 amps total. For example, you can use 20 amps in one port, OR 10 amps in two ports, OR 5 amps in all four ports.

If you go over 20 amps the fuse will blow and will need to be replaced.

DC/AC Mode: This mode turns on DC power as explained above, as well as the six 15 amp 120v AC outlets and the 120v RV outlet.

The six 15 amp 120v outlets are separated into two 15 amp breakers. The left three outlets are on one breaker and the right three outlets are on the other. This means, the left three outlets are capable of 15 amps per outlet with a total of 15 amps combined. The right three are also capable of 15 amps per outlet with a total of 15 amps combined.

This means, if you want to run a total of more than 15 amps of AC power, you will need to plug 15 amps or less into the left side and 15 amps or less into the right side.

RV Outlet: The 30 amp RV plug can be connected to RV’s or any load where you need more than 15 amps.

P. 9

BATTERY METER

Reading the Battery Meter

The battery meter shows an image of a battery. Inside the battery gives a graphical display as the battery is used, the darker color will gradually lower until the battery is empty. It also shows the remaining battery capacity listed in amp-hours as well as a charge-discharge indicator. When you are draining the battery, these arrows will point down . When you are charging the battery, the arrows will point up . The background lighting will also flash on and off while charging.

The battery meter will also read the percent of battery capacity remaining, as well as the estimated remaining time left of your battery based on your current load. This is only accurate if you’re using a constant load that is not fluctuating.

It will also display the battery voltage, current, and power usage in watts. The battery meter measures all power going into or out of the battery. This includes the no load power draw, any inefficiencies of the inverter, and all AC and DC power being used.

(Figure 3)

P. 10

Programming the Battery Meter

Whenever your battery configuration is changed (i.e. adding, removing, or replacing a battery pack), you will need to program the battery meter accordingly.

Press the “OK” key for 3 seconds to enter programming menu.
Select “CAP” and click “OK” key to enter the capacity setting.
Using the ^ arrow keys, set each digit to appropriate number for your battery capacity.
Once battery capacity is set, press ESC button twice.

*IMPORTANT: DO NOT CHANGE OTHER SETTINGS IN THIS MENU. OTHERWISE, YOUR METER WILL NOT CALIBRATE CORRECTLY.

WHAT CAN I POWER?

The Titan solar generator can power various appliances such as refrigerators, freezers, microwave ovens, and cooking appliances. It's pure sine wave power output will safely run power tools, electronics, and medical equipment such as CPAP machines.

When deciding on what to power, you will need to calculate the continuous and peak loads of each appliance you want to run simultaneously to determine if the total amount of watts is within the capacity of the generator. Remember, run times will vary depending on the number of batteries and solar panels.

When using large amounts of AC power when the battery is low, the inverter may turn off earlier than normal with useable battery capacity still remaining. If this happens, turn the Titan solar generator off and back on again. Try reducing the amount of power being used via AC.

STORING YOUR TITAN SOLAR GENERATOR

The Titan solar generator will retain a charge for up to 5 years. However, for optimal battery life, you should use 10% of the battery once per year. Make sure each battery pack is charged to at least 50% capacity and the POWER SWITCH is turned to OFF before storing.

Store your Titan solar generator in cool, dry environments and away from any combustible materials or gases.

*FAILURE TO STORE AND MAINTAIN YOUR TITAN SOLAR GENERATOR PROPERLY WILL VOID THE PRODUCT WARRANTY.

P. 11

FAQ'S

HOW MUCH SOLAR CAN I ADD TO THE TITAN?

Up to 2000 watts of solar (no more than 145V).

CAN I USE ANY SOLAR PANELS WITH THE TITAN OR DO I HAVE TO USE THE SPECIFIC ONES FROM TITAN?

You can use any solar panels available as long as they have MC4 connectors and when wired together the voltage is between 35V to 145V.

WHAT TYPE OF OUTPUT POWER IS THE TITAN?

120 volt 60 HZ, up to 3000 watts (only 1500 watts with one battery).

WHAT TYPE OF BATTERIES COME WITH MY TITAN SOLAR GENERATOR?

Lithium NMC batteries.

HOW MANY BATTERY PACKS CAN I ADD TO THE TITAN? Technically speaking, there is no limit to the amount of battery packs you can add to the Titan. However, to keep charging times within a reasonable time frame, we recommend not going over 6 battery packs.

CAN I ADD EXTERNAL BATTERIES TO THE SYSTEM?

Yes, the Titan is very flexible, and can connect to a 24V external batteries such as (8S) LiFePo4 and AGM deep cycle batteries. However, for lithium batteries we suggest you use ones that have a built in battery management systems (BMS).

CAN I REPLACE THE BATTERIES ?

Yes, you can easily add or replace the batteries by adding or replacing battery packs.

CAN I CHARGE MY TITAN WITH A WALL CHARGER AND SOLAR AT THE SAME TIME?

Yes, you can use your wall charger and charge with solar at the same time. When doing this, make sure you don't charge over 1000 watts combined per battery.

P. 19

CAN I HAVE MY SOLAR PANELS CONNECTED WHILE USING MY TITAN SOLAR GENERATOR?

Yes. In fact we recommend you use your generator in this way so that the solar panels can be recharging your battery while in use.

HOW OFTEN SHOULD I CHARGE MY TITAN SOLAR GENERATOR?

CAN I CONNECT MY TITAN TO MY HOME CIRCUIT BREAKER BOX?

No, because the Titan is 120v and your home power is 240v, we don't recommend connecting the Titan to your home circuit.

WHAT SIZE SYSTEM DO I NEED?

1- 500 watts of solar, and one battery will be more powerful than any other portable system like this that is available. It is large enough to run most home appliances, including a fridge, washing machine, microwave, cook top stove, fans lights, tv, and other electronics.

2- 1000 watts of solar: With the extra solar, you can run everything the 500 watts of solar can run and more. This means when the sun is out, you can run most things without even draining your battery, and during cloudy days it will still produce a lot of power.

3- 1500 watts of solar: Usually with 1500 watts of solar you will also add a second battery to take advantage of the extra power. This means you can now run a fridge and a freezer, and much more, including water pumps, a vacuum, power tools, etc. You could even run a small air conditioner during the day to keep cool.

4- 2000 watts of solar: Similar to the 1500 watt system, other than it will recharge even quicker, and provide more power especially during cloudy days. You can also see our off-grid calculator to show you how much solar and battery storage you need.

P. 20

CAN THE TITAN RUN 3000 WATTS OR ONLY 1500 WATTS? As with any system, it's only as powerful as it's weakest link. The Titan Solar Generator was designed from the ground up to be expandable, so many of the limits of the system will not be reached until other components are upgraded to match. For example, the MPPT charge controllers are capable of charging at up to 2000 watts. However, you would not want to charge at a rate of 2000 watts with just one 2000 wh battery. The same is true for the inverter. The inverter is capable of up to 3000 watts continuous output. However, one battery will not be able to run 3000 watts for very long, and it is recommended to stay under 1500 watts when only using one battery. This will ensure a longer life for the battery and keep the battery from shutting off due to over-temperature or over current.

So to take advantage of the 3000 watt inverter, and the 2000 watt solar charging, it's best to have at least 2 batteries connected to the system.

HOW DO I KNOW IF MY APPLIANCE WILL WORK WITH THE TITAN SOLAR GENERATOR?

When figuring what appliances can be powered with your Titan solar generator, you will need to calculate how much the continuous loads are of each appliance you want to run simultaneously to determine if the total amount of watts is within the capacity of the generator.

You can find the wattage of the appliance by looking at the manufacturer's information (this information is usually stamped or printed on most appliances and equipment) or using a Kill A Watt meter to measure it's wattage. Add all wattages of appliances to be run to determine if the total amount of watts is within the maximum continuous and surge watts of the Titan solar generator.

P. 21

WARRANTY

LIMITED WARRANTY

Point Zero Energy warrants to the original consumer purchaser this Titan solar generator to be free from defects in workmanship and material under normal consumer use during the applicable warranty period identified in Paragraph 2, subject to the exclusions set forth in Paragraph 4.

This warranty statement sets forth Point Zero Energy’s warranty obligation. We will not assume, nor authorize any person to assume for us, any other liability in connection with the sales of our products.

LIMITED WARRANTY PERIOD

The warranty period for the Titan power module is two years from original purchase date.

The warranty period for the Titan solar generator lithium battery packs, whether purchased as a stand alone product or in a system, is one year from the original purchase date.

This warranty is NOT transferable and is only valid for the original consumer. The sales receipt from the original consumer purchase, or other reasonable documentary proof, is required in order to establish the start date of the warranty period.

With the exception of the 30 Day No-Fault Warranty, the buyer is responsible for any initial shipping charges required to ship the product for warranty service. Point Zero Energy will pay the return shipping charges if the product is repaired or replaced under warranty.

30 DAY NO-FAULT WARRANTY

This 30 Day No-Fault Warranty is supplemental to the Limited Warranties, and is not a warranty in itself, nor does it waive or modify any exclusions or limitations in the Limited Warranties.

The 30 Day No-Fault Warranty states that within 30 days of date of delivery of original purchase, Point Zero Energy guarantees the Titan Power Module and/or Titan battery packs to be free of any defects in workmanship or material. If not, Point Zero Energy will repair or replace any defective parts with new or reconditioned parts, at Point Zero Energy’s discretion, without charge to the original purchaser.

P. 22

EXCLUSIONS

The above stated limited warranties DO NOT APPLY to damage from misuse, alterations, abuse, normal wear and tear, lack of maintenance, accidents, or repairs made or attempted by anyone other than an authorized service technician. This warranty does not cover repair if:

Normal use has exhausted the useful life of the generator and wear and tear items (including batteries, control panels including digital displays, outlet plugs, switches, and cords if applicable).

The customer fails to install, maintain, and operate the product in accordance with the instructions and recommendations of the company set forth in the Titan solar generator user manual.

Damage occurs due to freezing, heat exposure, water exposure, rust, corrosion, thermal expansion, fire, dropping, misapplication or any other improper use, storage, and maintenance.

Any product or part has been modified without the written permission of Point Zero Energy.

The above limited warranties DO NOT COVER shipping or labor charges associated with the inspection and testing of generators.

Point Zero Energy is not liable for any loss, cost, expense, inconvenience or damage that may result from use, misuse, or inability to use this product. Under no circumstances shall Point Zero Energy be liable for any loss, cost, expense, inconvenience, or damage exceeding the purchase price of the product.

The warranty and remedies set forth are exclusive and in lieu of all others, oral or written, expressed or implied. No reseller, distributor, agent, or employee is authorized to make any modification, extension, or addition to this warranty.

UNAUTHORIZED RETURNS WILL NOT BE ACCEPTED AND WILL BE REFUSED. CUSTOMER IS RESPONSIBLE FOR ALL SHIPPING COSTS ON UNAUTHORIZED RETURNS.

P. 23

Still have questions about your Titan Solar Generator? Don't hesitate to reach out or give us a call at 877-242-2792.
