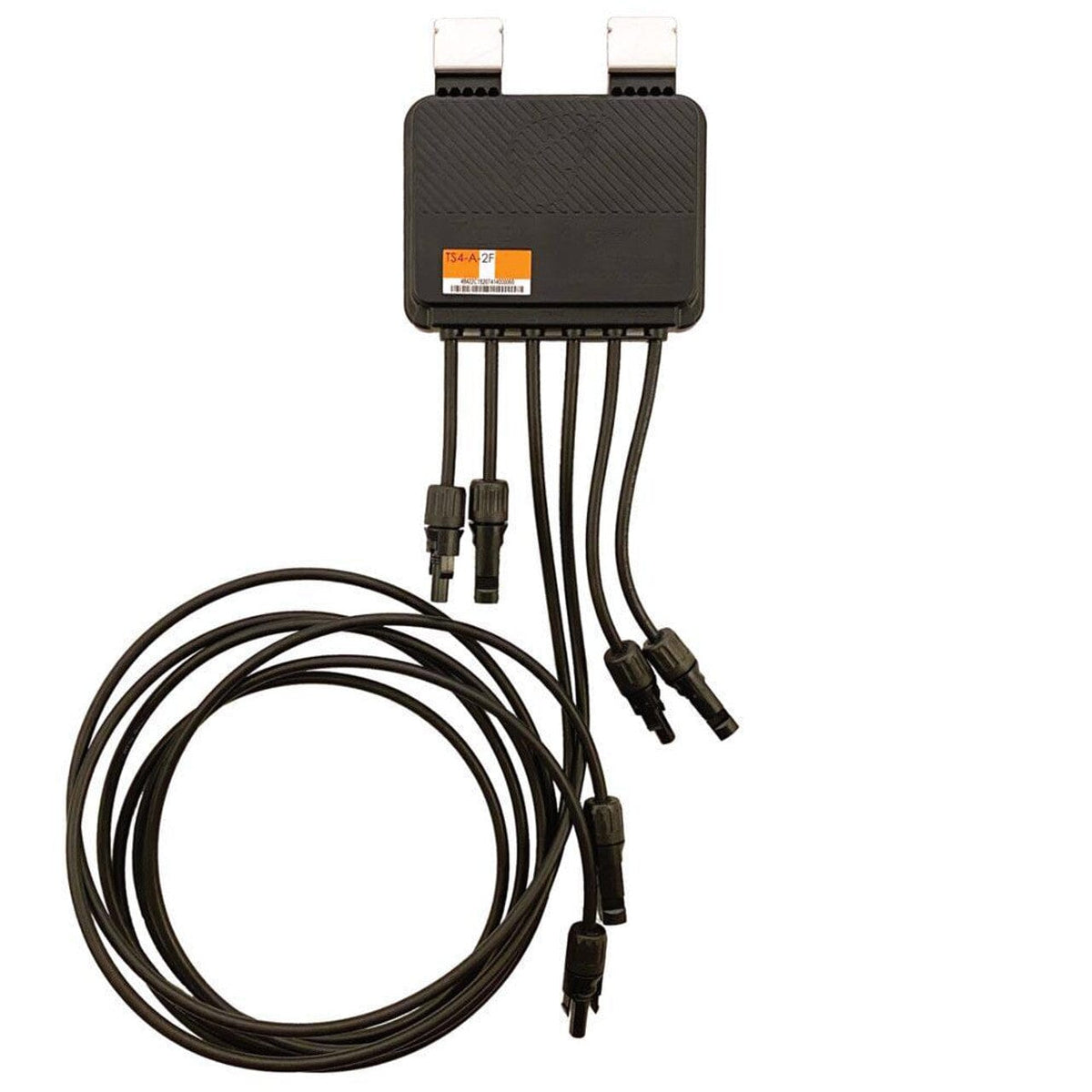

Tigo TS4-A-2F

The Tigo TS4-A-2F is a reliable, cost-effective rapid shutdown solution that meets the latest module-level shutdown requirements, including NEC 2017/2020.

$58.17
$58.17
$59.00
You save $0.83
Pay over time at checkout.
Orders processed in 24–48 hours
30-day returns
Lifetime support by phone, chat & email
Full manufacturer warranty

Questions before you buy?

Call 877-242-2792 and we’ll work it out with you. Mon–Thu 10am–5:30pm, Fri 10am–1pm EST.

Trusted by 50,000+ Customers powered since 2018
Lifetime Support Phone, email or live chat, for good
Price Match Found it cheaper? Tell us
Ships from the USA Warehouses in CA, TX and NY

Frequently bought together

Specifications

The details.

NOTE: This unit requires a Tigo RSS Transmitter.

The Tigo TS4-A-2F is a reliable, cost-effective rapid shutdown solution that meets the latest module-level shutdown requirements, including NEC 2017/2020. The TS4-A-2F is both IEC and UL certified for global acceptance. It is UL PVRSS certified for connectivity with the largest network of inverters, many of which have a built-in RSS transmitter. By connecting to two modules, the TS4-A-2F reduces labor time and enables 16% fewer connections on a 14-panel string compared to single-channel MLPE.

Functions

Rapid Shutdown

Module Rapid Shutdown Features and Benefits

  • Single MLPE connects to 2 PV modules
  • IEC and UL certified
  • Meets US NEC rapid shutdown safety requirements
  • UL PVRSS certified with the largest network of inverters
  • up to 1000W (500W per channel) 16-80V, up to 15A (per channel)
  • MC4 (standard) connectors
  • Snaps to module frame for easy mounting
  • Does not require a ground wire
  • PLC communication
  • 25-year warranty

Configuration

2 solar modules per TS4

Still have questions? Give us a call at 877-242-2792

Dimensions
138.4 x 139.7 x 22.9mm (5.4 x 5.5 x 0.9in)
Weight
590g (1.3lbs)
Operating temperature range
-30°C to +80°C (-22°F to +176°F)
Storage temperature range
-40°C to +85°C (-40°F to +185°F)
Recommended fuse rating
30A
Outdoor rating
IP68
Maximum altitude
3000m
Efficiency
99.9%
Communication
PLC
Rapid Shutdown UL Listed (NEC 2017 & 2020 690.12)
Yes
Rapid Shutdown Time Limit
30 secs or less³
Conductor AWG Range
10-12 AWG
PVRSE Controlled Conductors
≤30 Vdc, ≤240VA, ≤8A³
