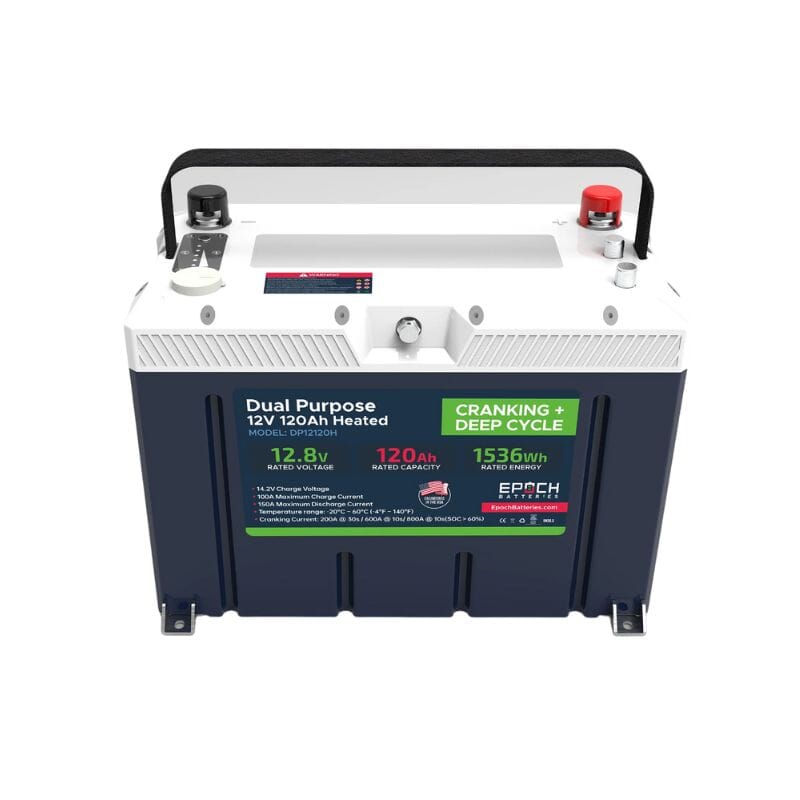

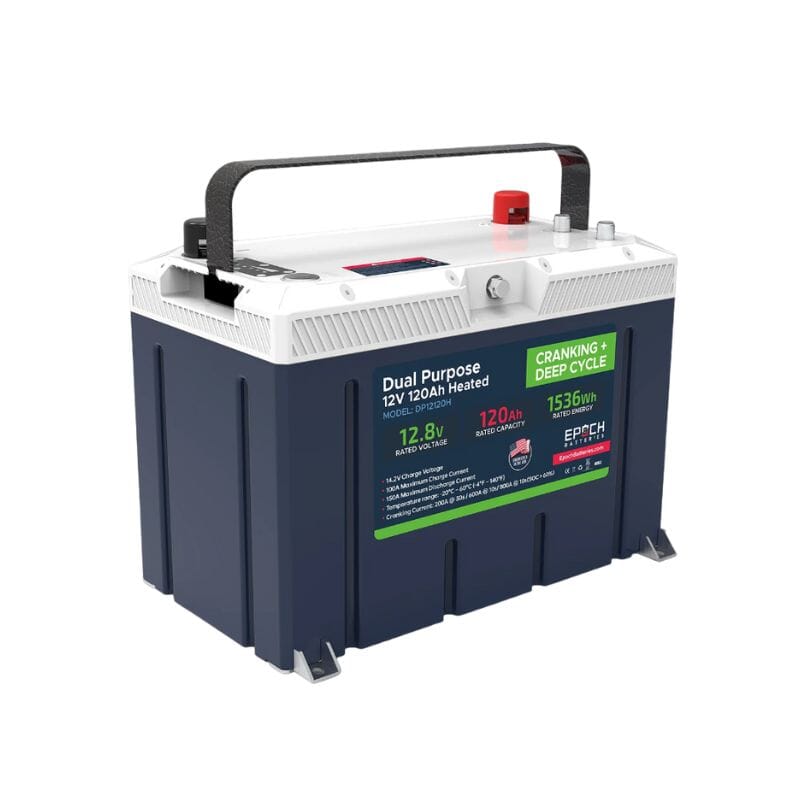

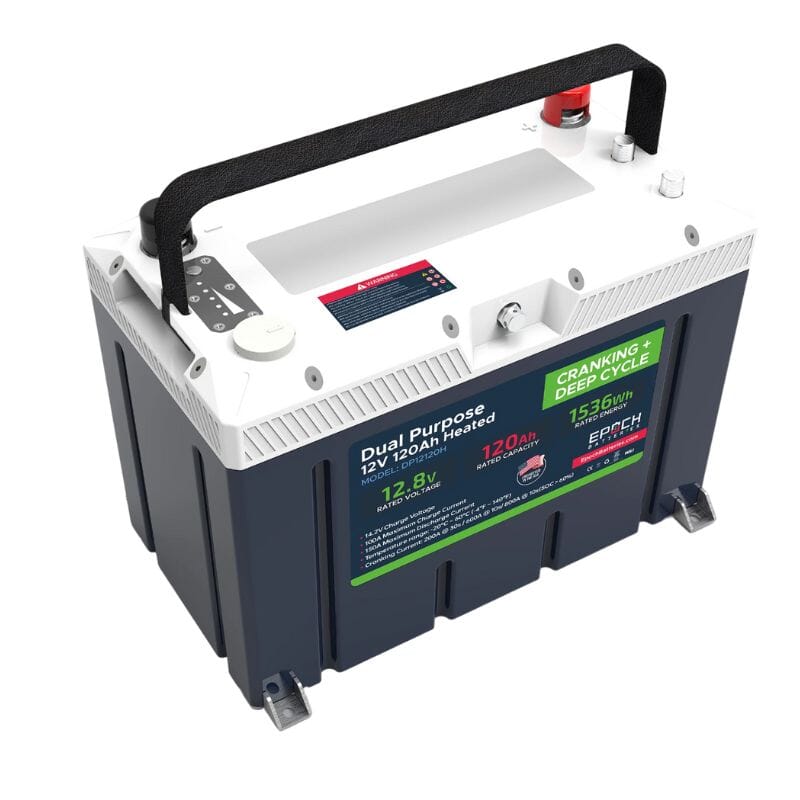

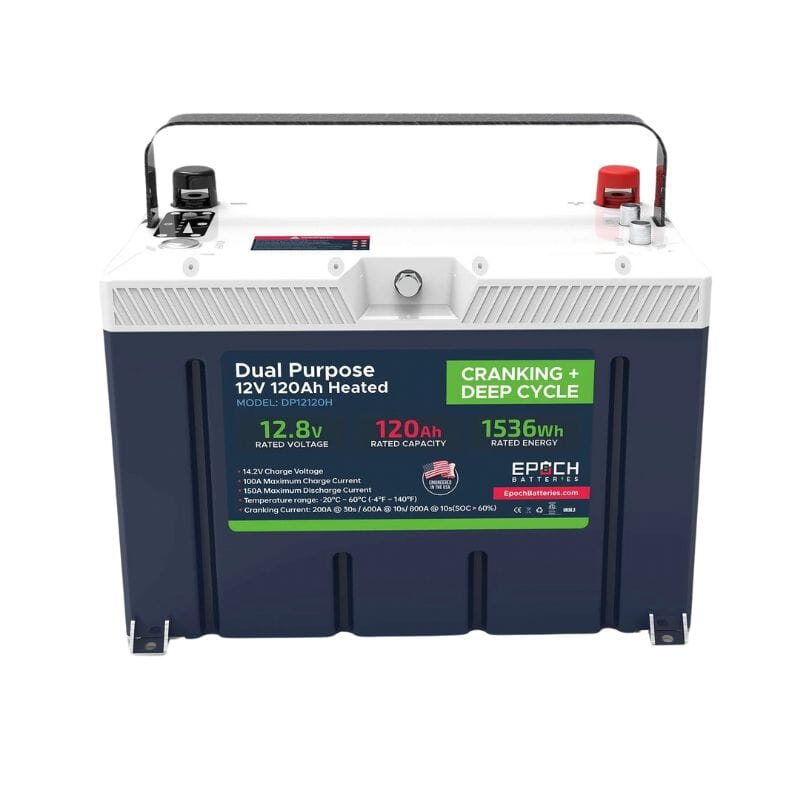

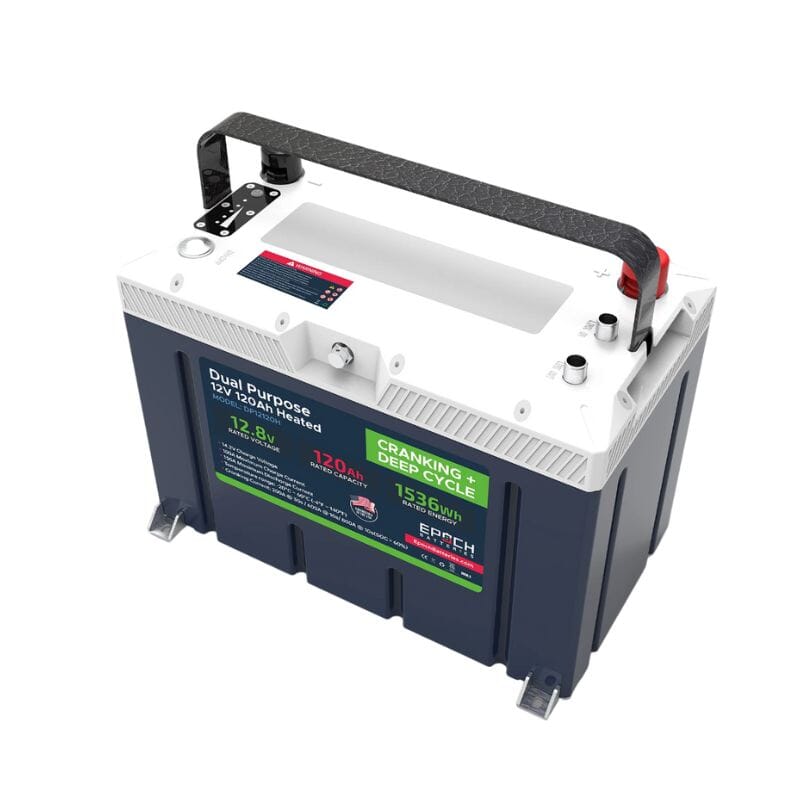

Epoch 12V 120Ah

• Epoch 12V 120Ah - LiFePO4 Chemistry
• Cranking Starter Battery ~ 1100 CCA ~ Compatible with all outboard motors up to 350hp
• Cranking Battery - 800A @ 10s (SOC>60%), 800A @ 5s (SOC<60%), 600A @ 10s
• Adjustable High Voltage Cutoff via Epoch Pro App - 14.6V to 15.4V
• Peak charge acceptance 165A max for one minute
• Deep Cycle Battery -150A Max Continuous Discharge
• HEATED - Internal heating allows for charging in sub-zero conditions
• BLUETOOTH - iOS and Android Apps
• BLUETOOTH - Over the air Firmware update via the app
• Victron Comms - CANBus entire string of batteries to Victron Cerbo GX
• Closed Loop Communications
• External Battery Gauge - Touch Screen (Optional)
• IP67 Rated, Dust and WATERPROOF
• Over charge and over discharge protection
• Over current and short circuit protection
• High & low temperature disconnects
• Max (4) in Series up to 48V
• Max (16) in Parallel
• 6000+ Cycle life & Maintenance-free
• 11 Year Manufacturer Warranty

Epoch 12V 120Ah Specifications

• Weight: 29.7 lbs

DIMENSIONS

• Length: 12.25 (inches)
• Width: 6.75 (inches)
• Height: 9 (inches)

CONFIGURATION

• Cell Configuration: 4S4P
• Chemistry: LiFePO4

CURRENT

• Ah Capacity: 120Ah
• Max Continuous Discharge Amps: 150A
• Max Charge Current Amps: 100A
• Max Discharge Peak Current Amps: 800A @ 10s
• Series | Parallel: Max (4) in Series, Max (16) in Parallel

VOLTAGE

• Voltage: 12.8V
• Max Charge Voltage: 15.4V
• Operating Voltage Range: 10.0 - 15.4V

TEMPERATURE

• Charge Temp Range: -20°C (-4°F) / 55°C (131°F) (with heating)
• Discharge Temp Range: -20°C (-4°F) / 60°C (140°F)
• Storage Temp: 0°C (32°F) / 35°C (95°F)
