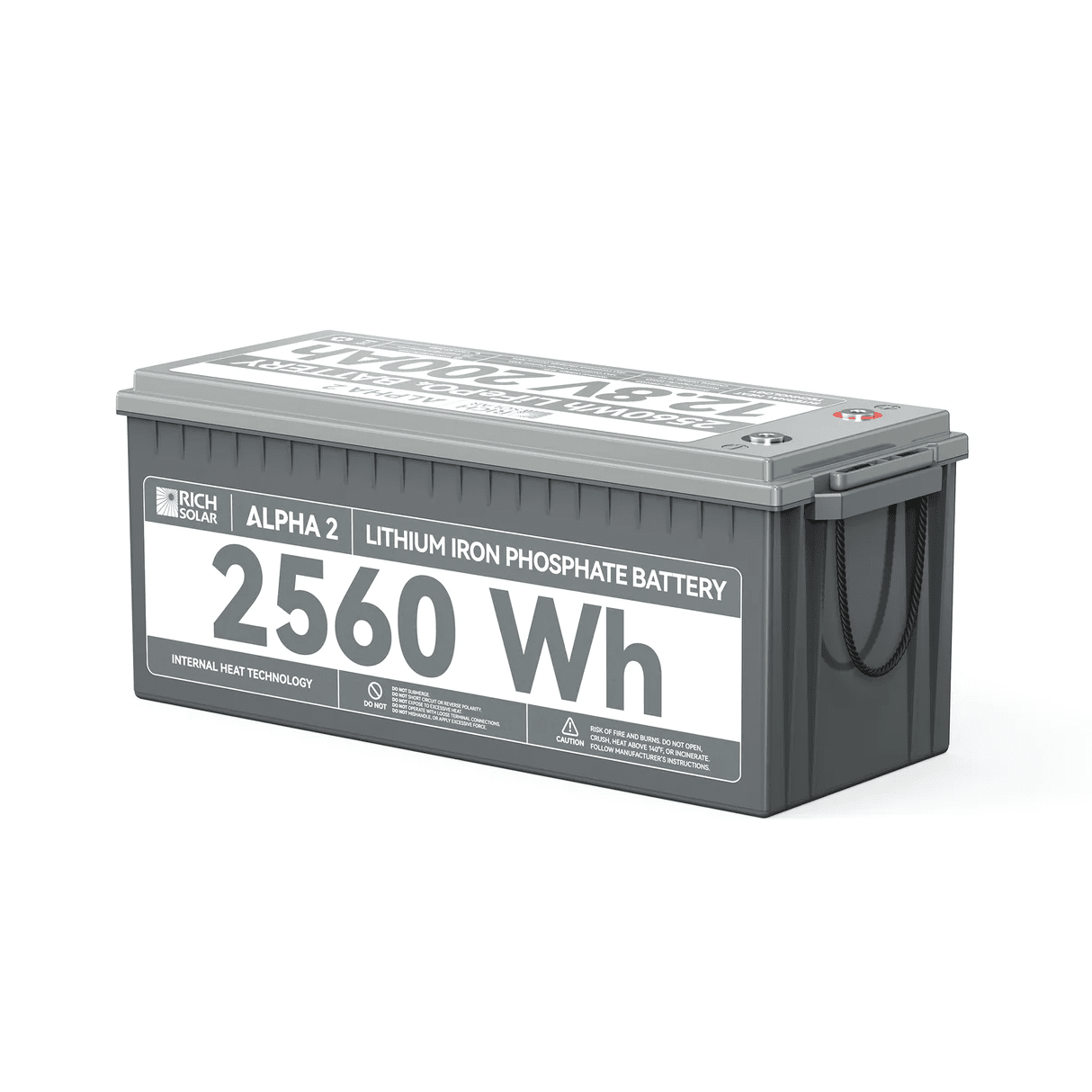

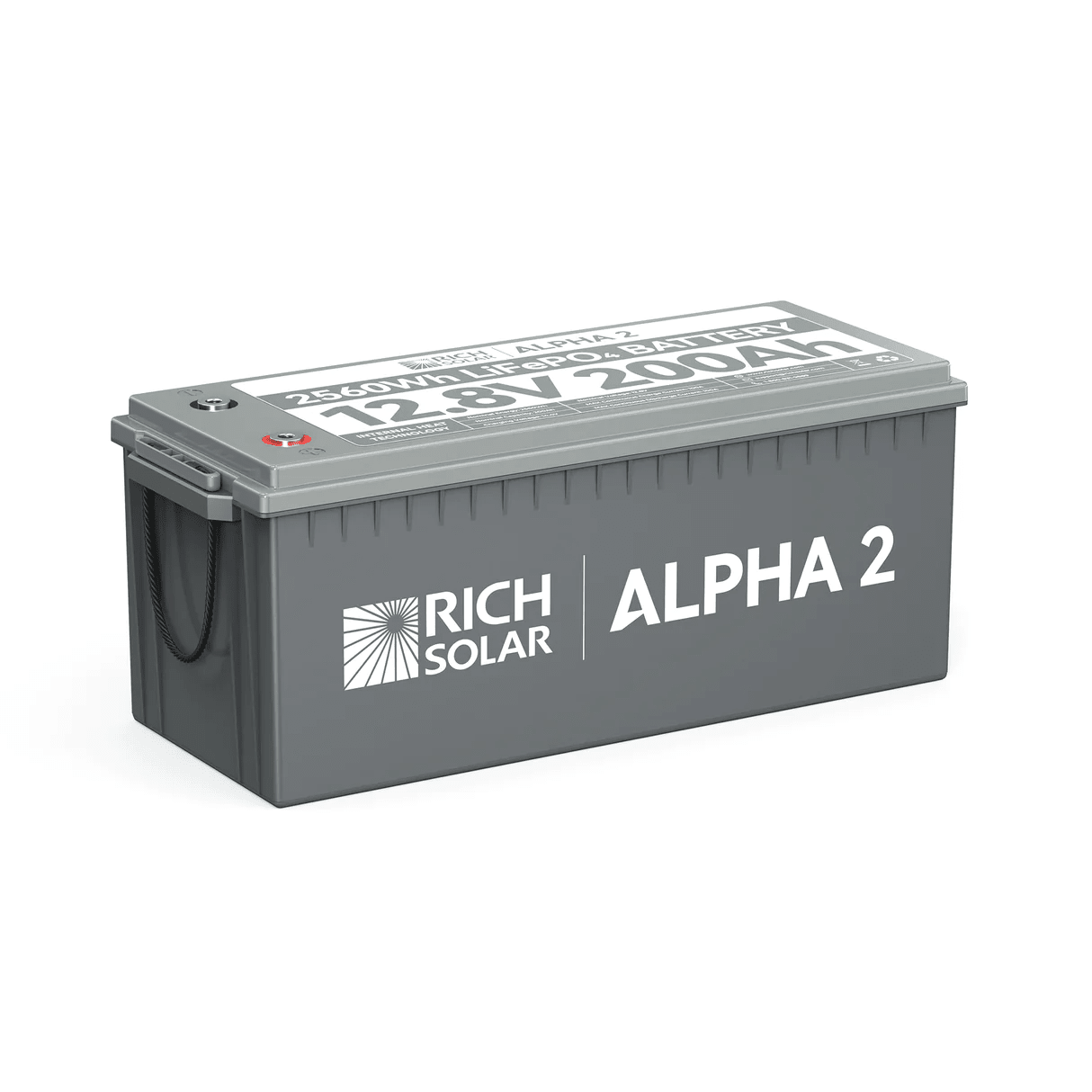

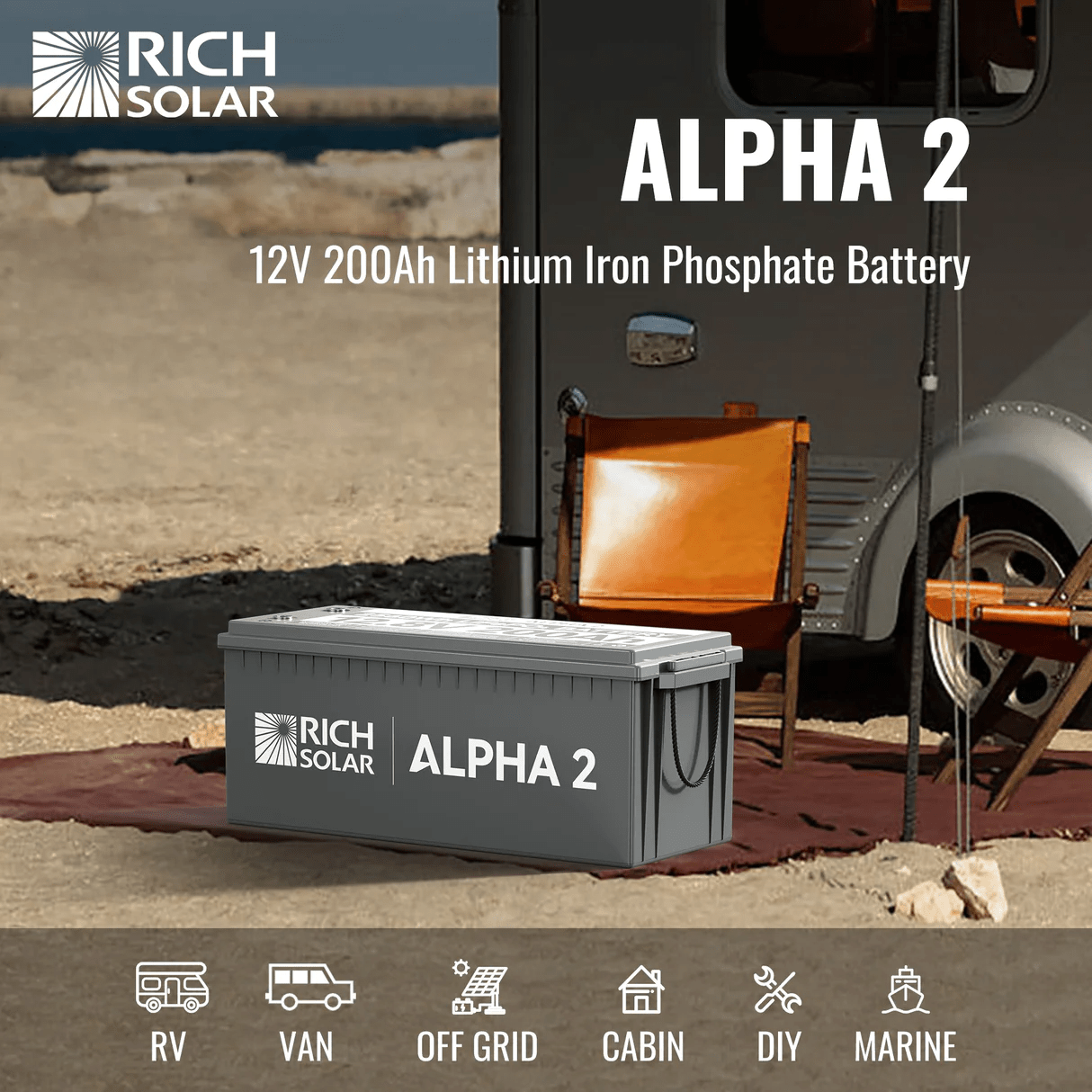

Rich Solar 12V 200Ah LiFePO4 Lithium Iron Phosphate Battery
Rich Solar 12V 200Ah (ALPHA2) lithium iron phosphate battery has a much longer cycle life capacity, and is easier to maintain compared to other battery technologies.
- Regular price
- $999.99
- Sale price
- $999.99
- Regular price
-
$1,299.00
Orders processed in 24–48 hours
30-day returns
Lifetime support by phone, chat & email
Full manufacturer warranty
Not sure which one you need?
Call 877-242-2792 and we’ll work it out with you. Mon–Thu 10am–5:30pm, Fri 10am–1pm EST.
Trusted by 50,000+
Customers powered since 2018
Lifetime Support
Phone, email or live chat, for good
Price Match
Found it cheaper? Tell us
Ships from the USA
Warehouses in CA, TX and NY
Frequently bought together
Specifications
The details.

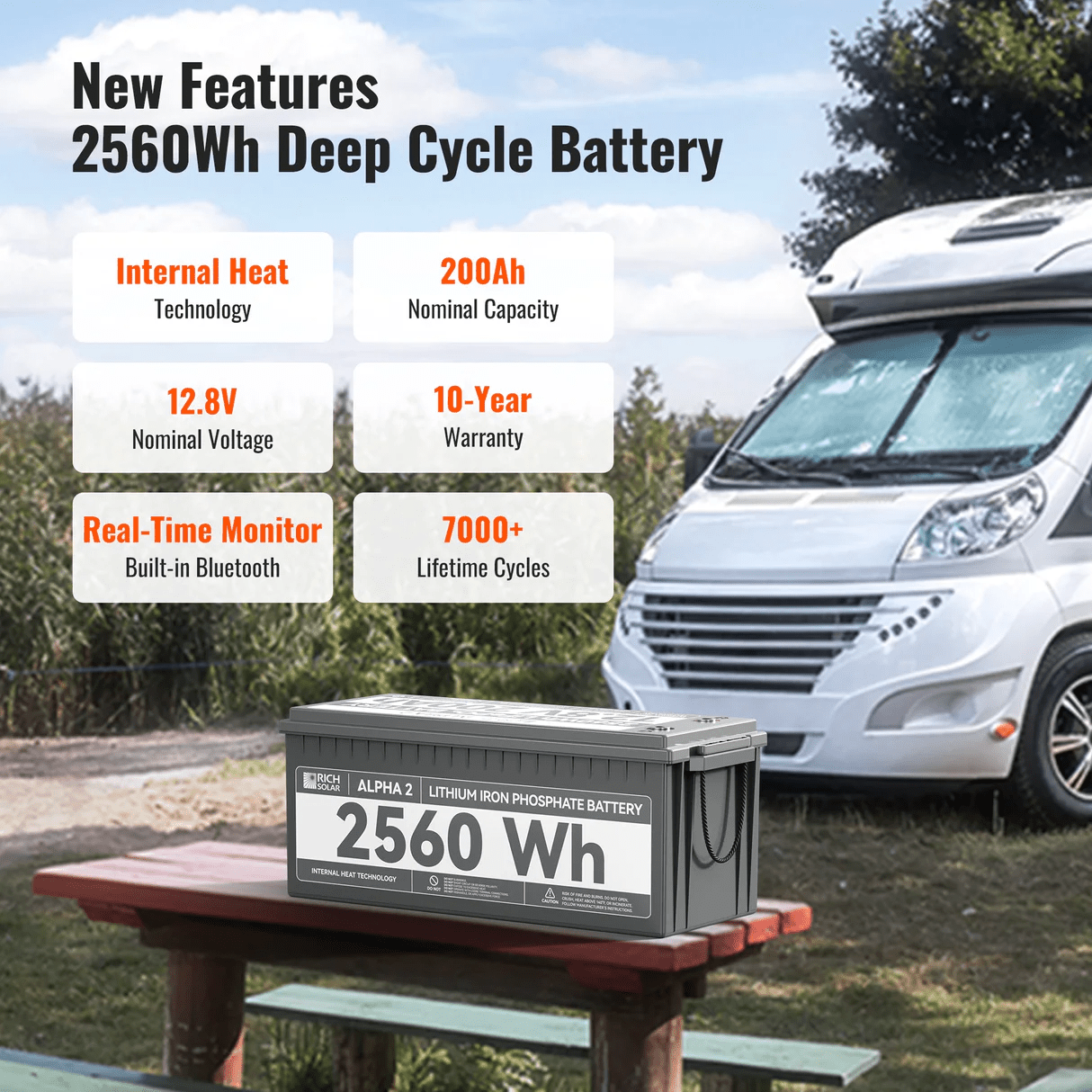

Rich Solar 12V 200Ah (ALPHA2) lithium iron phosphate battery has a much longer cycle life capacity, and is easier to maintain compared to other battery technologies.

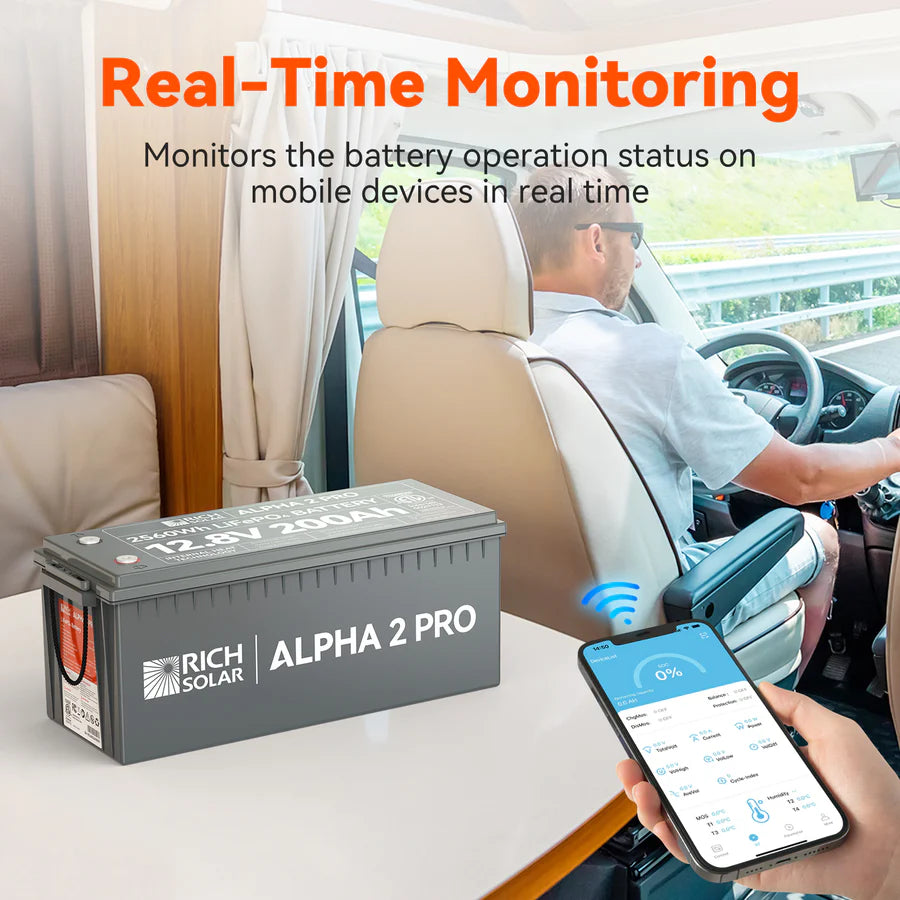

Real Time Monitoring
Monitors the battery operation status on mobile devices in real time with the built-in Bluetooth module.

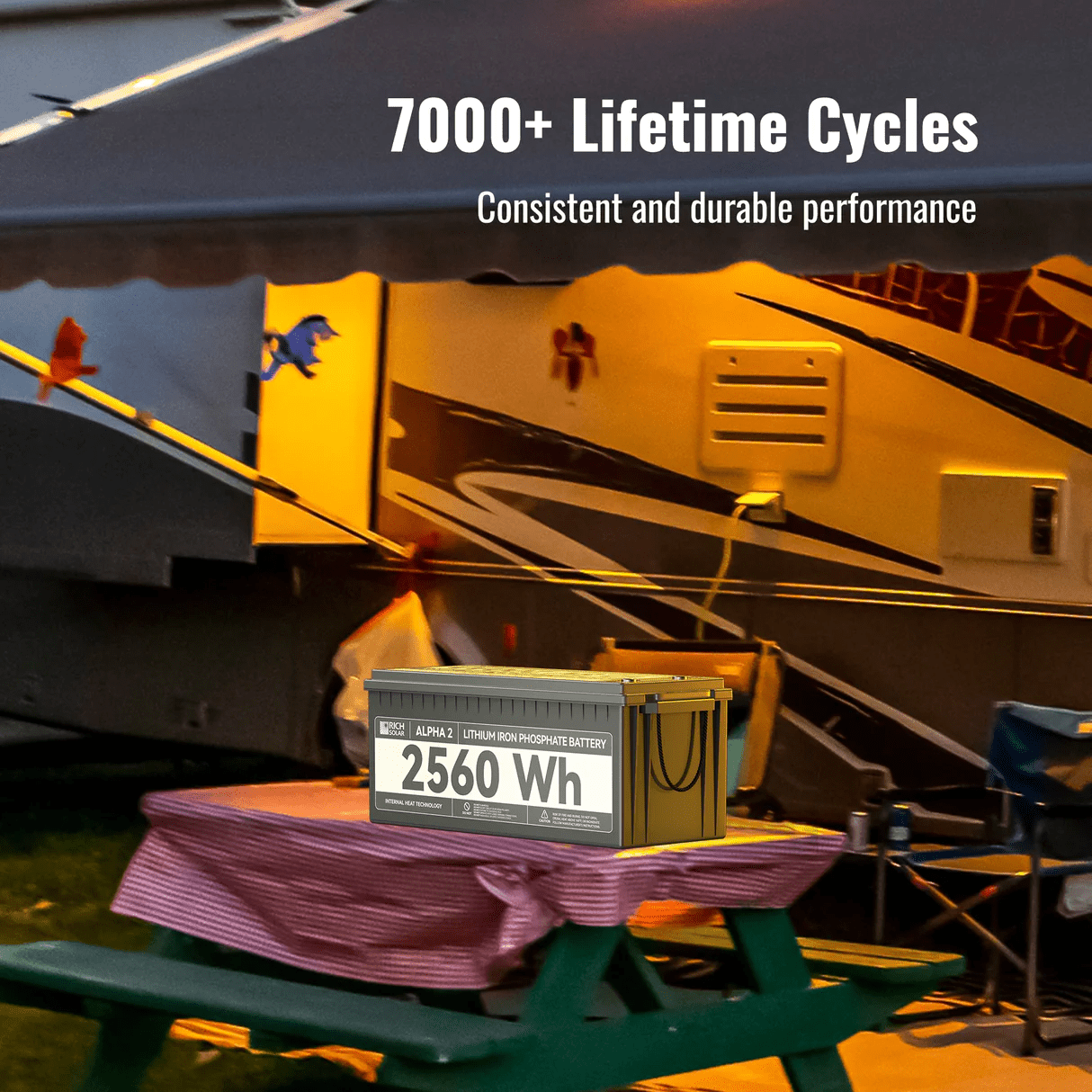

7000+ Lifetime Cycles
Consistent and durable performance
10 Year Warranty
Rich Solar 12V 200Ah LiFePO4 Specifications
- Battery Type: LFP Battery
- Nominal Voltage: 12.8V
- Nominal Capacity: 200Ah
- Minimum Capacity: 200Ah
- Nominal Energy: 25600Wh
- Charging Voltage: 14.4V
- Discharging Cutoff Voltage: 11.2V
- Standard Charging Current: 50A
- Maximum Charging Current: 100A
- Standard Discharge Current: 50A
- Continuous Discharge Current: 100A
- Maximum Discharge Current: 100A
- Shell Material: Plastic Shell
- Weight: 48.5lb
- Initial AC (1000HZ) Internal Resistance: ≤50mΩ
- Monthly Self-Discharge Rate: ≤5%
- Overall Dimensions: 20.9 x 8.1 x 8.5 in
Still Have Questions? Give us a call today 1-877-242-2792
- Cell Type
- LiFePO4 Battery
- Nominal Voltage
- 12.8V
- Nominal Capacity
- 200Ah
- Nominal Energy
- 2560Wh
- Cycle Life
- 5000 cycles
- Maximum Expansion (Parallel & Series)
- 4P4S
- Maximum Continuous Charge Current
- 100A
- Maximum Continuous Discharge Current
- 100A
- Maximum Discharge Current 10 Seconds
- 110A
- Charge Method
- CC/CV
- Charge Voltage
- 14.4V ± 0.2V
- Recommend Charge Current
- 50A (0.2C)
- Charge Temperature
- 32℉ to 131℉ (0℃ to 55℃)
- Discharge Temperature
- -4℉ to 140℉ (-20℃ to 60℃)
- Storage Temperature
- 14℉ to 113℉ (-10℃ to 45℃)

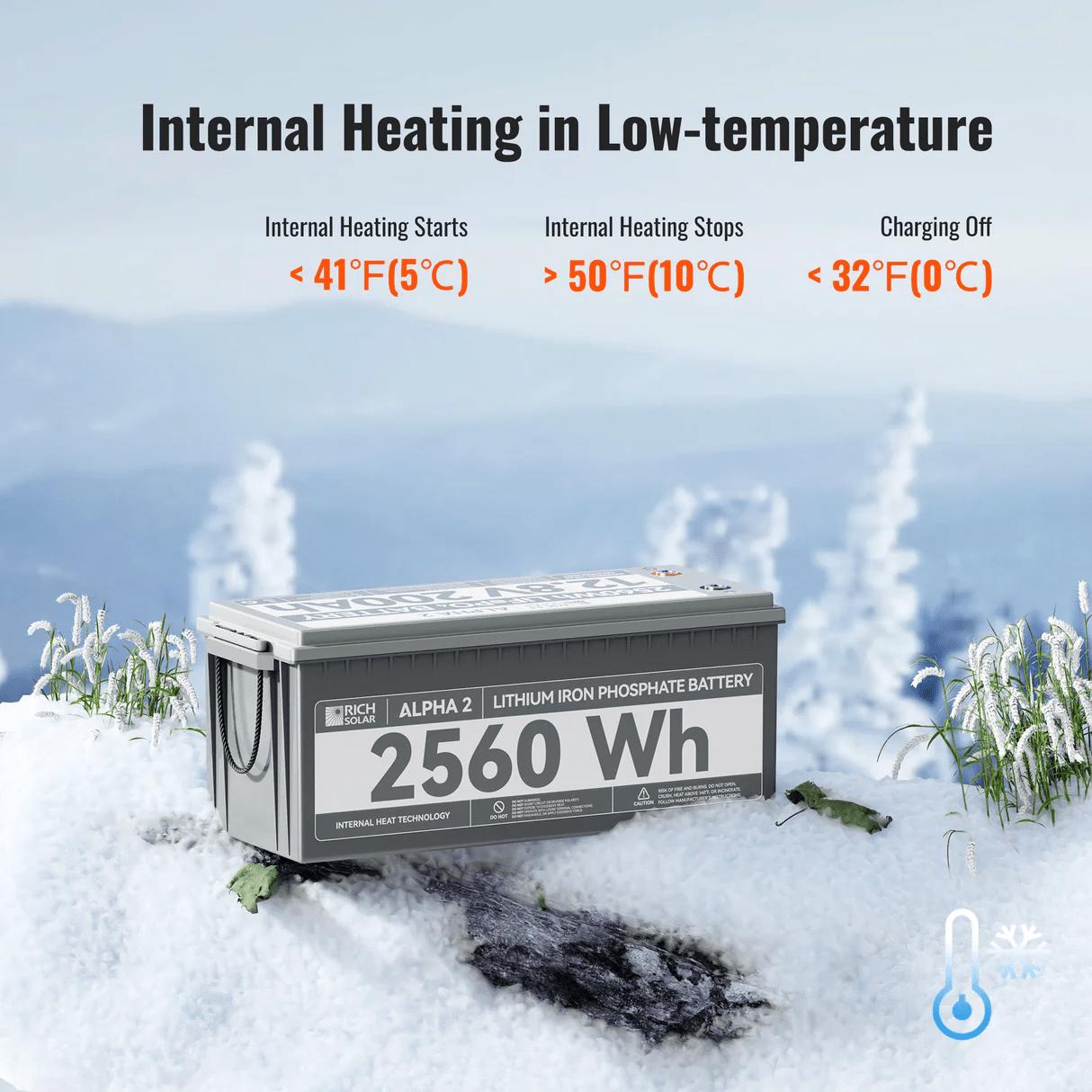

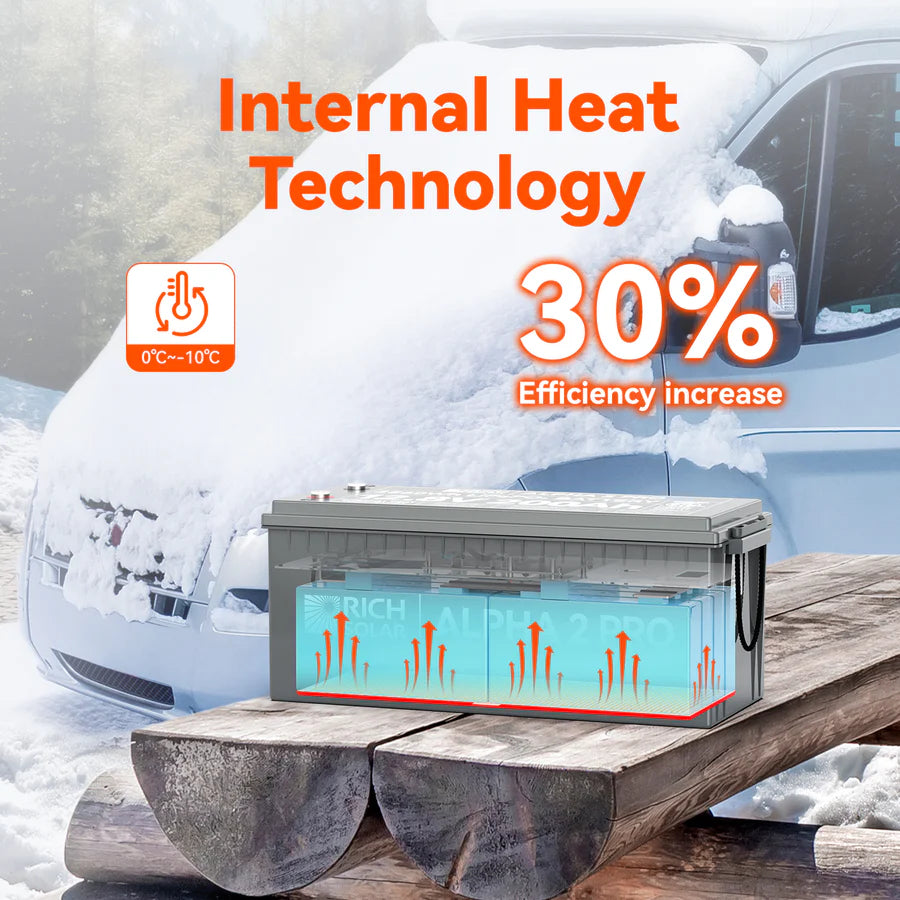

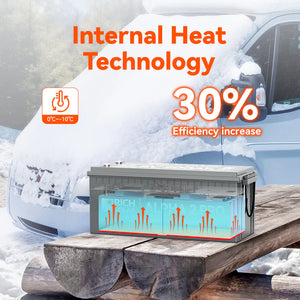

- Heating Function
- 100W
- Internal Heating Starts
- < 41℉ (5℃)
- Internal Heating Stops
- > 50℉ (10℃)
- Net Battery Weight
- 48.5lb

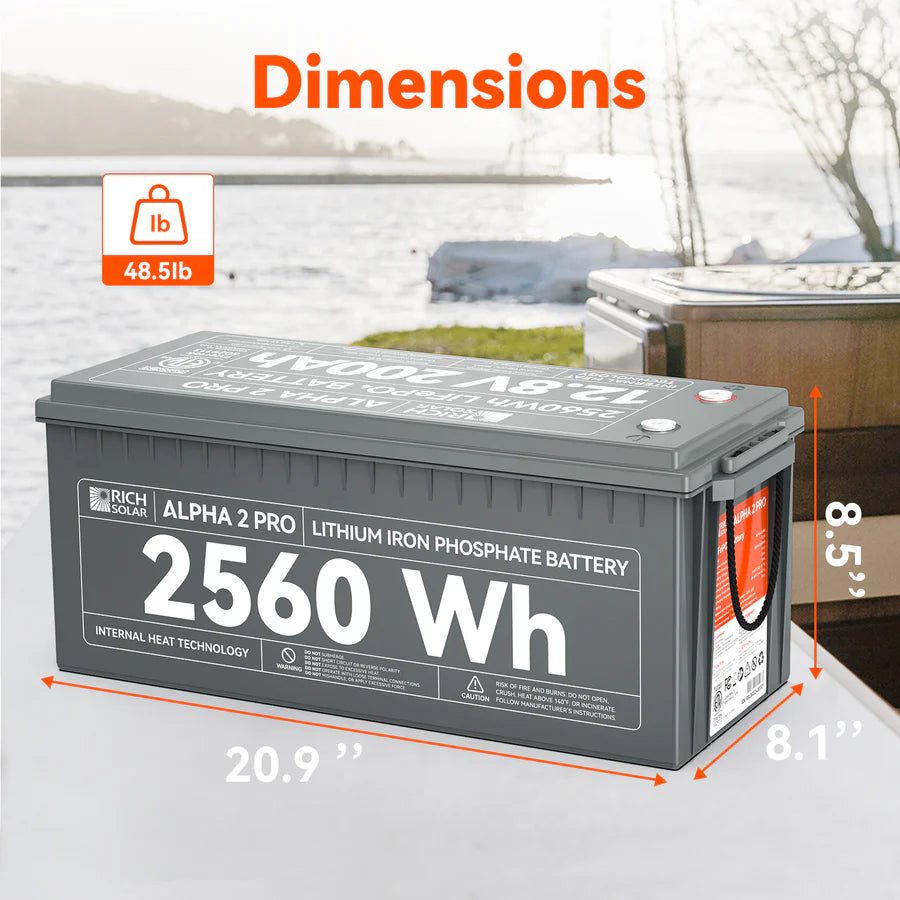

- Size(L*W*H)
- 20.9x8.1x8.5in (Group 31 size)
- Housing Material
- ABS (Flame Retardant Plastic)
- Protection Class
- IP65
- Warranty
- 5 Years
