Renon Power · Batteries
SKU: R-EM51100-XTL01

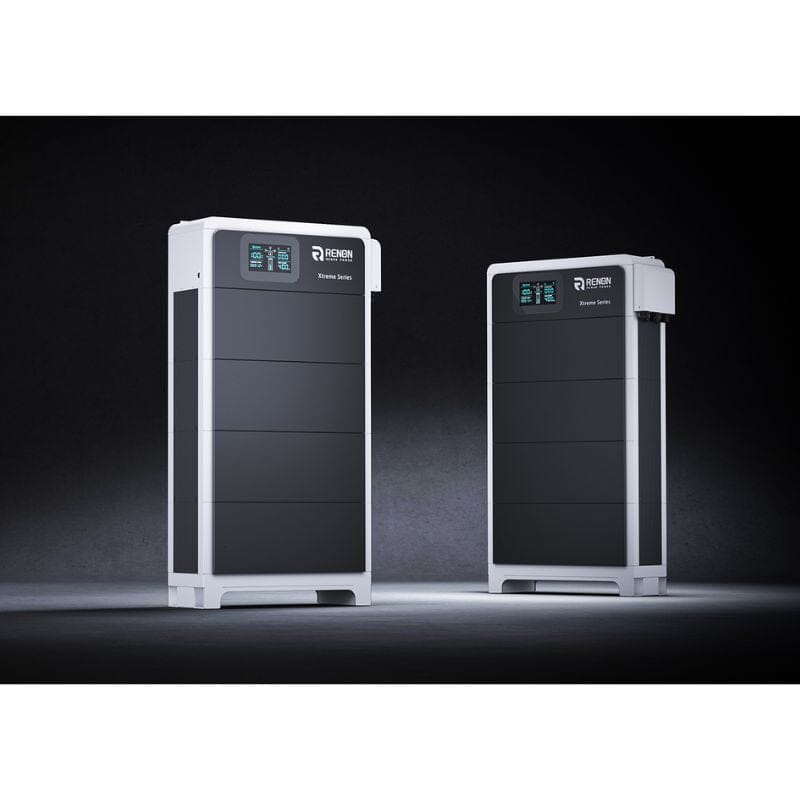

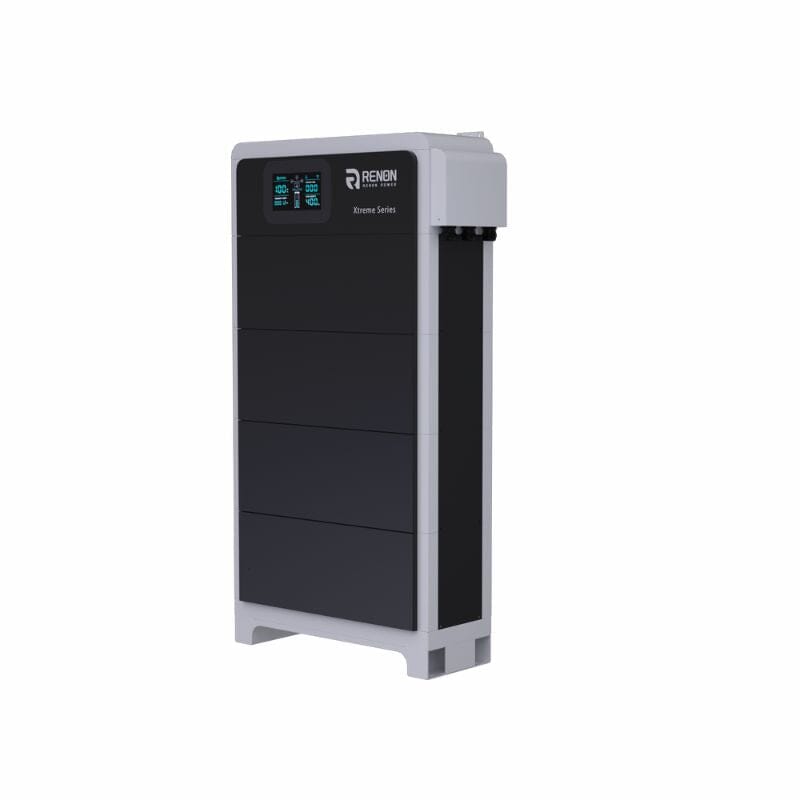

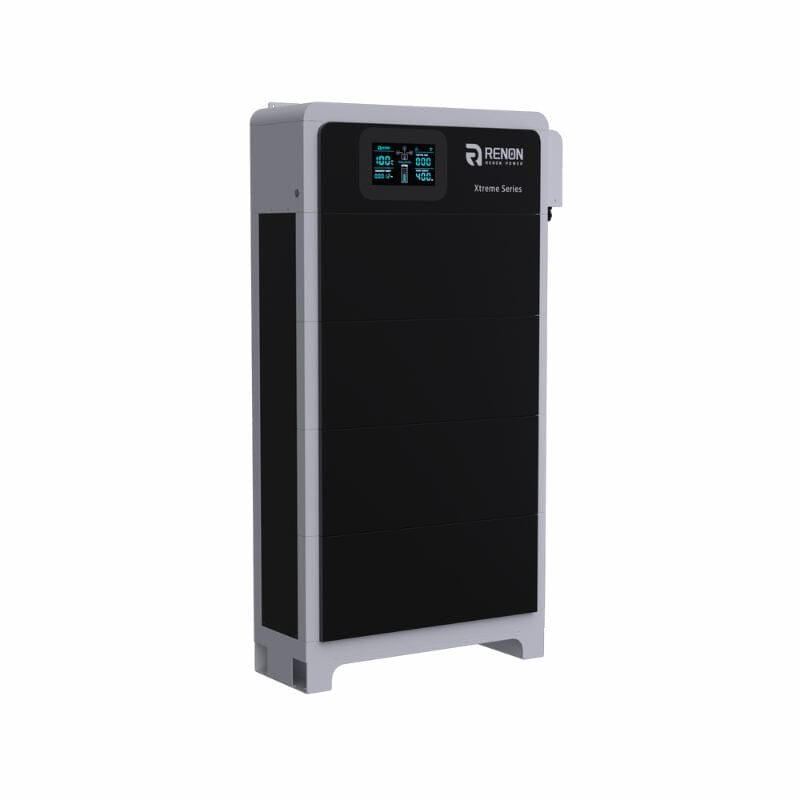

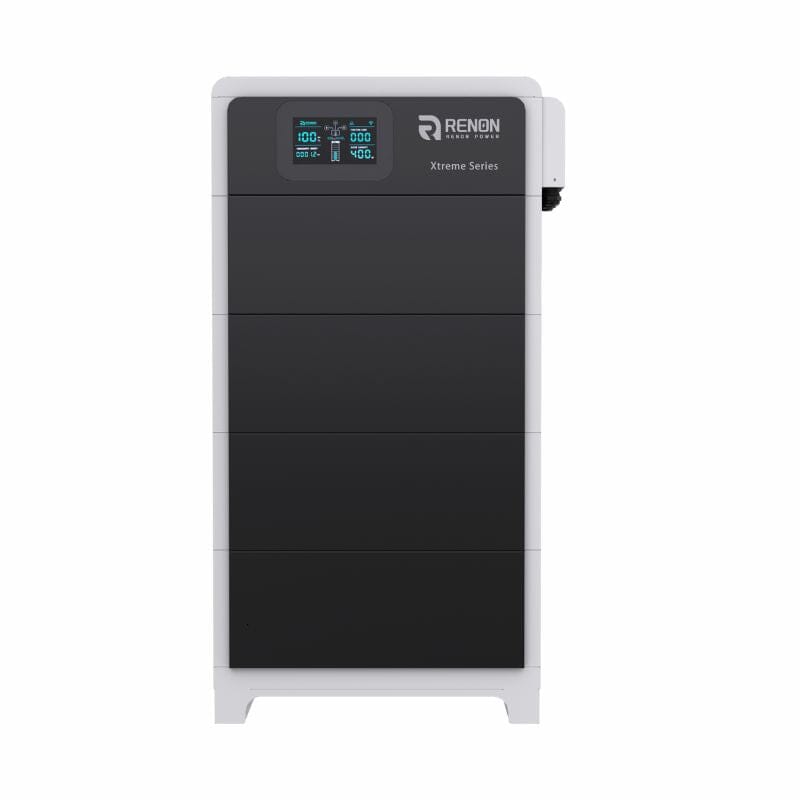

Renon Xtreme LV Modular Battery
Power your home with a customizable, smart energy storage system built for reliability and flexibility. The Renon Xtreme LV Modular Battery System offers scalable energy storage from 10.24 kWh to 30.72 kWh, with stackable LiFePO₄ battery modules and a built-in smart EMS platform.
- Regular price
- $3,047.50
- Sale price
- $3,047.50
- Regular price
-
$5,952.90
Not sure which one you need?
Call 877-242-2792 and we’ll work it out with you. Mon–Thu 10am–5:30pm, Fri 10am–1pm EST.
Frequently bought together
Specifications
The details.
Power your home with a customizable, smart energy storage system built for reliability and flexibility. The Renon Xtreme LV Modular Battery System offers scalable energy storage from 10.24 kWh to 30.72 kWh, with stackable LiFePO₄ battery modules and a built-in smart EMS platform.
Whether you're going off-grid, need backup power, or want to lower your energy bills, this plug-and-play solution makes it easy to take control of your energy.
Key Features:
-
🔋 Modular & Expandable – Choose your capacity, stack more batteries as needed
-
⚡ Built-in BMS + DC-DC Converter – Smart balancing & future module compatibility
-
📶 Wi-Fi Connectivity – Real-time monitoring + over-the-air firmware updates
-
🧠 Intelligent EMS Platform – Customize system behavior & maximize efficiency
-
🔒 LiFePO4 Chemistry – Safer, longer-lasting batteries with up to 8,000 cycles
-
❄️ Works in Extreme Temps – Operating range of -4°F to 122°F (-20°C to 50°C)
-
🛠️ DIY-Friendly Installation – Plug & play design with compact footprint
-
🌿 Eco-Conscious Design – Non-toxic, low-maintenance, and zero memory effect
-
✅ 10-Year Warranty – Backed by Shop Solar's legendary customer support
Built for everyday reliability and whole-home backup capability, the Renon Xtreme LV is your gateway to energy independence—with the freedom to scale as you grow.
- Nominal Energy (kWh)
- 10.24
- Output Power (kW)
- 9.7
- Max. Operation Current (A)
- 190
- Peak for 10s (A)
- 196
- Peak for 2s (A)
- 240
- Max. Charging Voltage (Vdc)
- 58.4
- Discharge Cut-off (Vdc)
- 43.2
- Nominal Voltage (Vdc)
- 51.2
- Recommend Charging Voltage(Vdc)
- 56.8
- Dimension (W*D*H)
- 635*268*795mm 25*10.6*31.3in
- Net Weight (Approximate)
- 141kg 311lb
