EG4 Power PRO Specifications
Technical Specifications
- Model name: WallMount AllWeather Battery
- Battery Type: LiFePO4 (Lithium Iron Phosphate, Grade A)
- Voltage: 48V (Nominal: 51.2V, Float: 54V)
- Continuous Charge/Discharge Current: 200A (Max)
- Capacity: 14.3kWh
- BMS: 200A
- Weight: 308.6 lbs. / 140Kg
- 34.6 in.×22.3 in.×9.1 in
Sol-Ark Hybrid Solar Inverter
Sol-Ark 12K Specifications
Input Data (PV)
- Max. Allowed PV Power (STC) 13,000W
- Nominal Voltage Range 175 - 425V
- Startup Voltage 125V
- Max. Input Voltage 500V
- Max. Input Current per MPPT 20A (self-limiting)
- No. of MPP Trackers 2
- No. of PV Strings per MPPT 2
- Max. AC Coupled Input 9,600W
Output Data (AC)
- Nominal AC Voltage 120/240V, 120/208V, 220V
- Grid Frequency 50 / 60Hz
- Real Power, max continuous 9,000W (1)
- Max. Output Current 37.5A
- Peak Apparent Power (10s, off-grid) 16,000VA @ 240V
- Peak Apparent Power (100ms, off-grid) 25,000VA @ 240V
- Max Output Fault Current (100ms) 104A
- Max. Grid Passthrough Current 63A
- Power Factor Output Range +/- 0.9 adjustable
- Backup Transfer Time 4ms
- CEC Efficiency 96.5%
- Max Efficiency 97.5%
- Design (DC to AC) Transformerless DC
- Stackable Up to 9 in parallel
Battery Input Data (DC)
- Nominal DC Voltage 48V
- Operating Voltage Range 43 - 63V
- Capacity 50 — 9900Ah
- Max. Battery Charge / Discharge Current 185A
- Charging Controller 3-Stage with Equalization
- Grid to Battery Charging Efficiency 96.0%
- External Temperature Sensor Included
- Current Shunt for Accurate % SOC Integrated
- Automatic Generator Start Integrated
- Communication to Lithium CANBus & RS485
General Data
- Dimensions (H x W x D) 750 x 450 x 254 mm / 29.5 x 17.7 x 10 in
- Weight 35.4 kg / 78 lb.
- Enclosure IP65 / NEMA 3R
- Ambient Temperature -25~55°C, > 45°C Derating
- Noise < 30 dB
- Idle consumption - No Load 60W
- Wi-Fi & LAN Communication Included
- Standard Warranty 10 Years
Sol-Ark Hybrid Solar Inverter 15K Specifications
Input Data (PV)
- Max. Allowed PV Power (STC) 19,500W
- Nominal Voltage Range 175 - 425V
- Startup Voltage 125V
- Max. Input Voltage 500V
- Max. Input Current per MPPT 26A (self-limiting)
- No. of MPP Trackers 3
- No. of PV Strings per MPPT 2
- Max. AC Coupled Input 19,200W
Output Data (AC)
- Nominal AC Voltage 120/240V, 120/208V, 220V
- Grid Frequency 50 / 60Hz
- Real Power, max continuous 15,000W
- Max. Output Current 62.5A
- Real Power, max continuous (batteries only, no PV) 12,000W (50A @ 240V)
- Peak Apparent Power (10s, off-grid) 24,000VA @ 240V
- Peak Apparent Power (100ms, off-grid) 30,000VA @ 240V
- Max Output Fault Current (100ms) 94A with PV, 75A (batteries only, no PV) 120A
- Max. Grid Passthrough Current 200A
- Power Factor Output Range +/- 0.9 adjustable
- Backup Transfer Time 5ms
- CEC Efficiency 96.5%
- Max Efficiency 97.5%
- Design (DC to AC) Transformerless DC
- Stackable Up to 12 in parallel
Battery Input Data (DC)
- Nominal DC Voltage 48V
- Operating Voltage Range 43 - 63V
- Capacity 50 — 9900Ah
- Max. Battery Charge / Discharge Current 275A
- Charging Controller 3-Stage with Equalization
- Grid to Battery Charging Efficiency 96.0%
- External Temperature Sensor Included
- Current Shunt for Accurate % SOC Integrated
- Automatic Generator Start Integrated
- Communication to Lithium CANBus & RS485
General Data
- Dimensions (H x W x D) 807 x 494 x 306 mm / 31.8 x 19.4 x 12 in
- Weight 61.2 kg / 135 lb.
- Enclosure IP65 / NEMA 3R
- Ambient Temperature -25~55°C, > 45°C Derating
- Noise < 30 dB
- Idle consumption - No Load 90W
- Wi-Fi & LAN Communication Included
- Standard Warranty 10 Years
Still Have Questions? Give us a call today 1-877-242-2792
EG4 Power PRO Specifications
Technical Specifications
- Model name: WallMount AllWeather Battery
- Battery Type: LiFePO4 (Lithium Iron Phosphate, Grade A)
- Voltage: 48V (Nominal: 51.2V, Float: 54V)
- Continuous Charge/Discharge Current: 200A (Max)
- Capacity: 14.3kWh
- BMS: 200A
- Weight: 308.6 lbs. / 140Kg
- 34.6 in.×22.3 in.×9.1 in
Sol-Ark Hybrid Solar Inverter
Sol-Ark 12K Specifications
Input Data (PV)
- Max. Allowed PV Power (STC) 13,000W
- Nominal Voltage Range 175 - 425V
- Startup Voltage 125V
- Max. Input Voltage 500V
- Max. Input Current per MPPT 20A (self-limiting)
- No. of MPP Trackers 2
- No. of PV Strings per MPPT 2
- Max. AC Coupled Input 9,600W
Output Data (AC)
- Nominal AC Voltage 120/240V, 120/208V, 220V
- Grid Frequency 50 / 60Hz
- Real Power, max continuous 9,000W (1)
- Max. Output Current 37.5A
- Peak Apparent Power (10s, off-grid) 16,000VA @ 240V
- Peak Apparent Power (100ms, off-grid) 25,000VA @ 240V
- Max Output Fault Current (100ms) 104A
- Max. Grid Passthrough Current 63A
- Power Factor Output Range +/- 0.9 adjustable
- Backup Transfer Time 4ms
- CEC Efficiency 96.5%
- Max Efficiency 97.5%
- Design (DC to AC) Transformerless DC
- Stackable Up to 9 in parallel
Battery Input Data (DC)
- Nominal DC Voltage 48V
- Operating Voltage Range 43 - 63V
- Capacity 50 — 9900Ah
- Max. Battery Charge / Discharge Current 185A
- Charging Controller 3-Stage with Equalization
- Grid to Battery Charging Efficiency 96.0%
- External Temperature Sensor Included
- Current Shunt for Accurate % SOC Integrated
- Automatic Generator Start Integrated
- Communication to Lithium CANBus & RS485
General Data
- Dimensions (H x W x D) 750 x 450 x 254 mm / 29.5 x 17.7 x 10 in
- Weight 35.4 kg / 78 lb.
- Enclosure IP65 / NEMA 3R
- Ambient Temperature -25~55°C, > 45°C Derating
- Noise < 30 dB
- Idle consumption - No Load 60W
- Wi-Fi & LAN Communication Included
- Standard Warranty 10 Years
Sol-Ark Hybrid Solar Inverter 15K Specifications
Input Data (PV)
- Max. Allowed PV Power (STC) 19,500W
- Nominal Voltage Range 175 - 425V
- Startup Voltage 125V
- Max. Input Voltage 500V
- Max. Input Current per MPPT 26A (self-limiting)
- No. of MPP Trackers 3
- No. of PV Strings per MPPT 2
- Max. AC Coupled Input 19,200W
Output Data (AC)
- Nominal AC Voltage 120/240V, 120/208V, 220V
- Grid Frequency 50 / 60Hz
- Real Power, max continuous 15,000W
- Max. Output Current 62.5A
- Real Power, max continuous (batteries only, no PV) 12,000W (50A @ 240V)
- Peak Apparent Power (10s, off-grid) 24,000VA @ 240V
- Peak Apparent Power (100ms, off-grid) 30,000VA @ 240V
- Max Output Fault Current (100ms) 94A with PV, 75A (batteries only, no PV) 120A
- Max. Grid Passthrough Current 200A
- Power Factor Output Range +/- 0.9 adjustable
- Backup Transfer Time 5ms
- CEC Efficiency 96.5%
- Max Efficiency 97.5%
- Design (DC to AC) Transformerless DC
- Stackable Up to 12 in parallel
Battery Input Data (DC)
- Nominal DC Voltage 48V
- Operating Voltage Range 43 - 63V
- Capacity 50 — 9900Ah
- Max. Battery Charge / Discharge Current 275A
- Charging Controller 3-Stage with Equalization
- Grid to Battery Charging Efficiency 96.0%
- External Temperature Sensor Included
- Current Shunt for Accurate % SOC Integrated
- Automatic Generator Start Integrated
- Communication to Lithium CANBus & RS485
General Data
- Dimensions (H x W x D) 807 x 494 x 306 mm / 31.8 x 19.4 x 12 in
- Weight 61.2 kg / 135 lb.
- Enclosure IP65 / NEMA 3R
- Ambient Temperature -25~55°C, > 45°C Derating
- Noise < 30 dB
- Idle consumption - No Load 90W
- Wi-Fi & LAN Communication Included
- Standard Warranty 10 Years
Still Have Questions? Give us a call today 1-877-242-2792

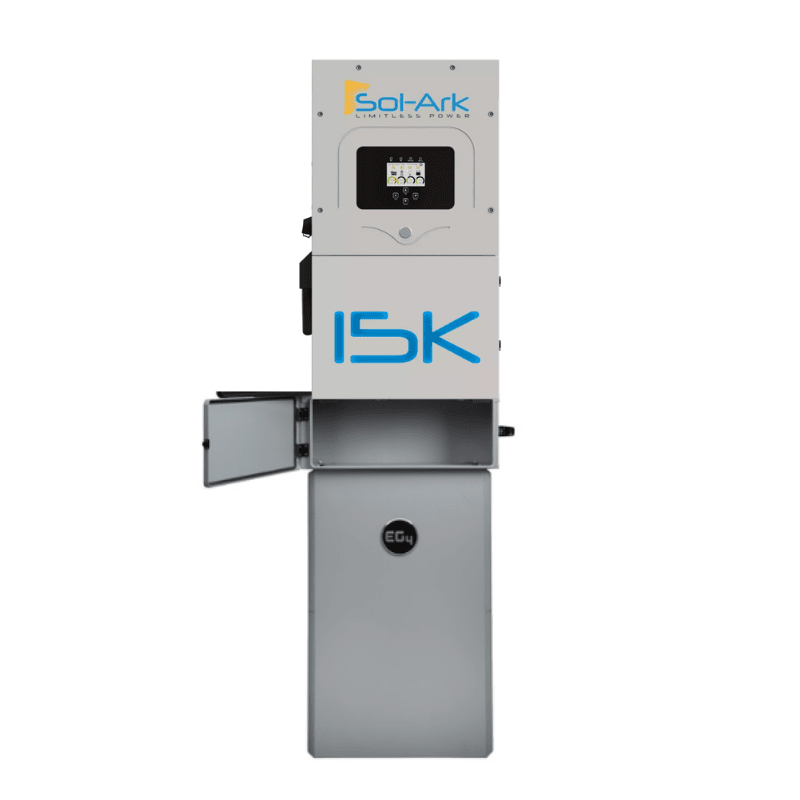

Sol-Ark 15K + WallMount AllWeather ESS | 14.3kWh Lithium Wall Mount Battery + Hybrid Inverter Bundle | 10-Year Warranty
- Regular price
- $11,289.00
- Sale price
- $11,289.00
- Regular price
-
$13,739.00
