Tamarack Flush Mount 93" Rail Kit

Save Time and Money with the Tamarack Flush Mount Rail Kit

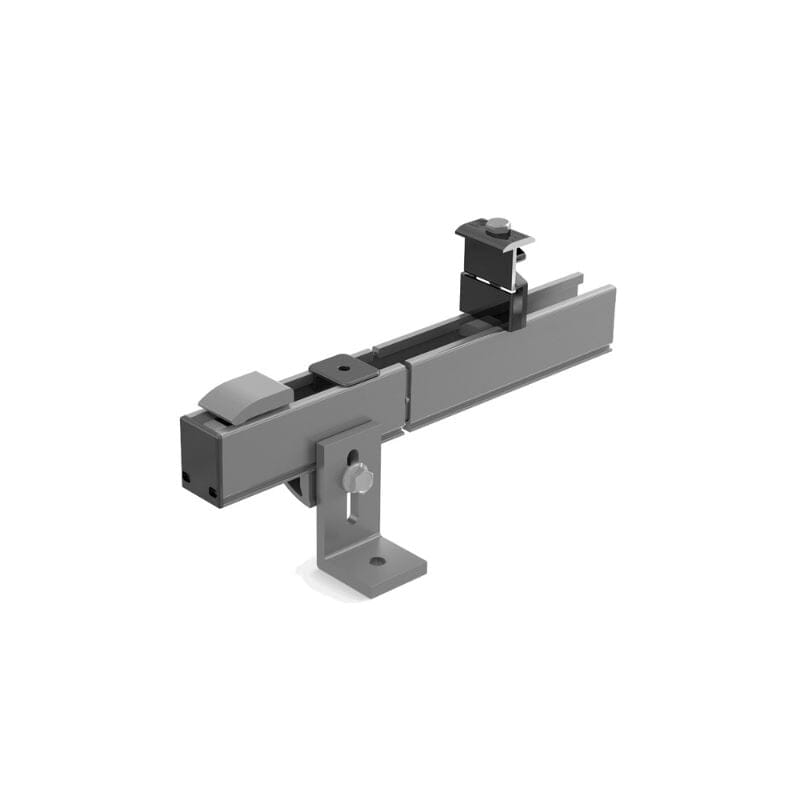

The Tamarack Flush Mount Rail Kit offers an attractive, low-profile black rail mounting system that makes solar installation fast, clean, and secure—perfect for mounting eight PV modules up to 46" wide in portrait orientation.

Key Features & Benefits:

• Complete Mounting Solution – Includes all hardware to mount 8 modules in portrait orientation.

• 2.3" Rail Height – Spans up to 8 feet; certified for wind speeds up to 180 MPH and snow loads up to 120 PSF.

• 5050 Module Clamps – Fit frame thicknesses of 30–40 mm; optional 5050+ clamps available for 35–46 mm frames.

• Built-In Wire Management – Keep PV and MLPE cables neatly inside rails for a clean look.

• Flexible Roof Attachment – L-feet mount to Tamarack flashings, S-5! clamps, or any roof attachment with a 5/16" bolt.

• Tool-Saving Design – Only a 1/2" socket needed for all fasteners.

• Certified & Reliable – UL 2703 Listed, Class A Fire Rating for Type 1 & 2 modules, PE Certified engineering letters available for most states.

• UPS Shippable – Convenient delivery straight to your project site.

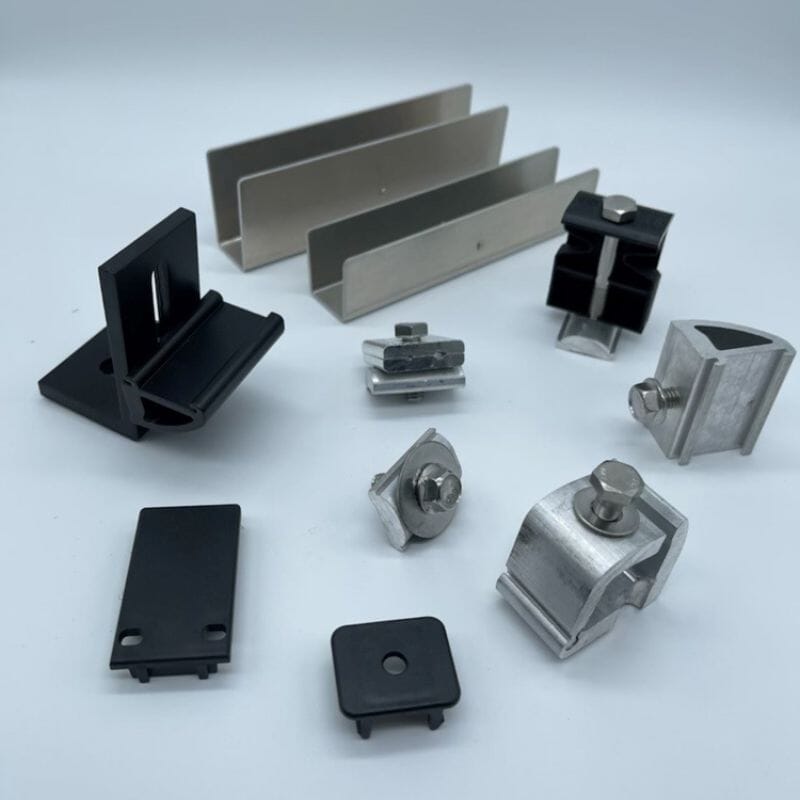

Kit Includes:

• 8 x 93" black rails (2.3" height)

• 20 x 5050 module clamps

• 24 x wire management clips

• 8 x push-in bonding rail splices

• 16 x L-feet with rail mounts

• 4 x ground lugs

• 8 x channel end clamps

• 8 x push-on end caps

This system delivers strength, versatility, and an attractive finish—backed by Tamarack’s proven reliability.

User Manual / Documents:

• Tamarack Flush Mount Rail Kit EIGHT 93-INCH RAILS Data Sheet
• Tamarack Flush Mount Rail Kit EIGHT 93-INCH RAILS Installation Manual
