Solar Tools · Accessories
SKU: ST-SPH
Solar Panel Hanger (Set of 2)

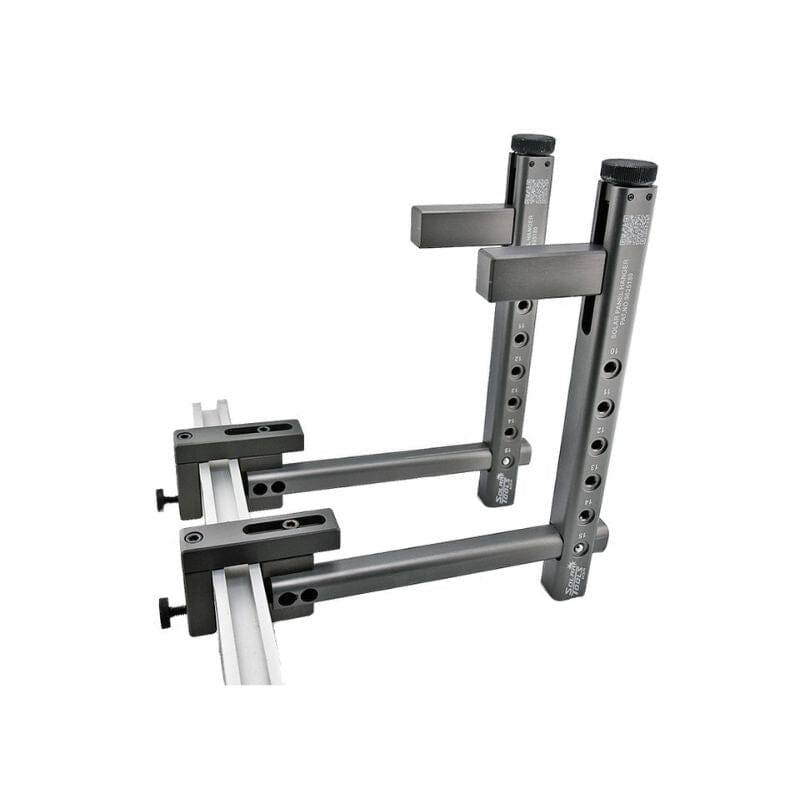

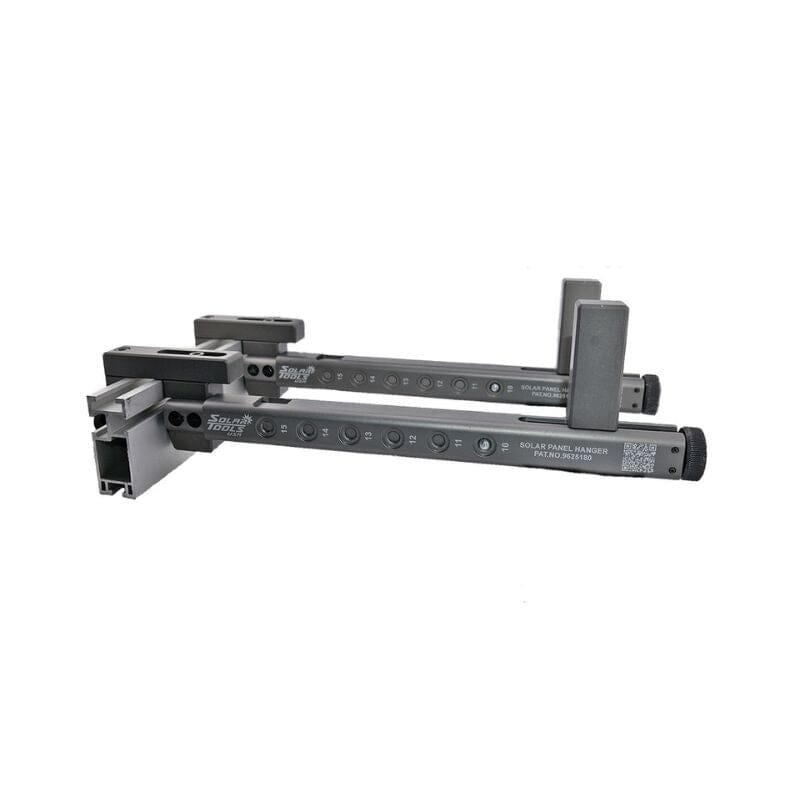

The solar panel hanger is designed to assist with the mounting, leveling, and staging of solar panels in traditional roof mount situations. The tool was created to be an extra pair of hands without the cost of adding another installer to your crew.
- Regular price
- $375.59
- Sale price
- $375.59
- Regular price
-
$499.00
Questions before you buy?
Call 877-242-2792 and we’ll work it out with you. Mon–Thu 10am–5:30pm, Fri 10am–1pm EST.
Frequently bought together
The details.
The solar panel hanger is designed to assist with the mounting, leveling, and staging of solar panels in traditional roof mount situations. The tool was created to be an extra pair of hands without the cost of adding another installer to your crew. With this tool you can have multiple installers focused on separate jobs which can speed up the installation, help ensure your panels are perfectly aligned and provides a safe way to stage multiple panels on the roof at one time.
These are sold in a set of two units per order.
Our 2023 version has some new features:
- Larger, Metal End Knob = Smoother turning radius for micro-adjustments & decreased chance of breakage
- Adjustable Resting Foot is Now Aluminum = Eliminate accidental breakage of dropped tools
- Larger, Threaded Set Screw = Easier to lock/unlock from rail
- Overhang Measurements Laser Engraved = Easier to see and adjust accordingly

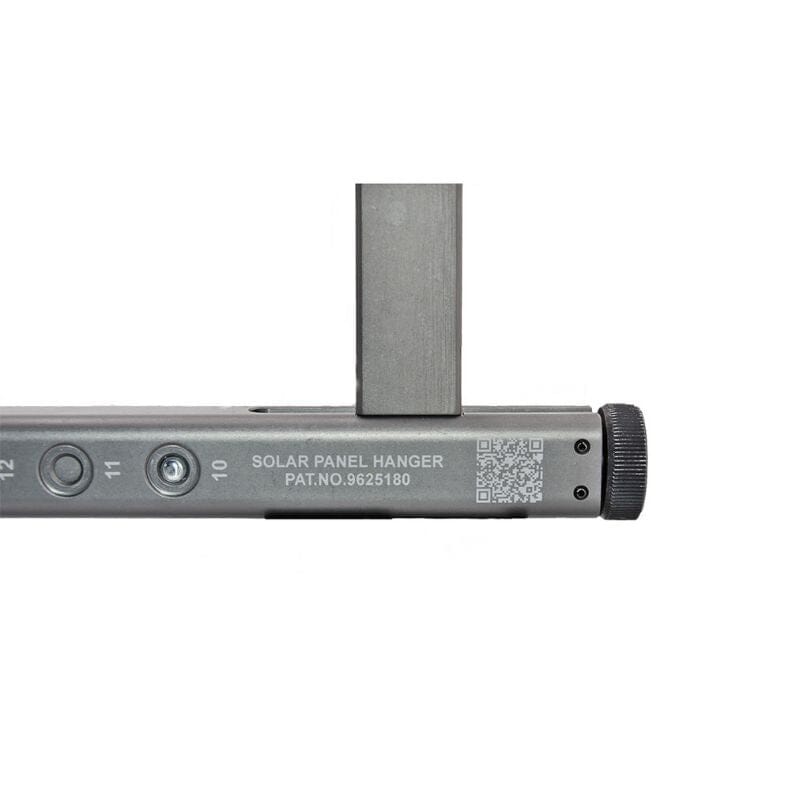

- Laser Engraved How-To Use QR Code on Every Tool = Means there's no excuse your crew can't learn how to use this tool
AND our favorite new feature of all . . . we've gone GUNMETAL GRAY which means your hanger will standout from a black solar panel frame thus reducing trip hazards.
Why do I need Solar Panel Hanger?
- Speed up installations
- Reduce labor cost
- Holds panels in place while wiring the array
- Simplify the process of leveling panels
- Hold panels in place before mounting
- Reduce the risk of installer injury
- Works on any rail style racking
- Adjustable panel cantilever
- Eliminate rail stuffing when staging panels
- Stage multiple panels closer to install point
What type of racking does it work with?
EcoFasten Solar, Everest Solar Systems, IronRidge, DWP (Performed Line Products), Quick Mount PV, Unirac, SunModo & SnapNrack have all been confirmed! With the universal foot, this tool should work on any solar racking you may find yourself working with.
Quick Facts:

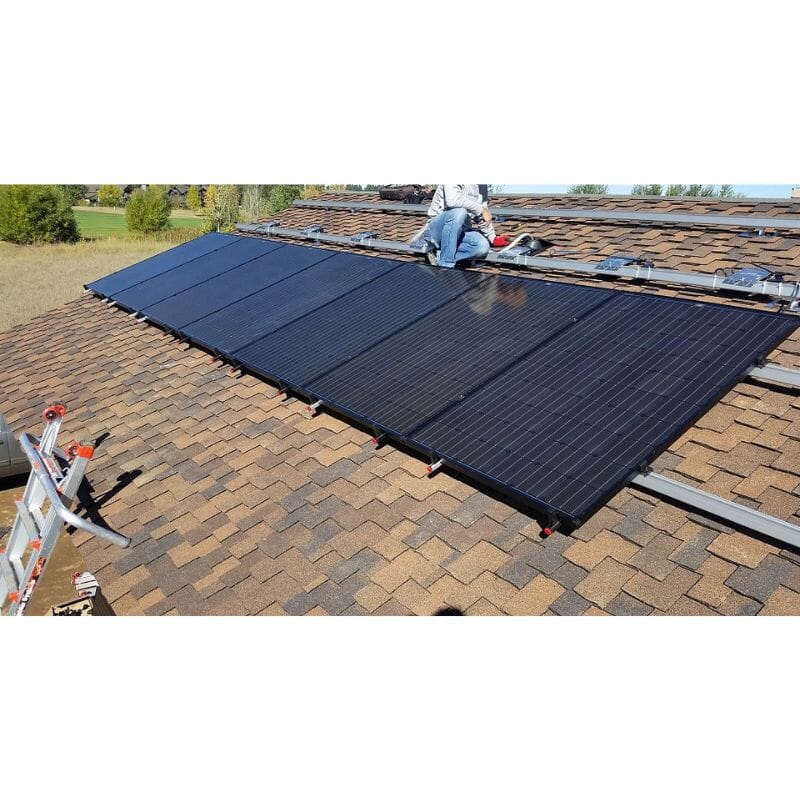

Installing Solar Panels

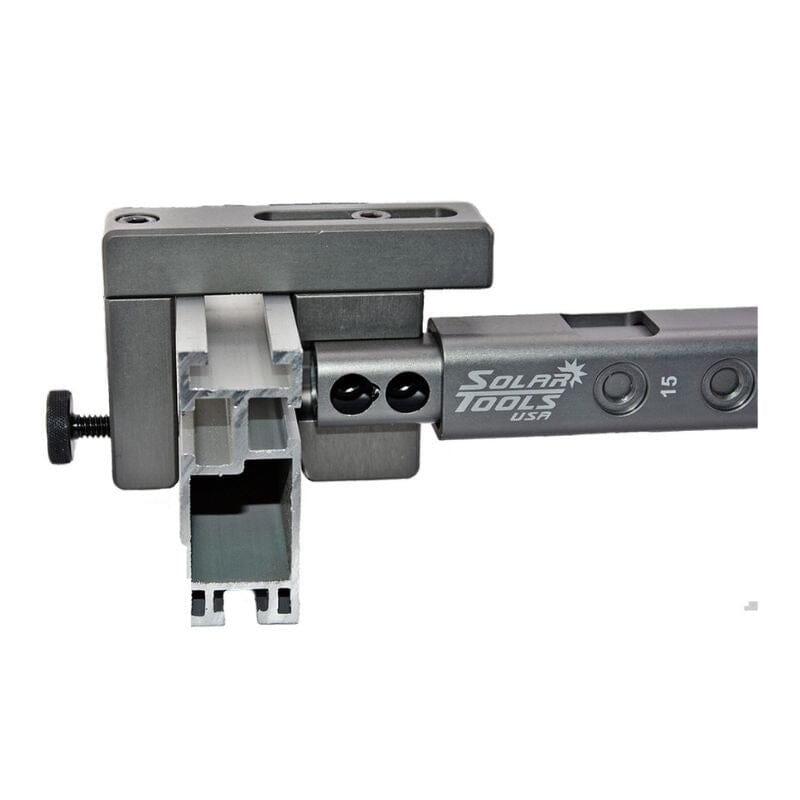

- Universal Jaw works with any industry-standard racking Width
- Range .75"-1.625" in 0.040" increments - Macro adjustments allow panel cantilever adjustments in portrait or landscape from 10"-15" overhang
- Range 9.5"-14.5" in 1" increments (from lower racking to bottom of solar panel) - Micro adjustments accurately level panels to roofline and adjacent panel
- Range 1.5" in continuous increments - Weight capacity (per set) in install mode is 60lbs on a 12/12 pitch roof**

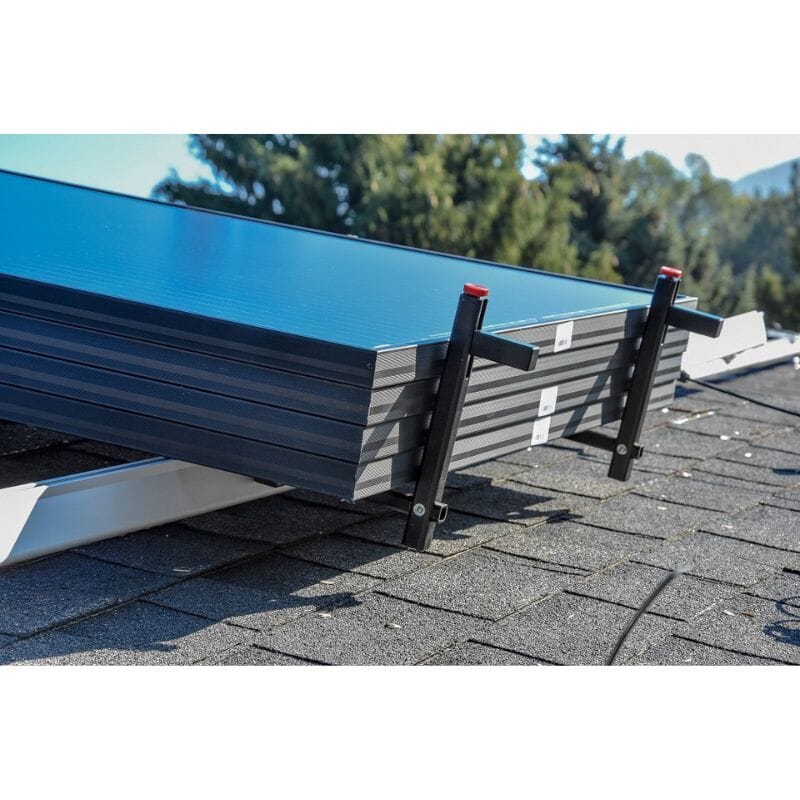

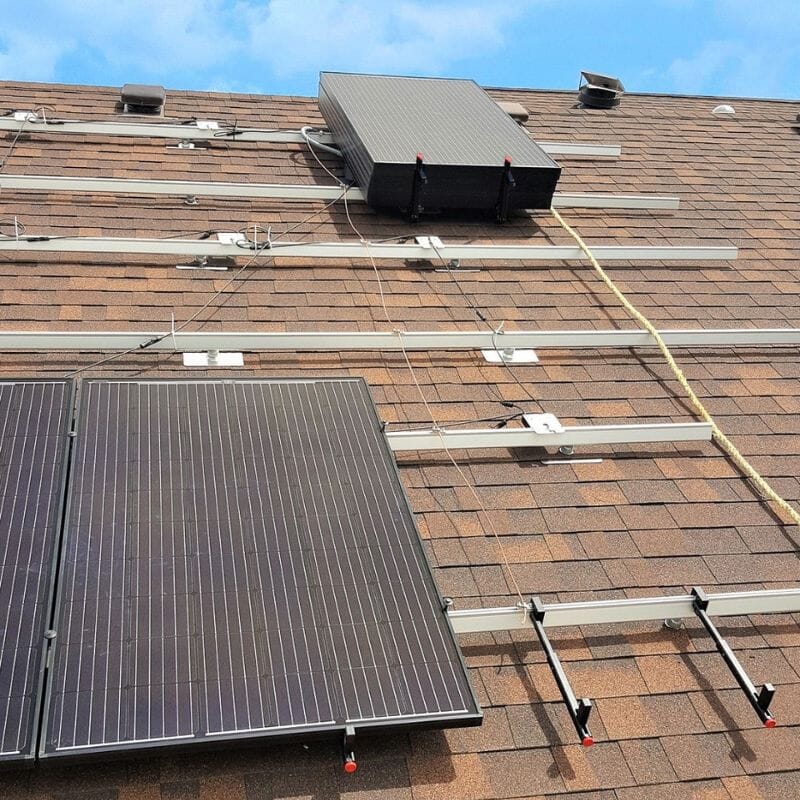

Staging Solar Panels
- Holds up to 6 panels per set
- 200 lbs on a 12/12 pitch roof**
** Product not recommended for use above 12/12 pitch roof
Specifications
- WIDTH: 14.00 (in)
- HEIGHT: 4.00 (in)
- DEPTH: 4.00 (in)
- TESTED ON: Sunmodo (Helio Rail HR150, HR250, HR350, HR500) Ironridge (XR10, XR100, XR1000) SnapNrack (UR-40, UR-60) Unirac (Solar Mount) Quick Mount PV (QRail Standard / Light), Everest Solar (Cross Rail 44-X, Cross Rail 48-X, /cross Rail 80)
