Crimping Tool Kit for Solar Panel Wiring - Solar Connector Kit
Most reasonable Tool Kit with logical structure, organization, and portability.
- Regular price
- $59.00
- Sale price
- $59.00
- Regular price
-
$99.99
Questions before you buy?
Call 877-242-2792 and we’ll work it out with you. Mon–Thu 10am–5:30pm, Fri 10am–1pm EST.
Frequently bought together
Specifications
The details.

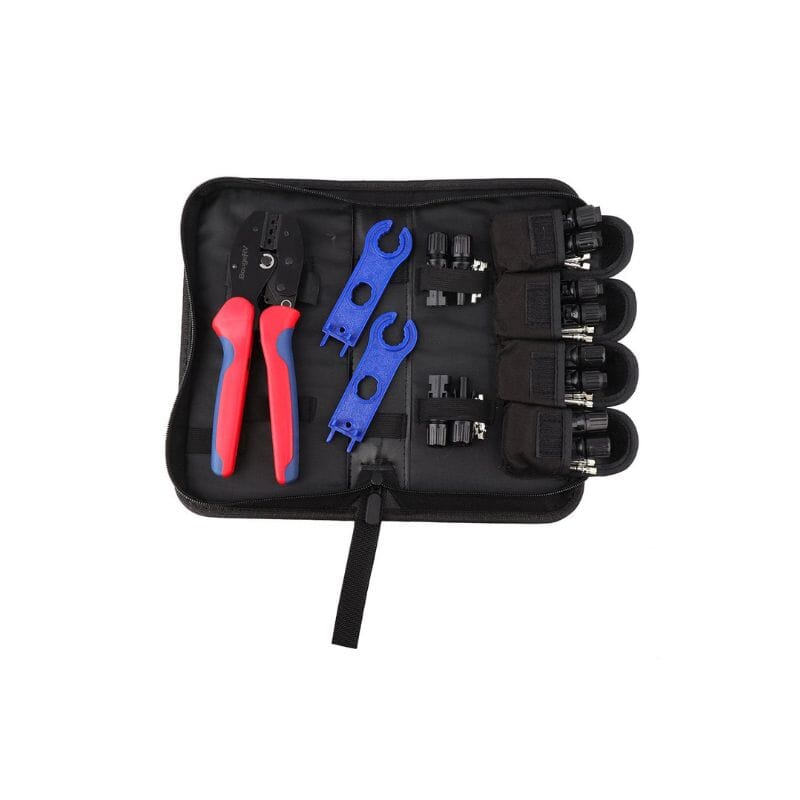

Most reasonable Tool Kit with logical structure, organization, and portability.

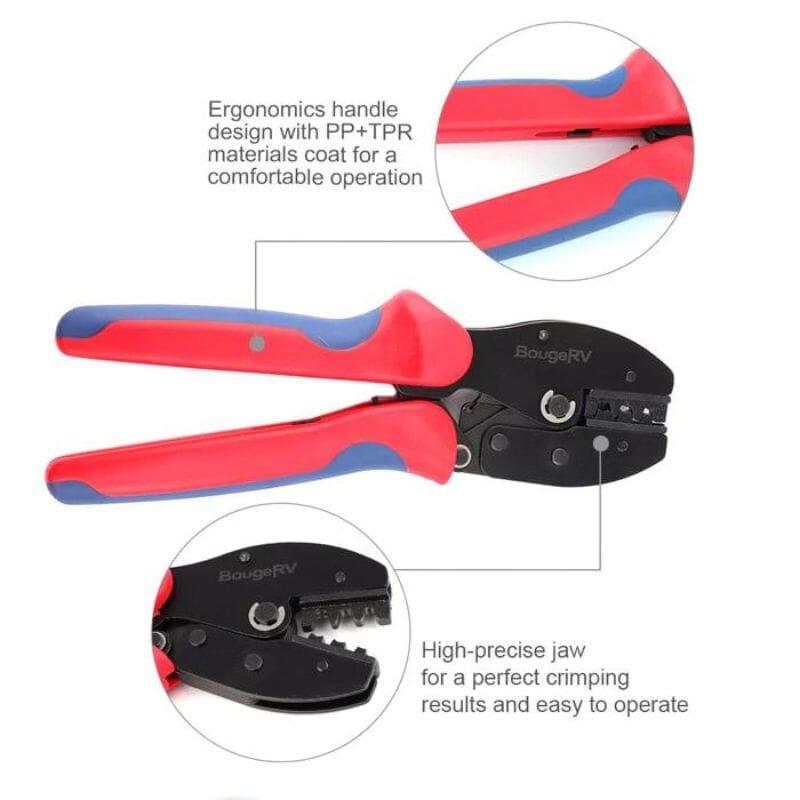

Excellent handing, easy exchange of crimping insert bits, and the possibility of adding a positioning aid are facts in favor of these crimping pliers

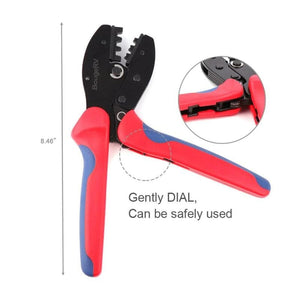

High-precision ratchet mechanism for complete crimps.
How to use the solar connector crimper tool to complete solar cable?
*The female metalwork is greatly bigger than the male metalwork, it should match the male connector and vice versa.
Step A: Confirm which connector should the bare end put in. If the other end is a male connector, the bare end should put in the female connector, vice versa.
Step B: Lead the red cable through the base, strain relief, and the compression sleeve, then crimp the red cable's bare end into the female metalwork, put it in the male connector.
Step C: Lead the black cable through the base, strain relief, and the compression sleeve, then crimp the red cable's bare end into the male metalwork, put it in the female connector.
Tech Specs
| Feature | |
|---|---|
| Item Weight | 15.5 ounces |

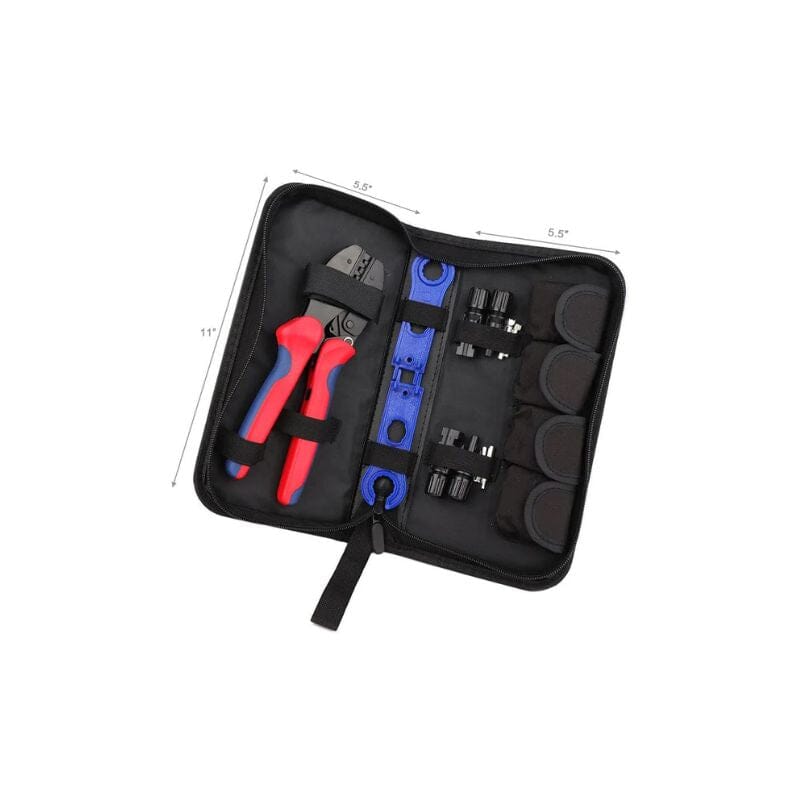

| Package Dimensions | 11.5 x 6 x 2.1 inches |
| Handle Material | High Carbon Steel |
| PACKAGE INCLUDED |

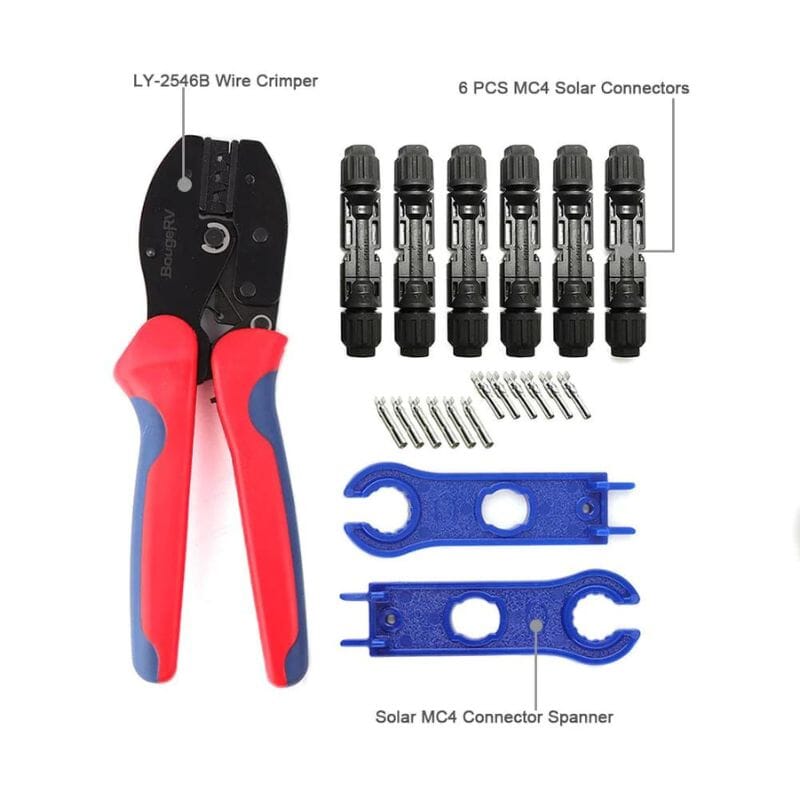

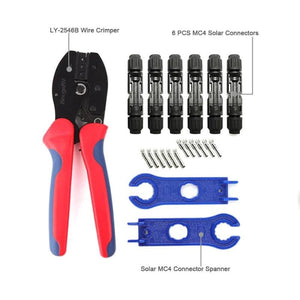

1 pair of wire crimper, 6 Pairs solar panel connectors, 1 pair solar connector spanner |
| APPLY TO | TYCO solar connector crimping tools / Solar PV Tool Kits |
Great to have for anyone with their own solar power system!
- AWG
- 26-10AWG
- Crimping Range
- 2.5/4/6mm2
- Application
- For non-insulated open plug-type connector
- Material
- High carbon steel
- Weight
- 0.44kg/0.97lbs
- Degree of waterproof
- IP67
- Suitable cable
- 1.5mm2-6mm2 ( includes AWG14, AWG13,AWG12, AWG11, AWG10 )
- Adapter Wire
- OD 5mm-7mm
- Connector conductor material
- Copper, Tin
- Connector Insulation material
- PPO or PBT
