Renogy 500A Battery Monitor

Renogy 500A Battery Monitor With Shunt | RBM500

The Renogy Battery Monitor is designed to monitor performance for most kinds of batteries. Its high-precision measurements will eliminate the guesswork from battery usage and improve your battery bank's overall performance and longevity! It is a universal battery monitor that you can use with voltage ranging from 10V to 120V and up to 500A.

LOW POWER CONSUMPTION DESIGN

The backlight will automatically shut down when the charging current is ＜100mA and only 1 mA Standby Dissipation. This battery monitor is equipped with data storage capacity. It automatically saves the last testing data when its power is off.

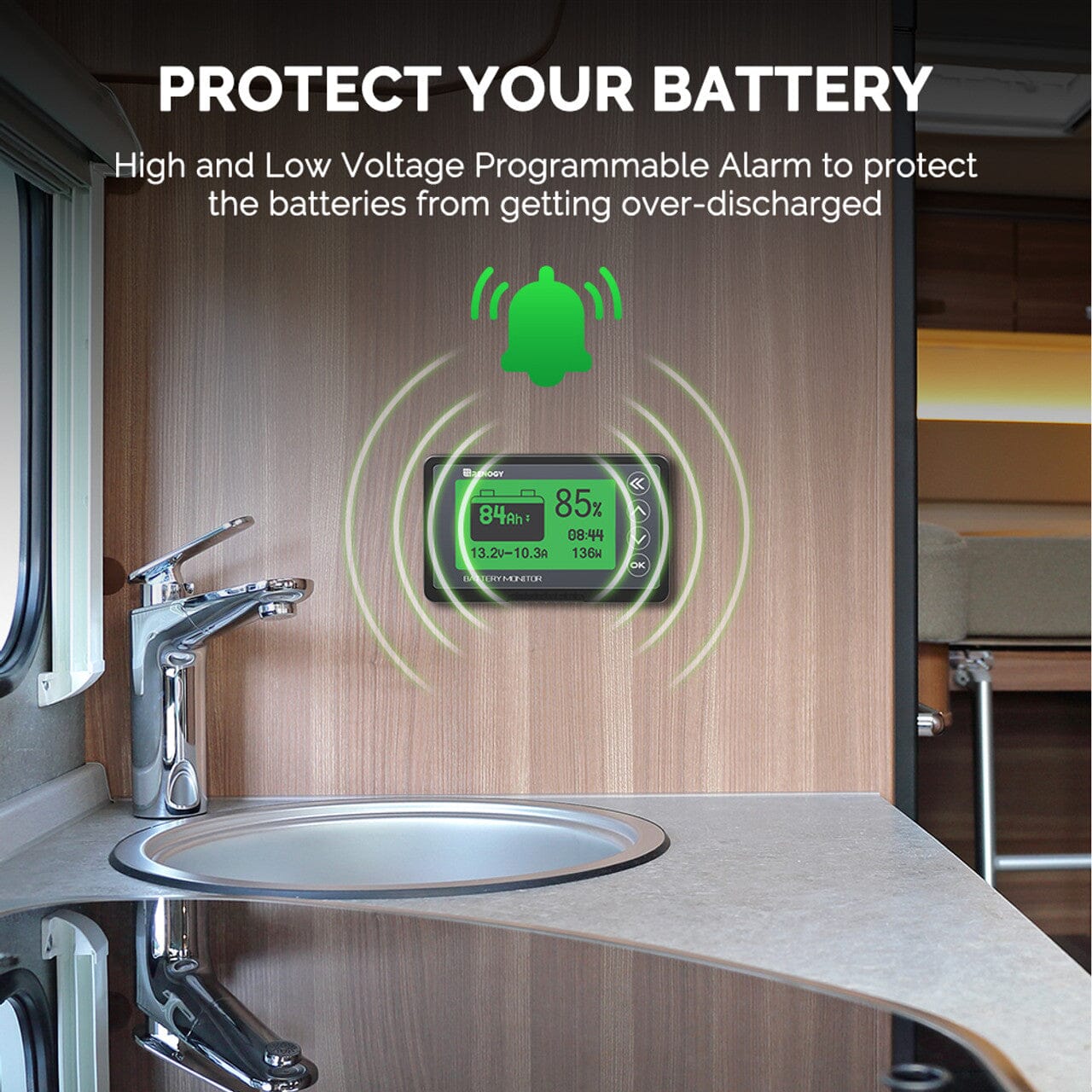

PROTECT YOUR BATTERY

This monitor gives you high precision current detection and accurate battery state of charge. You can also set an alarm for high or low current voltage. When the alarm is activated, the backlight and voltage value will be shown on the screen to alert you on what to do when you reach the cut-off voltage.

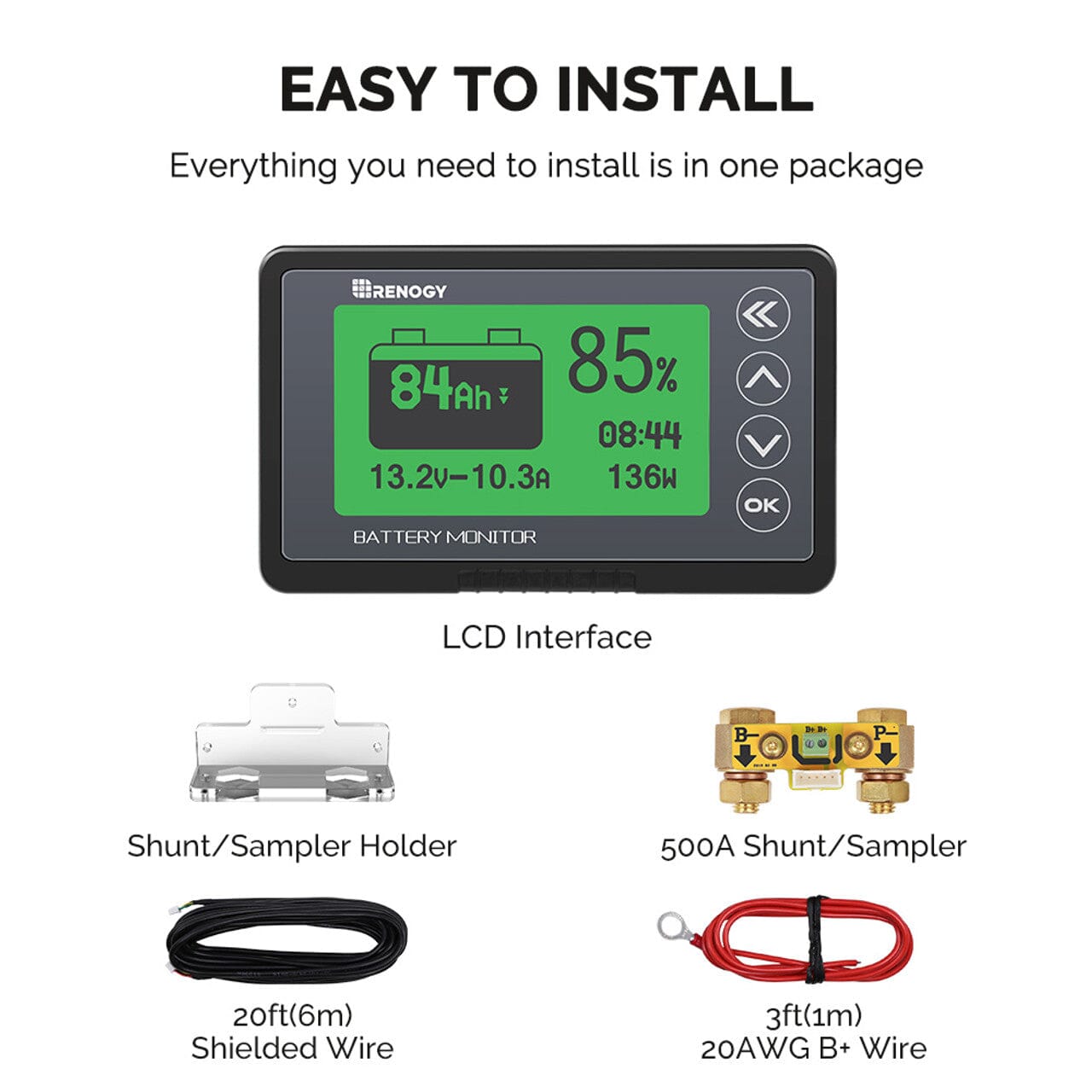

EASY TO INSTALL

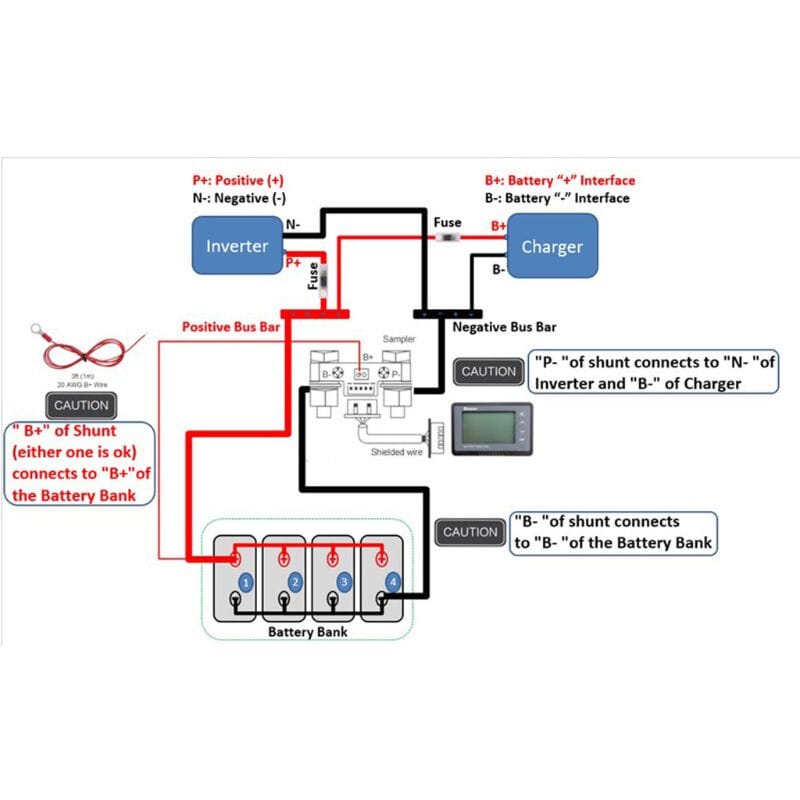

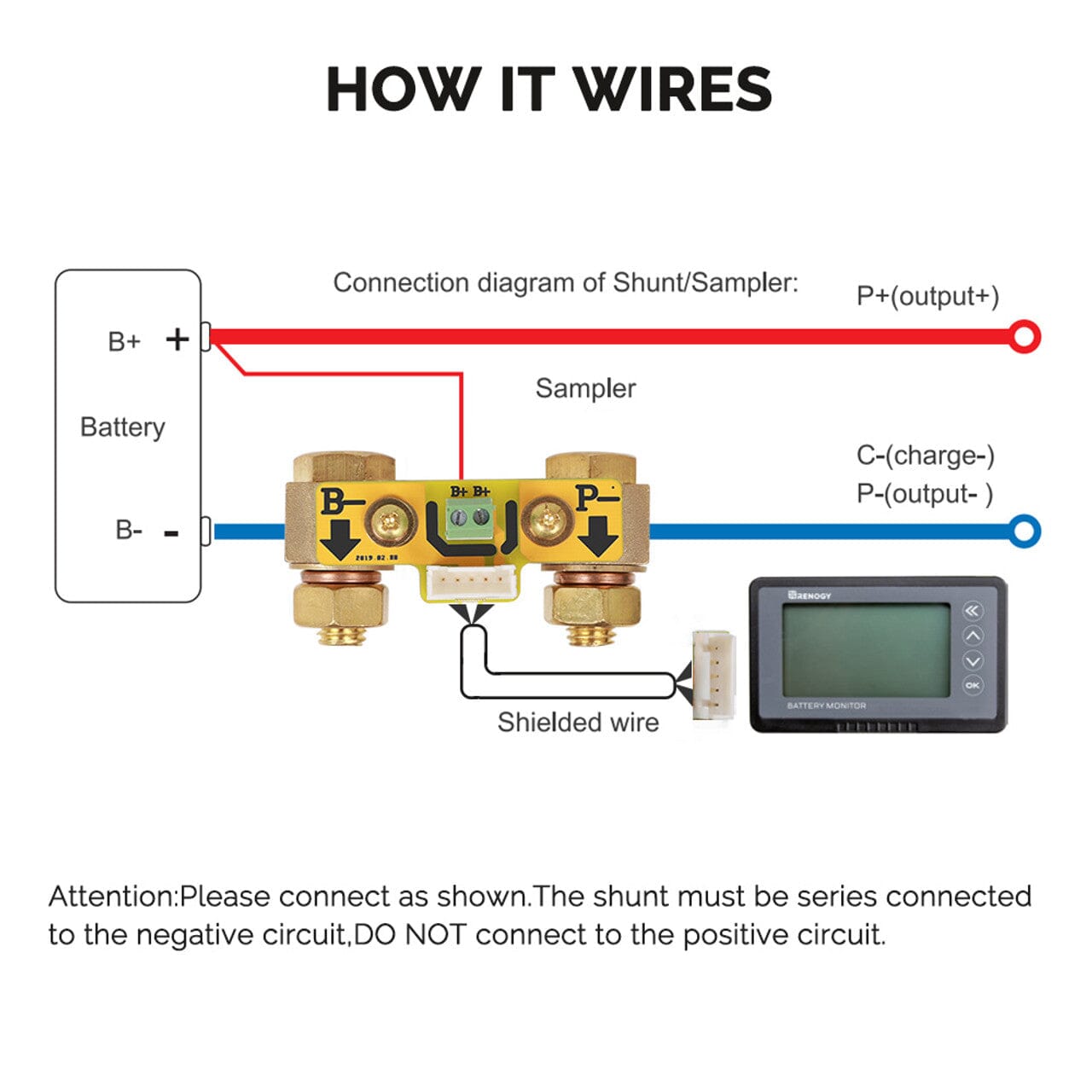

The package includes the LCD interface, 500A shunt, transparent shunt holder, 20 ft shielded wire, and B+ wire. The shunt holder makes it very convenient to mount the shunt while the long shielded wire allows you to monitor the status of your battery from a distance.

What's Included With Your Order?

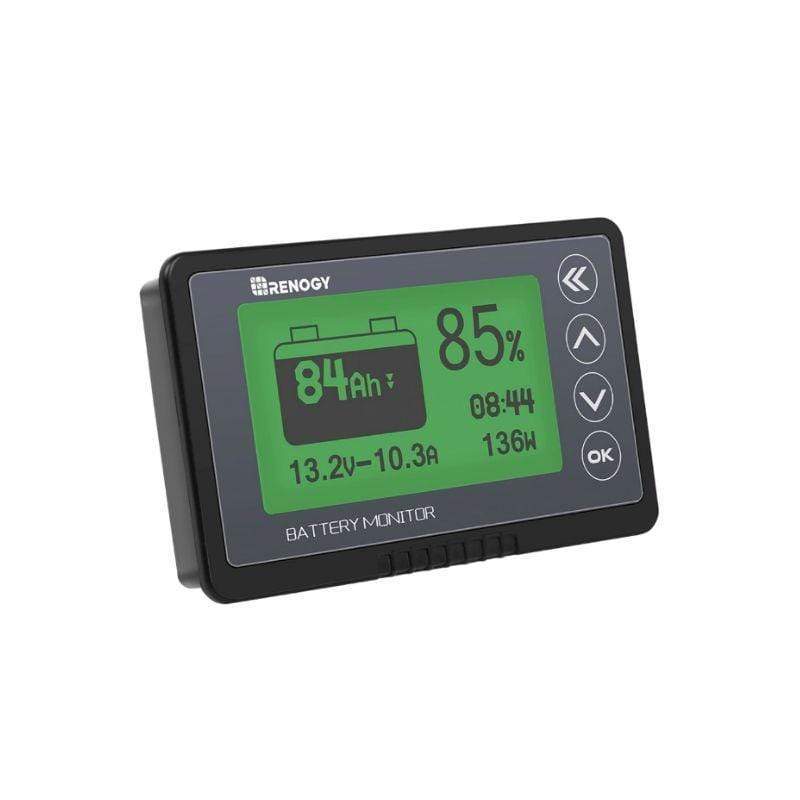

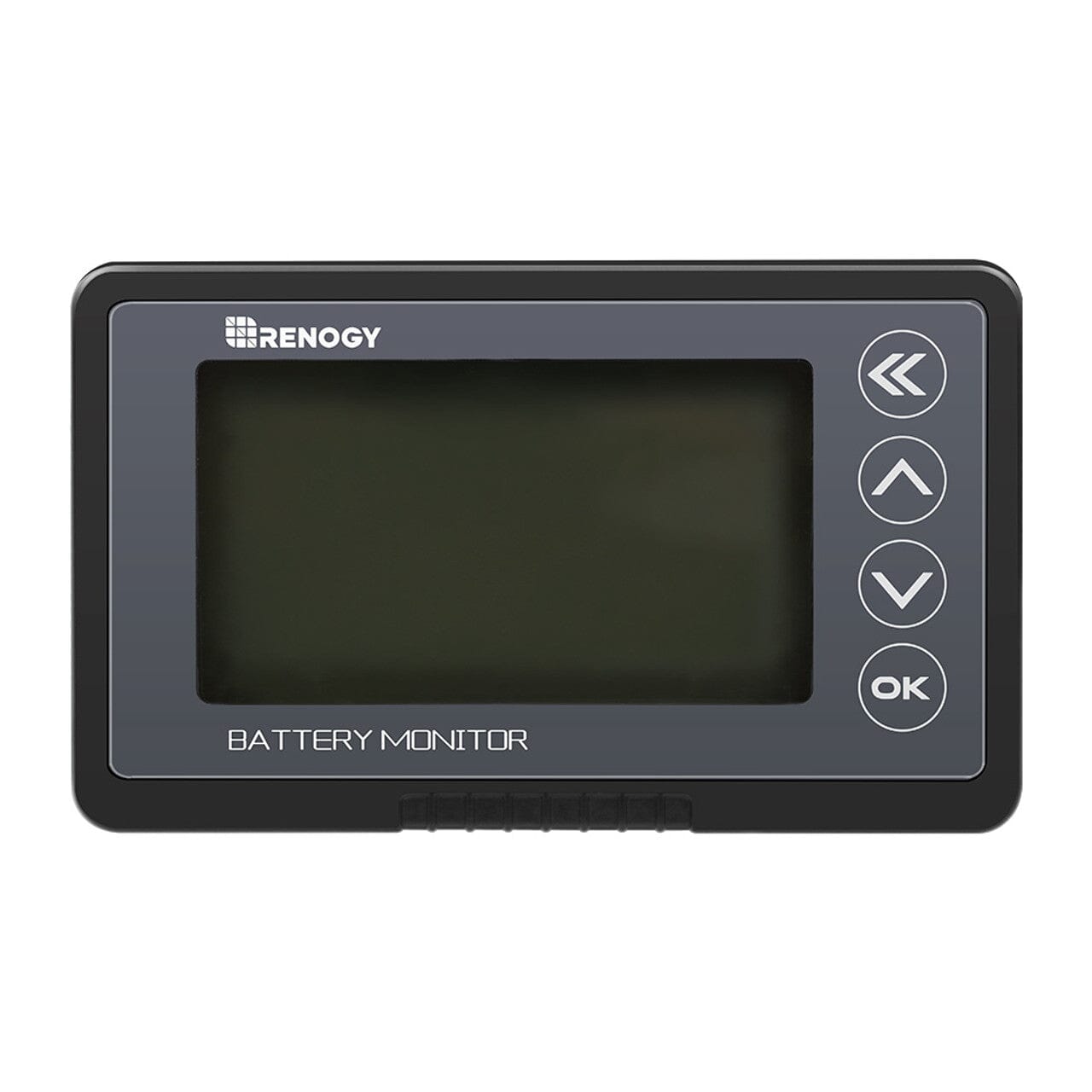

• 1 x LCD Interface LCD Interface
• 1 x 500A Shunt/Sampler 500A Shunt/Sampler
• 1 x Shielded Wire Shielded Wire 1 x B+ Wire B+ Wire
• 1 x Shunt Holder Shunt Holder

• Free Shipping

• Lifetime Customer Support (Email, Live Chat & Phone)


500A BATTERY MONITOR WITH SHUNT OPERATION SPECIFICATIONS

• Working Voltage: 10-120V
• Standby Dissipation: 1-2mA
• Working Dissipation: 10-15mA
• Preset capacity value: 0.1-9999.0 AH
• Backlight on current (>50A): 100mA

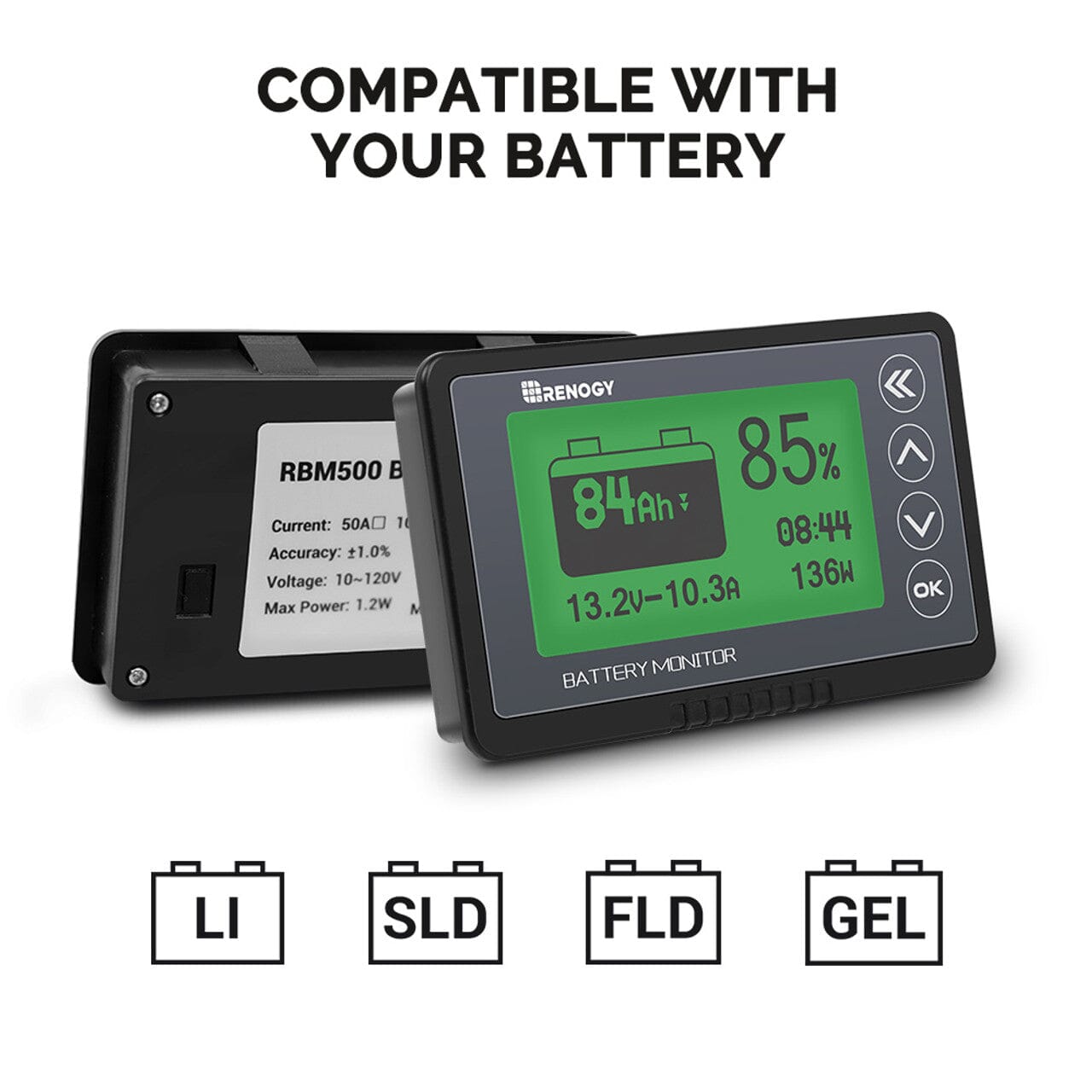

• Compatible Battery: Lead Acid (AGM, GEL), Lithium Iron Phosphate, Lithium-ion, Nickel-metal hybrid

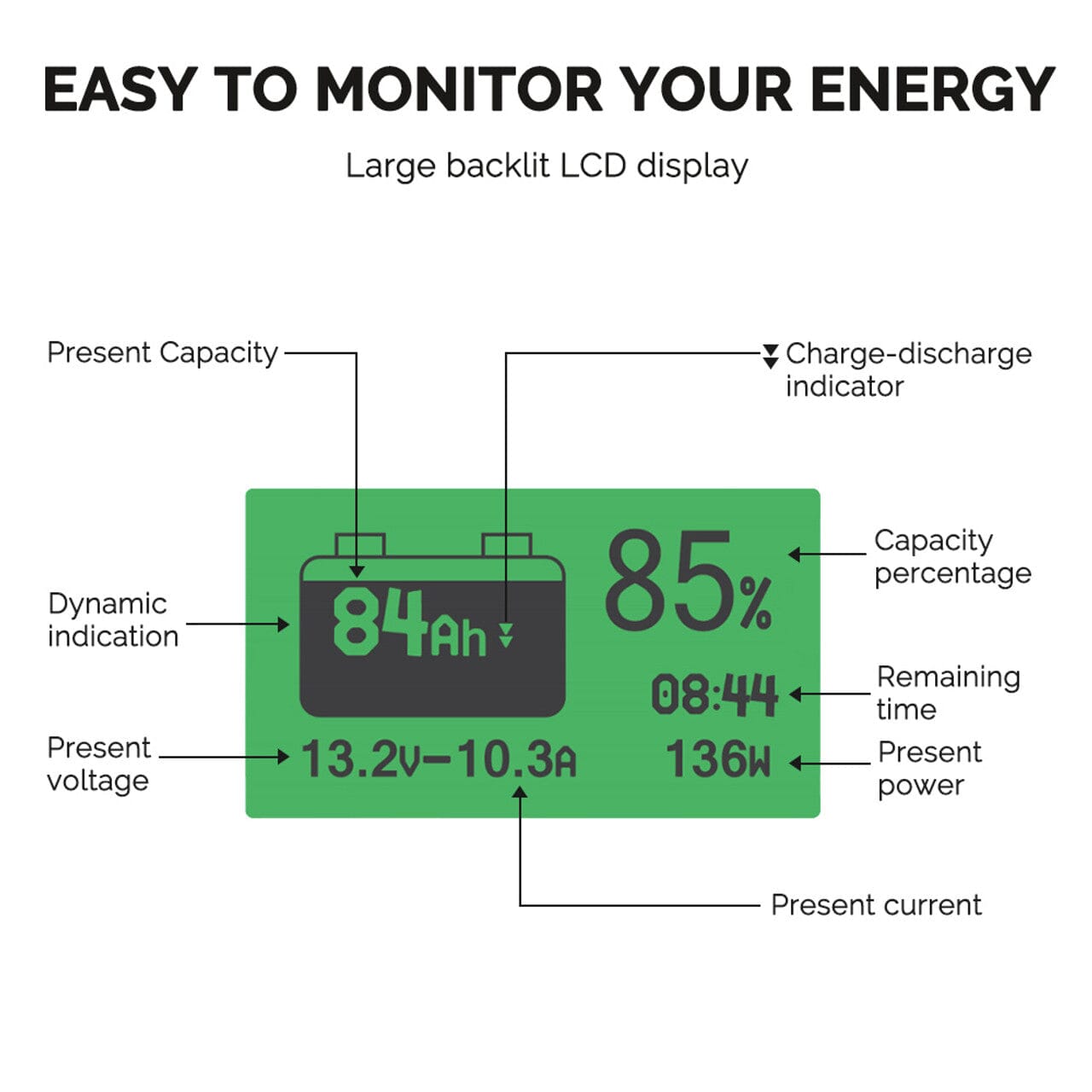

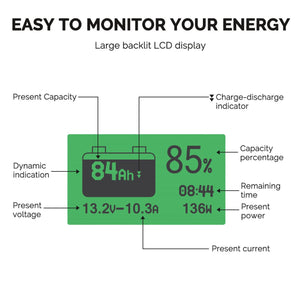

• Display: LCD with Green Backlight (brightness is adjustable)
• Capacity Accuracy: ±1%
• Current Accuracy: ±1%
• Voltage Accuracy: ±1%

MECHANICAL SPECIFICATIONS

• Shielded Wire Length: 20 ft/6 m
• Weight (LCD Interface): 2.6 oz / 75 g

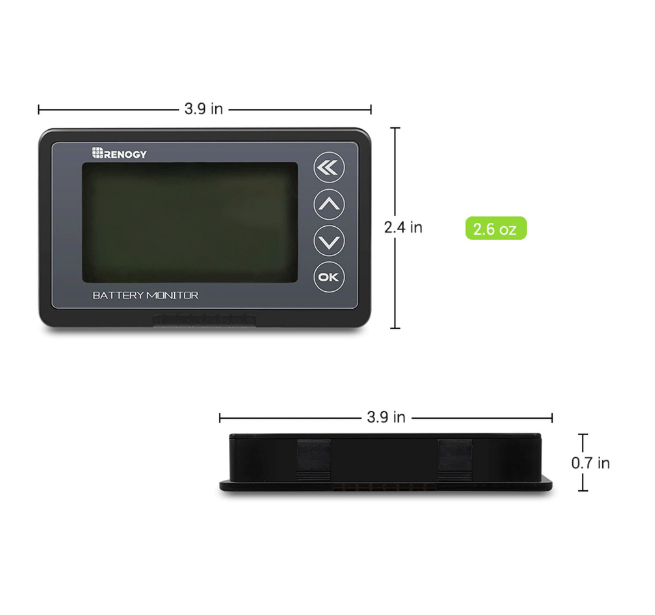

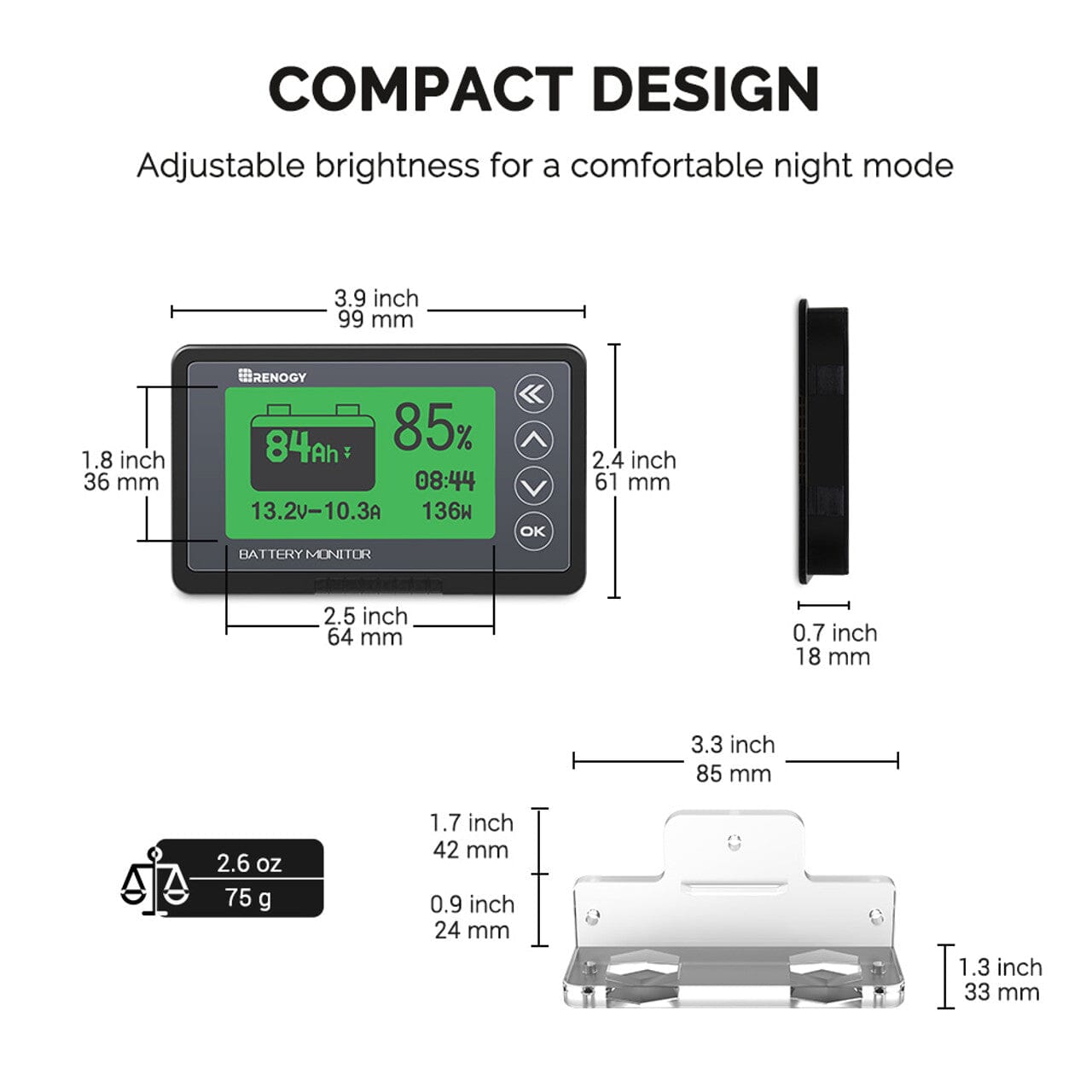

• Size (LCD Interface): 3.9 x 2.4 x 0.7 in / 99 x 61 x 18 mm B+
• Wire Length: 3 ft/1 m
• Temperature range: 14-140°F(-10-60°C)

ACCESSORIES

• LCD Interface: x 1
• 500A Shunt / Sampler: x 1
• Shielded Wire: x 1 B+ Wire: x 1
• Shunt Holder: x 1

CERTIFICATIONS

• ROHS: Yes

WARRANTY

• Material Warranty: 1 Year
