Renogy · Accessories
SKU: RNG-CNCT-MC4Y-M-G1-US

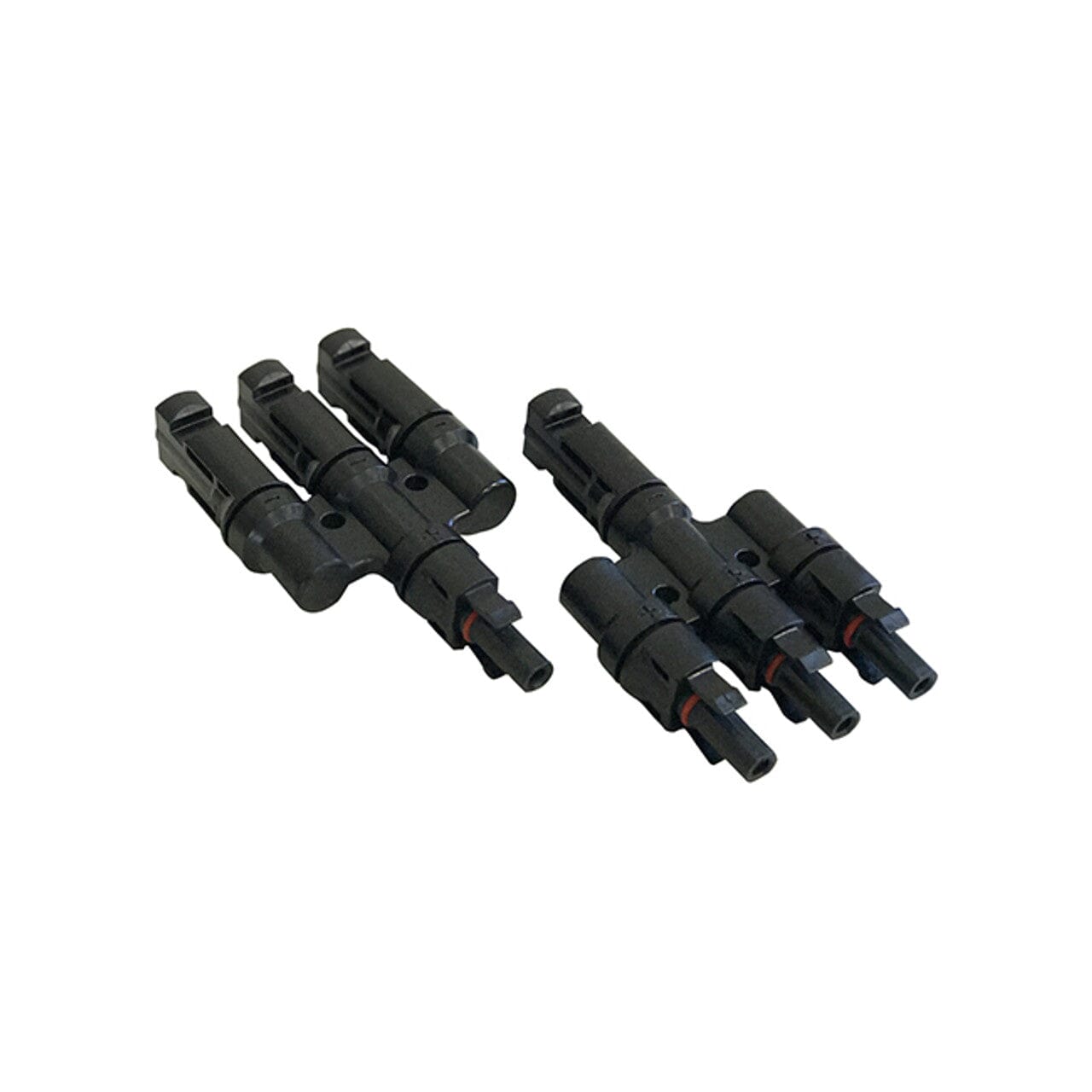

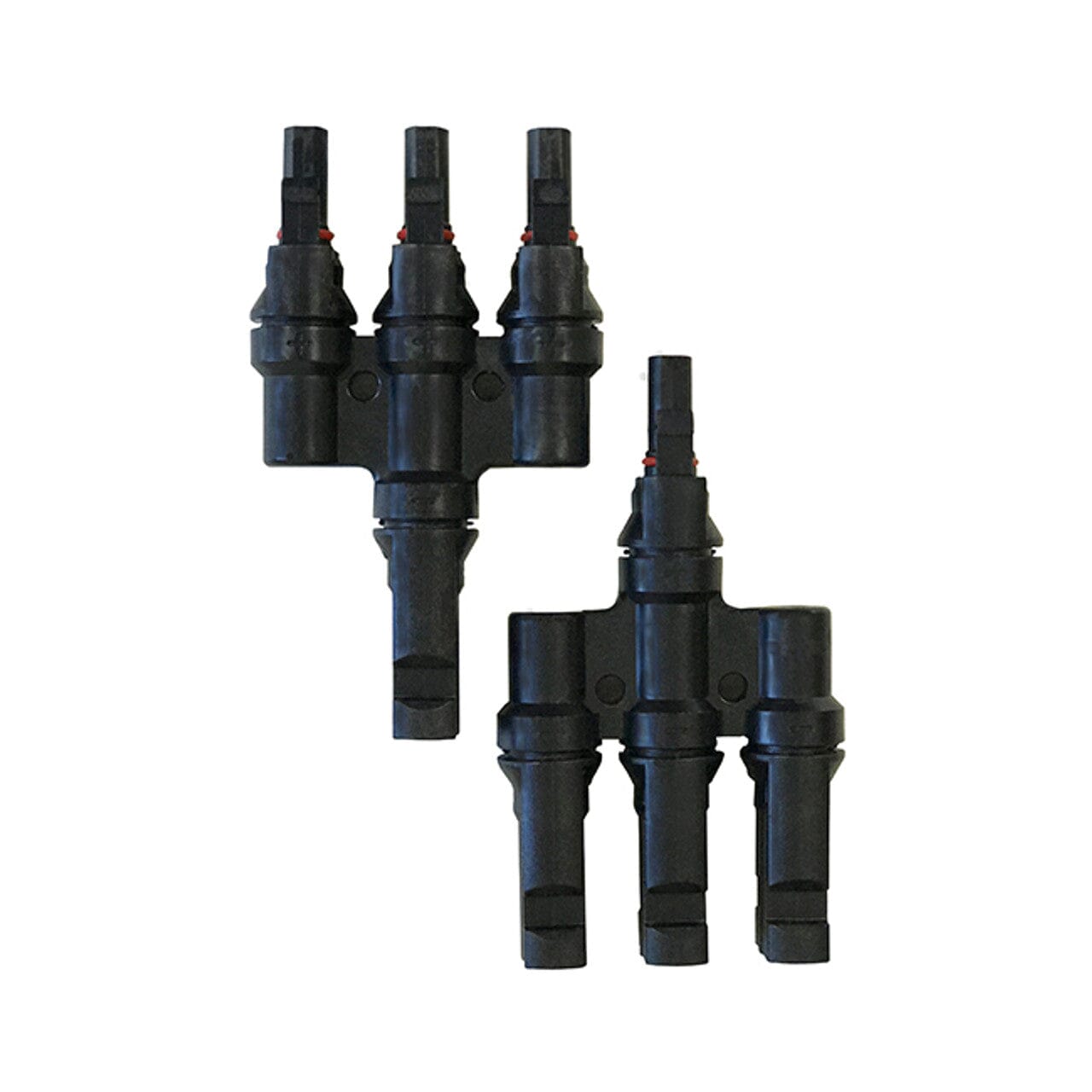

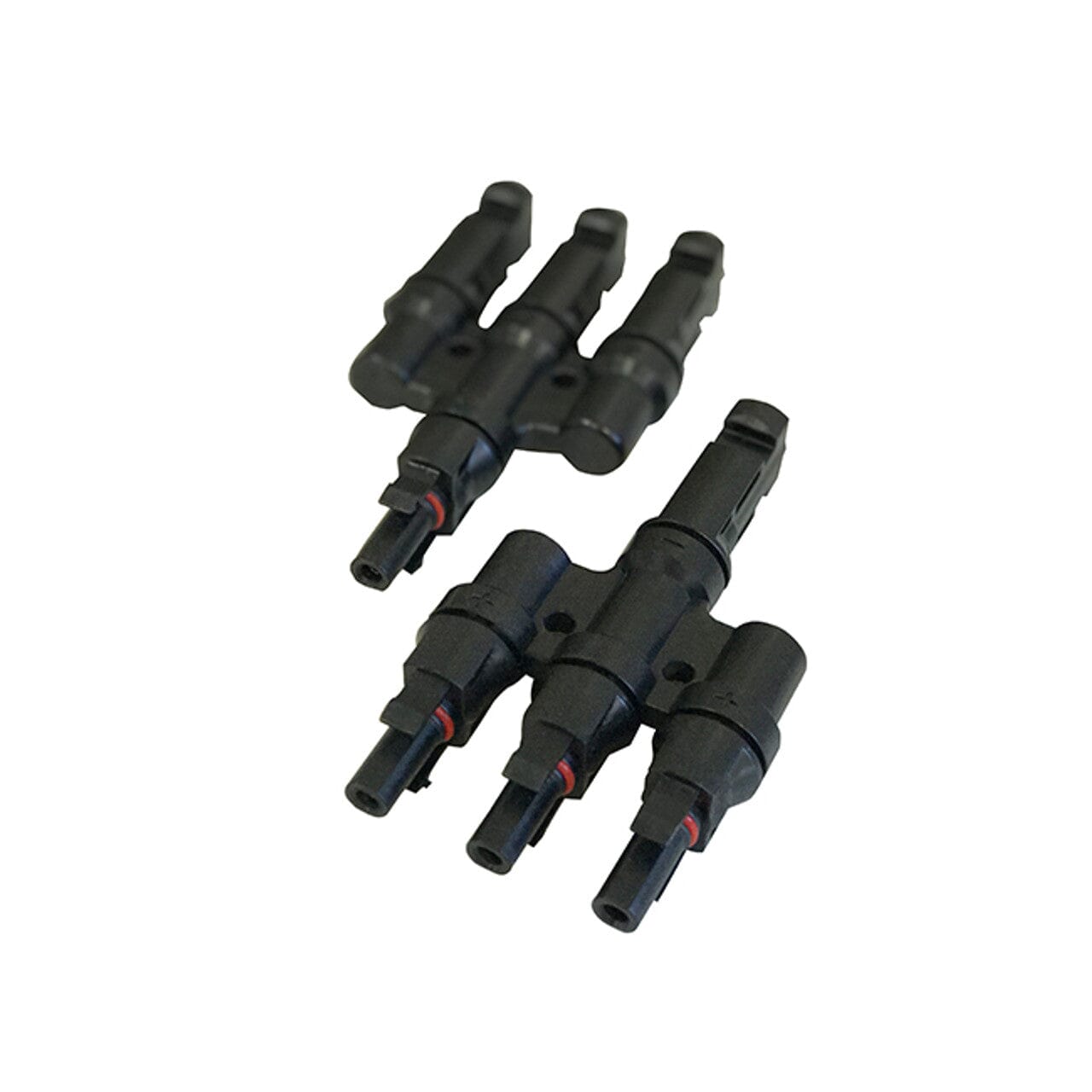

Renogy 3 to 1 Solar Branch Connectors MMMF+FFFM Pair
The Renogy 3 to 1 Solar Branch Connectors is a perfect solution for connecting three panels in parallel. These connectors have high aging resistance and UV endurance, making them weather-proof and able to withstand harsh environments.
- Regular price
- $21.99
- Sale price
- $21.99
- Regular price
-
$29.00
Questions before you buy?
Call 877-242-2792 and we’ll work it out with you. Mon–Thu 10am–5:30pm, Fri 10am–1pm EST.
Frequently bought together
Specifications
The details.
The Renogy 3 to 1 Solar Branch Connectors is a perfect solution for connecting three panels in parallel. These connectors have high aging resistance and UV endurance, making them weather-proof and able to withstand harsh environments. A rivet and lock are used to connect the cable and no extra tools are required for assembly or disassembly of plugs.
Renogy 3 to 1 Solar Branch Connectors Key Features
- Rated Current: 50A
- Insertion Force: < 50N
- Maximum working voltage: DC1000V
Still have questions? Give us a call at 877-242-2792
- Maximum working voltage
- DC1000V
- Rated Current
- 50A
- Flame class
- UL94-V0
- Pollution degree
- 2
- Contact resistance
- ≤5mmΩ
- Shell Protection degree
- IP67
- Ambient temperature range
- -40°C to +85°C
- Safety Level
- classⅡ
- Insertion force
- ≤50N
- Withdrawal force
- ≥50N
