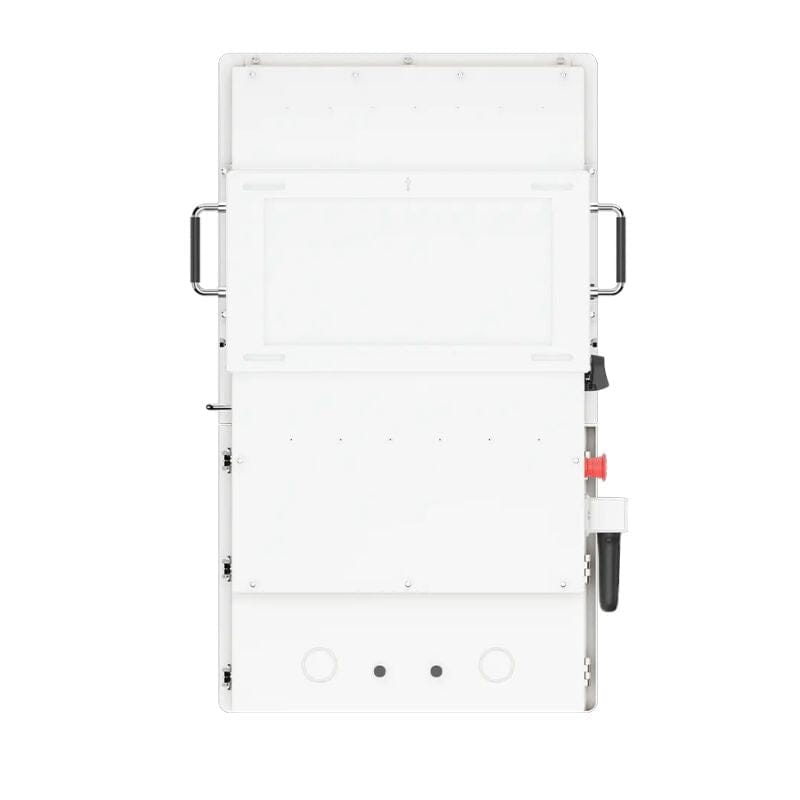

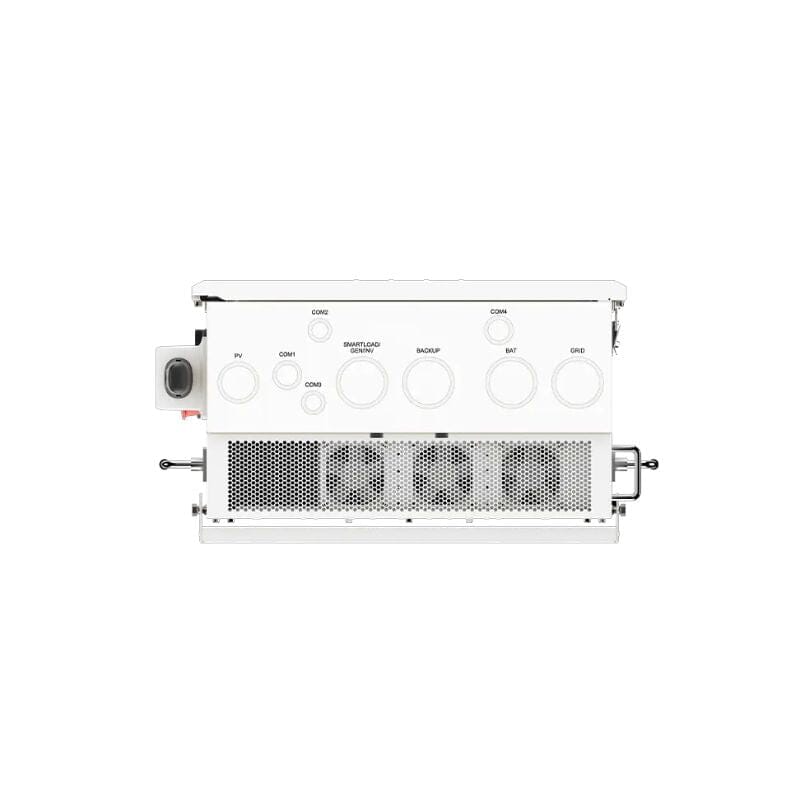

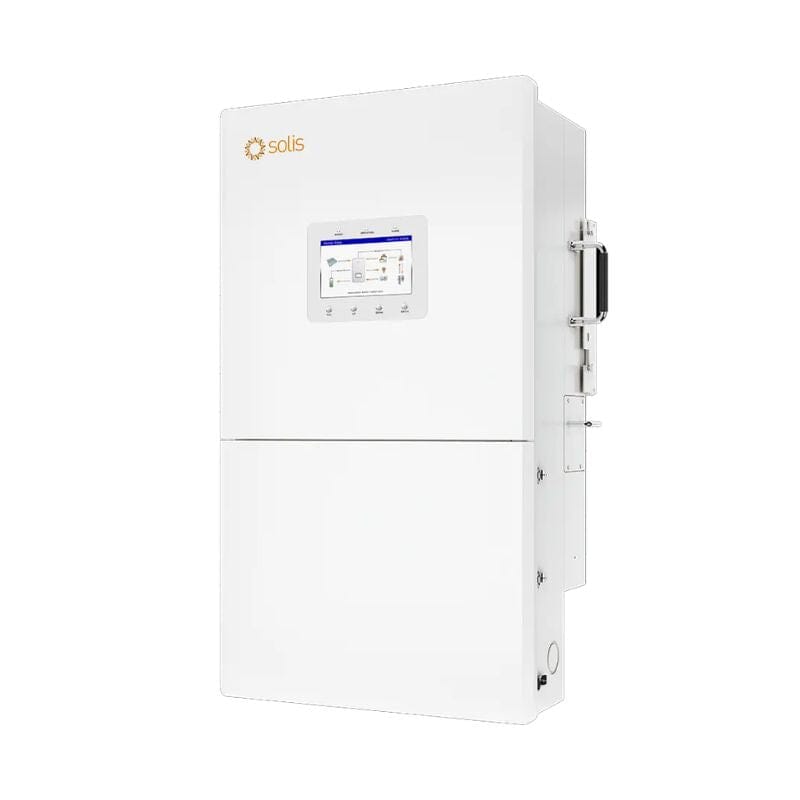

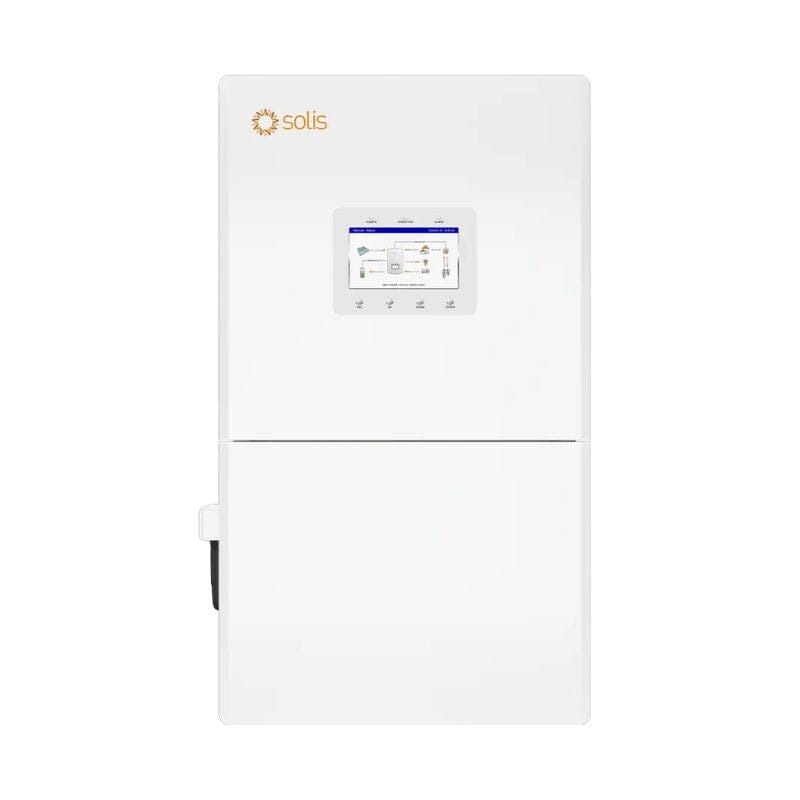

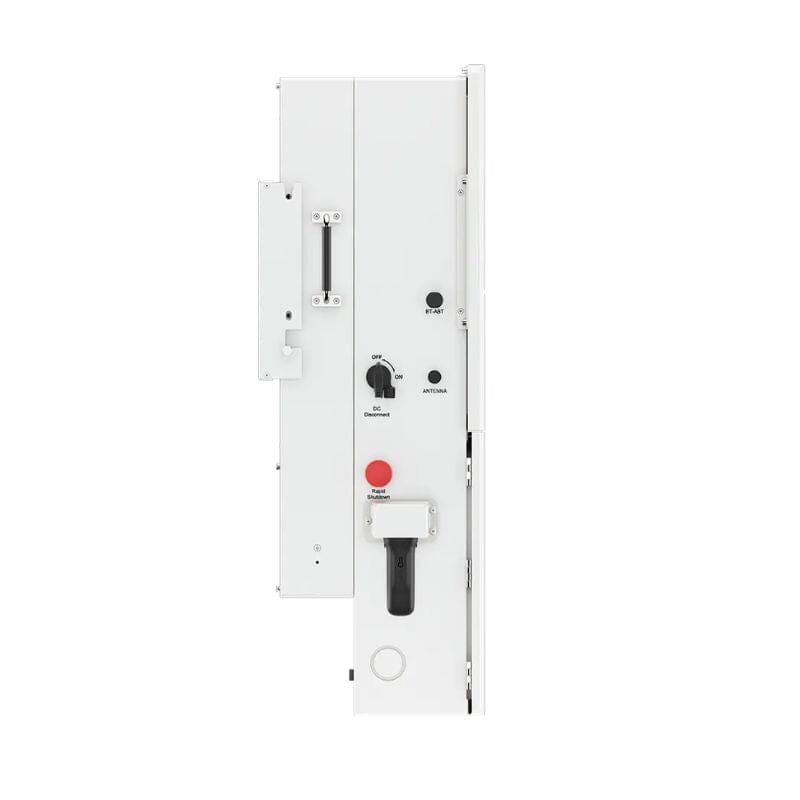

Solis S6 16kW Hybrid Inverter

The Solis S6 16kW Hybrid Storage Inverter (S6-EH2P16K03-SV-YD-L-US) is designed to deliver true energy independence for North American homeowners, whether you are on-grid, off-grid, or building a microgrid. Featuring a massive 16,000W rated output, an integrated 200A pass-through, and compatibility with a wide range of 48V battery banks, this versatile inverter makes resilient, cost-effective solar and storage installations easier than ever.

Key Features & Benefits

• Versatile Operating Modes — Functions seamlessly on-grid, off-grid, or as a microgrid, giving you the flexibility to build the exact energy system you need.

• Ultra-Fast Transfer Time — An automatic switchover time of under 4ms provides a seamless transition from grid to backup, ensuring your load stays powered during outages.

• Integrated 200A Pass-Through — The fully integrated bypass function limits the need for external hardware, saving you installation time and streamlining your setup.

• High-Power PV Support — Supports a high input current (up to 40A per MPPT / 20A per string), making it compatible with larger, high-power solar modules to improve power density and eliminate clipping.

• Massive Charging Capacity — The battery's DC side handles up to a 290A maximum charge and discharge current, allowing you to efficiently store and utilize more surplus solar energy.

• Smart Port Technology — Supports flexible configurations, including AC coupling or generator integration, giving you total control over critical and non-critical loads.

• Flexible Generator Integration — Connects to a generator (up to 24kW input) to reliably extend your backup power duration during prolonged grid down-time.

Specs in a Glance

• Rated Output Power: 16,000 W (16 kW)

• Max Apparent Output Power: 16 kVA (With 200% overload capability for 10 seconds in backup)

• Max PV Input Voltage: 550 V

• MPPTs: 3 (2 strings per MPPT)

• Battery Voltage Range: 40-60 V (48V Battery Bank Compatible)

• Battery Chemistry Supported: Li-ion / Lead-acid

• Rated Output Voltage: 120 V / 240 V (Split Phase)

• Ingress Protection: NEMA 4X (IP66)

• Dimensions: 21.6" W x 34.6" H x 11.4" D

• Weight: (Confirm) Not provided

• Warranty: 10 Years

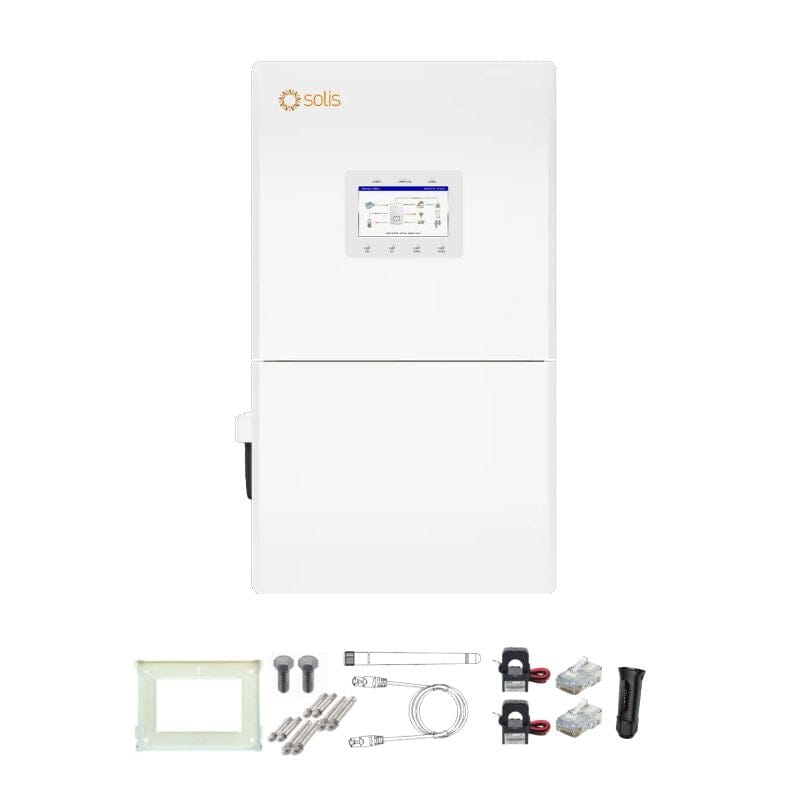

What’s Included

• 1x Solis S6 16kW Hybrid Storage Inverter

• 1x Inverter Mounting Bracket

• Stabilizing Set Bolts

• 4x Concrete Anchor Bolts

• 1x Parallel Communication Ethernet Cable

• 1x Bluetooth Antenna

• 2x Current Transformers

• 2x RJ45 Connectors

• 1x S2-WL-ST Wi-Fi & LAN Solis Data Logger

Ideal For

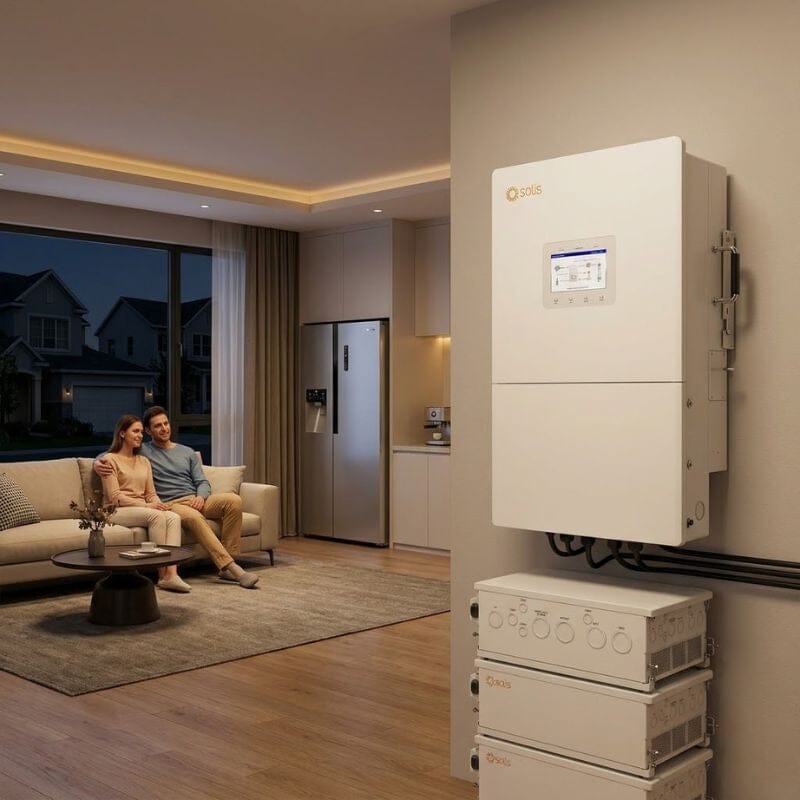

• Whole-home residential backup power systems

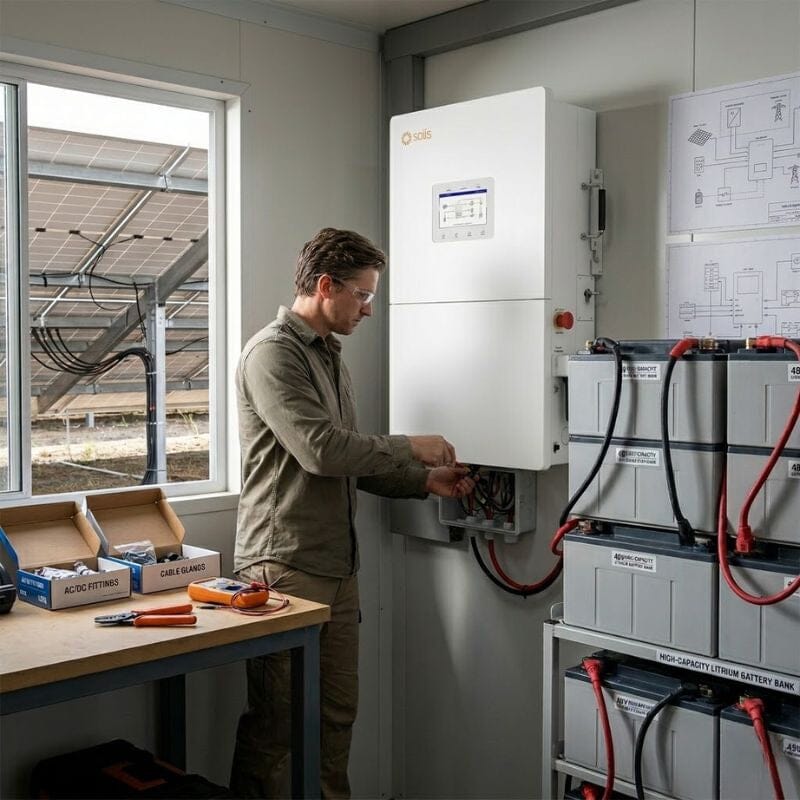

• High-capacity DIY off-grid and hybrid solar setups

• Integrating smart generator backup with solar and battery storage

User Manual / Documents

• Solis S6 9.6-16K Hybrid Storage Inverter Datasheet
• Solis S6 9.6-16K Hybrid Storage Inverter User Manual
