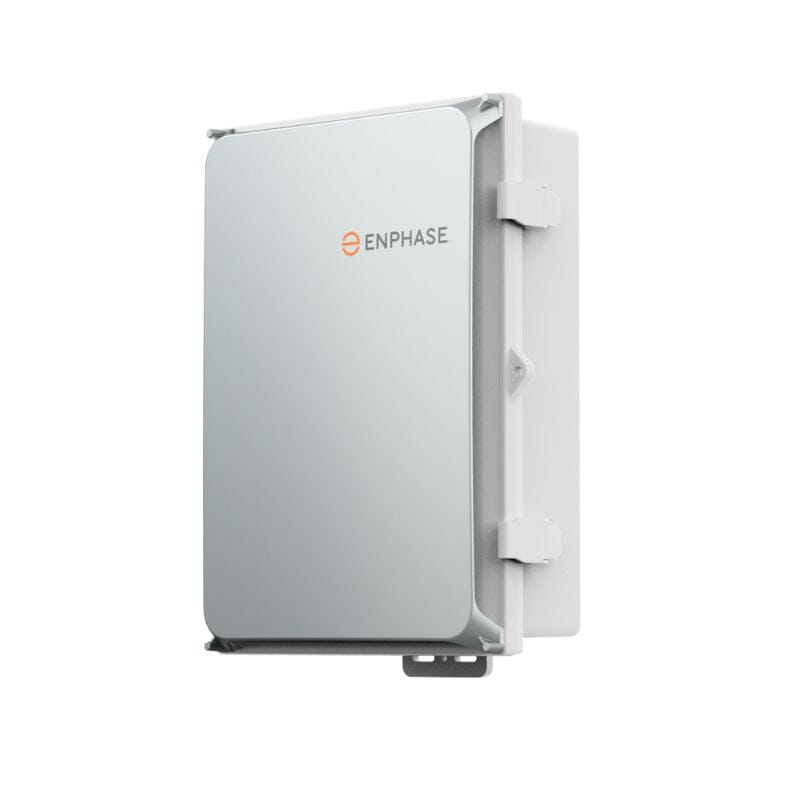

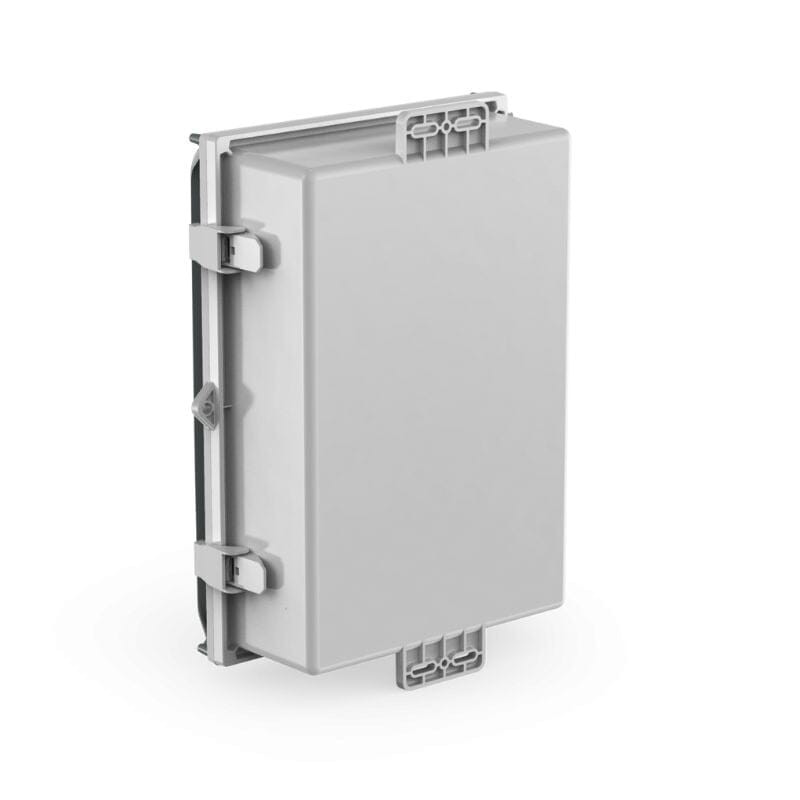

Enphase IQ Combiner 5C
The Enphase IQ Combiner 5C consolidates interconnection equipment into a single enclosure, and streamlines IQ Series Microinverters and IQ Gateway installation by providing a consistent, pre-wired solution for residential applications.
- Regular price
- $1,149.00
- Sale price
- $1,149.00
- Regular price
-
$1,439.00
Questions before you buy?
Call 877-242-2792 and we’ll work it out with you. Mon–Thu 10am–5:30pm, Fri 10am–1pm EST.
The details.
The Enphase IQ Combiner 5C consolidates interconnection equipment into a single enclosure, and streamlines IQ Series Microinverters and IQ Gateway installation by providing a consistent, pre-wired solution for residential applications. It uses Control Cable wiring for communication and is compatible with IQ System Controller 3/3G and IQ Battery 5P.
The IQ Combiner 5C, along with IQ Series Microinverters, the IQ System Controller 3/3G, and the IQ Battery 5P, provides you with a complete, grid-agnostic Enphase Energy System.
Smart
- Includes IQ Gateway for communication and control
- Includes Enphase Mobile Connect (CELLMODEM-M1-06-SP-05)
- Supports flexible networking: Wi-Fi, Ethernet, or cellular
- Provides production metering (revenue grade) and consumption monitoring
Easy to install
- Mounts to one stud with centered brackets
- Supports bottom, back, and side conduit entry
- Supports up to four 2-pole branch circuits for 240 VAC plug-in breakers (not included)
- 80 A total PV branch circuits
Reliable
- Durable NRTL-certified NEMA type 3R enclosure
- Five-year limited warranty
- Two years labor reimbursement program coverage included
- UL1741 listed
Technical Specifications
- Rating: 80 A
- System voltage: 120/240 VAC, 60 Hz
- Eaton BR series busbar rating: 125 A
- Maximum continuous current rating (input from PV/storage): 64 A
- Branch circuits (solar and/or storage): Up to four 2-pole Eaton BR series distributed generation (DG) breakers only (not included)
- Maximum total branch circuit breaker rating (input): 80 A of distributed generation/95 A with IQ Gateway breaker included
- IQ Gateway breaker: 10 A or 15 A rating GE/Siemens/Eaton included
- Production metering CT: 200 A solid core pre-installed and wired to IQ Gateway
- Consumption monitoring CT (CT-200-CLAMP): A pair of 200 A clamp-style current transformers is included with the box
- IQ Battery metering CT: 200 A clamp-style current transformer for IQ Battery metering, included with the box
- Depth 19.5 in
- Width 14.75 in
- Height 16.8 in
- Weight 16.5 lbs
Compatibility
- IQ Series Microinverters
- IQ Battery 5P
- IQ System Controller 3/3G
- Control cable
What's Included With Your Order?
- IQ Combiner 5
- IQ Gateway printed circuit board
- IQ Gateway breaker
- Production CT
- 2 Consumption CTs
- IQ Battery CT
- CTRL board
- Enphase Mobile Connect
