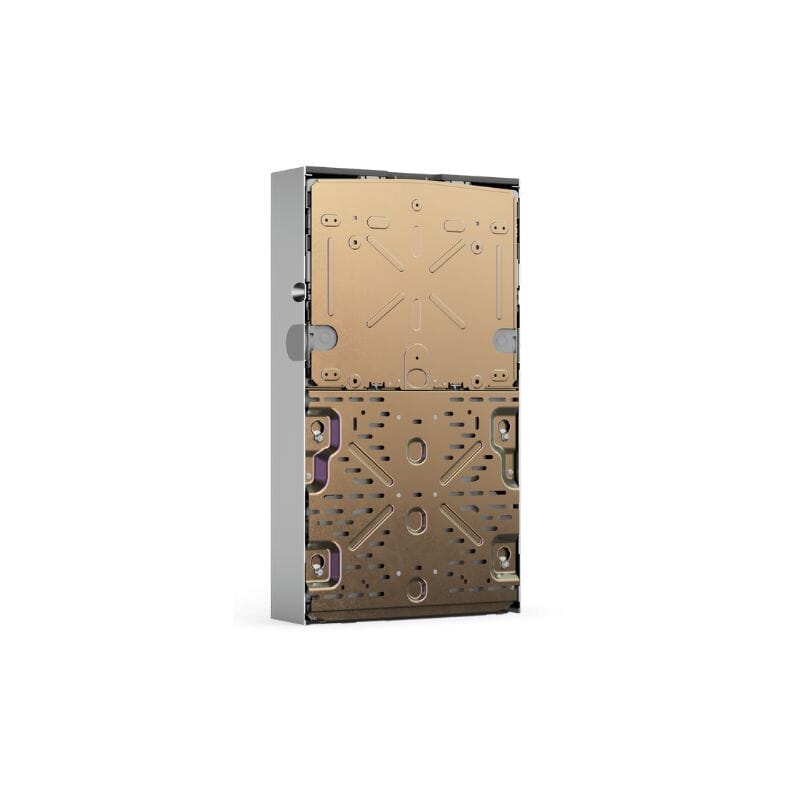

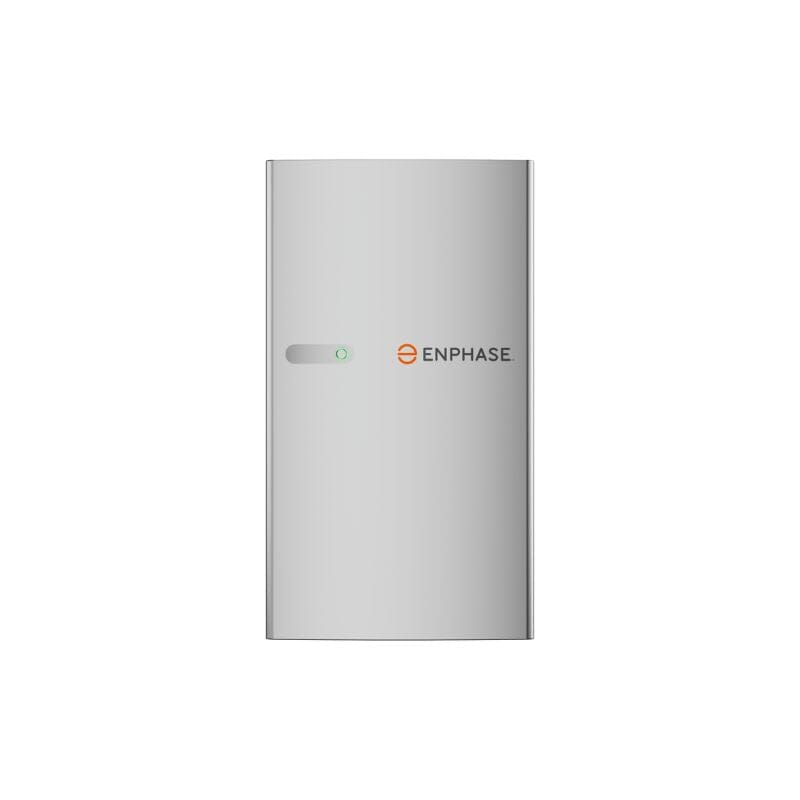

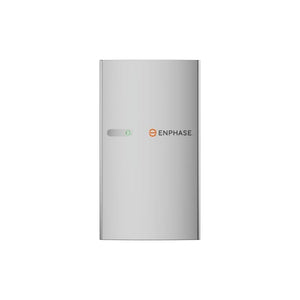

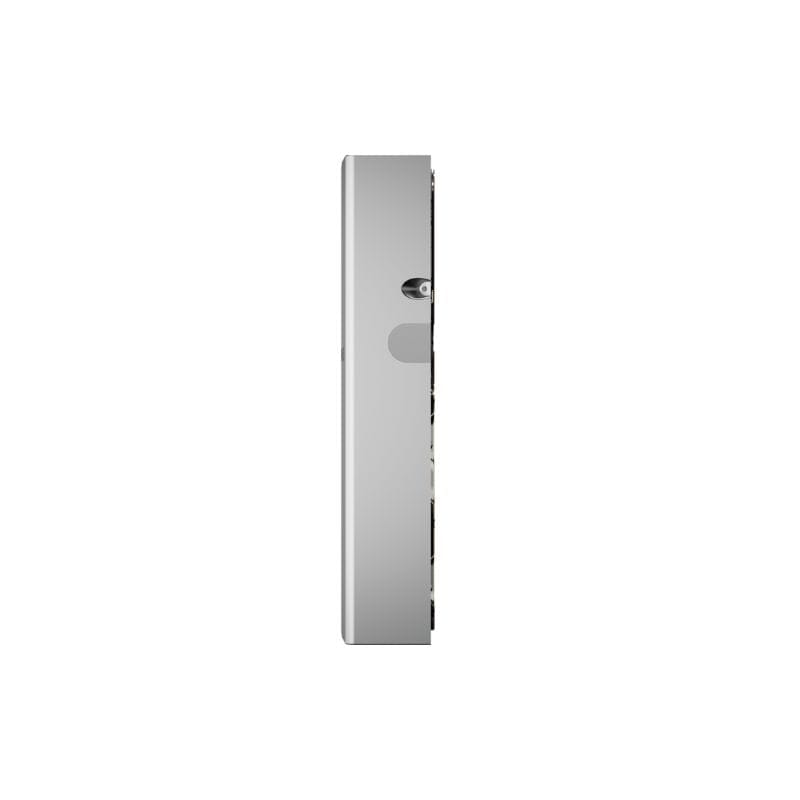

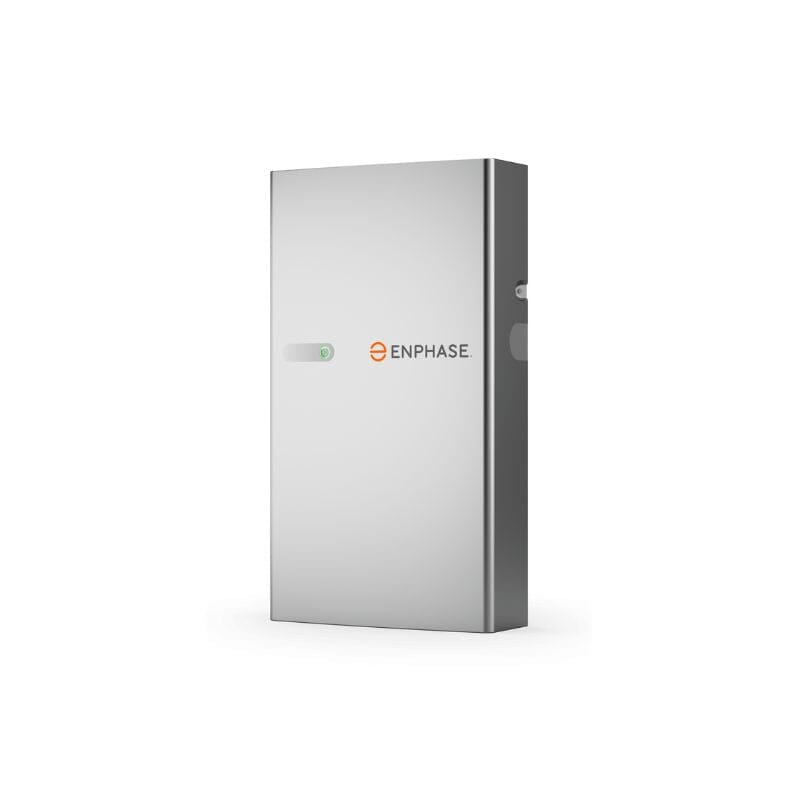

Enphase IQ Battery 5P
An all-in-one, AC-coupled storage system, the IQ Battery 5P is the most powerful Enphase battery yet.
- Regular price
- $3,669.00
- Sale price
- $3,669.00
- Regular price
-
$4,586.00
Questions before you buy?
Call 877-242-2792 and we’ll work it out with you. Mon–Thu 10am–5:30pm, Fri 10am–1pm EST.
The details.
An all-in-one, AC-coupled storage system, the IQ Battery 5P is the most powerful Enphase battery yet.
It has a total usable energy capacity of 5.0 kWh, and features six embedded grid-forming microinverters and 3.84 kW of continuous power, as well as peak output power of 7.68 kW for 3 seconds and 6.14 kW for 10 seconds.
Easily integrating with the Enphase Energy System, the IQ Battery 5P can provide backup capability when installed with IQ System Controller 3/3G, and is supported by a 15-year limited warranty. Its modular design means installers can quickly design the right system size to meet the needs of their customers.
To purchase this product, please contact your local authorized Enphase distributor.
- Fully integrated AC battery system
- Six embedded IQ8D-BAT Microinverters
- 15-year limited warranty
- Field-replaceable components
- Stable lithium iron phosphate (LFP) chemistry for maximum safety and longevity
- Cools passively with no moving parts or fans
- Uses Control cabling for fast and consistent connection
- Quick and easy installation
- Remote software and firmware upgrades
- Grid-forming capability for backup operation
- Offers homeowners remote monitoring and control from the Enphase App
- Supports backup, self-consumption, and time of use (TOU) modes
Technical Specifications
- Power rating: 3.84 kW
- Energy capacity: 5.0 kWh
- Peak output power: 7.68 kW (3 seconds), 6.14 kW (10 seconds)
- DC round-trip efficiency: 96%
- AC round-trip efficiency: 90%
- Depth 7.4 in
- Width 21.7 in
- Height 38.6 in
- Weight 174 lbs
What's Included With Your Order?
- IQ Battery 5P base unit
- IQ Battery 5P cover
- Wall mounting bracket
