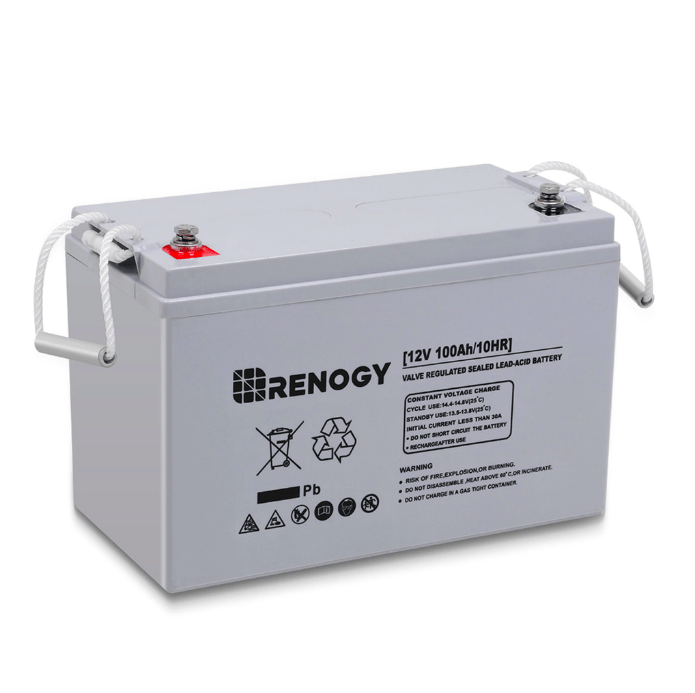

Renogy Deep Cycle AGM Battery 12 Volt 100Ah | RNG-BATT-AGM12-100

Due to its outstanding performance, the Renogy 12V Deep Cycle AGM Battery is a favorite in a wide variety of applications. Maintenance-free and leak-proof, the battery is ideal for standby projects that require minimal monitoring. Thanks to its high discharge rate and wide operation temperature range, the battery can also handle cyclic uses, such as RVs, boats, medical equipment, and lawnmowers. With the finest materials, state-of-the-art production techniques, and the strictest quality control measures, Renogy AGM batteries aim to provide the most reliable, convenient, and economical rechargeable battery solution.

Need a little more power? Connect several batteries in a series or parallel (up to 4) battery bank with Renogy Battery Interconnect Cables. AGM battery for solar panels

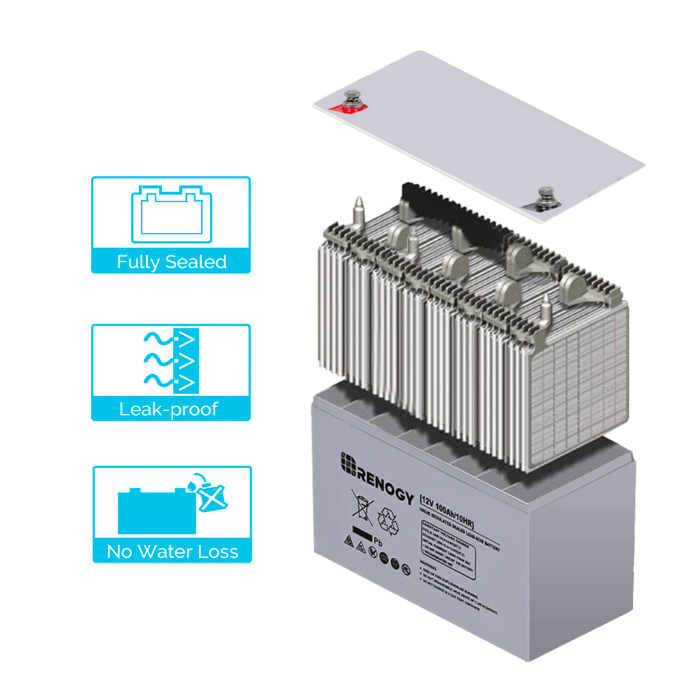

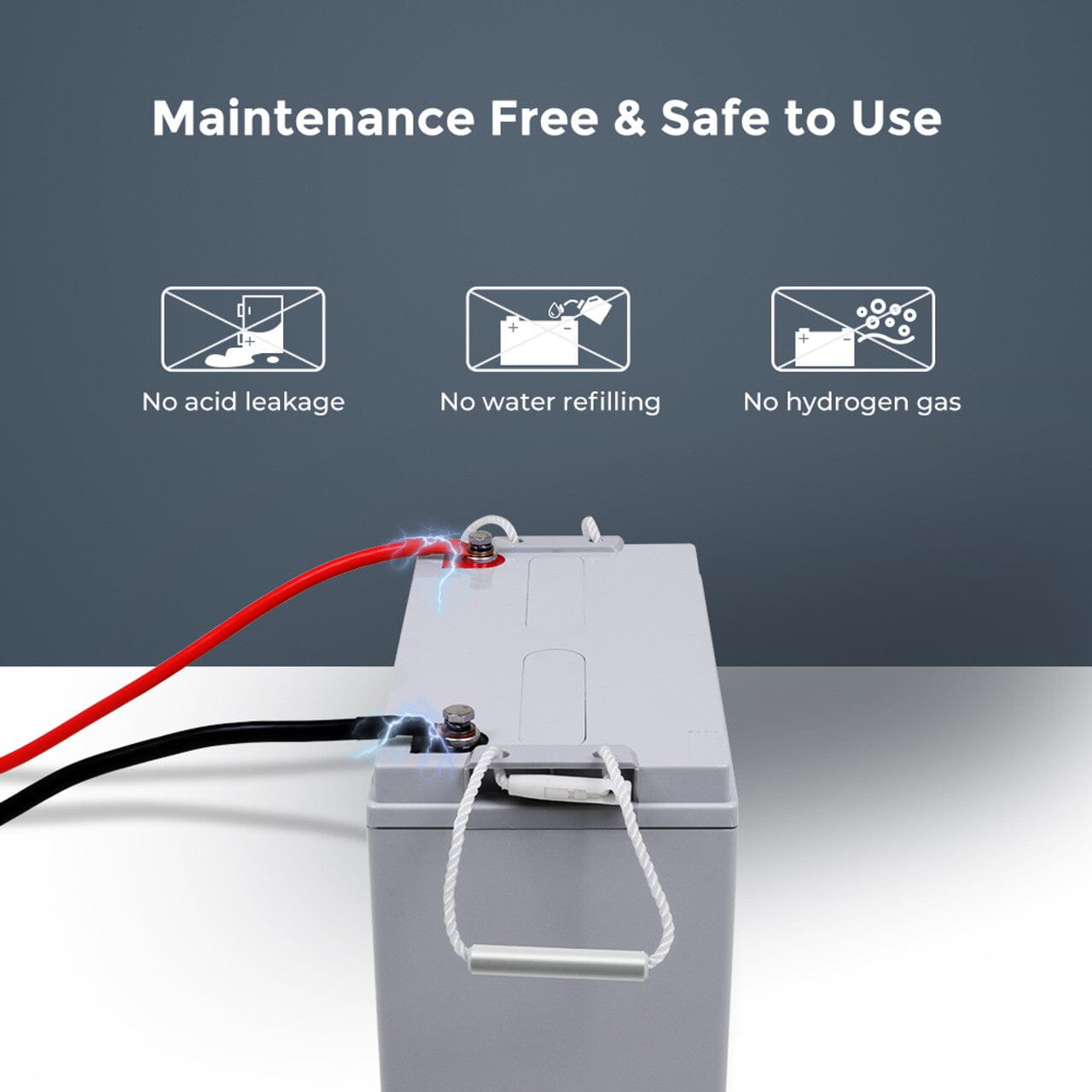

Sealed Battery, Safe Charging

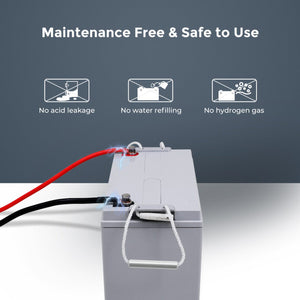

Manufactured with thick absorbent glass mat (AGM) separators and advanced valve regulated technology, the battery is maintenance-free, leak-proof, and gas-free. Proprietary quinary alloy plates and specially treated plate grids enable outstanding discharge performance. 12v 100ah AGM battery

Long Shelf Time

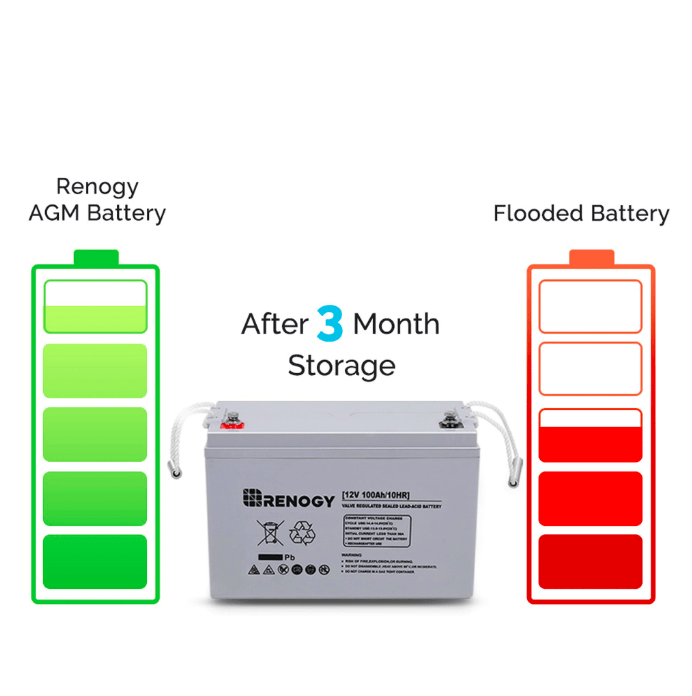

When not in use, the monthly self-discharge rate of this Renogy Deep Cycle AGM sealed battery is as low as 3% at 77℉ (25℃), which is 5 times lower than their flooded counterparts.

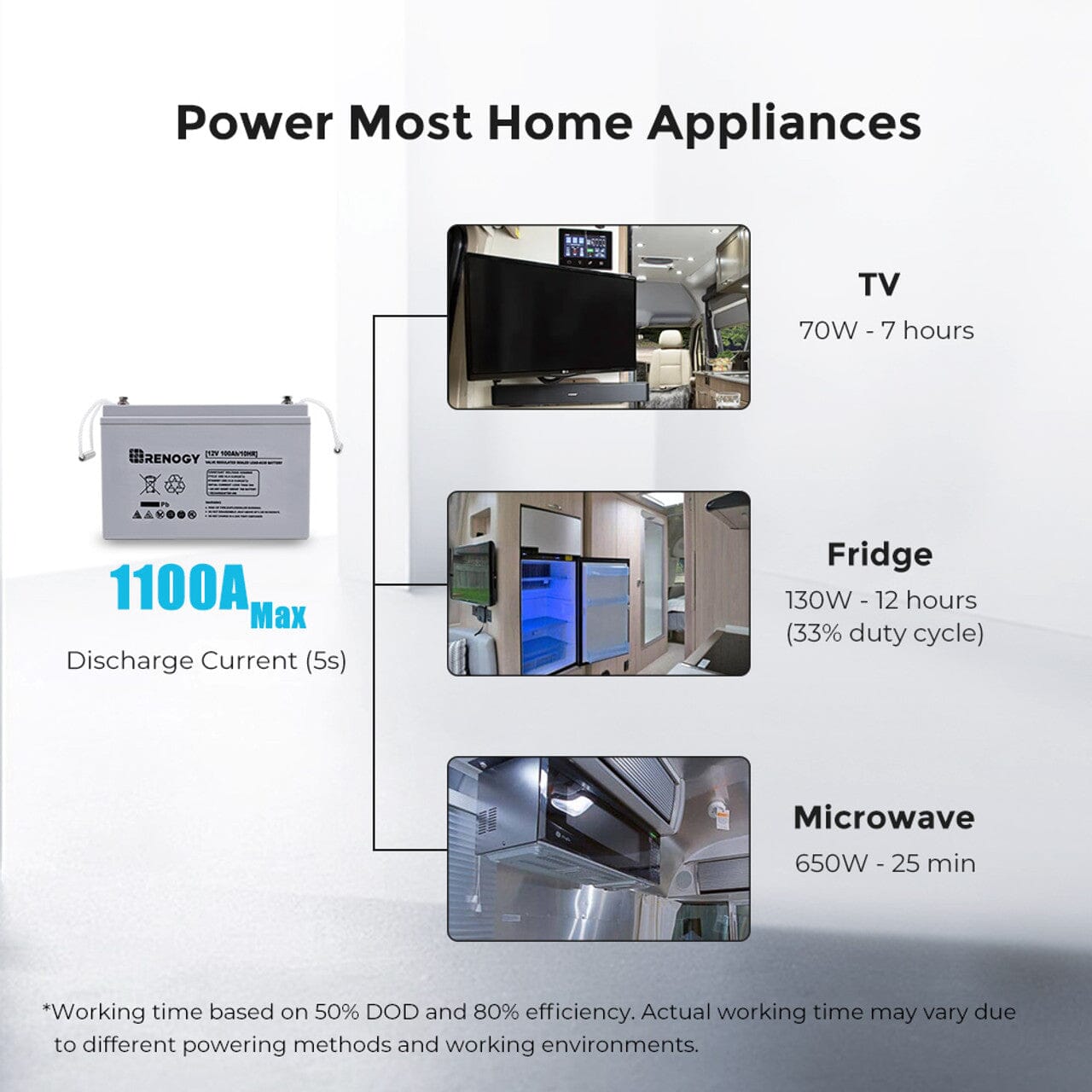

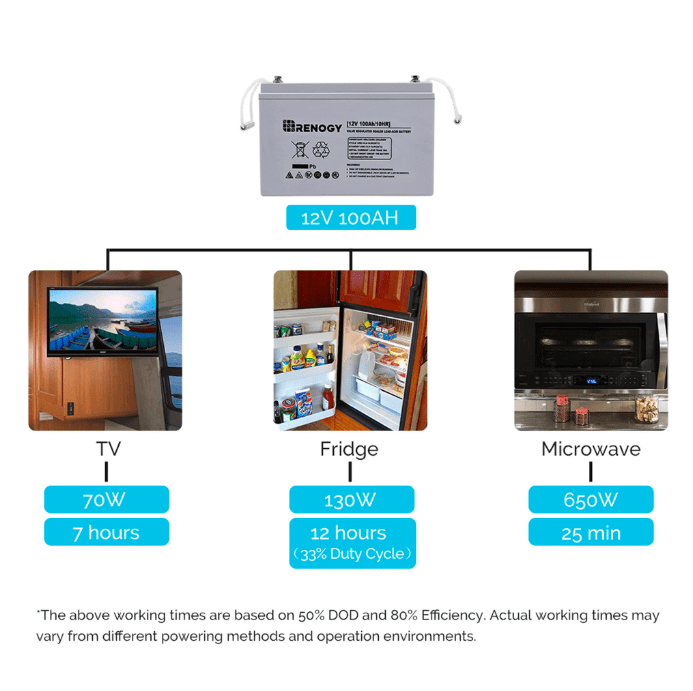

Power Most Appliances

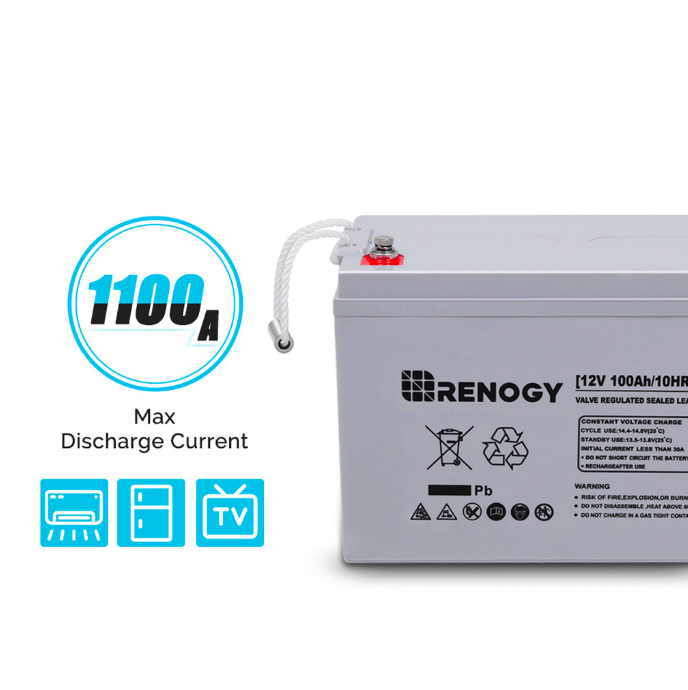

The maximum 1100A discharge (5 seconds) is suitable for appliances that require a high startup current, like a fridge.

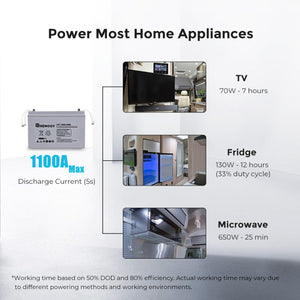

With a consistent and stable discharge, the battery can power up most common home appliances, such as a microwave, CPAP, coffee maker, laptop, and more.

Better Performance at Extreme Temperatures

The improved electrolyte formula ensures stable battery capacity and outstanding discharge performance from 5℉ (-15℃) to 122℉ (50℃). The battery is designed with solar energy storage applications in mind and provides optimum performance even at freezing temperatures.

In Series and In Parallel

You can connect up to 4 batteries in parallel to expand the power capacity to meet your needs. You can also connect multiple batteries in series. It's recommended to connect batteries with the same type (AGM), same capacity (Ah), and same voltage (V) from the same brand.

We recommend using a battery balancer to extend the battery service life when multiple batteries are connected in series and/or in parallel.

Reliable and Durable

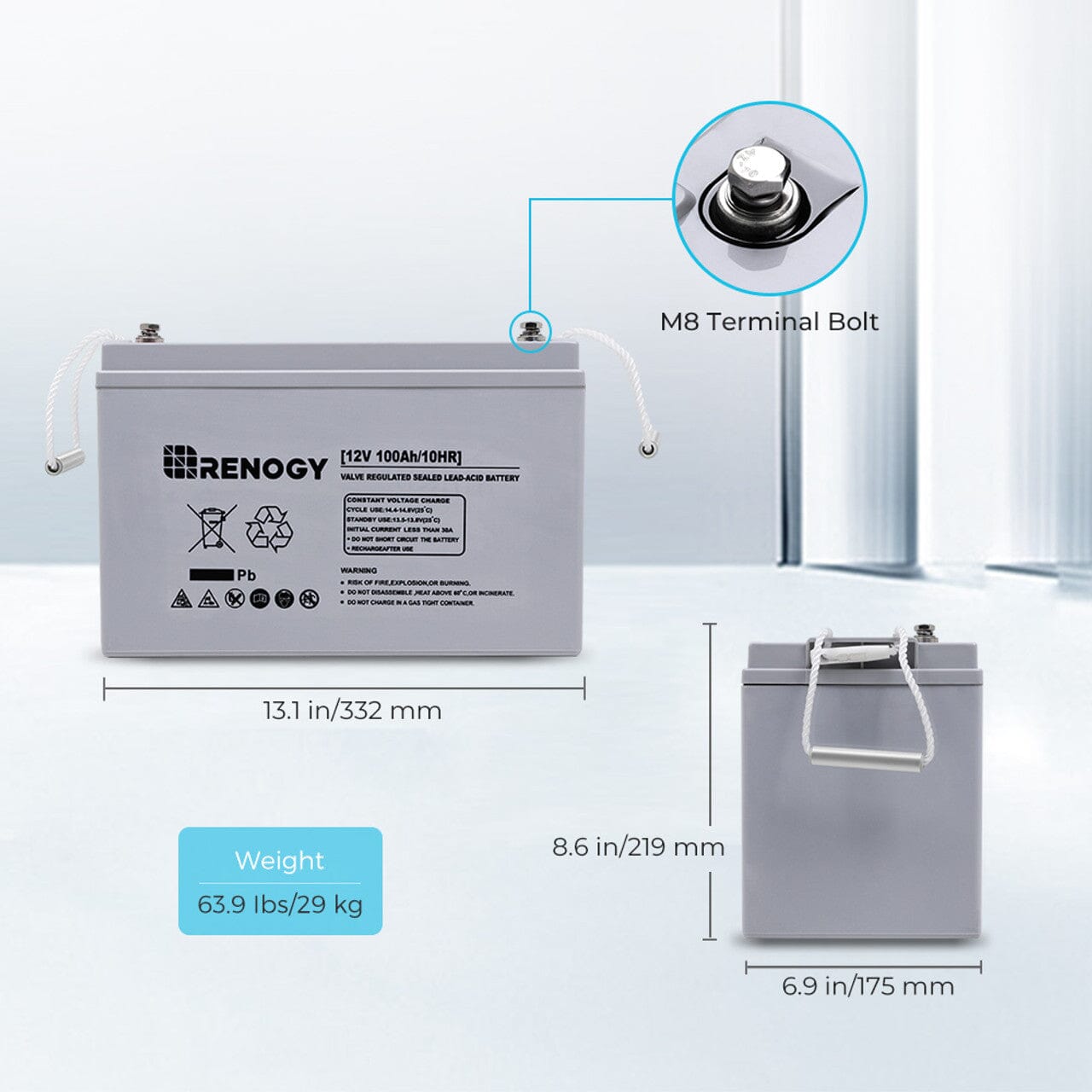

The battery comes with two silver-plated M8 terminal bolts for cable wiring. And there are positive (+) and negative (-) icons on the container for easy wiring identification.

Built with rugged ABS container material, the battery is vibration resistant and durable.

Rugged Battery Box

Built for rugged environments, the battery box is made of polypropylene with high impact resistance. The vent holes on the top of the battery box allow for adequate ventilation.

Coming with a tie down strap and brackets, the battery box can be easily installed in a car, boat, camper, motorhome, trailer, or caravan.

What's Included With Your Order?

• 1 x 12V 100Ah Deep Cycle AGM Battery

• 2 x Terminal Bolts (M8 x 1.25 x 15 mm)
• Free Shipping

• Lifetime Customer Support (Email, Live Chat & Phone)


12 VOLT 100AH DEEP CYCLE AGM BATTERY

ELECTRICAL SPECIFICATIONS

• Battery Type: AGM
• Rated Capacity: 100Ah (10 Hour Rate to 10.5V)
• Nominal Voltage: 12V
• Cycle Use Voltage: 14.4V~14.8V
• Internal Resistance: Approx. 5.0mΩ
• Self-discharge Rate (77°F/25°C): ＜3% / month
• Connection Method: In Series, and In Parallel (up to 4)
• Automatically Self-heating Function: No

MECHANICAL SPECIFICATIONS

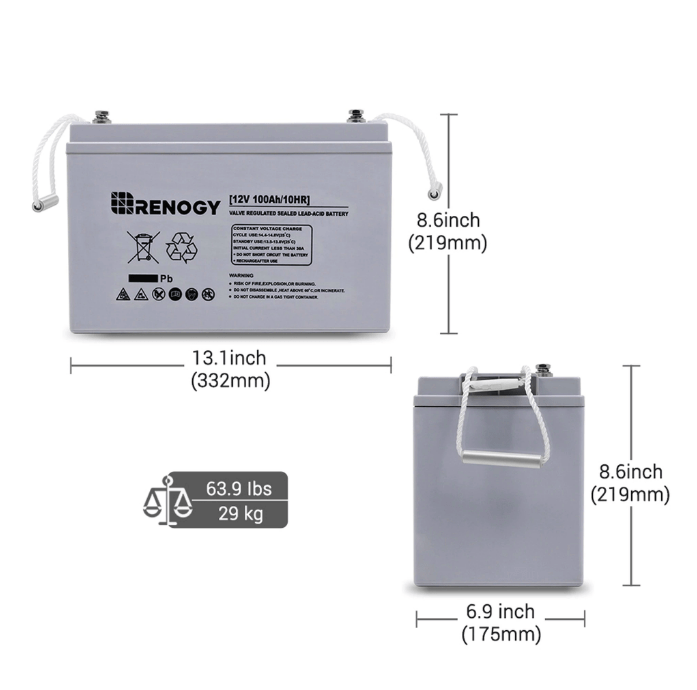

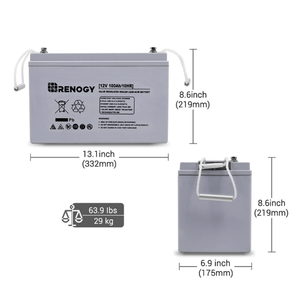

• Dimensions: 13.1 x 6.9 x 8.6 in / 332 x 175 x 219 mm
• Weight: 63.9 lbs / 29 kg
• Container Material: ABS

CHARGING PARAMETERS

• Charge Voltage: 13.5V~13.8V
• Maximum Charging Current: 30A

DISCHARGING PARAMETERS

• Maximum Discharging Current: 1100A (5 seconds)

TEMPERATURE PARAMETERS

• Standard Operation Temperature: 77°F±5.4°F（25°C±3°C）
• Storage Temperature: 5°F~104°F/-15℃~40℃

COMMUNICATION PORT

• Built-in Bluetooth: No

ACCESSORIES

• M8 Bolts: x2

WARRANTY

• Material and workmanship warranty: 2-year

CERTIFICATIONS

• MSDS: Yes
