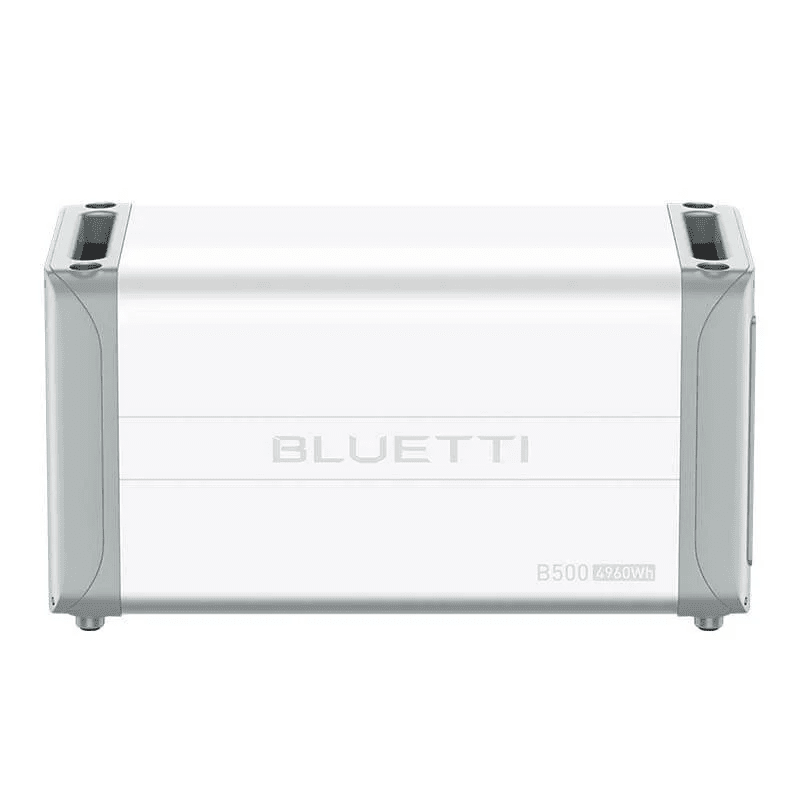

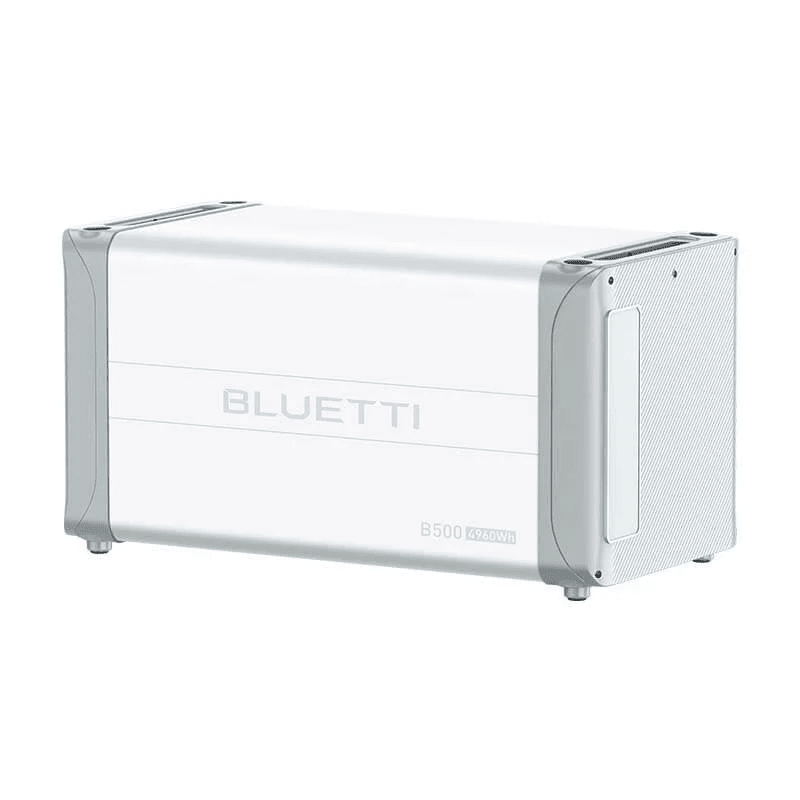

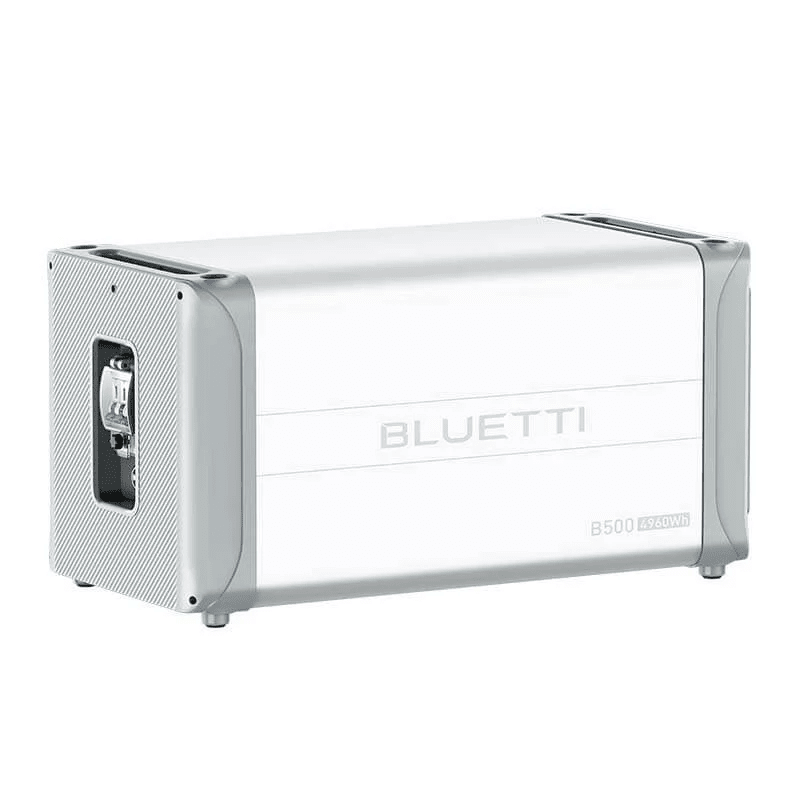

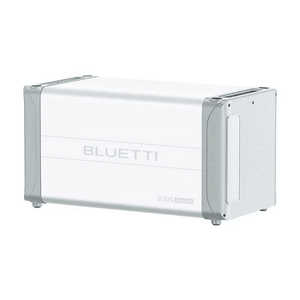

Bluetti B500 Battery Pack
The Bluetti B500 expansion battery is equipped with a LiFePO4 battery with a capacity of 4960 Wh (3500 life cycles). Together with the EP600 it is possible to create a complete system, linking the modular backup system to your home. The basic system consists of one EP600 combined with a minimum of 2 x B500 and a maximum of 4x B500. You can connect up to a maximum of 16 x B500 in parallel, giving you maximum capacity of 79.3 Wh.
The Bluetti B500 can be installed both indoors and outdoors. The housing is made of aluminum alloy, making it strong, durable and corrosion resistant (IP65). The integrated heating system will automatically heat, as soon as the ambient temperature is too low. Please note, that when installing this system outside, the system should be placed under a canopy to avoid direct sunlight. The dimensions of the B500 are 636x325x338 mm.
This system offers the solution to access renewable energy and use it when you need it. Whether you want to lower your energy bill, prepare yourself for unexpected power outages or reduce your carbon emissions, this energy storage system offers reliable energy storage.
Bluetti B500 Battery Pack Specifications
General
- Protection Grade IP65
- Noise <25dB
- Operating Temperature Charging: 32~104℉ Charging: -4~104℉ (Inverter connects to the grid) Discharging: -4~
- Storage Temperature -4~104℉/At least one charge cycle per month. 32~95℉/At least one charge cycle every six months.
- Working Humidity 5%-95%
- Working Altitude <2000m
- Weight: 127.86lbs / 58kg
- Length: 25 inch/636mm
- Height: 14.4 inch/368mm
- Width: 12.7 inch/324mm
Battery
- Battery Type Lithium Iron Phosphate Cells (LiFePO4)
- Rated Capacity 4960Wh
- Usable Capacity 4464Wh
- DOD 90%
- Short-circuit Protection Yes
