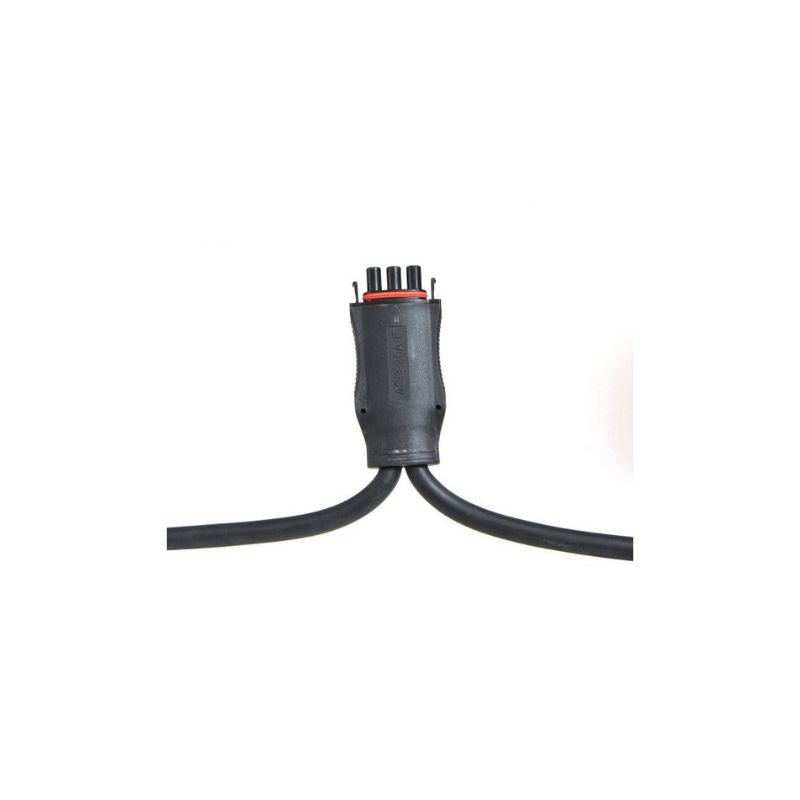

APsystems Trunk Cable for Y600/QS1 - 2m (SKU Part Number Y3 Bus Cable - 2M)
APsystems 2-Meter Y3 AC Bus Trunk Cable connects the microinverters in a branch into a single output. Use it with YC600Y and QS1 microinverters.
- Regular price
- $29.99
- Sale price
- $29.99
- Regular price
-
$39.00
Questions before you buy?
Call 877-242-2792 and we’ll work it out with you. Mon–Thu 10am–5:30pm, Fri 10am–1pm EST.
The details.
APsystems 2-Meter Y3 AC Bus Trunk Cable connects the microinverters in a branch into a single output. Use it with YC600Y and QS1 microinverters.
The Y3 Bus Cable is a continuous length of insulated and UV resistant 2.5mm2 12AWG cable. Every 2 meters (~ 6ft), the cable features a pre-assembled connector plug for one microinverter.
When you are planning your layout, consider one connector for every microinverter. That is equivalent to every 2 solar panels when using the YC600Y inverters and every 4 panels when working with the QS1 units. Use the Y-CONN cap (sold separately) to seal any unused connectors.
- Cable gauge: 12AWG
- Cable diameter: 2.5mm
- Maximum current: 20A
- YC-2M length: 2 meters (recommended for YC600Y and QS1 )
- 3 internal wires including ground
- Cable type: U-1000-RO2V (TC-ER)
- CSA / TUV certified
- 1 Connector included
TECHNICAL SPECIFICATIONS
- SKU Y3 Bus Cable - 2M
- Weight 2.000000
- Manufacturer APSystems
