RUiXU RX9MP Busbar for Lithi2-16

Ruixu RX9MP Busbar

IMPORTANT: Ruixu RX9MP Busbar design features with quick-connect terminals, making it more convenient for some customers to install.

It’s just one of the options we offer to customers; customers don’t necessarily have to use our busbar.

If use RUiXU 600A busbar,pls choose this Lithi2-16 battery 1/0 AWG cable

If use RUiXU quick-connect terminal busbar,pls choose this Lithi2-16 battery 1/0 AWG cable for RUiXU RX9MP Busbar

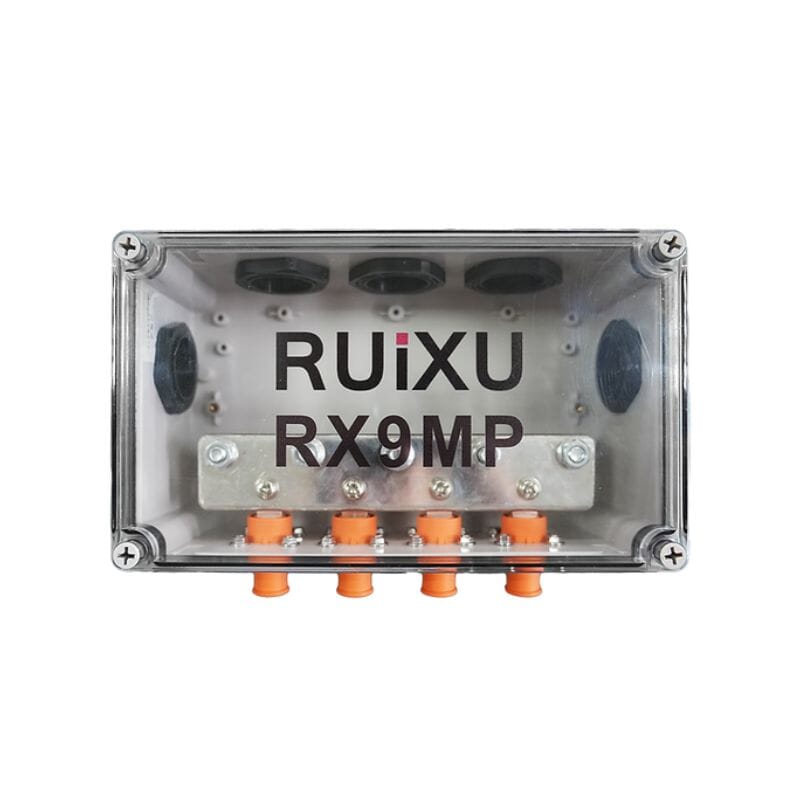

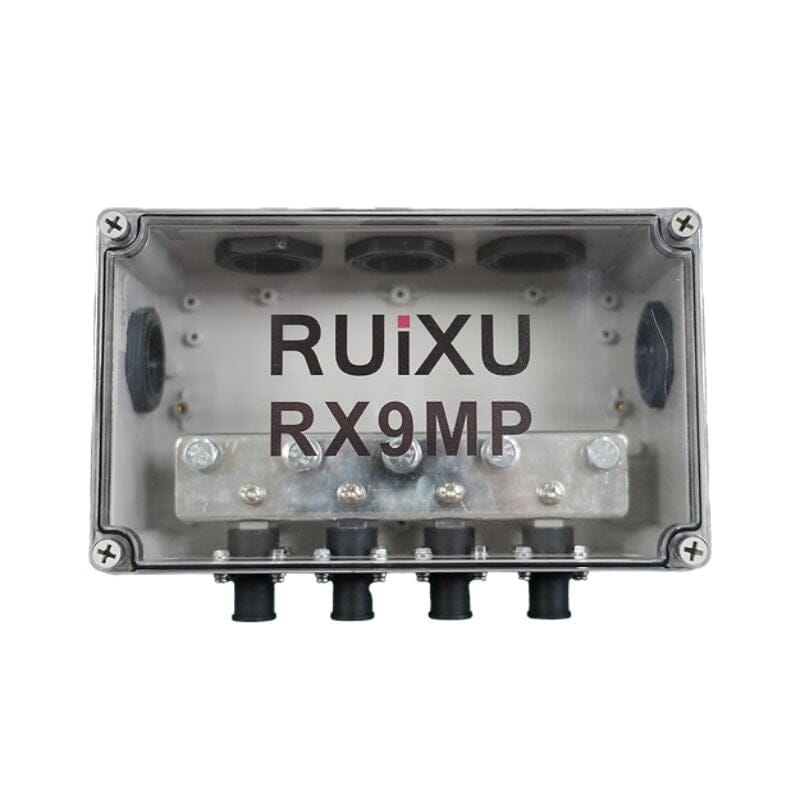

RUiXU quick-connect busbar for Lithi2-16

1. 800A Heavy Duty - Ratad at 800A.

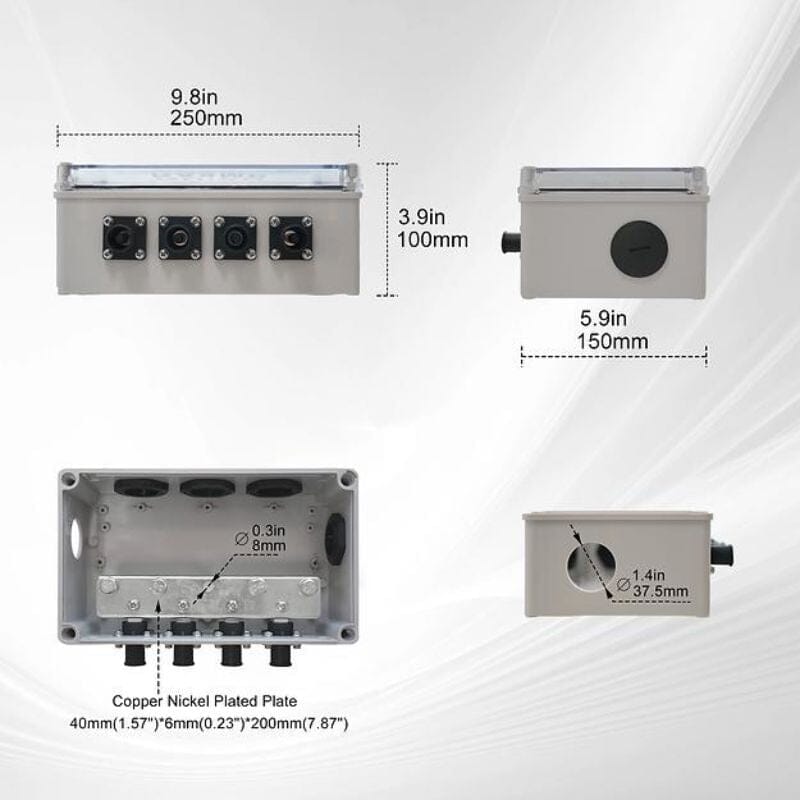

2. Material - The Bus Bar Terminal Block with 250mm(9.84") x 150mm(5.9") x 100mm(3.93") Outer Size, Copper Nickel Plated Plate 40mm(1.57")*6mm(0.23")*200mm(7.87") with Stainless Steel Studs and Nuts.

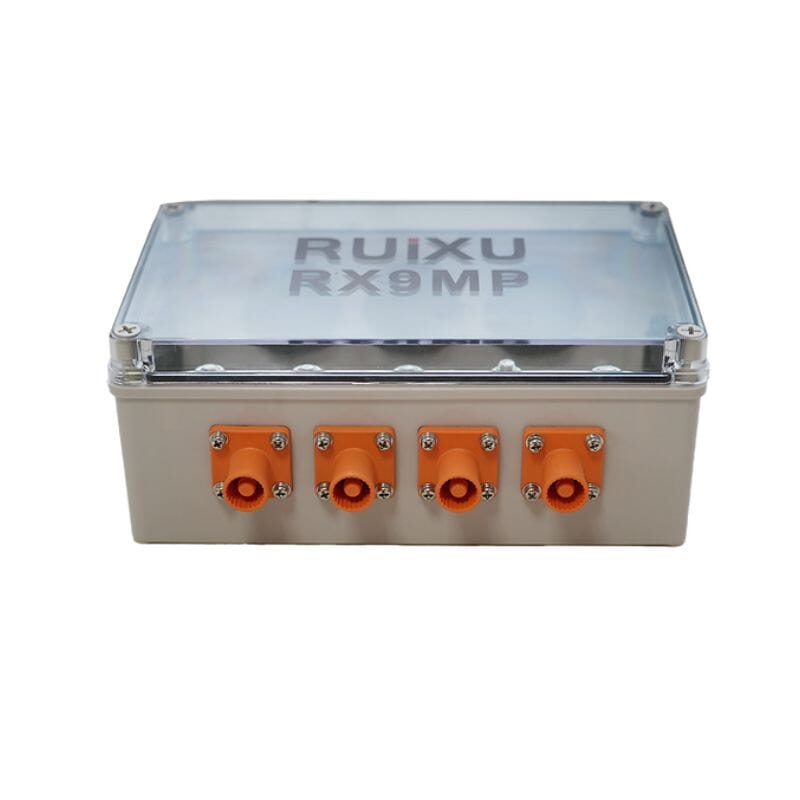

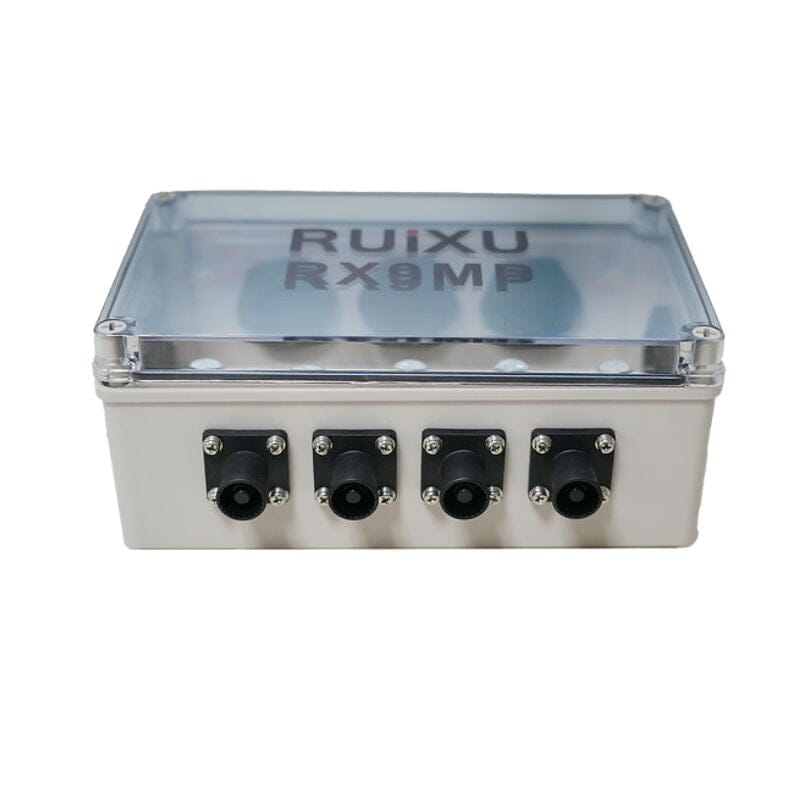

3. 5/16" Studs & Pluggable connector- The Power Distribution Block Bus Bar with 5 x 5/16"(M8) stud posts and 4 x Pluggable Battery Pole Connector ,which is more convenient to connect RUiXU Lithi2-16.
4. Waterproof - The 800Amp junction block box comes with waterproof rings, which can act as a sealing function, so it makes your wiring more secure and reliable.
5. Equipped with screws to secure the busbar to the wall.

Still have questions? Give us a call at 877-242-2792
