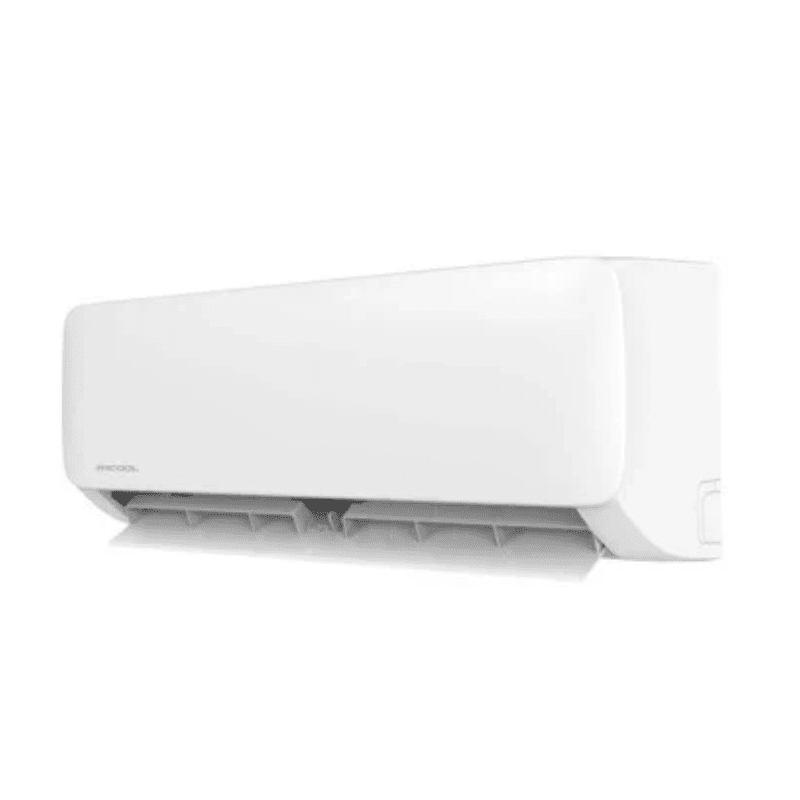

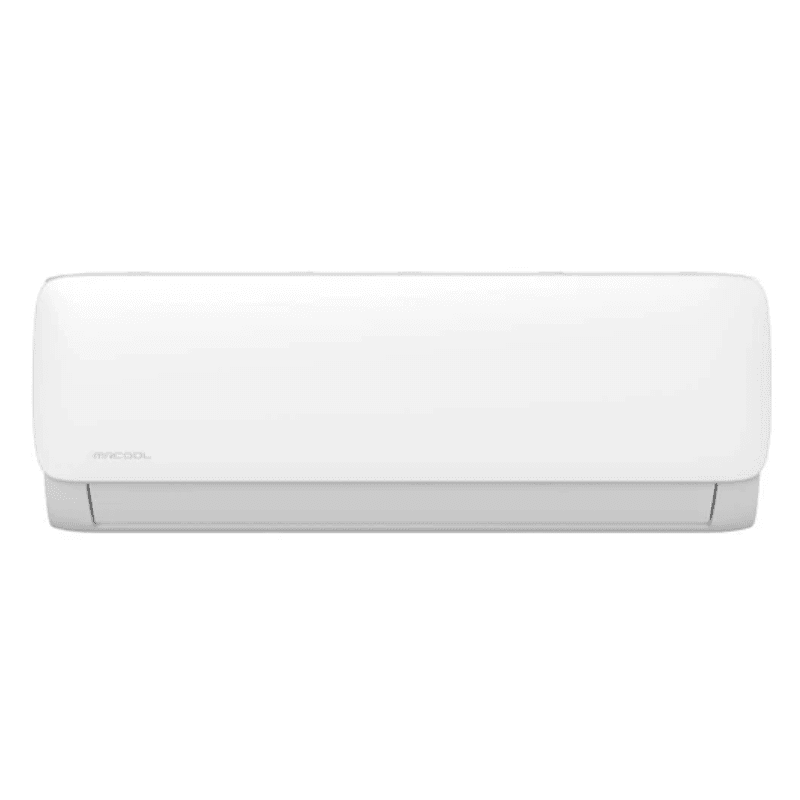

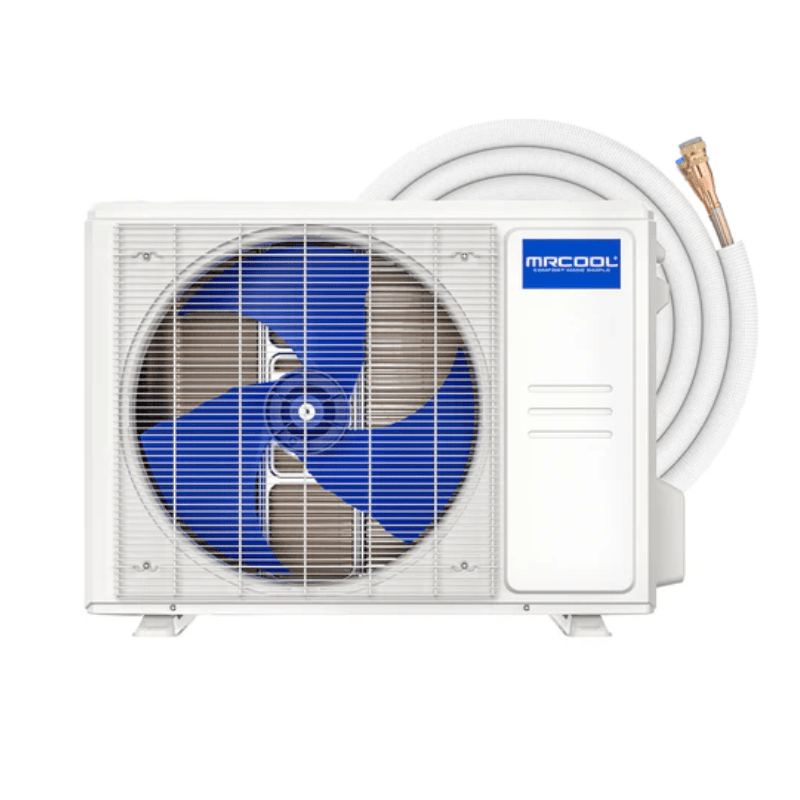

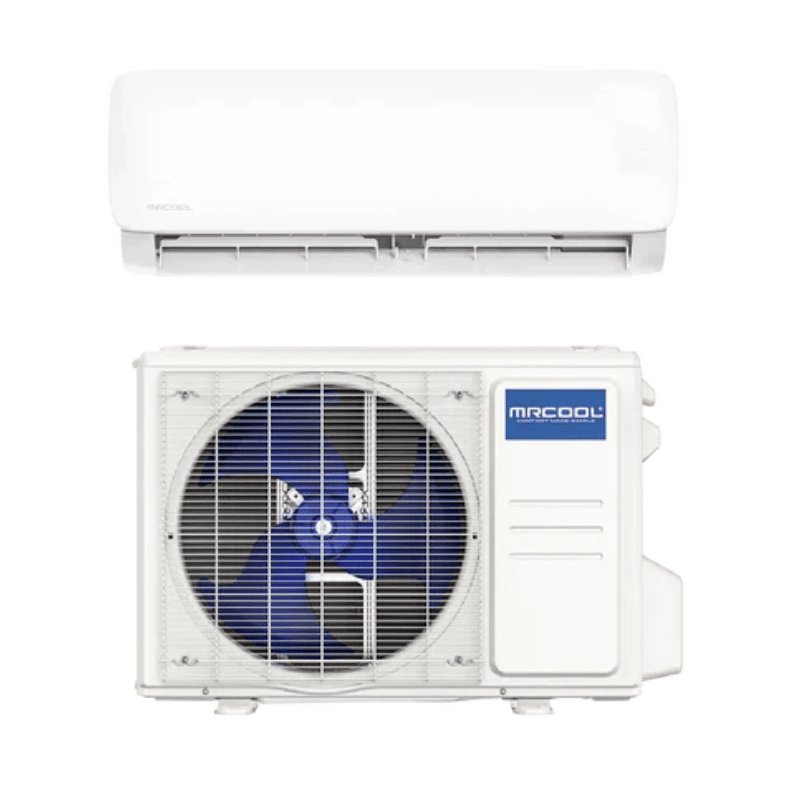

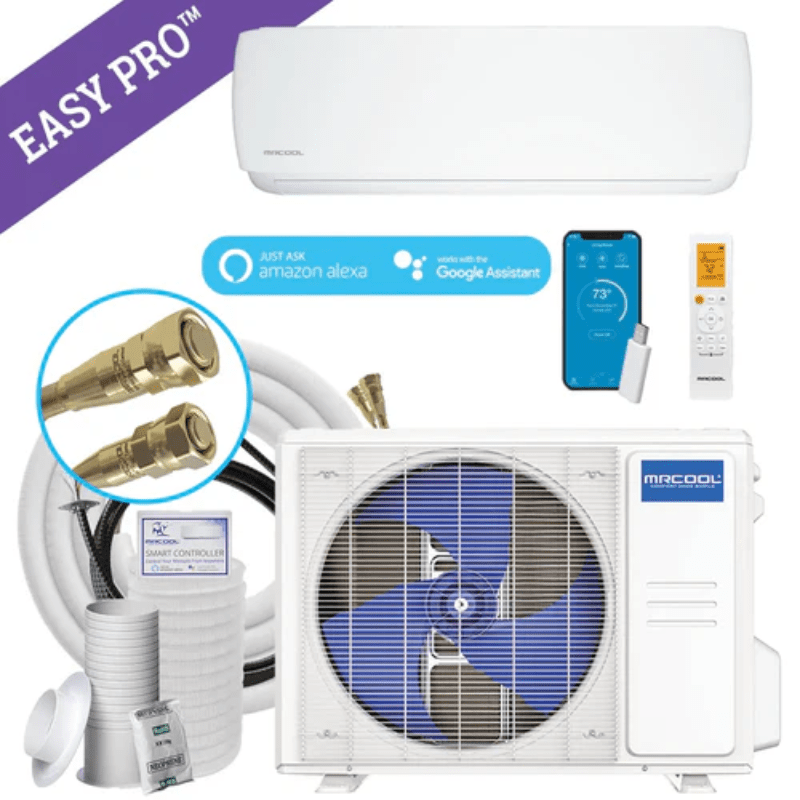

MRCOOL DIY 18,000 BTU Mini Split
Enjoy year-round comfort with the MRCOOL DIY Easy Pro 18,000 BTU 5th Gen Mini Split System. Designed for easy, DIY installation—no HVAC tech needed—this 20 SEER-rated unit efficiently cools and heats up to 800 sq ft.
- Regular price
- $1,827.00
- Sale price
- $1,827.00
- Regular price
-
$2,283.75
Questions before you buy?
Call 877-242-2792 and we’ll work it out with you. Mon–Thu 10am–5:30pm, Fri 10am–1pm EST.
Frequently bought together
Specifications
The details.
Enjoy year-round comfort with the MRCOOL DIY Easy Pro 18,000 BTU 5th Gen Mini Split System. Designed for easy, DIY installation—no HVAC tech needed—this 20 SEER-rated unit efficiently cools and heats up to 800 sq ft. Perfect for homes, cabins, offices, or off-grid spaces, it comes with a pre-charged 16-ft line set and Fast Connection® fittings, making setup a breeze.
With smart features like app control and voice assistant integration, this system puts custom comfort at your fingertips—anytime, anywhere. Built to last, with a low-maintenance design and anti-mildew technology for clean, breathable air.
Key Features & Benefits:
-
✅ DIY-Friendly Installation – No special tools or training required
-
❄️ 18,000 BTU Cooling & Heating – Ideal for spaces up to 800 sq ft
-
⚡ 20 SEER Efficiency – High-performance, energy-saving design
-
🔧 16-ft Pre-Charged Line Set – Includes Fast Connection® fittings
-
🌬️ Follow Me® Sensor – Adjusts temperature based on your location
-
📱 Smart Control – Works with Alexa, Google Assistant & SmartHVAC app
-
🧼 Anti-Mildew & Washable Filters – Cleaner air, easier maintenance
-
🔒 Reliable Warranty – 1-year compressor, 2-year parts coverage
User Manual / Documents:
- BRAND NAME
- MRCOOL
- SERIES
- EasyPro 5th Gen
- GTIN
- 00840255586757
- UPC
- 840255586757
- UNIT TYPE
- Mini-Split
- EQUIPMENT TYPE
- Condenser
- SHORT DESCRIPTION
- EasyPro 5th Generation 18k BTU 230V Condenser
- SEER2
- 20
- EER2
- 9.8
- HSPF2-4
- 8.5
- HSPF2-5
- 6.6
- TONNAGE
- 1.5
- COOLING CAPACITY (BTU)
- 17000
- HEATING CAPACITY (BTU)
- 18000
- VOLTAGE (V)
- 208/230
- PHASE
- 1
- CYCLE
- 60
- MAX FUSE BREAKER (A)
- 20
- MIN CIRCUIT AMPACITY (A)
- 15
- COLOR
- White
- ZONE CAPACITY
- 1
- REFRIGERANT TYPE
- R-454B
- REFRIGERANT VOLUME (OZ)
- 34.92
- DECIBEL RATING HIGH (DBA)
- 55
- INVERTER
- DC
- MIN AMBIENT COOL (F)
- 5
- LINESET INCLUDED
- Yes
- LINE SET LENGTH
- 16ft
- MAX LINESET LENGTH (FT)
- 98.4
- LIQUID LINE SIZE
- 1/4
- SUCTION LINE SIZE
- 1/2
- COMPRESSOR MOTOR TYPE
- Rotary
- WORKS WITH IOS
- Yes
- WORKS WITH ANDROID
- Yes
- UL LISTED
- Yes
- CSA LISTED
- Yes
- ETL LISTED
- Yes
- AHRI CERTIFIED
- Yes
- REGISTERED WARRANTY
- Extended Limited Lifetime*
- BASE PARTS WARRANTY
- 1 Year
- BASE COMPRESSOR WARRANTY
- 2 Years
- CONTAINS CHEMICALS
- Yes
- CONTAINS COMPRESSED GAS
- Yes
- PROPOSITION 65 WARNING
- Yes
- NET DEPTH (IN)
- 11.93
- NET HEIGHT (IN)
- 21.85
- NET WIDTH (IN)
- 30.12
- NET WEIGHT (LBS)
- 62.61
- GROSS DEPTH (IN)
- 13.27
- GROSS HEIGHT (IN)
- 24.02
- GROSS WIDTH (IN)
- 34.92
- GROSS WEIGHT (LBS)
- 82.23
- BRAND NAME
- MRCOOL
- SERIES
- EasyPro 5th Gen
- MODEL
- EZPRO-18-HP-WMAH-230D-O
- GTIN
- 840255586788
- UPC
- 840255586788
- UNIT TYPE
- Mini-Split
- EQUIPMENT TYPE
- Air Handler
- SHORT DESCRIPTION
- EasyPro 5th Generation 18k BTU 230V Air Handler
- CFM
- 470.9 / 400.2 / 329.6 / 270.8 / /
- TONNAGE
- 1.5
- COOLING CAPACITY (BTU)
- 17000
- HEATING CAPACITY (BTU)
- 18000
- VOLTAGE (V)
- 208/230
- PHASE
- 1
- CYCLE
- 60
- MAX FUSE BREAKER (A)
- 15
- MIN CIRCUIT AMPACITY (A)
- 3
- MOUNT TYPE
- Wall
- COLOR
- White
- MAX COVERAGE AREA
- 800 sqft
- DECIBEL RATING (DBA)
- 36
- DECIBEL RATING LOW (DBA)
- 18.5
- DECIBEL RATING HIGH (DBA)
- 46.5
- NUMBER OF SPEEDS
- 5
- LIQUID LINE SIZE
- 1/4
- SUCTION LINE SIZE
- 1/2
- BLOWER MOTOR SPEEDS
- 3
- BLOWER MOTOR RPM
- 1200/1000/900
- FILTER TYPE
- Reusable
- FAN ONLY OPTION
- Yes
- SLEEP MODE
- Yes
- AUTO COOL
- Yes
- WIFI COMPATIBILITY
- Yes
- APP COMPATIBILITY
- Yes
- WORKS WITH IOS
- Yes
- WORKS WITH ANDROID
- Yes
- REMOTE CONTROL INCLUDED
- Yes
- UL LISTED
- Yes
- CSA LISTED
- Yes
- ETL LISTED
- Yes
- AHRI CERTIFIED
- Yes
- REGISTERED WARRANTY
- Extended Limited Lifetime*
- BASE PARTS WARRANTY
- 1 Year
- BASE COMPRESSOR WARRANTY
- 2 Years
- HAS BATTERIES
- Yes
- CONTAINS ELECTRONICS
- Yes
- CONTAINS CHEMICALS
- Yes
- CONTAINS COMPRESSED GAS
- Yes
- PROPOSITION 65 WARNING
- Yes
- NET DEPTH (IN)
- 8.98
- NET HEIGHT (IN)
- 12.64
- NET WIDTH (IN)
- 38.23
- NET WEIGHT (LBS)
- 30.64
- GROSS DEPTH (IN)
- 12.01
- GROSS HEIGHT (IN)
- 15.94
- GROSS WIDTH (IN)
- 41.14
- GROSS WEIGHT (LBS)
- 44.97
