MRCOOL EasyPro 24K DIY Mini Split
Experience year-round comfort and unbeatable DIY convenience with the MRCOOL® DIY® 9,000 BTU 5th Gen Ductless Mini Split System. Designed for spaces up to 400 sq.
- Regular price
- $2,329.00
- Sale price
- $2,329.00
- Regular price
-
$2,911.25
Questions before you buy?
Call 877-242-2792 and we’ll work it out with you. Mon–Thu 10am–5:30pm, Fri 10am–1pm EST.
Frequently bought together
Specifications
The details.

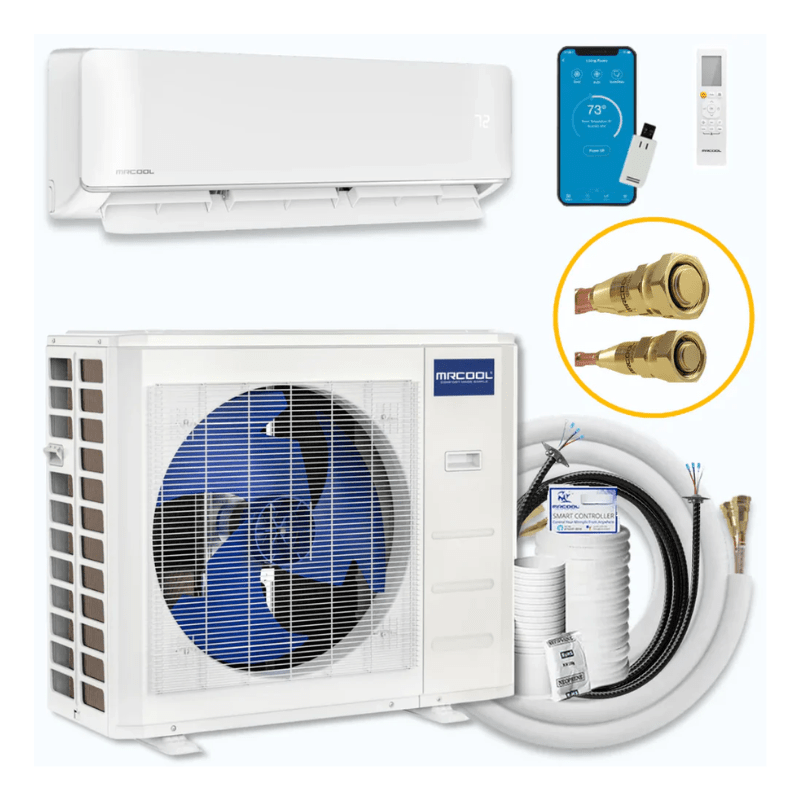

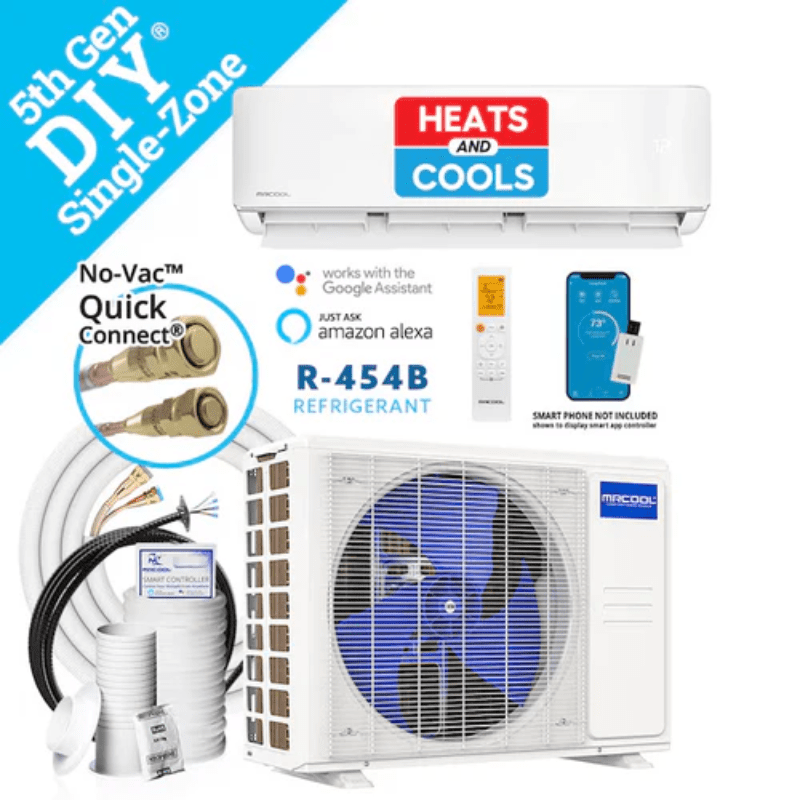

Experience year-round comfort and unbeatable DIY convenience with the MRCOOL® DIY® 9,000 BTU 5th Gen Ductless Mini Split System. Designed for spaces up to 400 sq. ft., this single-zone heat pump system installs easily with no special tools or HVAC experience required.

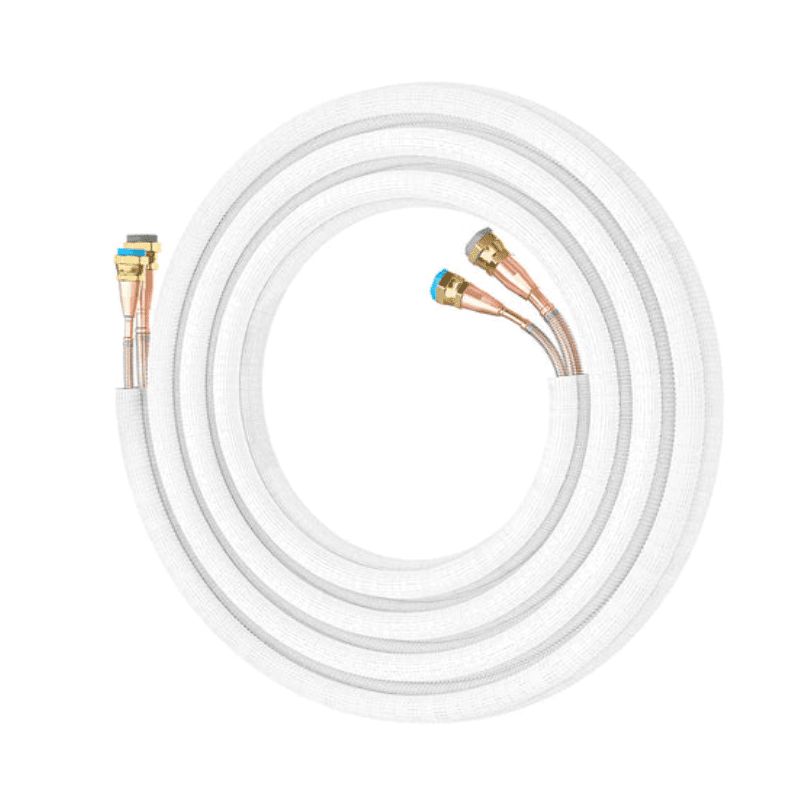

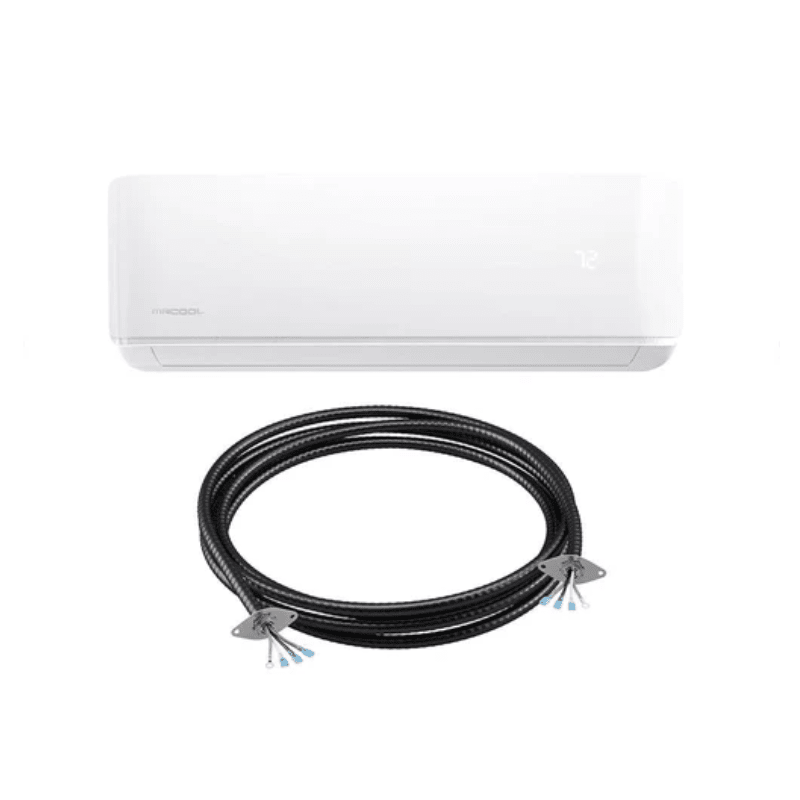

The 25-ft pre-charged QuickConnect® line set with R-454B refrigerant makes setup fast and safe—no vacuuming or gauges needed. The system also includes a rugged DIYPRO® cable, eliminating the need for electrical conduit while offering enhanced protection from the elements.

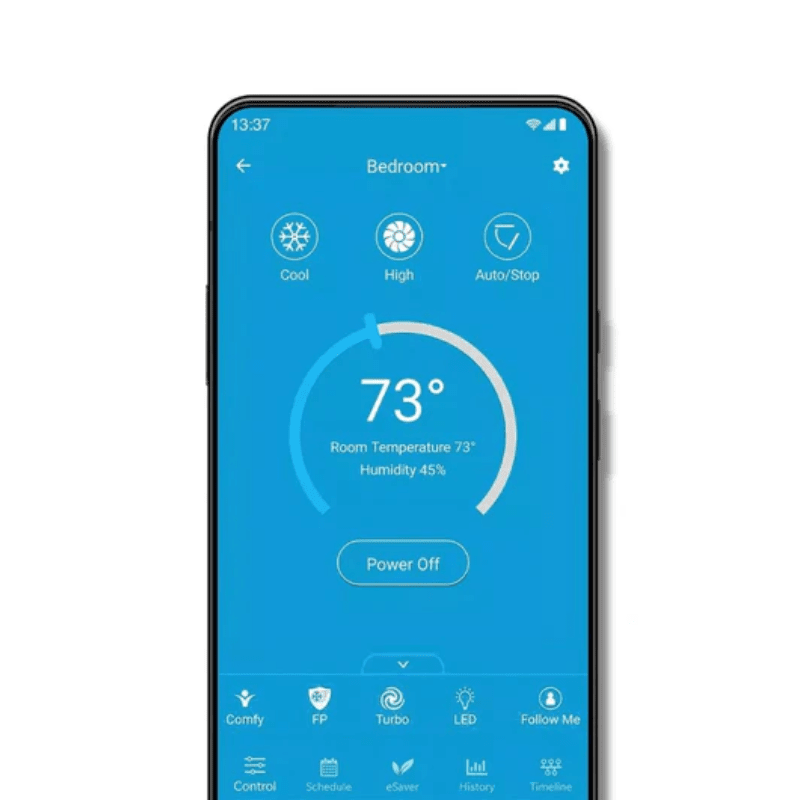

Stay in control from anywhere with the SmartHVAC app, wireless remote, or voice commands via Amazon Alexa and Google Assistant. For added comfort, the Follow Me® feature adjusts airflow based on the remote’s location, keeping you comfortable wherever you are in the room.
Built to last and backed by an industry-leading warranty, including a limited lifetime warranty, 7-year compressor warranty, and 5-year parts warranty, this system is ideal for energy-conscious homeowners looking for reliable, year-round climate control.
Key Features & Benefits:
-
DIY-Friendly Installation – No HVAC tools or experience required
-
Energy Efficient – 23.6 SEER2 rating for long-term cost savings
-
9,000 BTU Heating & Cooling – Ideal for rooms up to 400 sq. ft.
-

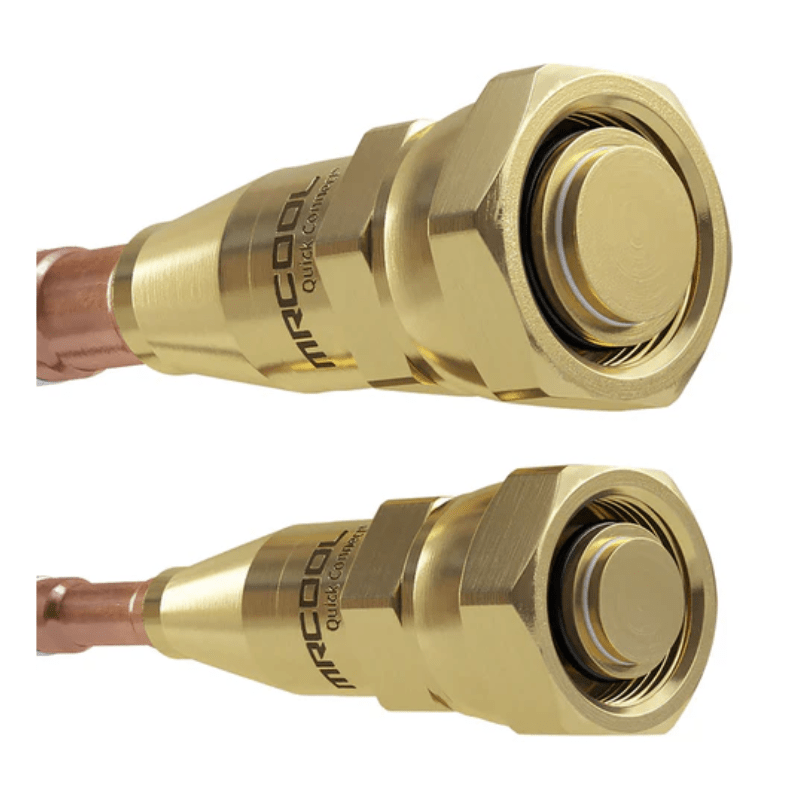

QuickConnect® Line Set – Pre-charged with R-454B refrigerant
-
Smart Control Ready – WiFi app, Alexa & Google Assistant compatible
-
Follow Me® Remote – Adjusts airflow based on your location
-
Dry Mode – Helps reduce humidity and excess moisture
-
Gold Fin® Condenser – Corrosion-resistant for harsh climates
-
Industry-Leading Warranty – Lifetime limited, 7-year compressor, 5-year parts
User Manual / Documents:
- BRAND NAME
- MRCOOL
- SERIES
- DIY 5th gen Single-Zone Mini-splits
- MODEL
- DIY-09-HP-C-115D25-O
- SHORT DESCRIPTION

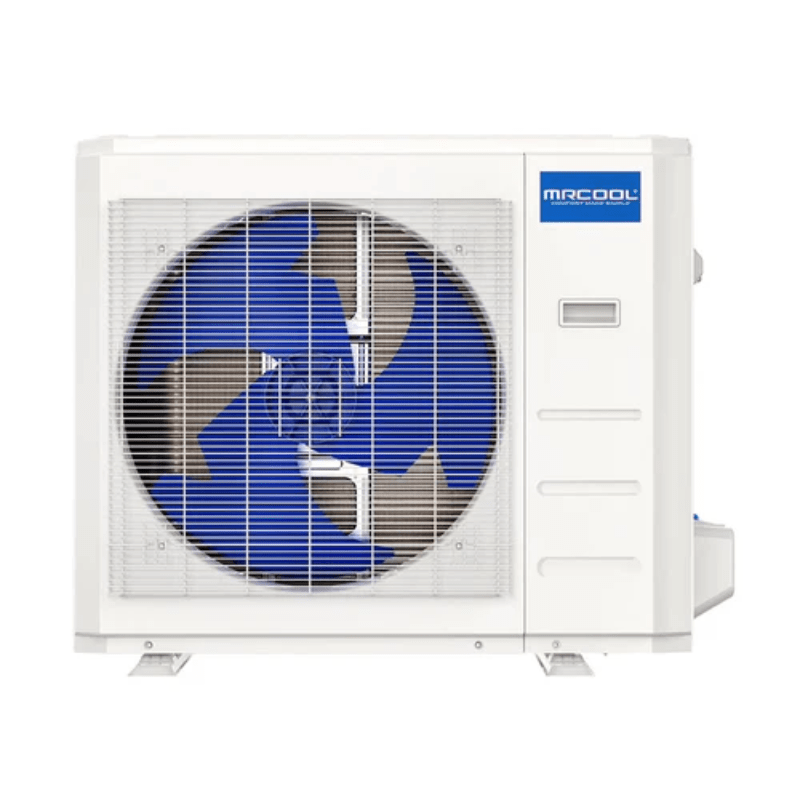

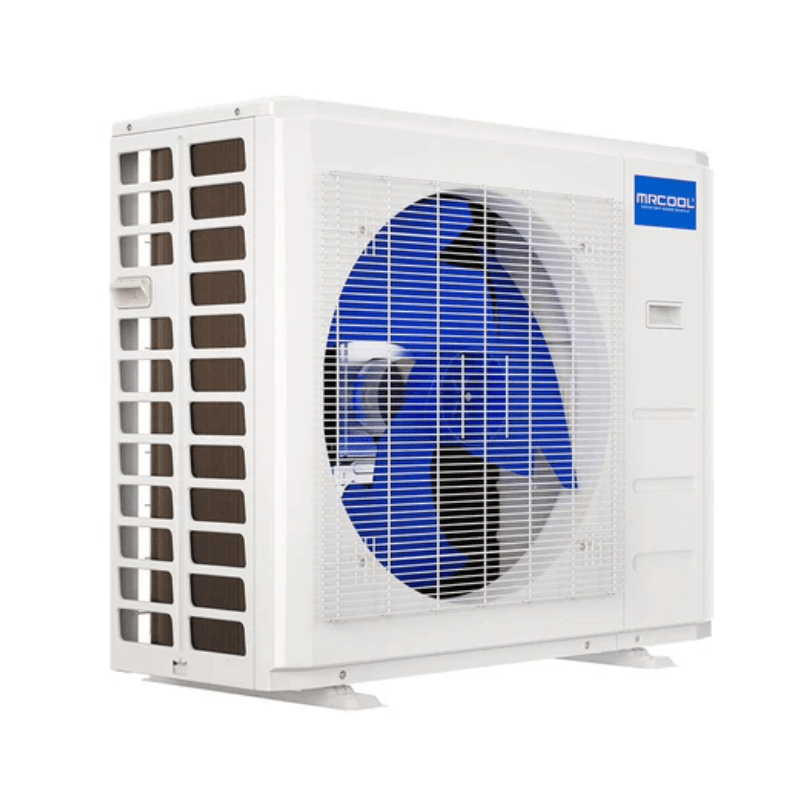

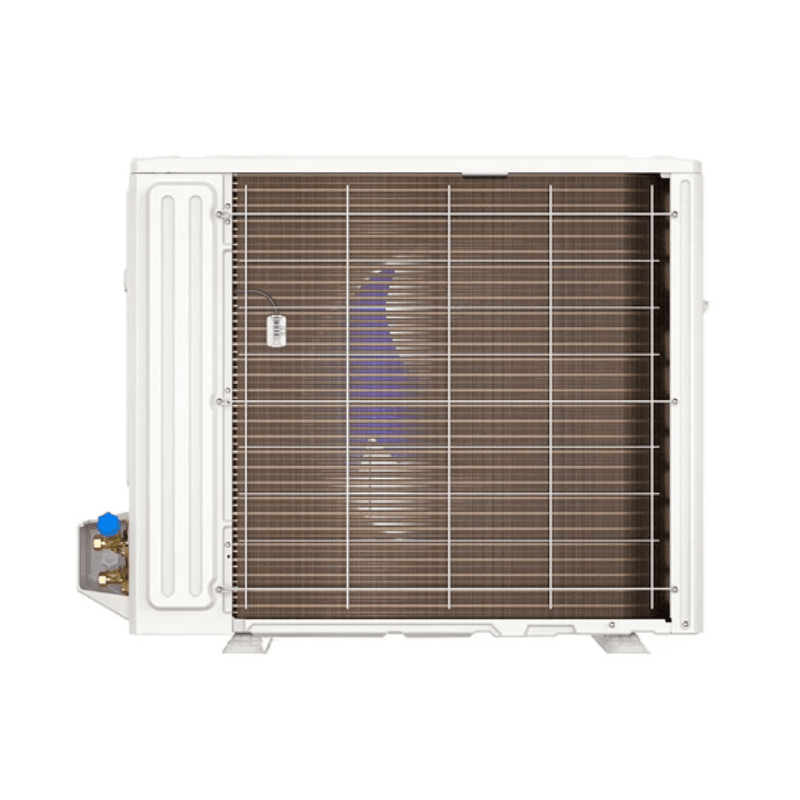

- MRCOOL® 9k DIY 5th Generation Mini-Split Condenser 115v
- SEER2
- 23.6
- EER2
- 14
- HSPF2-4
- 11.5
- HSPF2-5
- 8.6
- TONNAGE
- 0.75
- COOLING CAPACITY (BTU)
- 9000
- HEATING CAPACITY (BTU)
- 10000
- VOLTAGE (V)
- 115
- PHASE
- 1
- CYCLE
- 60
- MAX FUSE BREAKER (A)
- 20
- MIN CIRCUIT AMPACITY (A)
- 18
- COLOR
- White
- ZONE CAPACITY
- 1
- REFRIGERANT TYPE
- R-454B
- REFRIGERANT VOLUME (OZ)
- 30.34
- DECIBEL RATING (DBA)
- 54
- INVERTER
- DC
- LINE SET LENGTH
- 25
- MAX LINESET LENGTH (FT)
- 82
- LIQUID LINE SIZE
- 1/4
- SUCTION LINE SIZE
- 3/8
- COMPRESSOR MOTOR TYPE
- Rotary
- AUXILIARY HEATER INCLUDED
- No
- AUXILIARY HEATER AVAILABLE
- No
- FAN ONLY OPTION
- Yes
- QUIET MODE
- Yes
- AUTO COOL
- Yes
- WIFI COMPATIBILITY
- Yes
- APP COMPATIBILITY
- Yes
- WORKS WITH IOS
- Yes
- WORKS WITH ANDROID
- Yes
- UL LISTED
- Yes
- ENERGY STAR CERTIFIED
- Yes
- AHRI CERTIFIED
- Yes
- REGISTERED WARRANTY
- Extended Limited Lifetime*
- BASE PARTS WARRANTY
- 5
- BASE COMPRESSOR WARRANTY
- 7
- HAS BATTERIES
- Yes
- CONTAINS ELECTRONICS
- Yes
- CONTAINS CHEMICALS
- Yes
- CONTAINS AEROSOL
- Yes
- CONTAINS COMPRESSED GAS
- Yes
- PROPOSITION 65 WARNING
- Yes
- NET DEPTH (IN)
- 11.93
- NET HEIGHT (IN)
- 21.85
- NET WIDTH (IN)
- 30.12
- NET WEIGHT (LBS)
- 83.11
- GROSS DEPTH (IN)
- 16.54
- GROSS HEIGHT (IN)
- 27.56
- GROSS WIDTH (IN)
- 36.22
- GROSS WEIGHT (LBS)
- 65.48
- BRAND NAME
- MRCOOL
- SERIES
- DIY 5th gen Single-Zone Mini-splits
- MODEL
- DIY-09-HP-WMAH-115D25-O
- SHORT DESCRIPTION
- MRCOOL® 9k DIY 5th Generation Mini-split Air Handler 115v
- TONNAGE
- 0.75
- VOLTAGE (V)
- 115
- PHASE
- 1
- CYCLE
- 60
- MAX FUSE BREAKER (A)
- 15
- MIN CIRCUIT AMPACITY (A)
- 3
- MOUNT TYPE
- Wall
- COLOR
- White
- MAX COVERAGE AREA
- 400 sqft
- DECIBEL RATING LOW (DBA)
- 18
- DECIBEL RATING HIGH (DBA)
- 43
- NUMBER OF SPEEDS
- 5
- OSCILLATION
- Yes
- LIQUID LINE SIZE
- 1/4
- SUCTION LINE SIZE
- 3/8
- FILTER TYPE
- Reusable
- AUXILIARY HEATER INCLUDED
- No
- AUXILIARY HEATER AVAILABLE
- No
- FAN ONLY OPTION
- Yes
- QUIET MODE
- Yes
- AUTO COOL
- Yes
- WIFI COMPATIBILITY
- Yes
- APP COMPATIBILITY
- Yes
- WORKS WITH IOS
- Yes
- WORKS WITH ANDROID
- Yes
- REMOTE CONTROL INCLUDED
- Yes
- UL LISTED
- Yes
- ETL LISTED
- Yes
- ENERGY STAR CERTIFIED
- Yes
- AHRI CERTIFIED
- Yes
- REGISTERED WARRANTY
- Extended Limited Lifetime*
- BASE PARTS WARRANTY
- 5
- BASE COMPRESSOR WARRANTY
- 7
- HAS BATTERIES
- Yes
- CONTAINS ELECTRONICS
- Yes
- CONTAINS CHEMICALS
- Yes
- CONTAINS AEROSOL
- Yes
- CONTAINS COMPRESSED GAS
- Yes
- PROPOSITION 65 WARNING
- Yes
- NET DEPTH (IN)
- 7.44
- NET HEIGHT (IN)
- 11.69
- NET WIDTH (IN)
- 31.57
- NET WEIGHT (LBS)
- 24.91
- GROSS DEPTH (IN)
- 16.34
- GROSS HEIGHT (IN)
- 14.37
- GROSS WIDTH (IN)
- 36.02
- GROSS WEIGHT (LBS)
- 35.49
