MRCOOL DIY 36K BTU 5th Gen Mini Split
Experience powerful, energy-efficient heating and cooling with the MRCOOL® DIY® 36,000 BTU 5th Gen Ductless Mini Split Heat Pump System. Engineered for effortless DIY installation, this single-zone system is perfect for spaces up to 1,500 sq.
- Regular price
- $3,769.00
- Sale price
- $3,769.00
- Regular price
-
$4,711.25
Questions before you buy?
Call 877-242-2792 and we’ll work it out with you. Mon–Thu 10am–5:30pm, Fri 10am–1pm EST.
Frequently bought together
Specifications
The details.

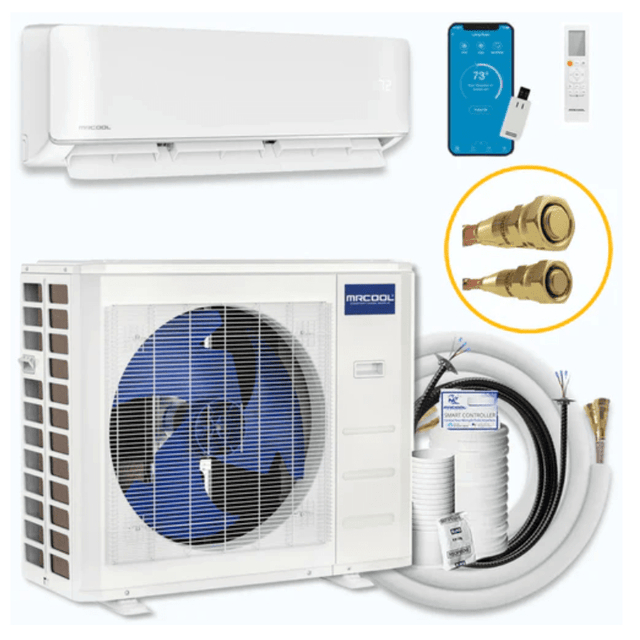

Experience powerful, energy-efficient heating and cooling with the MRCOOL® DIY® 36,000 BTU 5th Gen Ductless Mini Split Heat Pump System. Engineered for effortless DIY installation, this single-zone system is perfect for spaces up to 1,500 sq. ft., making it ideal for cabins, garages, home additions, and more.

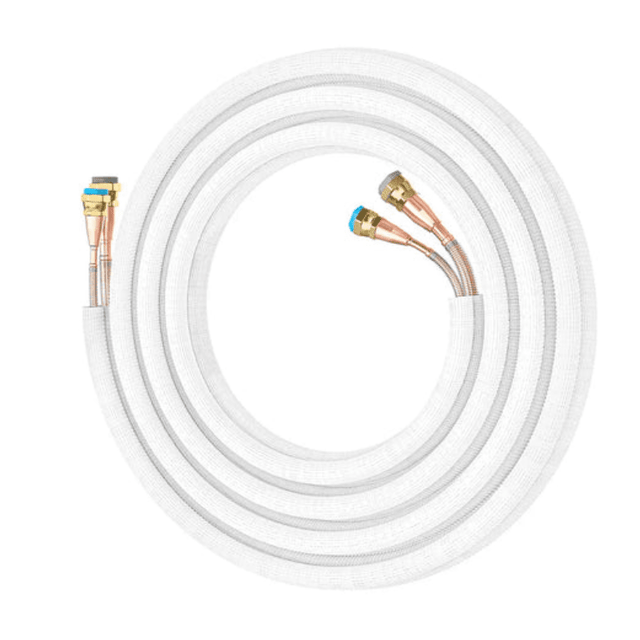

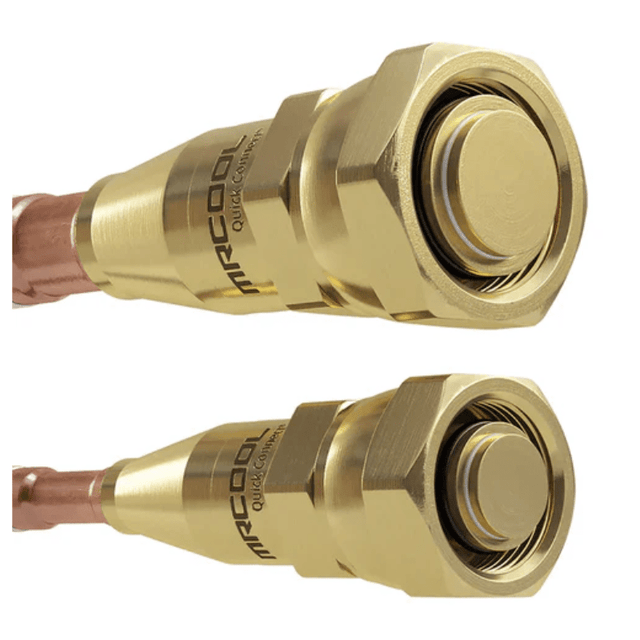

With a pre-charged 25-ft QuickConnect® line set using R-454B refrigerant and a DIYPRO® cable, setup is simple—no vacuuming or electrical conduit required. Plus, smart features and voice control make climate management easier than ever.
Key Features & Benefits:
-
✅ Easy DIY Installation – No special tools or HVAC experience needed
-
✅ Powerful 36,000 BTU Output – Efficient heating & cooling for up to 1,500 sq. ft.
-
✅ 18 SEER Efficiency Rating – Energy savings with high performance
-
✅ Pre-Charged with R-454B Refrigerant – No need to vacuum lines
-

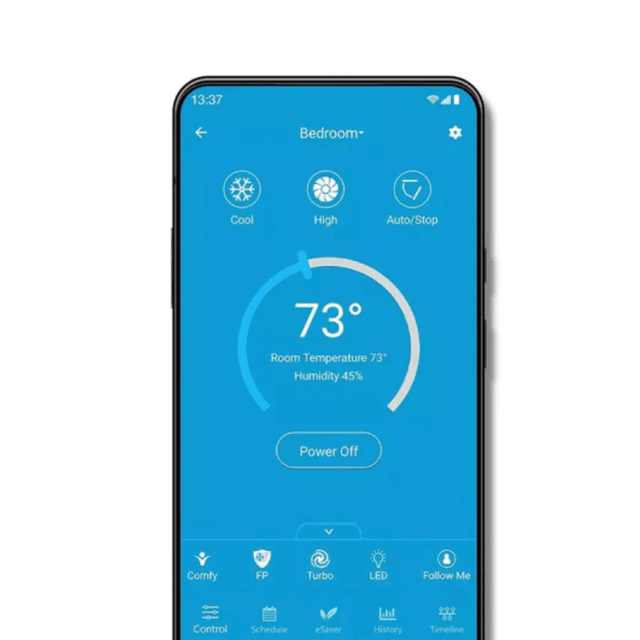

✅ Smart Controls – Control via remote, app, Alexa & Google Assistant
-
✅ Follow Me® Technology – Adjusts comfort based on remote’s location
-
✅ Dry Mode Dehumidifier – Reduces excess humidity effectively
-

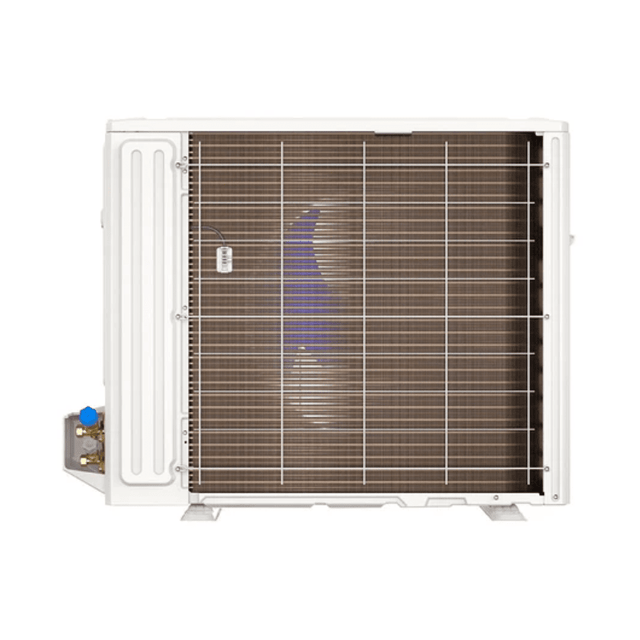

✅ Gold Fin® Condenser – Corrosion resistance for coastal environments
-

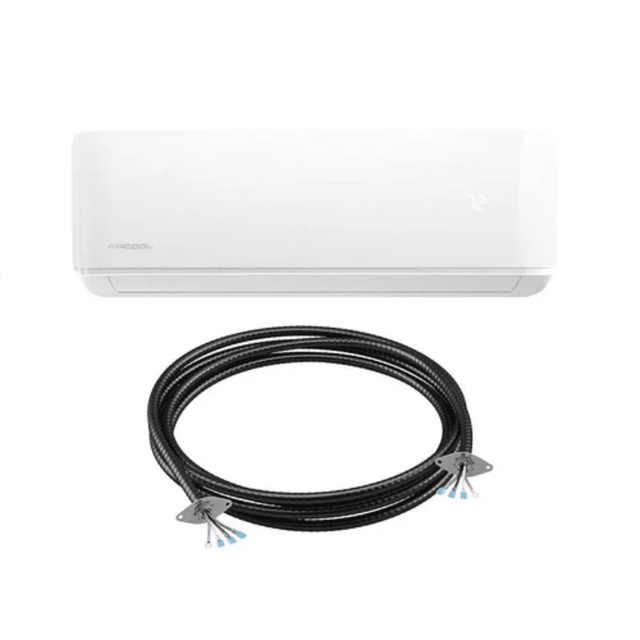

✅ Durable DIYPRO® Cable – Adds weather and wildlife protection
-
✅ Industry-Leading Warranty – Limited Lifetime + 7-Year Compressor + 5-Year Parts
Enjoy year-round comfort, energy independence, and long-term savings with this all-in-one heating and cooling solution—backed by legendary support and a warranty you can trust.
User Manual / Documents:
- BRAND NAME
- MRCOOL
- SERIES
- DIY 5th gen Single-Zone Mini-splits
- MODEL
- DIY-36-HP-C-230D25-O
- SHORT DESCRIPTION

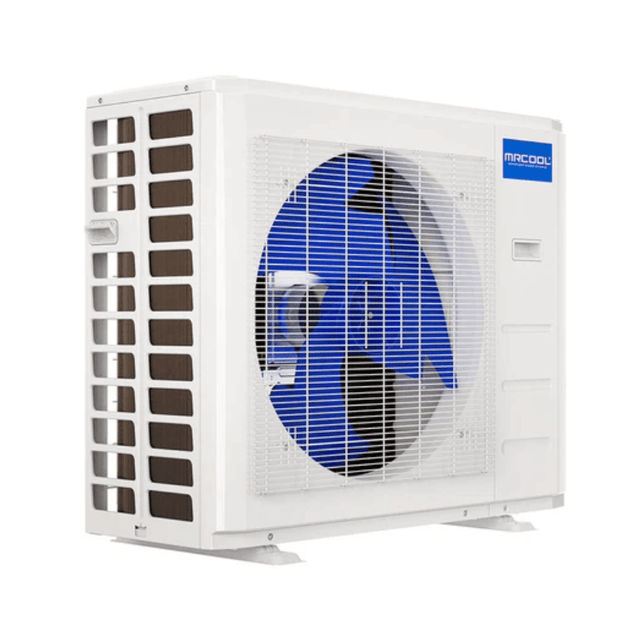

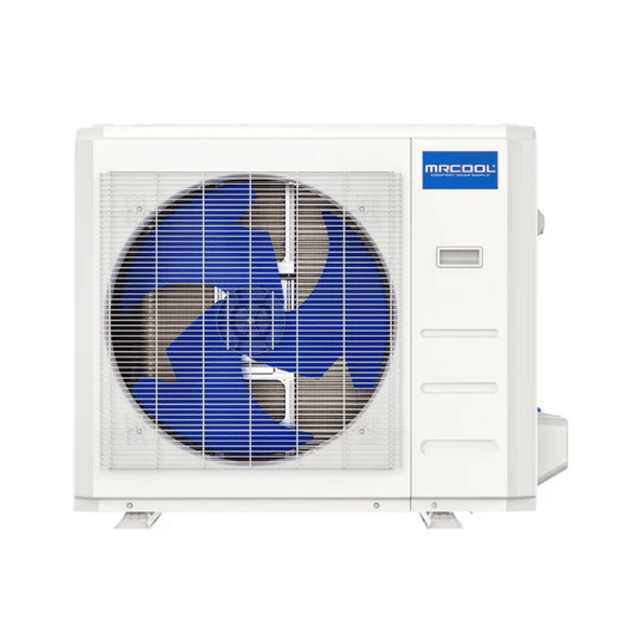

- MRCOOL® 36k DIY 5th Generation Mini-Split Condenser 230v
- SEER2
- 18
- EER2
- 8.5
- HSPF2-4
- 8.5
- HSPF2-5
- 6.5
- TONNAGE
- 3
- COOLING CAPACITY (BTU)
- 36000
- HEATING CAPACITY (BTU)
- 36000
- VOLTAGE (V)
- 208/230
- PHASE
- 1
- CYCLE
- 60
- MAX FUSE BREAKER (A)
- 35
- MIN CIRCUIT AMPACITY (A)
- 33
- COLOR
- White
- ZONE CAPACITY
- 1
- REFRIGERANT TYPE
- R-454B
- REFRIGERANT VOLUME (OZ)
- 109.7
- DECIBEL RATING (DBA)
- 60.5
- INVERTER
- DC
- LINE SET LENGTH
- 25
- MAX LINESET LENGTH (FT)
- 213.2
- LIQUID LINE SIZE
- 3/8
- SUCTION LINE SIZE
- 5/8
- COMPRESSOR MOTOR TYPE
- Rotary
- AUXILIARY HEATER INCLUDED
- No
- AUXILIARY HEATER AVAILABLE
- No
- FAN ONLY OPTION
- Yes
- QUIET MODE
- Yes
- AUTO COOL
- Yes
- WIFI COMPATIBILITY
- Yes
- APP COMPATIBILITY
- Yes
- WORKS WITH IOS
- Yes
- WORKS WITH ANDROID
- Yes
- UL LISTED
- Yes
- ETL LISTED
- Yes
- ENERGY STAR CERTIFIED
- Yes
- AHRI CERTIFIED
- Yes
- REGISTERED WARRANTY
- Extended Limited Lifetime*
- BASE PARTS WARRANTY
- 5
- BASE COMPRESSOR WARRANTY
- 7
- HAS BATTERIES
- Yes
- CONTAINS ELECTRONICS
- Yes
- CONTAINS CHEMICALS
- Yes
- CONTAINS AEROSOL
- Yes
- CONTAINS COMPRESSED GAS
- Yes
- PROPOSITION 65 WARNING
- Yes
- NET DEPTH (IN)
- 16.14
- NET HEIGHT (IN)
- 31.89
- NET WIDTH (IN)
- 37.24
- NET WEIGHT (LBS)
- 152.12
- GROSS DEPTH (IN)
- 19.88
- GROSS HEIGHT (IN)
- 37.01
- GROSS WIDTH (IN)
- 42.91
- GROSS WEIGHT (LBS)
- 183.42
- BRAND NAME
- MRCOOL
- SERIES
- DIY 5th gen Single-Zone Mini-splits
- MODEL
- DIY-36-HP-WMAH-230D25-O
- SHORT DESCRIPTION

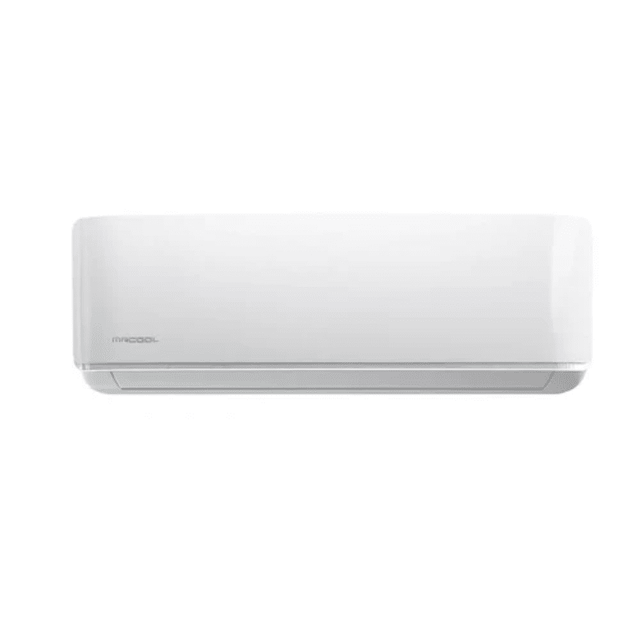

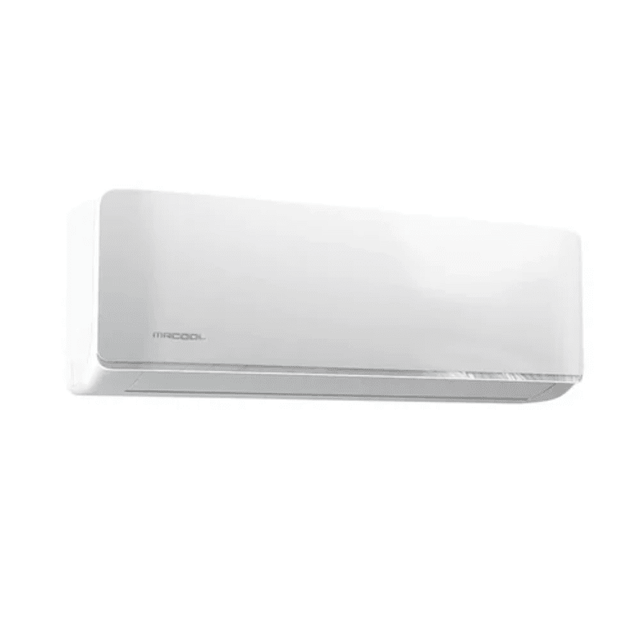

- MRCOOL® 36k DIY 5th Generation Mini-split Air Handler 230v
- TONNAGE
- 3
- VOLTAGE (V)
- 208/230
- PHASE
- 1
- CYCLE
- 60
- MAX FUSE BREAKER (A)
- 15
- MIN CIRCUIT AMPACITY (A)
- 3
- MOUNT TYPE
- Wall
- COLOR
- White
- MAX COVERAGE AREA
- 1550 sqft
- DECIBEL RATING LOW (DBA)
- 27.5
- DECIBEL RATING HIGH (DBA)
- 55.5
- NUMBER OF SPEEDS
- 5
- OSCILLATION
- Yes
- LIQUID LINE SIZE
- 3/8
- SUCTION LINE SIZE
- 5/8
- FILTER TYPE
- Reusable
- AUXILIARY HEATER INCLUDED
- No
- AUXILIARY HEATER AVAILABLE
- No
- FAN ONLY OPTION
- Yes
- QUIET MODE
- Yes
- AUTO COOL
- Yes
- WIFI COMPATIBILITY
- Yes
- APP COMPATIBILITY
- Yes
- WORKS WITH IOS
- Yes
- WORKS WITH ANDROID
- Yes
- REMOTE CONTROL INCLUDED
- Yes
- UL LISTED
- Yes
- ETL LISTED
- Yes
- ENERGY STAR CERTIFIED
- Yes
- AHRI CERTIFIED
- Yes
- REGISTERED WARRANTY
- Extended Limited Lifetime*
- BASE PARTS WARRANTY
- 5
- BASE COMPRESSOR WARRANTY
- 7
- HAS BATTERIES
- Yes
- CONTAINS ELECTRONICS
- Yes
- CONTAINS CHEMICALS
- Yes
- CONTAINS AEROSOL
- Yes
- CONTAINS COMPRESSED GAS
- Yes
- PROPOSITION 65 WARNING
- Yes
- NET DEPTH (IN)
- 11.1
- NET HEIGHT (IN)
- 14.25
- NET WIDTH (IN)
- 49.57
- NET WEIGHT (LBS)
- 48.72
- GROSS DEPTH (IN)
- 18.74
- GROSS HEIGHT (IN)
- 16.57
- GROSS WIDTH (IN)
- 53.94
- GROSS WEIGHT (LBS)
- 67.9
