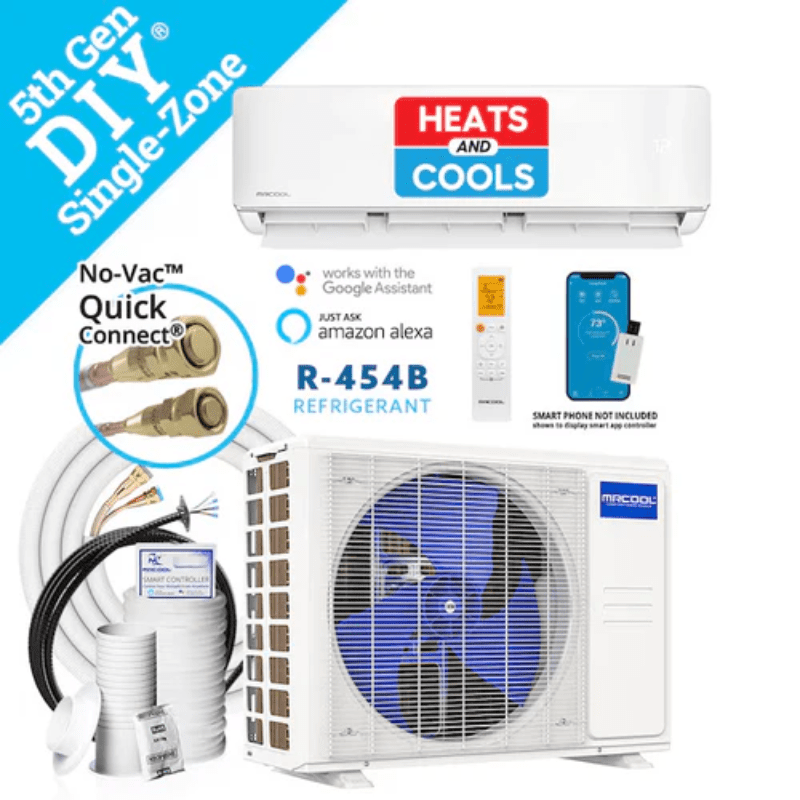

MRCOOL DIY 12,000 BTU Mini Split Heat Pump System | 5th Gen | 115V | 23.5 SEER2 | Cools & Heats Up to 550 Sq. Ft. | DIYPro Cable + 25' Line Set | Lifetime Warranty - ShopSolar: Complete Solar Kits + Lifetime Customer Support

MRCOOL · Appliances

SKU: DIY-12-HP-WM-115D25-O

MRCOOL EasyPro 24K DIY Mini Split

Trustpilot

Upgrade your off-grid cabin, home, or workspace with the 5th Gen MRCOOL DIY® 12K BTU Ductless Mini Split System. Designed for fast, tool-free DIY installation, this system delivers efficient heating and cooling for spaces up to 550 sq.

Regular price: $2,359.00
Sale price: $2,359.00
Regular price: ~~$2,948.75~~

You save $589.75

Orders processed in 24–48 hours

30-day returns

Lifetime support by phone, chat & email

Full manufacturer warranty

Questions before you buy?

Call 877-242-2792 and we’ll work it out with you. Mon–Thu 10am–5:30pm, Fri 10am–1pm EST.

Trusted by 50,000+ Customers powered since 2018

Lifetime Support Phone, email or live chat, for good

Price Match Found it cheaper? Tell us

Ships from the USA Warehouses in CA, TX and NY

Frequently bought together

Specifications

The details.

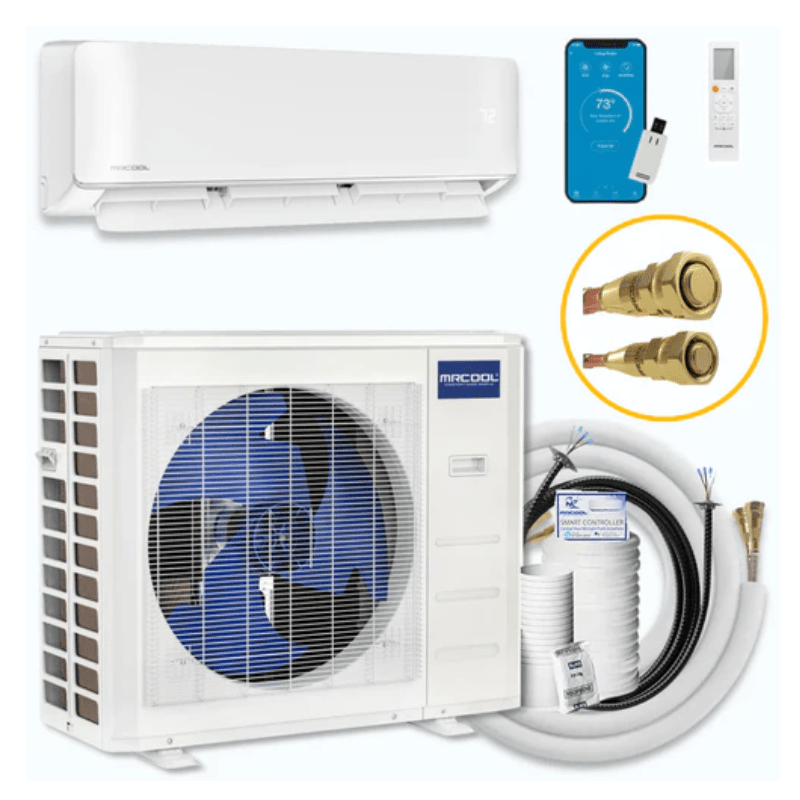

Upgrade your off-grid cabin, home, or workspace with the 5th Gen MRCOOL DIY® 12K BTU Ductless Mini Split System. Designed for fast, tool-free DIY installation, this system delivers efficient heating and cooling for spaces up to 550 sq. ft.—without the hassle or cost of hiring a contractor.

With built-in smart controls, a corrosion-resistant condenser, and industry-leading warranty coverage, this is the perfect all-in-one comfort solution for energy-conscious, hands-on homeowners.

Key Features & Benefits:

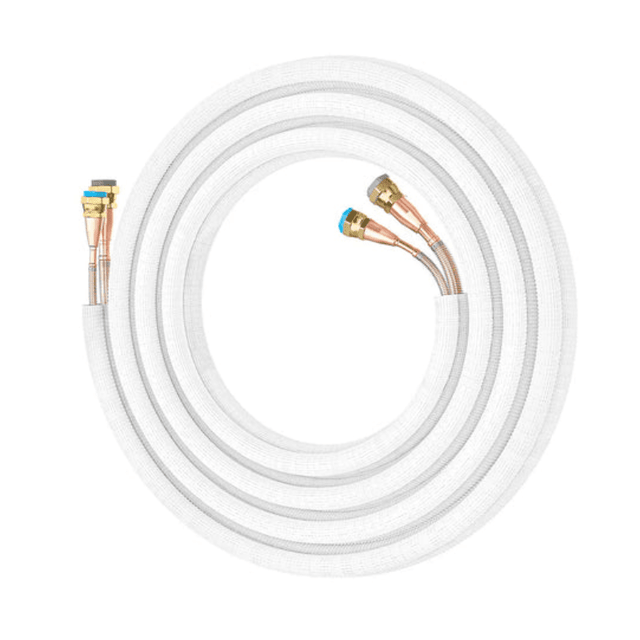

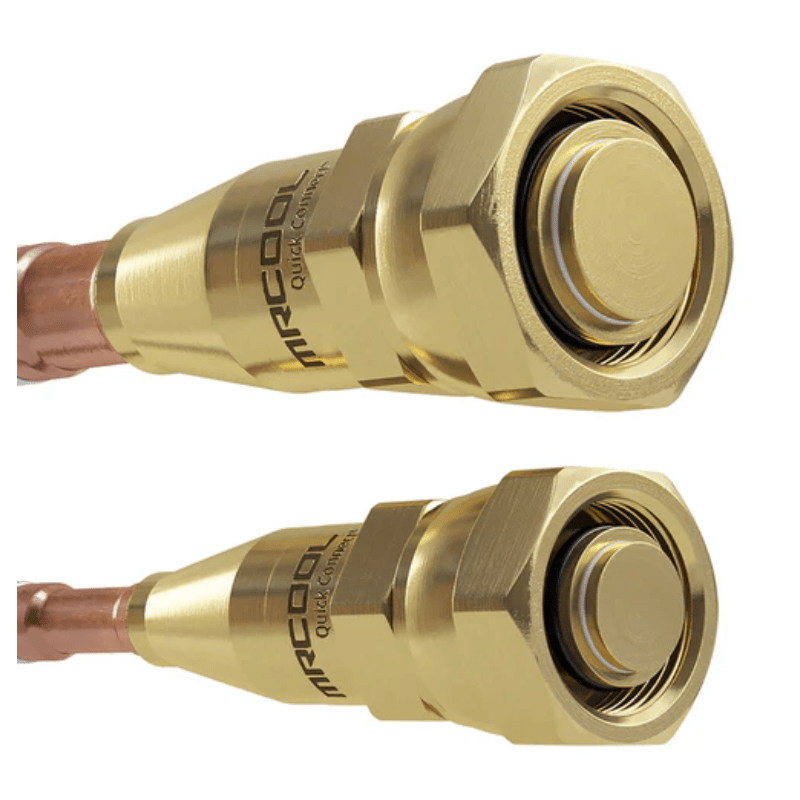

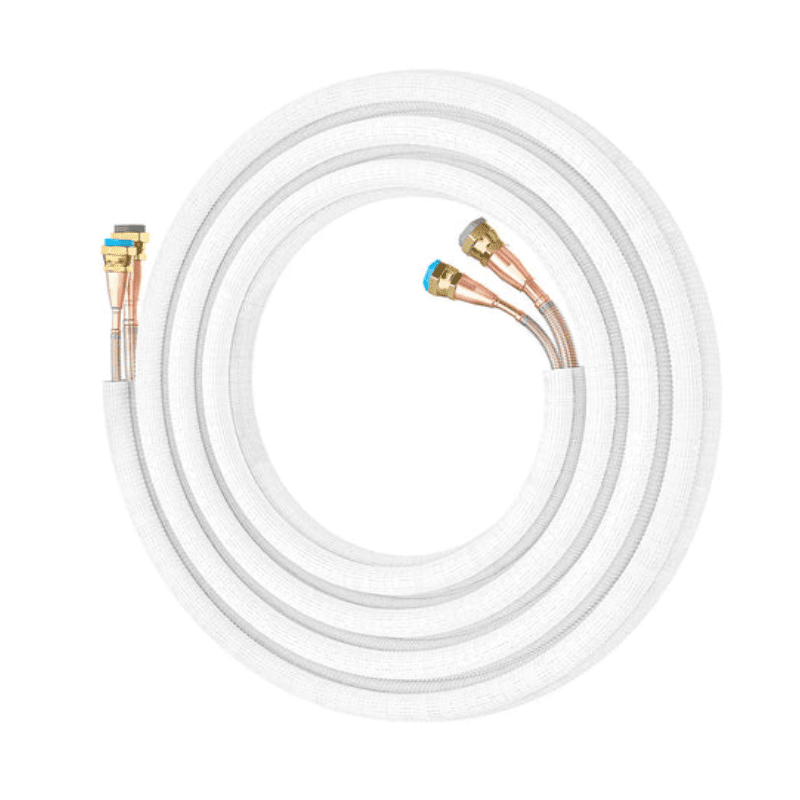

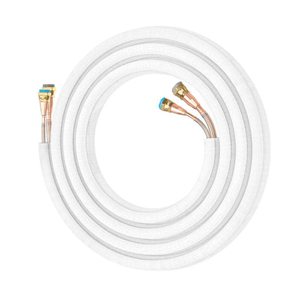

Easy DIY Installation – Includes pre-charged 25-ft QuickConnect® line set with R-454B refrigerant—no vacuuming required

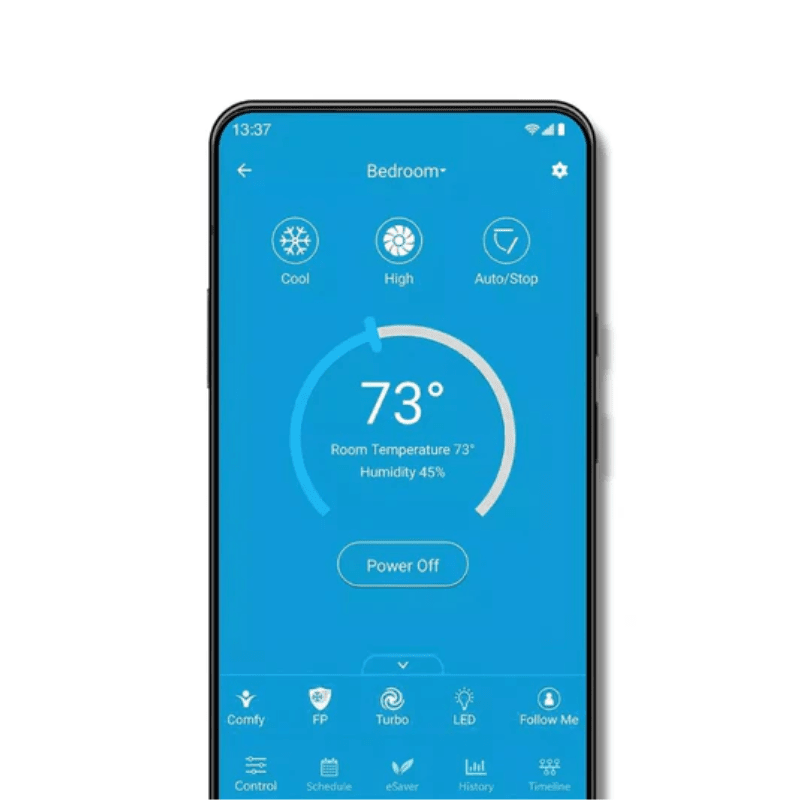

Smart Control Options – Use the wireless remote, SmartHVAC app, or voice commands via Amazon Alexa or Google Assistant
Precision Comfort – Follow Me® feature adjusts airflow to the remote’s location for consistent room temperature
Dual Functionality – Heats and cools efficiently year-round with 23.5 SEER2 rating
Durable & Weather-Ready – Gold Fin® condenser resists corrosion, ideal for coastal or harsh climates

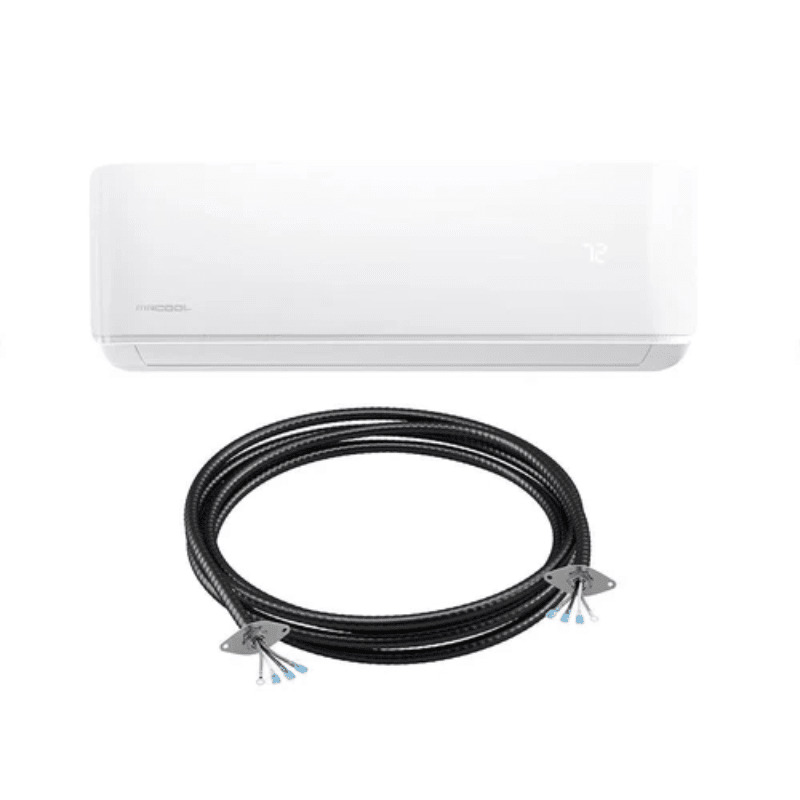

DIYPro® Cable Included – No need for electrical conduit; built tough for outdoor durability
Whisper-Quiet Operation – Enjoy maximum comfort with minimal noise
Energy Efficient & Eco-Friendly – Uses R-454B refrigerant for lower environmental impact
Industry-Leading Warranty – Limited lifetime, 7-year compressor, and 5-year parts warranty

User Manual / Documents:

BRAND NAME: MRCOOL
SERIES: DIY 5th gen Single-Zone Mini-splits
MODEL: DIY-12-HP-C-115D25-O

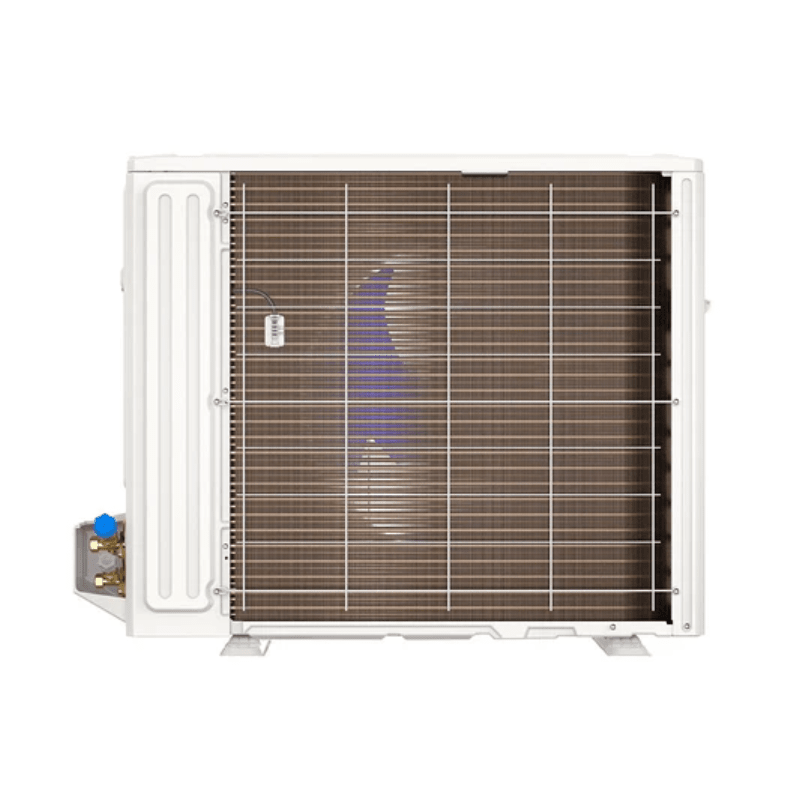

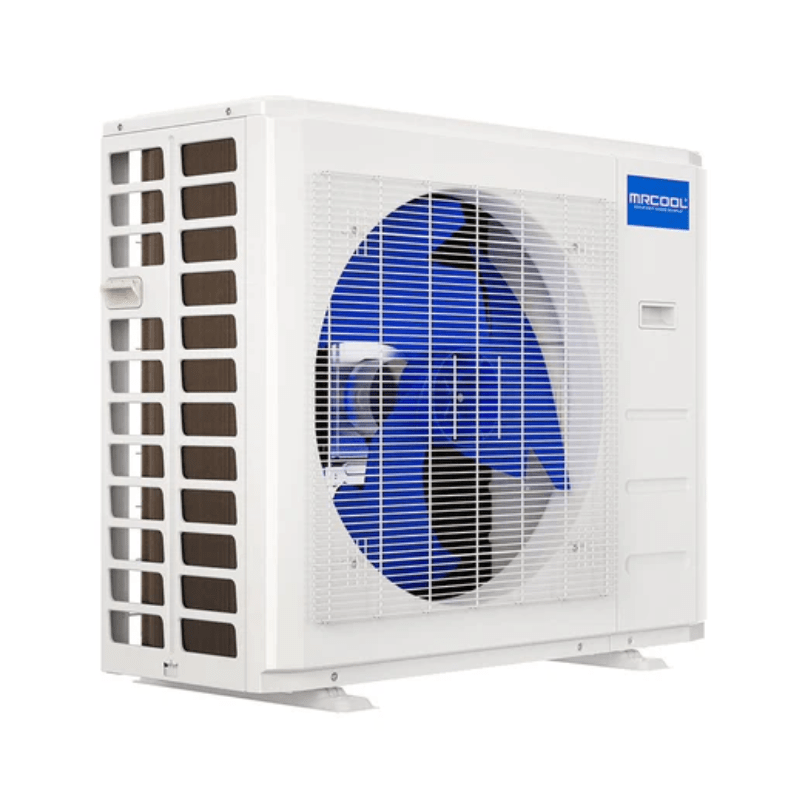

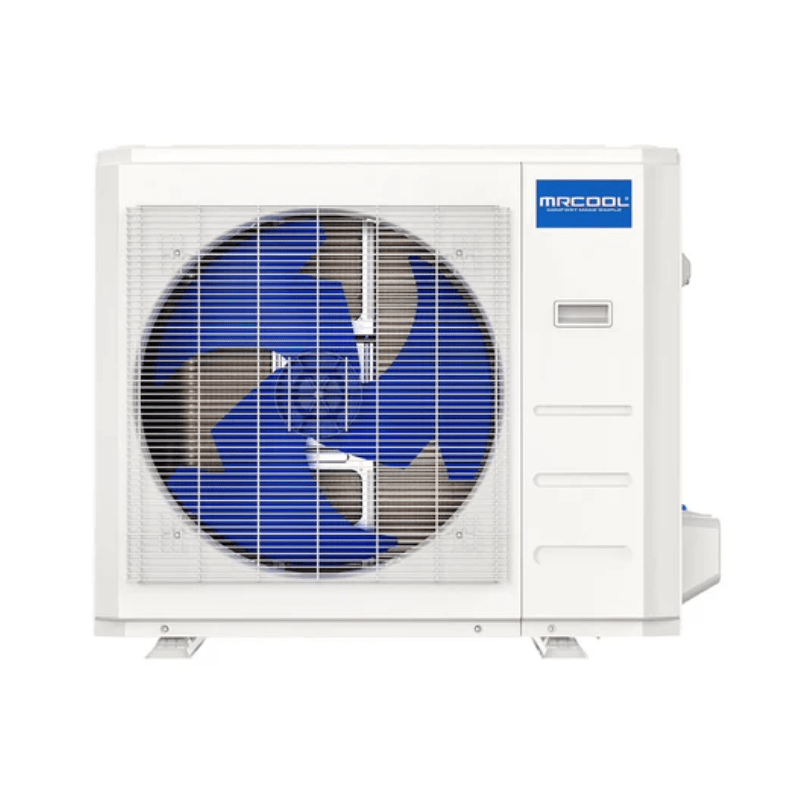

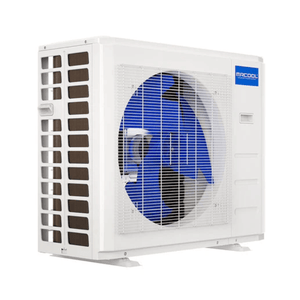

SHORT DESCRIPTION: MRCOOL® 12k DIY 5th Generation Mini-Split Condenser 115v
SEER2: 23.5
EER2: 12.5
HSPF2-4: 10.2
HSPF2-5: 7.6
TONNAGE: 1
COOLING CAPACITY (BTU): 12000
HEATING CAPACITY (BTU): 12000
VOLTAGE (V): 115
PHASE: 1
CYCLE: 60
MAX FUSE BREAKER (A): 20
MIN CIRCUIT AMPACITY (A): 18
COLOR: White
ZONE CAPACITY: 1
REFRIGERANT TYPE: R-454B
REFRIGERANT VOLUME (OZ): 30.34
DECIBEL RATING (DBA): 54
INVERTER: DC
LINE SET LENGTH: 25
MAX LINESET LENGTH (FT): 82
LIQUID LINE SIZE: 1/4
SUCTION LINE SIZE: 3/8
COMPRESSOR MOTOR TYPE: Rotary
AUXILIARY HEATER INCLUDED: No
AUXILIARY HEATER AVAILABLE: No
FAN ONLY OPTION: Yes
QUIET MODE: Yes
AUTO COOL: Yes
WIFI COMPATIBILITY: Yes
APP COMPATIBILITY: Yes
WORKS WITH IOS: Yes
WORKS WITH ANDROID: Yes
UL LISTED: Yes
ETL LISTED: Yes
ENERGY STAR CERTIFIED: Yes
AHRI CERTIFIED: Yes
REGISTERED WARRANTY: Extended Limited Lifetime*
BASE PARTS WARRANTY: 5
BASE COMPRESSOR WARRANTY: 7
HAS BATTERIES: Yes
CONTAINS ELECTRONICS: Yes
CONTAINS CHEMICALS: Yes
CONTAINS AEROSOL: Yes
CONTAINS COMPRESSED GAS: Yes
PROPOSITION 65 WARNING: Yes
NET DEPTH (IN): 11.93
NET HEIGHT (IN): 21.85
NET WIDTH (IN): 30.12
NET WEIGHT (LBS): 83.11
GROSS DEPTH (IN): 16.54
GROSS HEIGHT (IN): 27.56
GROSS WIDTH (IN): 36.22
GROSS WEIGHT (LBS): 65.48
BRAND NAME: MRCOOL
SERIES: DIY 5th gen Single-Zone Mini-splits
MODEL: DIY-12-HP-WMAH-115D25-O

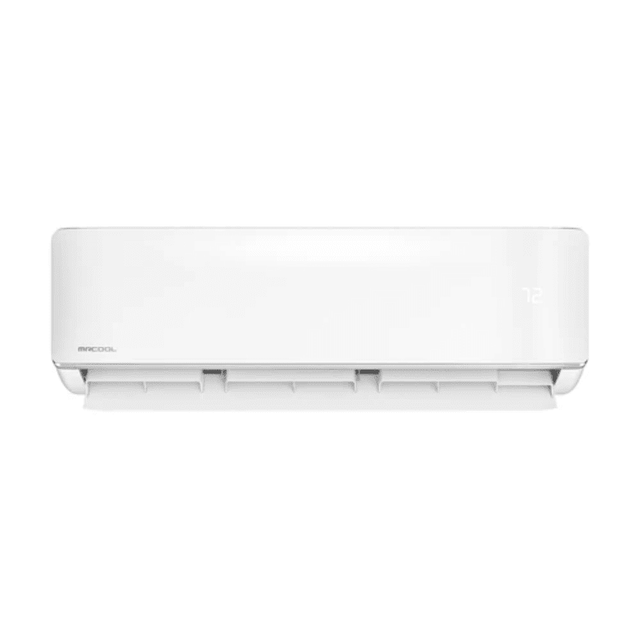

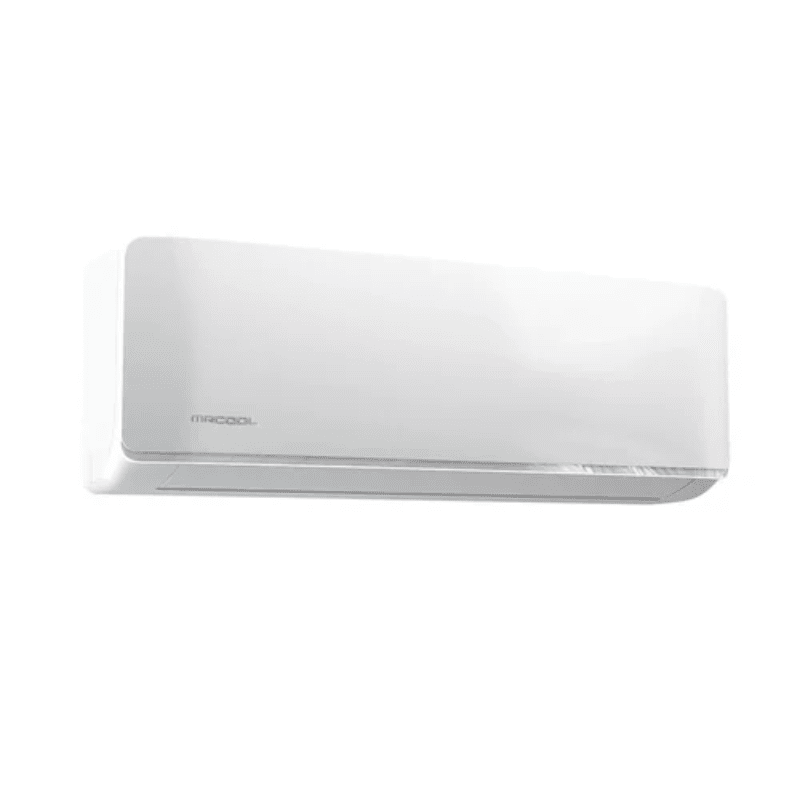

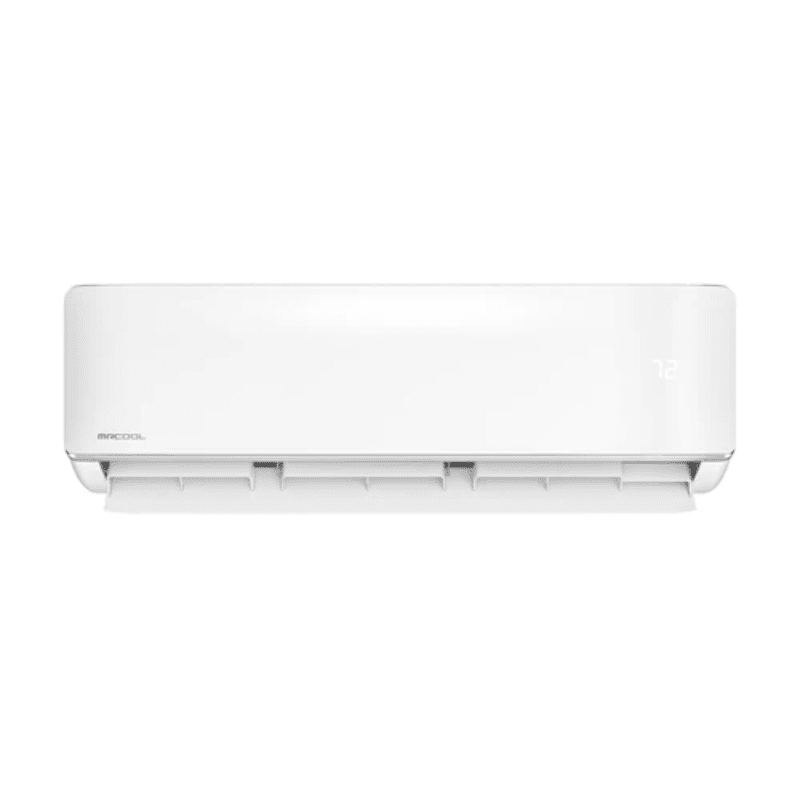

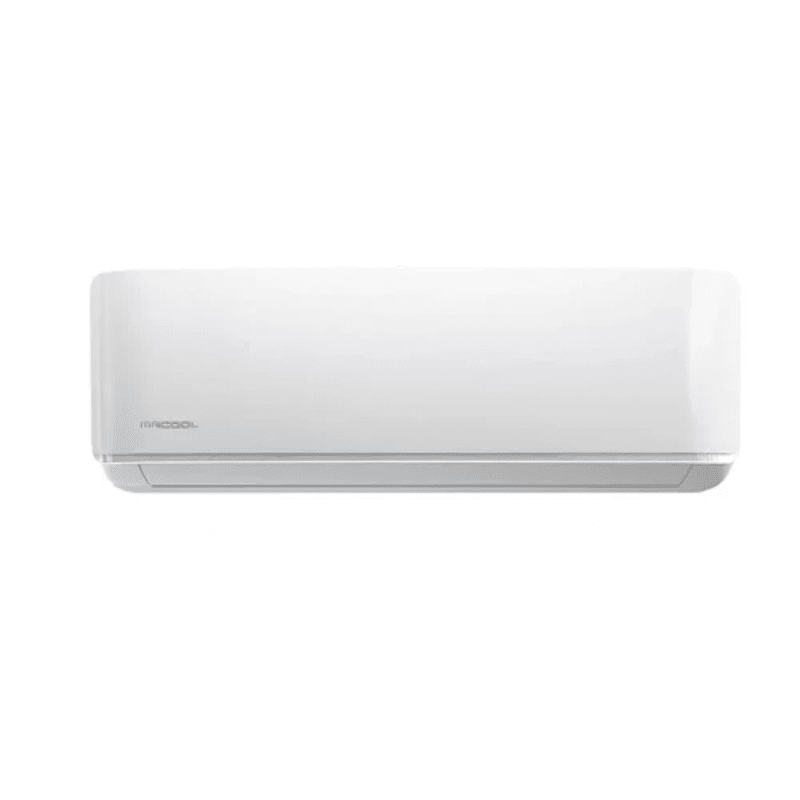

SHORT DESCRIPTION: MRCOOL® 12k DIY 5th Generation Mini-split Air Handler 115v
TONNAGE: 1
VOLTAGE (V): 115
PHASE: 1
CYCLE: 60
MAX FUSE BREAKER (A): 15
MIN CIRCUIT AMPACITY (A): 3
MOUNT TYPE: Wall
COLOR: White
MAX COVERAGE AREA: 550 sqft
DECIBEL RATING LOW (DBA): 18
DECIBEL RATING HIGH (DBA): 43
NUMBER OF SPEEDS: 5
OSCILLATION: Yes
LIQUID LINE SIZE: 1/4
SUCTION LINE SIZE: 3/8
FILTER TYPE: Reusable
AUXILIARY HEATER INCLUDED: No
AUXILIARY HEATER AVAILABLE: No
FAN ONLY OPTION: Yes
QUIET MODE: Yes
AUTO COOL: Yes
WIFI COMPATIBILITY: Yes
APP COMPATIBILITY: Yes
WORKS WITH IOS: Yes
WORKS WITH ANDROID: Yes
REMOTE CONTROL INCLUDED: Yes
UL LISTED: Yes
ETL LISTED: Yes
ENERGY STAR CERTIFIED: Yes
AHRI CERTIFIED: Yes
REGISTERED WARRANTY: Extended Limited Lifetime*
BASE PARTS WARRANTY: 5
BASE COMPRESSOR WARRANTY: 7
HAS BATTERIES: Yes
CONTAINS ELECTRONICS: Yes
CONTAINS CHEMICALS: Yes
CONTAINS AEROSOL: Yes
CONTAINS COMPRESSED GAS: Yes
PROPOSITION 65 WARNING: Yes
NET DEPTH (IN): 7.44
NET HEIGHT (IN): 11.69
NET WIDTH (IN): 31.57
NET WEIGHT (LBS): 24.91
GROSS DEPTH (IN): 16.34
GROSS HEIGHT (IN): 14.37
GROSS WIDTH (IN): 36.02
GROSS WEIGHT (LBS): 35.49
