MidNite Solar 12-String Combiner Box | MNPV12

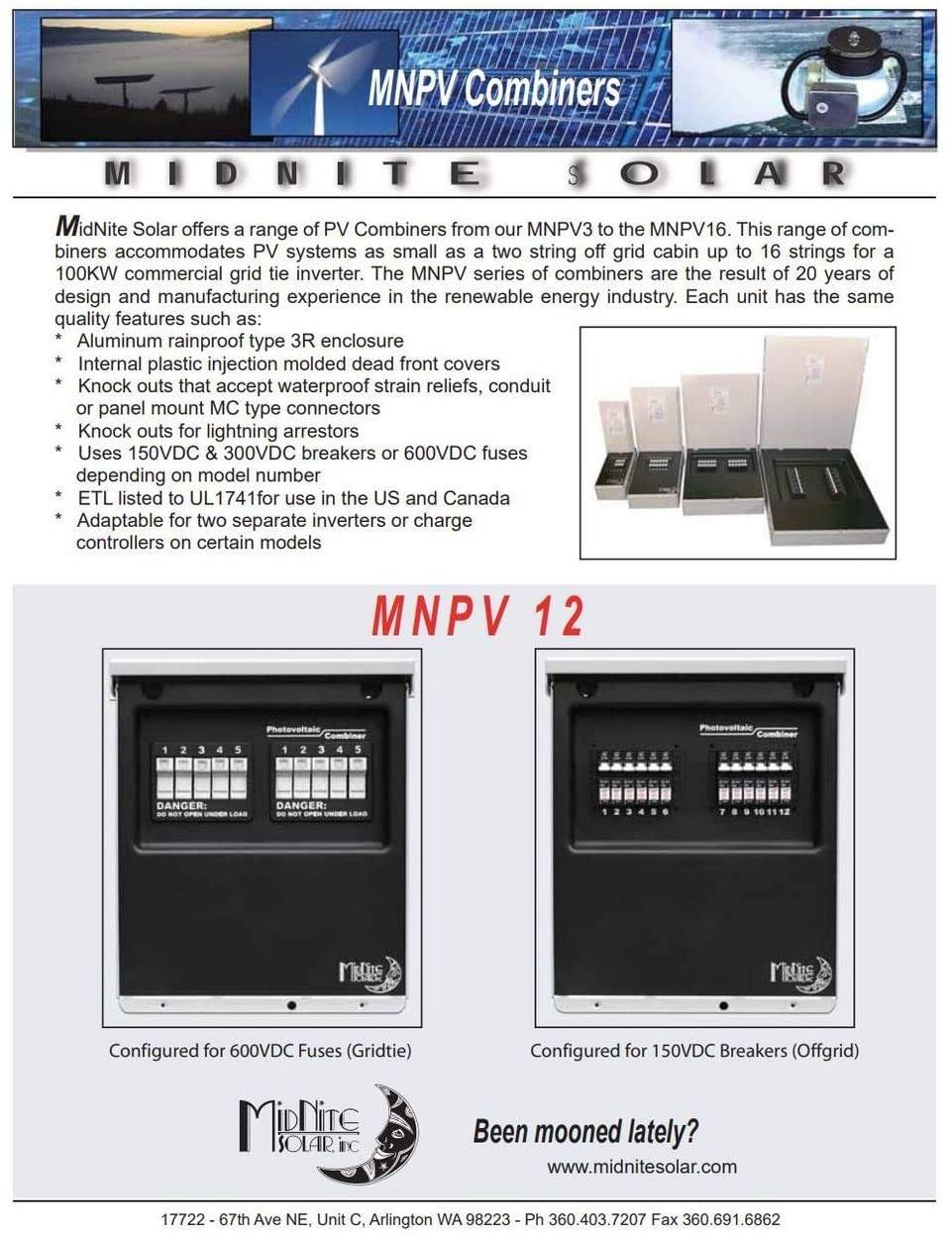

MidNite Solar offers a range of PV Combiners from our MNPV3 to the MNPV16. This range of combiners accommodates PV systems as small as a two string off grid cabin up to 16 strings for a 100KW commercial grid tie inverter. The MNPV series of combiners are the result of 20 years of design and manufacturing experience in the renewable energy industry.

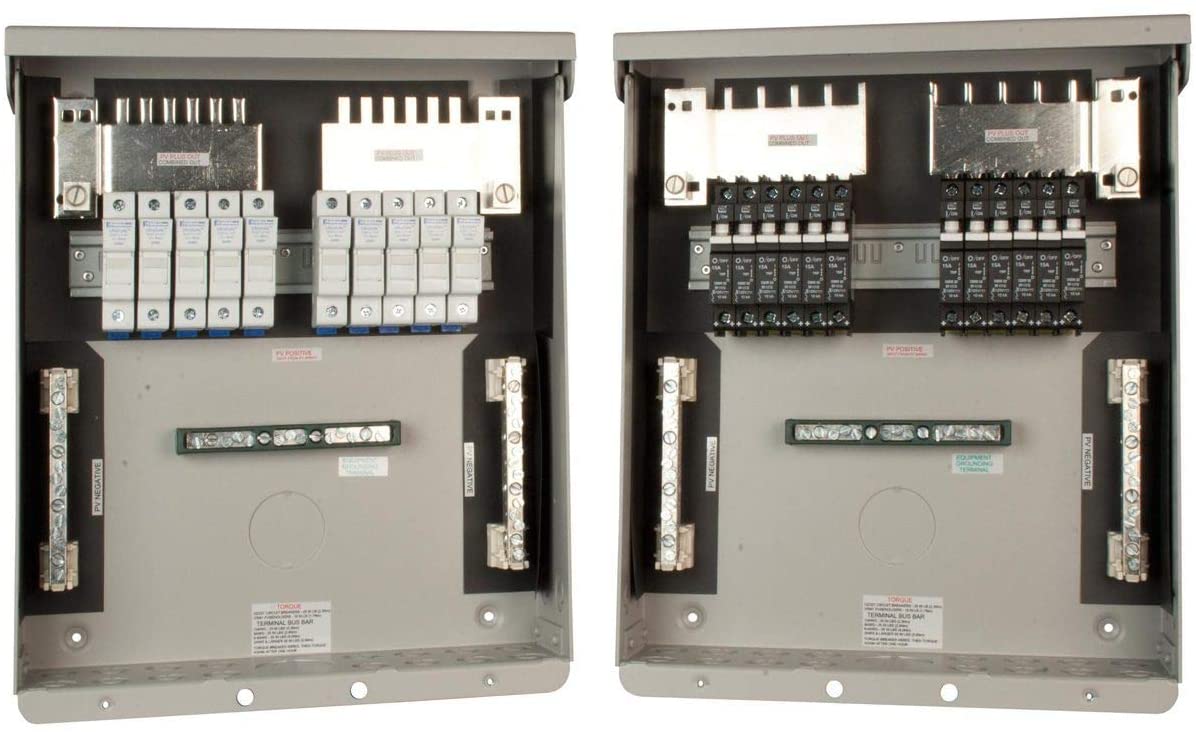

12 single-pole 150 VDC breakers or ten 600/1,000 positive VDC fuse holders can be used with the MNPV12. It has a PV-negative busbar with 15 positions, a land busbar with 15 positions, and two 200 A Plus busbars for breakers or fuses. To assist two grid-tie inverters or two charge controllers, positive busbars can be combined or split. A popular negative PV bus can be found in most charge controllers and grid-tie inverters (except Schneider XW and BlueSky).
For charge controllers that support input voltages up to 300 VDC, the MNPV12-250 can hold up to six single-pole 300 VDC circuit breakers.
Midnite Solar, Combiner box, 200A for 12 PV breakers or 10 Fuses, 3R, MNPV12
Features
-

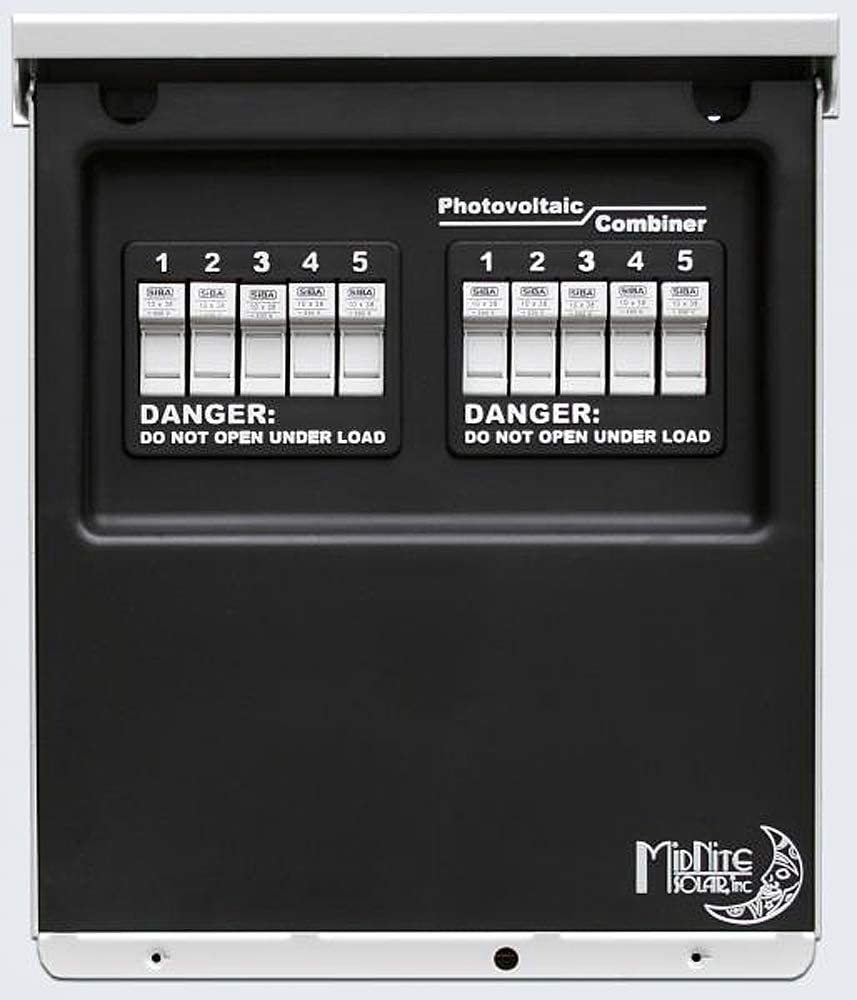

User Friendly - Plastic injection molded dead front covers on the inside. Depending on the model number, 150VDC and 300VDC breakers or 600VDC fuses are used. On some versions, two different inverters or charge controllers are adaptable.
-
Efficient- Waterproof strain relief knockouts, conduit, or panel mount MC style connectors are all accessible. Lightning arrestors are knocked down.
-
Safety - Enclosure made of aluminum that is rainproof type 3R. For use in the USA and Canada, it is ETL classified to UL1741.
