SKU: RS-G04

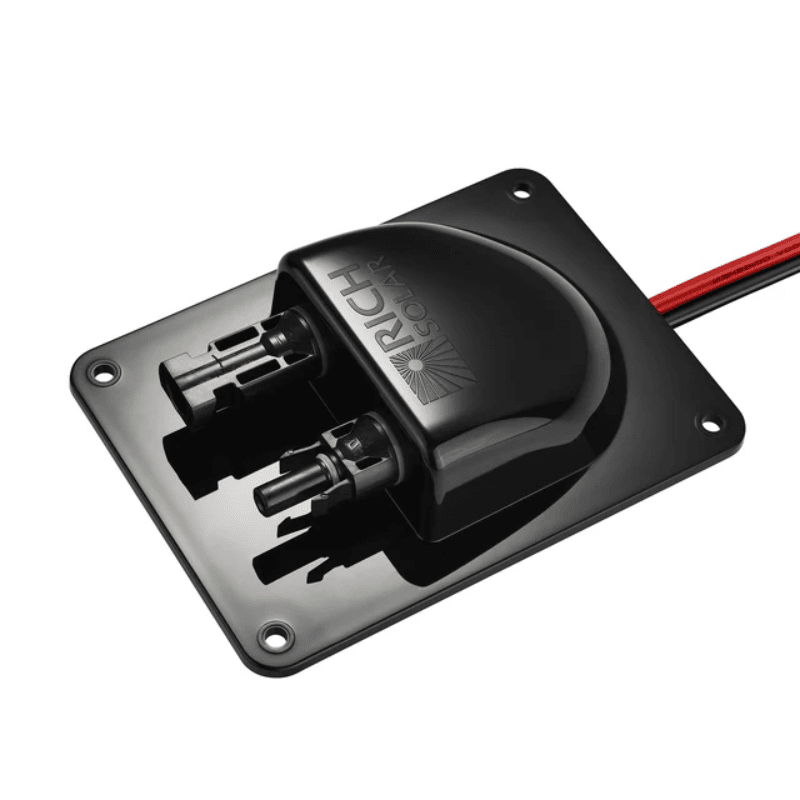

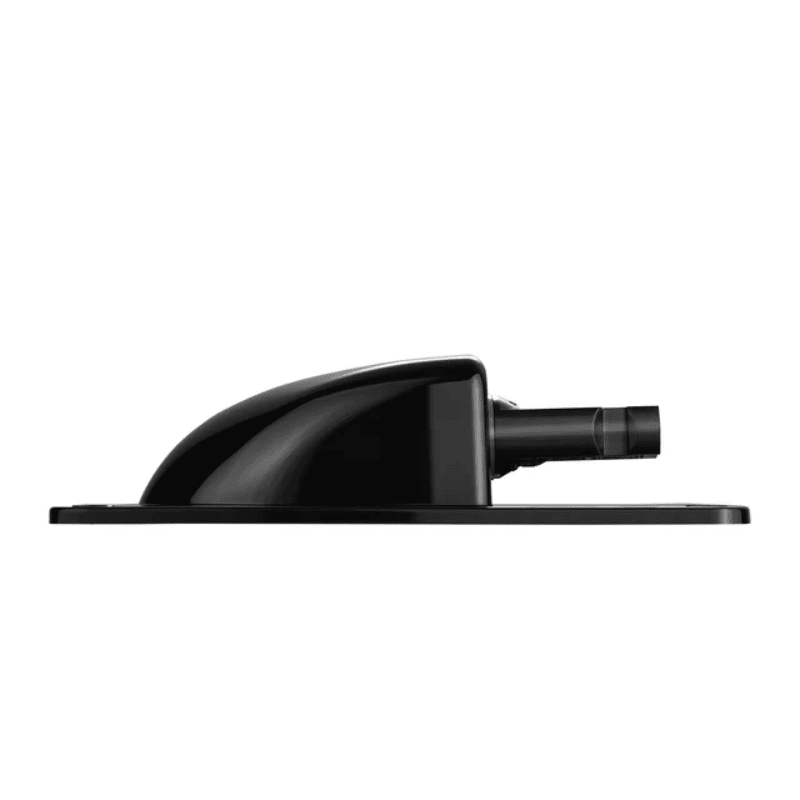

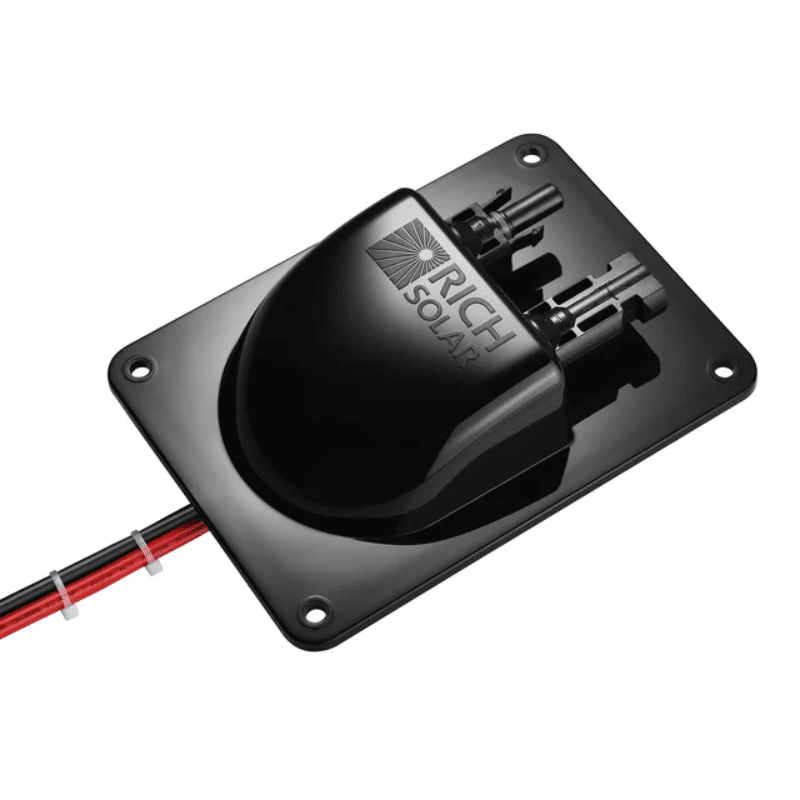

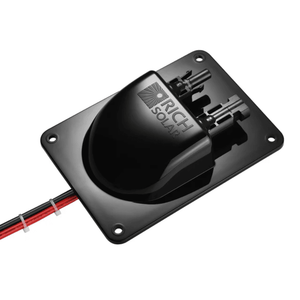

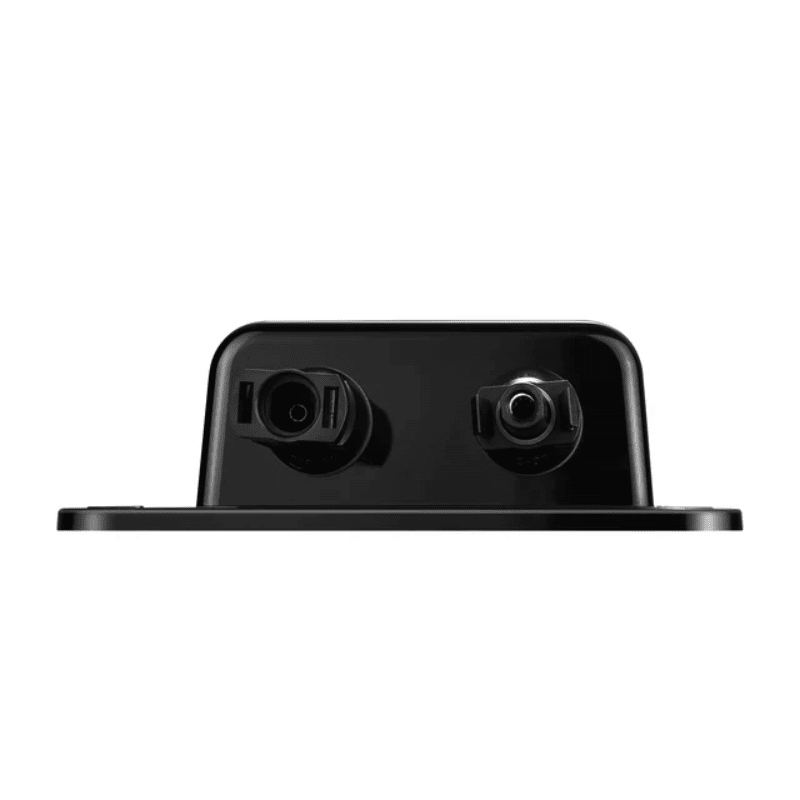

Cable Entry Plate for Solar Panels
A compact, weatherproof solution for routing solar panel cables into your RV, boat, cabin, or off-grid system—without compromising safety or durability.
- Regular price
- $25.99
- Sale price
- $25.99
- Regular price
-
$32.49
Not sure which one you need?
Call 877-242-2792 and we’ll work it out with you. Mon–Thu 10am–5:30pm, Fri 10am–1pm EST.
Frequently bought together
Specifications
The details.

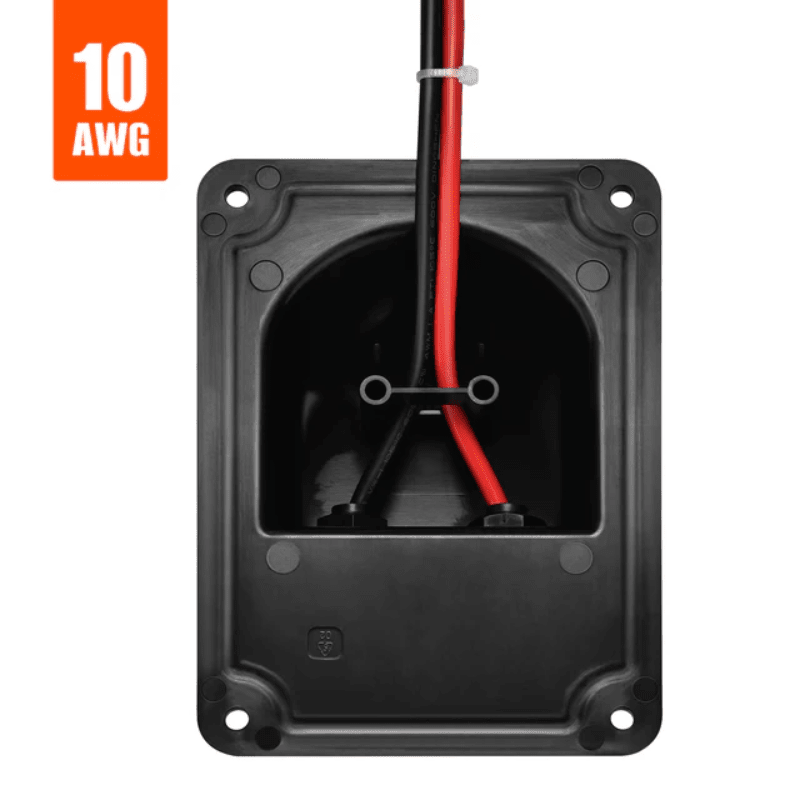

A compact, weatherproof solution for routing solar panel cables into your RV, boat, cabin, or off-grid system—without compromising safety or durability. Available in 8AWG (37.7A) or 10AWG (23.7A) configurations, this cable entry plate is built for long-lasting, corrosion-resistant performance in demanding environments.
Key Features & Benefits:
-
High Power Capacity – Choose 8AWG (37.7A/600V) or 10AWG (23.7A/600V) UL1015-certified tin-plated copper wires for optimal conductivity and corrosion resistance.
-
Certified Safety – UL Listed MC4 connectors with UL94V0 flame-retardant housing and VW-1 fire-rated PVC insulation (heat-resistant up to 221°F).
-
Weatherproof & Mobile-Ready – IP68 waterproof connectors and reinforced polypropylene housing withstand -4°F to 140°F, perfect for mobile, marine, and off-grid use.
-
Fast DIY Installation – Pre-installed red/black wires with polarity markings; mount with adhesive, sealant, or screws (not included).
-
Compact & Lightweight – Only 5.9×4.3×1.6 in; no extra roof support required.
User Manual / Documents:
- Dimensions (L×W×H)
- 150×110×40 mm (5.9×4.3×1.6 in)
- Weight
- 131 g (0.29 lb)
- Material
- Flame-Retardant Polypropylene (PP)
- Color
- Black
- Operating Temperature
- -20°C to 60°C (-4°F to 140°F)
- Material
- PC Shell + Tin-Plated Copper
- Waterproof Rating
- IP68
- Flame Retardant
- UL94V0 Certified
- Certification
- UL Listed
