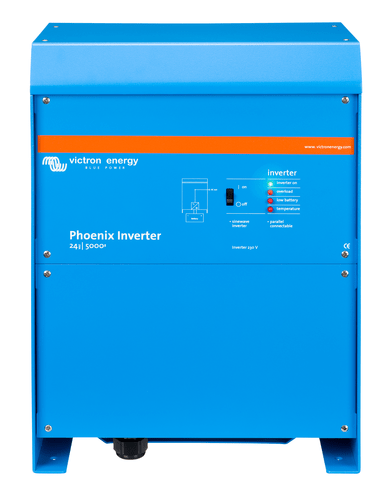

SinusMax - Superior engineering
Developed for professional duty, the Phoenix range of inverters is suitable for the widest range of applications.
The design criteria have been to produce a true sine wave inverter with optimized efficiency but without
compromise in performance. Employing hybrid HF technology, the result is a top quality product with compact
dimensions, light in weight and capable of supplying power, problem-free, to any load.
Extra start-up power
A unique feature of the SinusMax technology is very high start-up power. Conventional high frequency
technology does not offer such extreme performance. Phoenix Inverters, however, are well suited to power up
difficult loads such as refrigeration compressors, electric motors and similar appliances.
Virtually unlimited power thanks to parallel and 3-phase operation capability
Up to 6 units inverters can operate in parallel to achieve higher power output. Six 24/5000 units, for example,
will provide 24kW / 30kVA output power. Operation in 3-phase configuration is also possible.
To transfer the load to another AC source: the automatic transfer switch
If an automatic transfer switch is required we recommend using the MultiPlus inverter/charger instead. The
switch is included in these products and the charger function of the MultiPlus can be disabled. Computers and
other electronic equipment will continue to operate without disruption because the MultiPlus features a very
short switchover time (less than 20 milliseconds).
TECHNICAL SPECIFICATIONS
SKU | PIN485020000 |
---|---|
Weight | 66.0000 |
Ah Rating | 5000 |
Battery Voltage | 48 |
Inverter Power Rating | 5000VA |
Inverter Type | Sinewave |
Power (Watts) | 5000 |
Manufacturer | Victron Energy |
class | 100 |
Shipping Times | Estimated delivery time to your door for in-stock orders placed today is 5-10 business days. |
Shipments & Lead Times:
We process all orders within 72 hours. From there, we do our best to ship as quickly as possible. Shipping times vary depending on the product and size of your order. We will send you your tracking information to the e-mail and/or phone number on file.
With the incredible demand for solar products, our average delivery time to your door is between 7-10 business days from date of order. However, for some products, shipping can be as fast as 3-5 business days to your door. Please check specific product pages for the most accurate information.
*Please Note* - As a large retailer, our stock levels are healthy and shipments are moving quickly. If you place an order for something that is not in stock, or is on backorder, our team will reach out to you within 24-72 hours of placing your order to determine how you would like to move forward.
If you have any questions, give us a call at 877-242-2792 or reach out via email / live chat.
Product Description
SinusMax - Superior engineering
Developed for professional duty, the Phoenix range of inverters is suitable for the widest range of applications.
The design criteria have been to produce a true sine wave inverter with optimized efficiency but without
compromise in performance. Employing hybrid HF technology, the result is a top quality product with compact
dimensions, light in weight and capable of supplying power, problem-free, to any load.
Extra start-up power
A unique feature of the SinusMax technology is very high start-up power. Conventional high frequency
technology does not offer such extreme performance. Phoenix Inverters, however, are well suited to power up
difficult loads such as refrigeration compressors, electric motors and similar appliances.
Virtually unlimited power thanks to parallel and 3-phase operation capability
Up to 6 units inverters can operate in parallel to achieve higher power output. Six 24/5000 units, for example,
will provide 24kW / 30kVA output power. Operation in 3-phase configuration is also possible.
To transfer the load to another AC source: the automatic transfer switch
If an automatic transfer switch is required we recommend using the MultiPlus inverter/charger instead. The
switch is included in these products and the charger function of the MultiPlus can be disabled. Computers and
other electronic equipment will continue to operate without disruption because the MultiPlus features a very
short switchover time (less than 20 milliseconds).
TECHNICAL SPECIFICATIONS
SKU | PIN485020000 |
---|---|
Weight | 66.0000 |
Ah Rating | 5000 |
Battery Voltage | 48 |
Inverter Power Rating | 5000VA |
Inverter Type | Sinewave |
Power (Watts) | 5000 |
Manufacturer | Victron Energy |
class | 100 |
