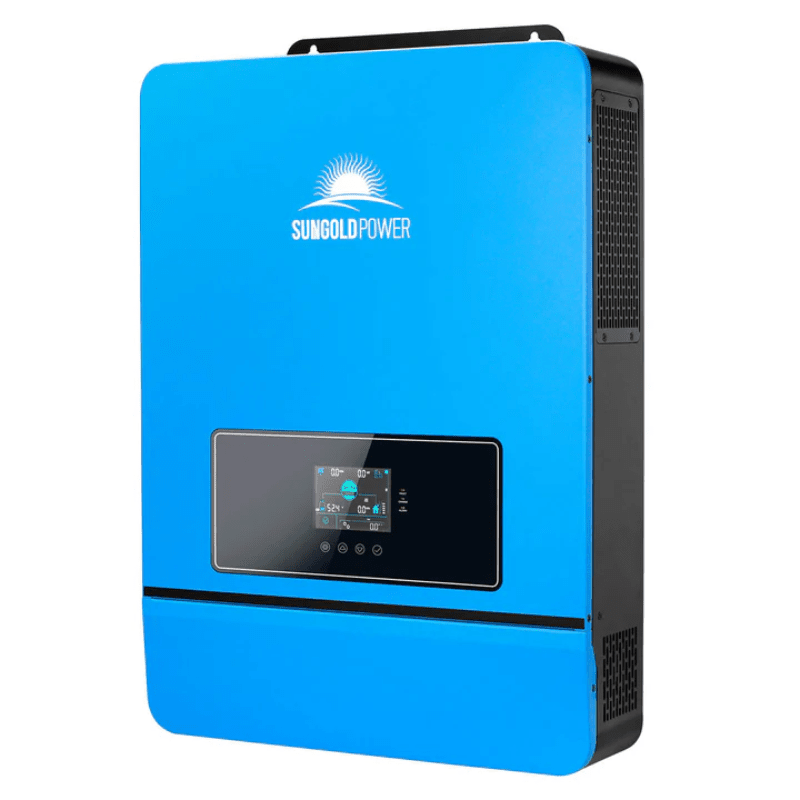

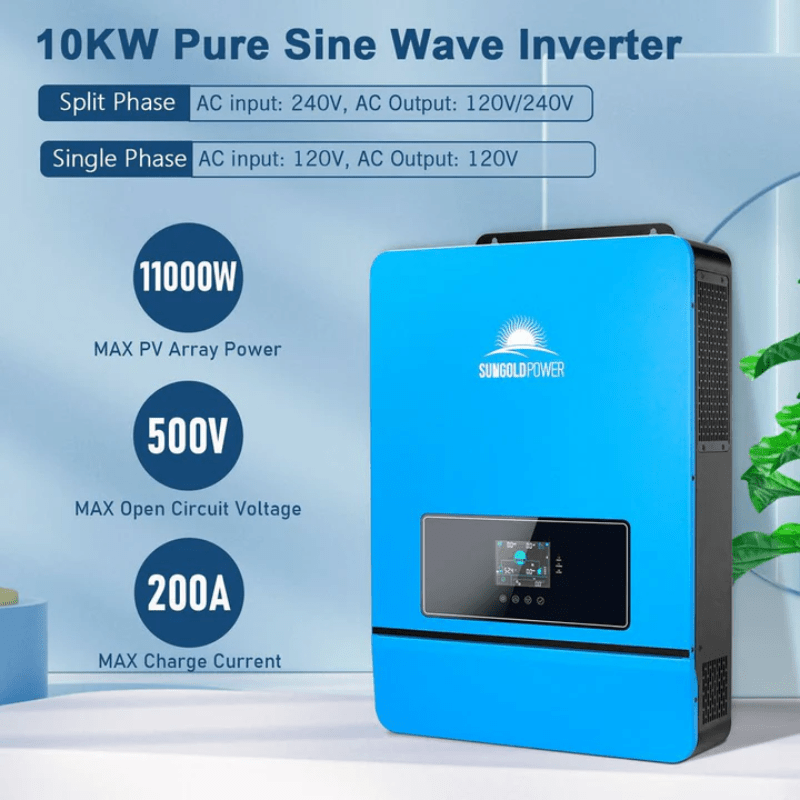

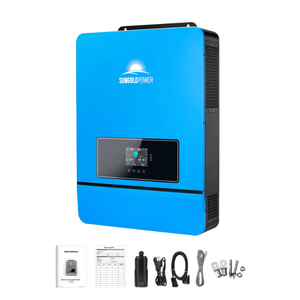

Build a reliable off-grid or hybrid power system with the Sungold Power 10kW 48V split-phase solar inverter. With dual MPPT solar charging, 120/240V split-phase output, and flexible battery compatibility, it’s designed to prioritize solar power to your loads—while seamlessly leveraging grid or generator input when solar and battery aren’t available.
Key Features & Benefits
-
10,000W pure sine wave output (20,000W peak) — confidently run demanding household loads with clean, stable power.
-
120/240Vac split-phase + 240Vac single-phase support — power standard split-phase panels and appliances with a single inverter platform.
-
Dual MPPT solar charging (99.9% tracking efficiency) — capture more solar energy throughout the day for better real-world performance.
-
Two solar inputs + built-in dual solar controllers — simplifies system design and helps optimize arrays across multiple roof faces or strings.
-
PV support up to 11,000W with 500Vdc max VOC — enables larger arrays and longer string runs for flexible installs (within MPPT range).
-

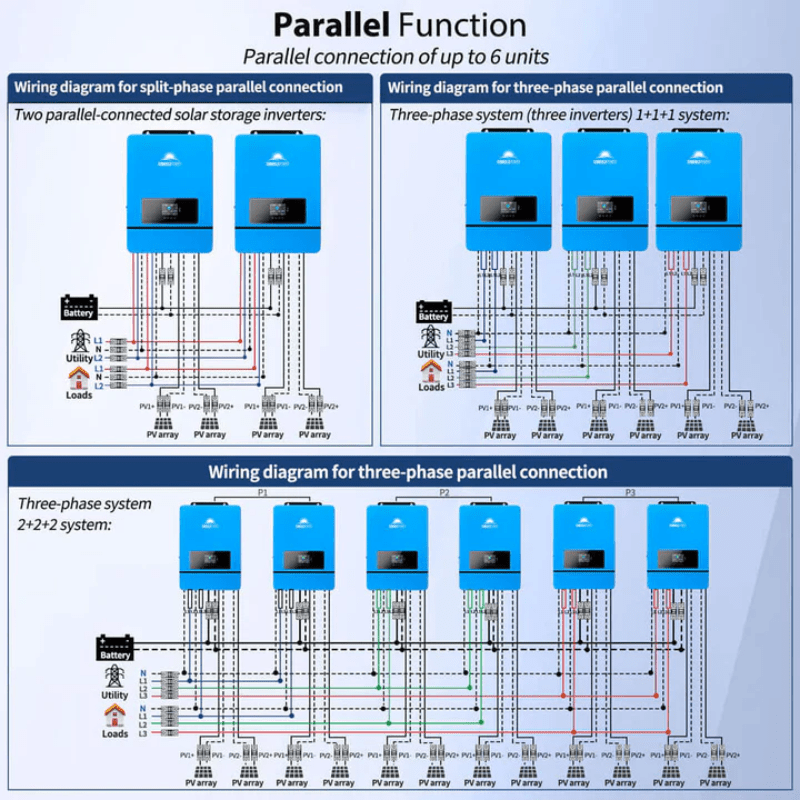

Up to 6 inverters in parallel — scale output power as your energy needs grow without replacing your whole system.
-

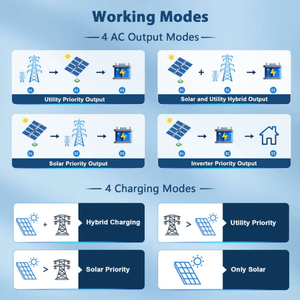

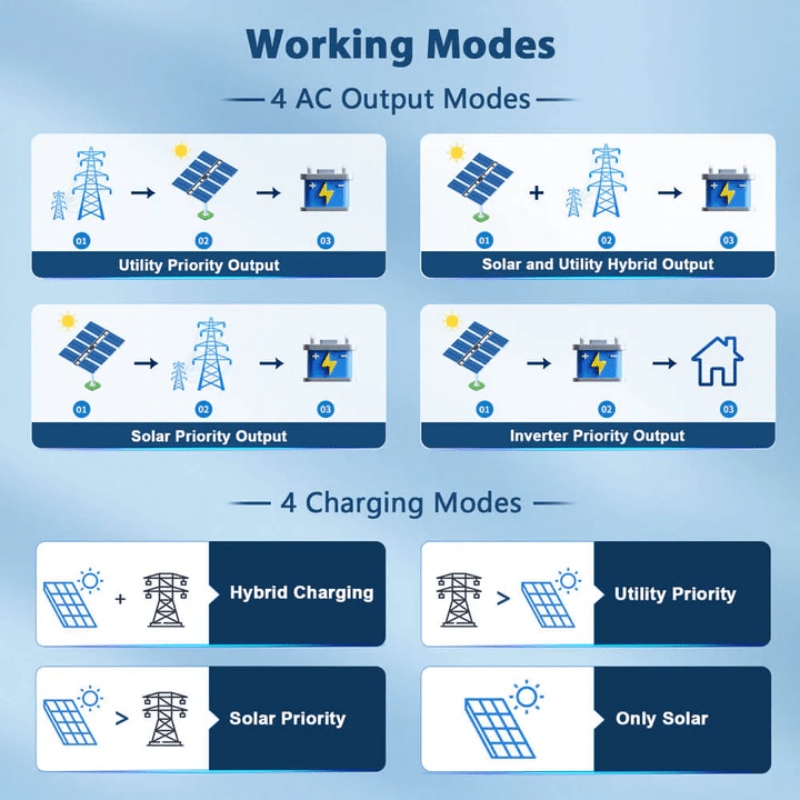

4 AC output modes — match inverter behavior to your priorities (utility-first, solar-first, hybrid, inverter priority).
-
4 charging modes — choose how batteries charge (solar-only, solar priority, utility priority, hybrid) to fit your site and energy strategy.
-

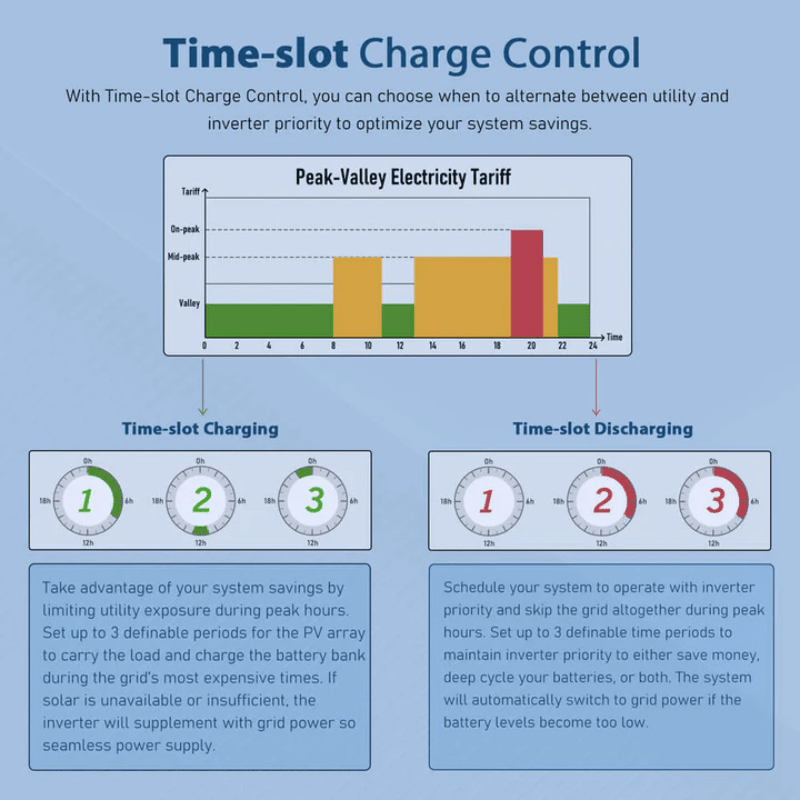

Time-slot charging & discharging — align charging/discharging with time-of-use schedules and operational preferences.
-
Lithium battery wake/activation via mains or PV — helps bring a dormant lithium battery online when utility/PV is present.
-
Energy-saving mode — reduces no-load losses for improved efficiency during light-load periods.
-
WiFi monitoring (optional module listed) — check inverter performance and status via mobile app for easier system oversight.
-
360° protection suite — built-in protections for PV input, AC input, output short circuit, battery OVP/OCP, overload, and bypass over-current.
Specs in a Glance
-
Model: SPH10048P
-
Rated Output Power: 10,000W
-
Peak Power: 20,000W
-
Output Voltage: 120/240Vac (split phase / single phase)
-
AC Frequency: 50/60Hz
-
Waveform: Pure Sine Wave
-
Switch Time: 10ms (typical)
-
Parallel Capacity: Up to 6 units
-

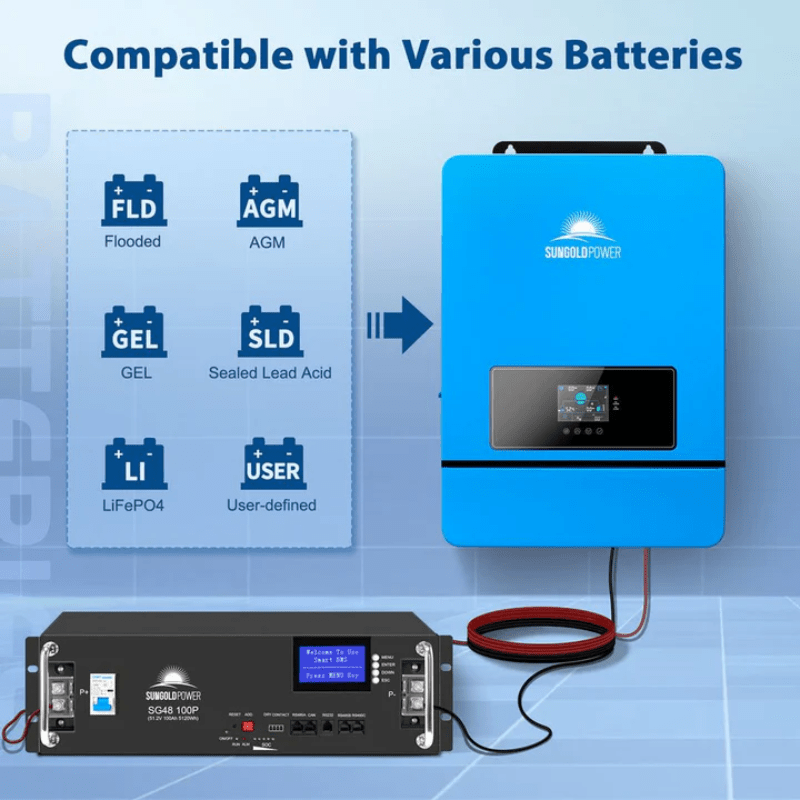

Battery Type: Li-ion / Lead-Acid / User Defined
-
Rated Battery Voltage: 48Vdc
-
Battery Voltage Range: 40–60Vdc
-
Max MPPT Charging Current: 200A
-
Max Mains/Generator Charging Current: 100A
-
Max Hybrid Charging Current: 180A
-
MPPT Trackers: 2
-
Max PV Array Power: 11,000W
-
Max PV Input Current: 22A / 22A
-
Max PV Open-Circuit Voltage: 500Vdc
-
MPPT Voltage Range: 125–425Vdc
-
Mains/Generator Input Voltage Range: 90–140V (Single phase), 180–260V (Split phase)
-
Bypass Overload Current: 63A
-
MPPT Tracking Efficiency: 99.9%
-
Max Battery Inverter Efficiency: 92%
-
Protection Degree: IP20 (Indoor Only)
-
Operating Temp Range: 14–131°F (derated >113°F)
-
Noise: <60dB
-
Cooling: Internal Fan
-
No-Load Consumption: 100W
-

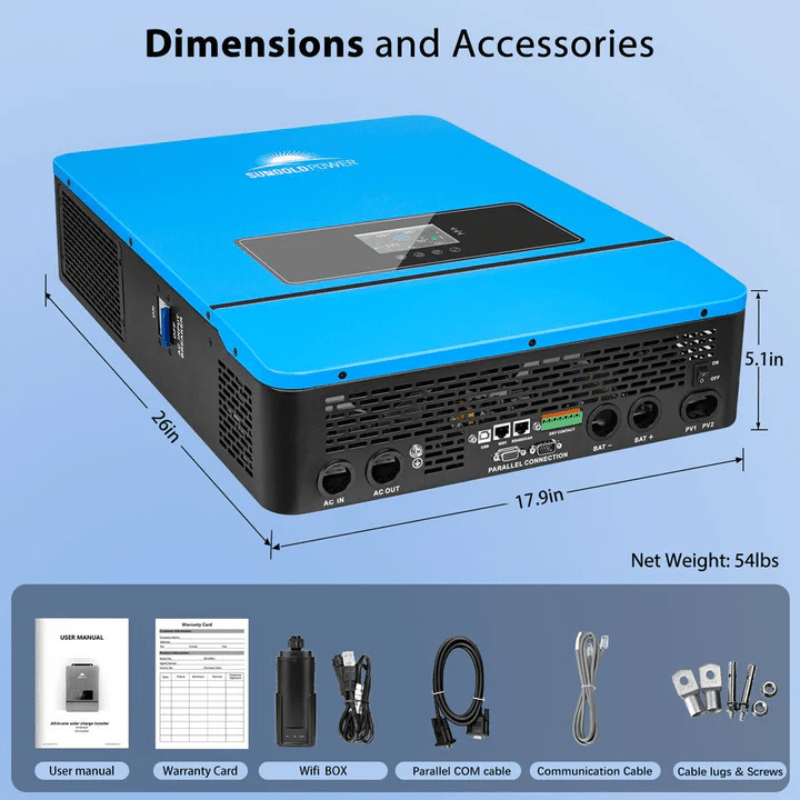

Dimensions: 17.9 × 26 × 5.1 in
-
Weight: 54 lb
-
Embedded Interfaces: RS485 / CAN / USB / Dry contact
-
External Modules (Optional): Wi-Fi / GPRS
-
Certifications: UL 1741 (ETL), IEC62109-1/-2, FCC15 Class B, ROHS, EN61000-6-1/-6-3
-
Warranty: 2 Years
Ideal For
-
Off-grid cabins, shops, and homes needing 120/240V split-phase power
-
Hybrid solar setups using utility or generator input
-
Systems that need scalable power via parallel expansion (up to 6 units)
-
Installations needing dual MPPT for multiple PV strings/arrays
User Manual / Documents:
