Sol Ark · Batteries
SKU: L3 30K-HV-40-IP20
Sol-Ark High Voltage Batteries - L3 Series - 40kWh - 60kWh Battery Bank - IP20 Indoor
The L3 Series Limitless Lithium™ is a Sol-Ark High Voltage lithium-ion battery designed for expandable energy storage and reliable backup power.
- Regular price
- $18,499.00
- Sale price
- $18,499.00
- Regular price
-
$26,729.00
Not sure which one you need?
Call 877-242-2792 and we’ll work it out with you. Mon–Thu 10am–5:30pm, Fri 10am–1pm EST.
Frequently bought together
Specifications
The details.
Sol-Ark High Voltage 40kWh - 60kWh Battery Bank - IP20 Indoor

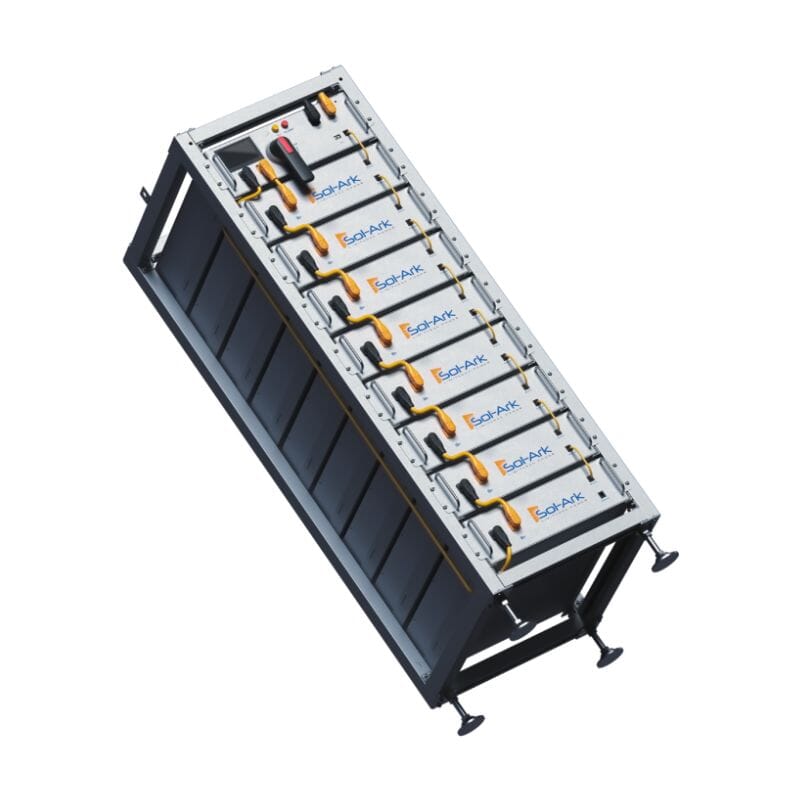

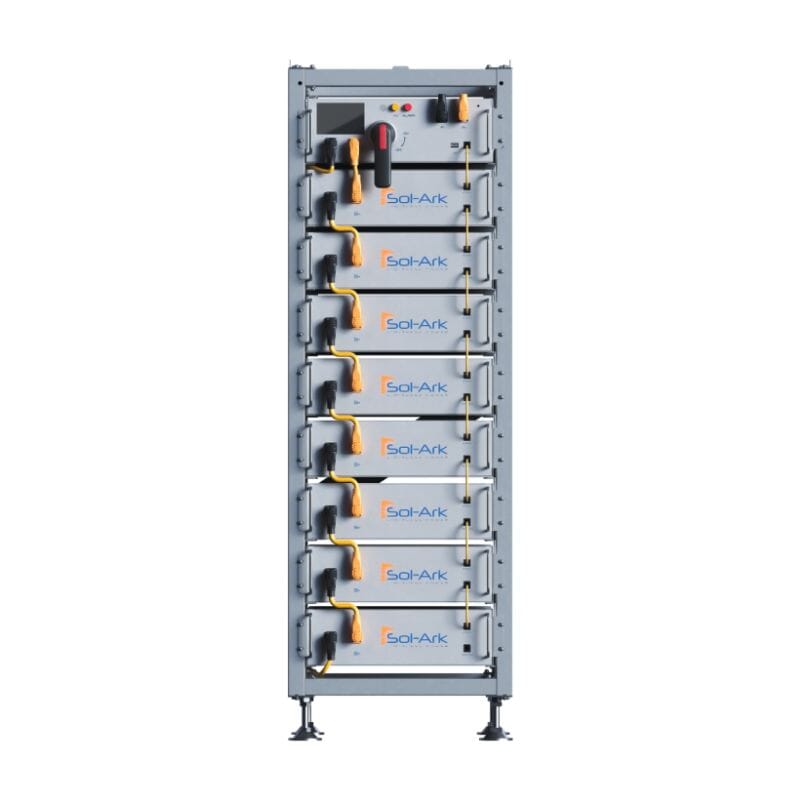

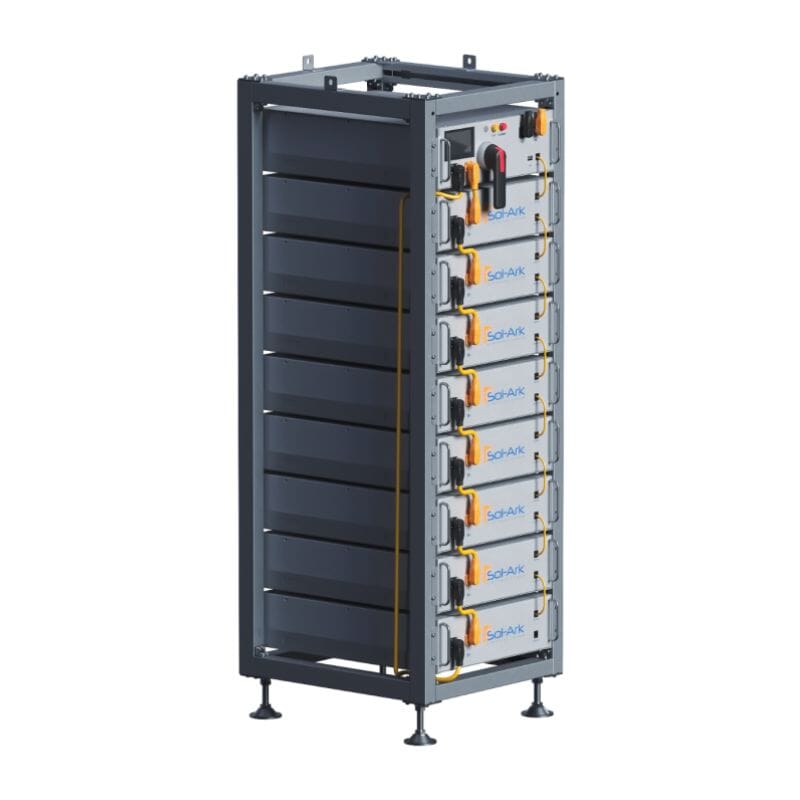

The L3 Series Limitless Lithium™ is a Sol-Ark High Voltage lithium-ion battery designed for expandable energy storage and reliable backup power. The modular configuration of the L3 allows for expansion through the addition of battery modules, each capable of 5.12 kWh storage capacity. The capacity of the L3 system can be expanded up to 40.96kW and 61.44kWh, for the L3 HV-40kWh and L3 HV-60kWh models respectively.
Features/Innovations
- Prismatic cells offer maximum reliability, efficiency, and safety
- Automatic configuration of batteries and BMS for quick commissioning
- 5kW packs include built-in fire suppression
- Supports USB and wifi updates including remote settings adjustment
- Modular battery cabinets can be connected easily in parallel to increase capacity
- 10-Year Warranty
- Preassembled IP55 outdoor option includes temperature control
- Indoor IP20 option for maximum affordability
Still have questions? Give us a call at 877-242-2792
- Compatible Inverter
- Sol-Ark 30K-3P-208V-N
- Environmental Rating
- Indoor
- Cell Chemistry
- Lithium Iron Phosphate
- Battery Cabinet Capacity
- 40.96 kWh
- System Usable Energy
- 36.86 kWh
- Built-In DC Disconnect Rating
- 200A
- Internal Fuse Rating
- 160A
- Real Power (backup) Per Inverter
- 30 kWac
- Max DC-Coupled Solar Per Inverter
- 39 kWac
- Max AC-Coupled Solar Per Inverter
- 54 kWac
- Max Battery Cabinets Per Inverter
- 16
- Maximum Inverters Per System
- 10
- Recommend Depth of Discharge
- 90%
- System Nominal Voltage
- 410V
- System Operating Voltage
- 392V — 448V
- Product Dimensions (WxDxH)
- 58x58x163 cm (23x23x64 in)
- Net Weight
- 628 kg (1,384 lbs)
- Mounting Type
- Freestanding Rack Mount
- Operating Temperature
- 4°C — 43°C (40°F — 110°F)
- Humidity
- 5% — 85% RH
- Operating Altitude
- 3000m (9,843 ft)
- Product Warranty
- 10 Years
