Sol Ark · Solar Kit
SKU: BNDL-SOL-ARK-12K-WALLMOUNT-ALLWEATHER-1

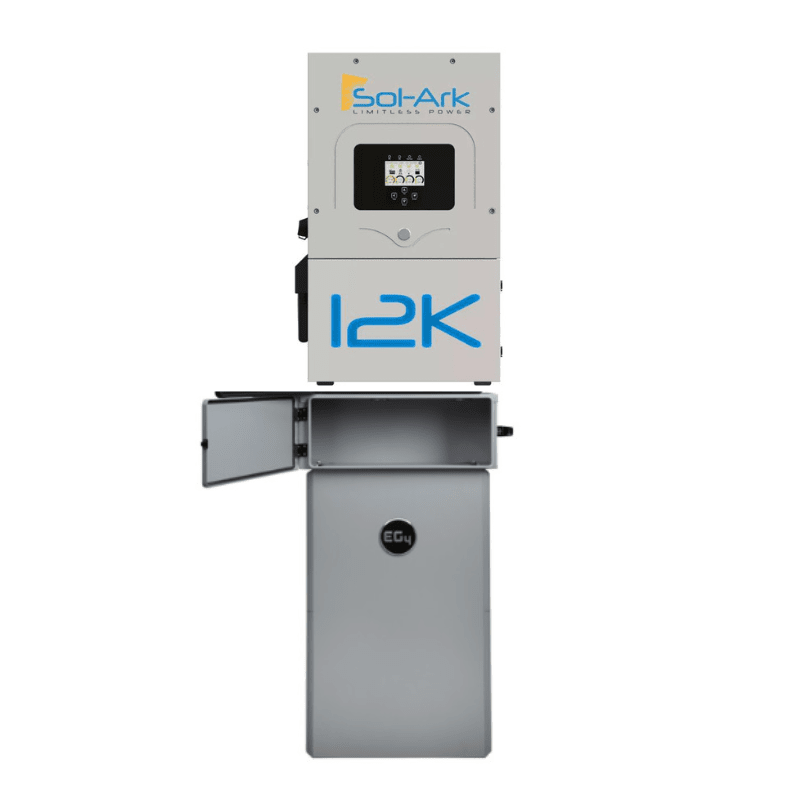

Sol-Ark 12K Complete Solar Kit
This bundle pairs a Sol-Ark 12K hybrid inverter with a 14.3kWh EG4 WallMount AllWeather lithium battery, storing solar energy for peak-hour use, outages or when the sun isn't shining, with real-time app monitoring.
Choose this kit if…
- You want to store solar energy for use during peak hours or when the sun isn't shining.
- You want backup power ready for grid outages, whether on-grid or off-grid.
- You want real-time monitoring of your system's energy usage and performance.
Choose your bundle
Compare the bundles
Every kit includes the same power station, its cables, our setup guide and lifetime support. What changes is the solar.
 1 x Wall Mount AllWeather

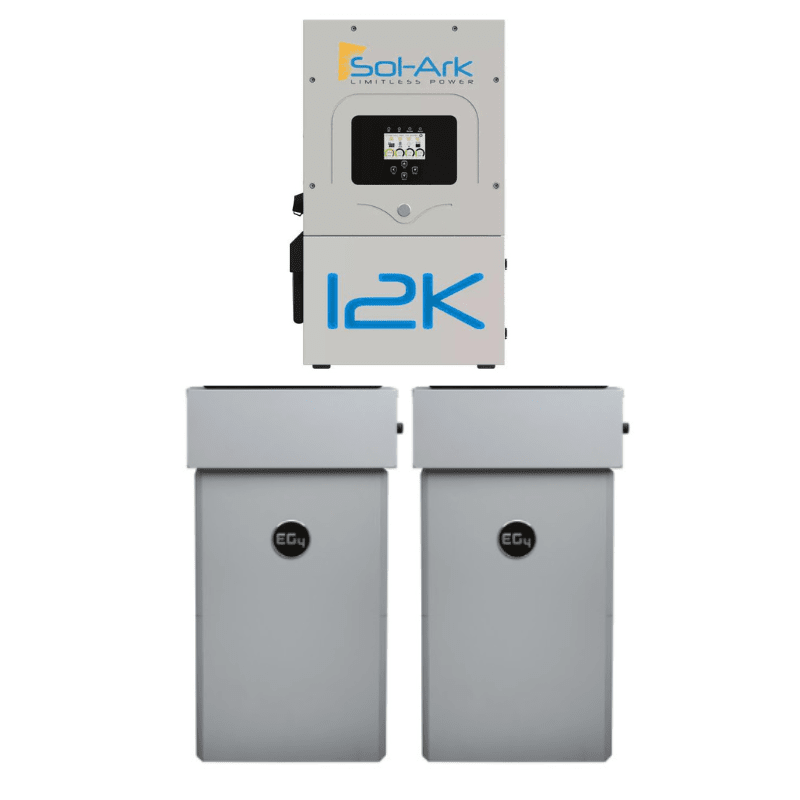

|  2 x Wall Mount AllWeather

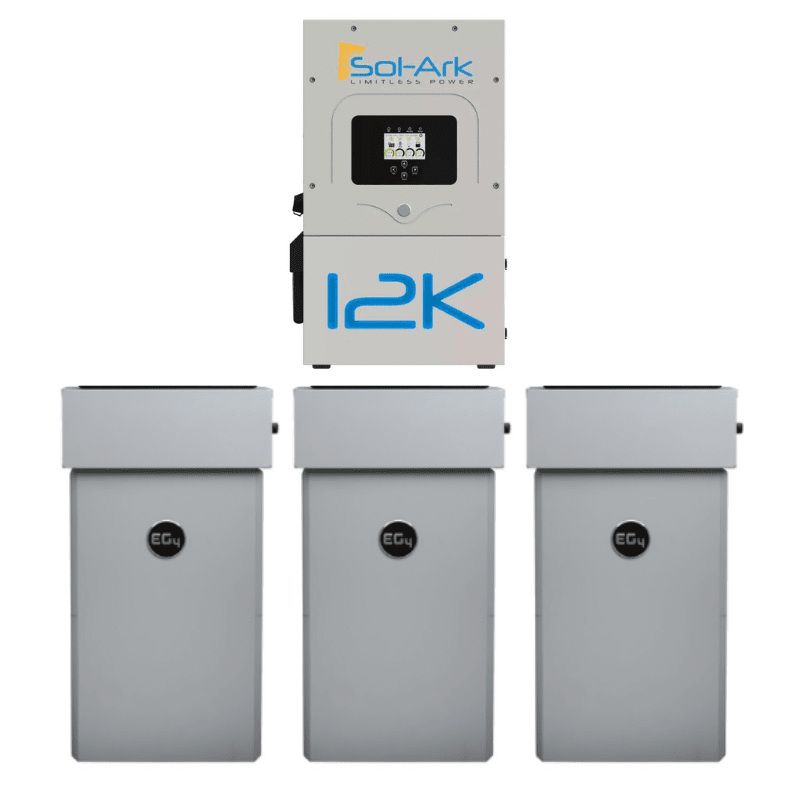

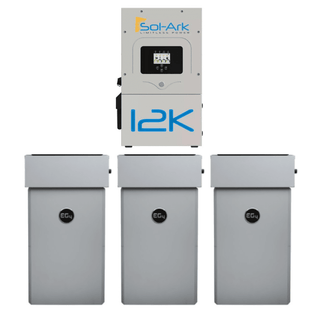

|  3 x Wall Mount AllWeather
| |
|---|---|---|---|
| Price |
$8,859.00 |
$12,489.00 |
$16,089.00 |
|
|
| |
| Best for | Entry-level single-battery bundle | Doubles storage to 28.6kWh | Triples storage for a bigger daily reserve |
- Regular price
- $8,859.00
- Sale price
- $8,859.00
- Regular price
-
$11,074.00
Not sure which kit is right?
Tell us what you want to power and we will size the system with you, free, before and after you buy. The team picks up the phone Mon–Thu 10am–5:30pm and Fri 10am–1pm EST.
Frequently bought together
Sol-Ark 12K
·
1 x Wall Mount AllWeather
$8,859.00
Specifications
The numbers
- Battery storage
- 14.3kWh (base bundle: 1 battery)
- Continuous output
- 9,000W (Sol-Ark 12K)
- Output voltage
- 120/240V split phase
- Warranty
- 10 years on the inverter; battery rated for 8,000+ cycles
In plain English
What that means for you
How long it lasts
What it can run
Size of solar array
Install effort
Room to grow
Scales are the ShopSolar team's read of the manufacturer's published specs.
Overview
Power that grows with you.
EG4 Power PRO Specifications
Technical Specifications
- Model name: WallMount AllWeather Battery
- Battery Type: LiFePO4 (Lithium Iron Phosphate, Grade A)
- Voltage: 48V (Nominal: 51.2V, Float: 54V)
- Continuous Charge/Discharge Current: 200A (Max)
- Capacity: 14.3kWh
- BMS: 200A
- Weight: 308.6 lbs. / 140Kg
- 34.6 in.×22.3 in.×9.1 in
Sol-Ark Hybrid Solar Inverter
Sol-Ark 12K Specifications
Input Data (PV)
- Max. Allowed PV Power (STC) 13,000W
- Nominal Voltage Range 175 - 425V
- Startup Voltage 125V
- Max. Input Voltage 500V
- Max. Input Current per MPPT 20A (self-limiting)
- No. of MPP Trackers 2
- No. of PV Strings per MPPT 2
- Max. AC Coupled Input 9,600W
Output Data (AC)
- Nominal AC Voltage 120/240V, 120/208V, 220V
- Grid Frequency 50 / 60Hz
- Real Power, max continuous 9,000W (1)
- Max. Output Current 37.5A
- Peak Apparent Power (10s, off-grid) 16,000VA @ 240V
- Peak Apparent Power (100ms, off-grid) 25,000VA @ 240V
- Max Output Fault Current (100ms) 104A
- Max. Grid Passthrough Current 63A
- Power Factor Output Range +/- 0.9 adjustable
- Backup Transfer Time 4ms
- CEC Efficiency 96.5%
- Max Efficiency 97.5%
- Design (DC to AC) Transformerless DC
- Stackable Up to 9 in parallel
Battery Input Data (DC)
- Battery Technologies Lithium / Lead Acid
- Nominal DC Voltage 48V
- Operating Voltage Range 43 - 63V
- Capacity 50 — 9900Ah
- Max. Battery Charge / Discharge Current 185A
- Charging Controller 3-Stage with Equalization
- Grid to Battery Charging Efficiency 96.0%
- External Temperature Sensor Included
- Current Shunt for Accurate % SOC Integrated
- Automatic Generator Start Integrated
- Communication to Lithium CANBus & RS485
General Data
- Dimensions (H x W x D) 750 x 450 x 254 mm / 29.5 x 17.7 x 10 in
- Weight 35.4 kg / 78 lb.
- Enclosure IP65 / NEMA 3R
- Ambient Temperature -25~55°C, > 45°C Derating
- Noise < 30 dB
- Idle consumption - No Load 60W
- Wi-Fi & LAN Communication Included
- Standard Warranty 10 Years
Sol-Ark Hybrid Solar Inverter 15K Specifications
Input Data (PV)
- Max. Allowed PV Power (STC) 19,500W
- Nominal Voltage Range 175 - 425V
- Startup Voltage 125V
- Max. Input Voltage 500V
- Max. Input Current per MPPT 26A (self-limiting)
- No. of MPP Trackers 3
- No. of PV Strings per MPPT 2
- Max. AC Coupled Input 19,200W
Output Data (AC)
- Nominal AC Voltage 120/240V, 120/208V, 220V
- Grid Frequency 50 / 60Hz
- Real Power, max continuous 15,000W
- Max. Output Current 62.5A
- Real Power, max continuous (batteries only, no PV) 12,000W (50A @ 240V)
- Peak Apparent Power (10s, off-grid) 24,000VA @ 240V
- Peak Apparent Power (100ms, off-grid) 30,000VA @ 240V
- Max Output Fault Current (100ms) 94A with PV, 75A (batteries only, no PV) 120A
- Max. Grid Passthrough Current 200A
- Power Factor Output Range +/- 0.9 adjustable
- Backup Transfer Time 5ms
- CEC Efficiency 96.5%
- Max Efficiency 97.5%
- Design (DC to AC) Transformerless DC
- Stackable Up to 12 in parallel
Battery Input Data (DC)
- Battery Technologies Lithium / Lead Acid
- Nominal DC Voltage 48V
- Operating Voltage Range 43 - 63V
- Capacity 50 — 9900Ah
- Max. Battery Charge / Discharge Current 275A
- Charging Controller 3-Stage with Equalization
- Grid to Battery Charging Efficiency 96.0%
- External Temperature Sensor Included
- Current Shunt for Accurate % SOC Integrated
- Automatic Generator Start Integrated
- Communication to Lithium CANBus & RS485
General Data
- Dimensions (H x W x D) 807 x 494 x 306 mm / 31.8 x 19.4 x 12 in
- Weight 61.2 kg / 135 lb.
- Enclosure IP65 / NEMA 3R
- Ambient Temperature -25~55°C, > 45°C Derating
- Noise < 30 dB
- Idle consumption - No Load 90W
- Wi-Fi & LAN Communication Included
- Standard Warranty 10 Years
Still Have Questions? Give us a call today 1-877-242-2792
Choose your kit
Build it around how you'll use it.
Every kit starts with the same power station. What changes is the panels, and whether it connects to your home.
- Pick your starting point Choose the power station on its own if you already have panels, or a kit if you are starting from scratch.
- Match the panels to your life Folding panels pack away for the RV and campsite. Rigid panels suit a cabin, shed or backyard. The transfer switch connects to your home.
- Let us help you set it up Every order comes with our setup guide and lifetime support from the team, before and long after delivery.
1 x Wall Mount AllWeather |
2 x Wall Mount AllWeather |
3 x Wall Mount AllWeather | |
|---|---|---|---|
| Price |
$8,859.00 |
$12,489.00 |
$16,089.00 |
| Best for | Entry-level single-battery bundle | Doubles storage to 28.6kWh | Triples storage for a bigger daily reserve |
|
|
| |
|
|
|
|
What it powers
What it keeps running when the grid goes down.
Estimated run times on one fully charged unit, from the manufacturer's published figures. Add panels and it keeps topping itself up.
51days
LED lights · 10W
13days
CPAP machine · 40W
5days
50" TV · 110W
8days
Fridge · 120W
9days
Chest freezer · 100W
12hours
Microwave · 1,000W
Questions & answers
Asked by shoppers, answered by our team.
No questions yet. Ask our team anything about this product and we'll answer it here.
Ask the ShopSolar team
Ask anything about this product and our team will answer it here. Prefer to talk? Call 877-242-2792.
Trustpilot
What customers say about us.
Lifetime support
Real people, for the life of your system.
You get free, direct access to our support team by phone, email and chat. Whether it's setup guidance next week or troubleshooting years down the road, we're here to help.
Can you help with system sizing and design?
Yes. Our team can help you choose the right solar kit based on your goals, power needs, and location. We provide personalized guidance before and after your purchase at no additional cost.
Are your systems DIY-friendly?
Many of our customers complete the majority of installation themselves using our diagrams and support resources. For final electrical connections, a licensed electrician may be required depending on local codes.
Do you offer installation services?
While we do not directly install systems, we can help connect you with qualified local professionals and provide technical documentation to support your installer.
How does shipping and fulfilment work?
Our team works hard to process all orders within 24-48 hours. Most products ship directly to your door using the quickest, most cost effective ground shipping services depending on size. You'll receive tracking details and delivery coordination as soon as your order ships. Our average shipping times are anywhere from 3-7 days.
What is your return policy?
Our return policy is normally 30 days. If you have specific questions about returns, eligibility, or specific product conditions, you can learn more in our help center.
How do warranties work?
All products are backed by full manufacturer warranties. In addition, our team provides free lifetime technical support to assist you throughout the life of your system.
Do you offer financing?
Yes! We offer a variety of flexible payment plans to fit any budget. Options include monthly financing with competitive interest rates, and some plans require no money down. You can apply during checkout and get approved in minutes.
