Simpliphi  ·  Batteries

SKU: PHI-2.7-24-60-LP-1

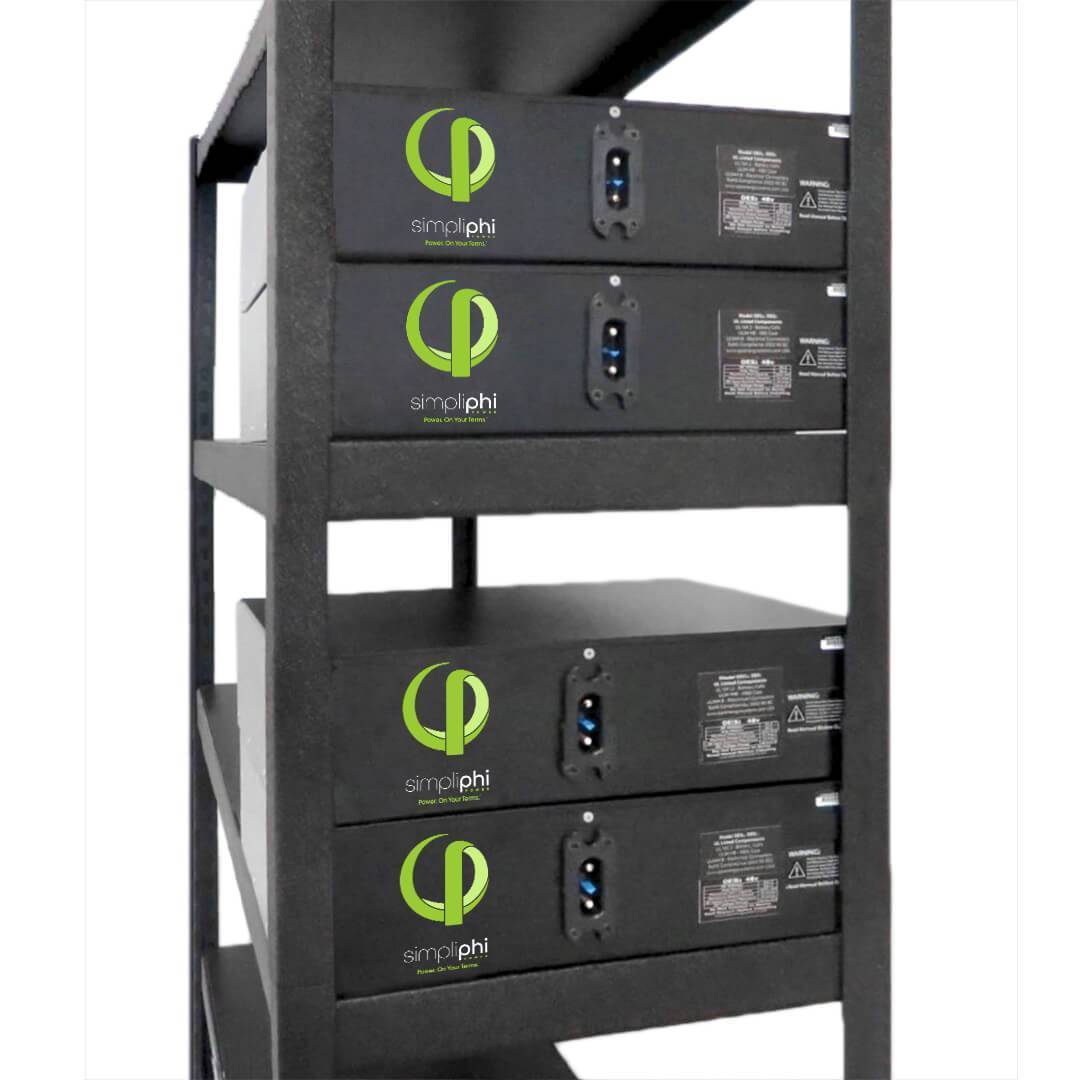

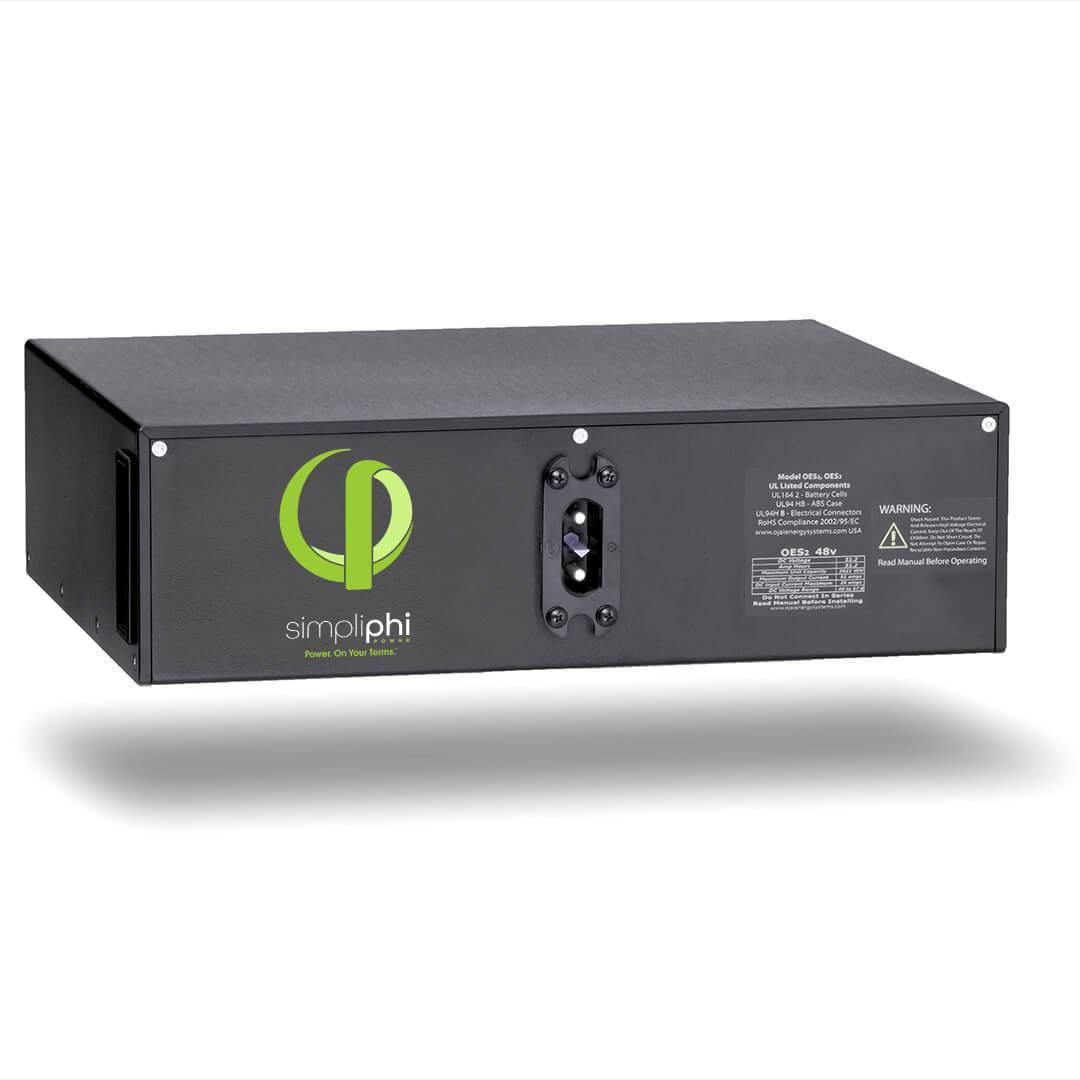

SimpliPhi - 2.7kWh 24V / 48V Lo-Profile Battery

Trustpilot

Simpliphi makes some of the best and most reliable batteries on the market.  Not only are the reliable and highly rated, but they continue to be some of the most aesthetically pleasing as well.

Voltage
$2,189.98
$2,189.98
Pay over time at checkout.
Orders processed in 24–48 hours
30-day returns
Lifetime support by phone, chat & email
Full manufacturer warranty

Not sure which one you need?

Call 877-242-2792 and we’ll work it out with you. Mon–Thu 10am–5:30pm, Fri 10am–1pm EST.

Trusted by 50,000+ Customers powered since 2018
Lifetime Support Phone, email or live chat, for good
Price Match Found it cheaper? Tell us
Ships from the USA Warehouses in CA, TX and NY

Frequently bought together

The details.

Simpliphi makes some of the best and most reliable batteries on the market.  Not only are the reliable and highly rated, but they continue to be some of the most aesthetically pleasing as well.

The PHI 2.7™ kWh 60 Amp deep-cycle Lithium Ferro Phosphate (LFP) battery is optimized with proprietary cell architecture, power electronics, BMS and manufacturing methods. It is modular, lightweight and scalable for installations that range from kWh to MWh. Provides power security and seamless integration of renewable and traditional sources of energy in conjunction with or independent of the grid: net zero, peak shaving, emergency back-up, portable & mobile.

Features:

  • Anderson 200 Amp PowerMod Quick Connect
  • 24V and 48V LFP batteries with proprietary architecture and Battery Management System (BMS)—do not require ventilation, cooling or thermal regulation
  • Compatible with all industry standard inverter/charger controllers
  • Drop in replacement for lead acid
  • LFP is the safest, most environmentally benign Lithium Ion chemistry available—no risk of thermal runaway or fire
  • No AC or toxic liquid cooling—negligible parasitic drain—long cycle life
  • Non-toxic and non-hazardous recyclable materials

* Customers in Alaska & Hawaii might incur small shipping fees.  Please reach out regarding shipping fee's for Alaska and Hawaii *

Specs:

24V 48V
DC Voltages – Nominal 25.6 51.2
Amp Hours 105 52
Rated Wh Capacity @ C/2 2.7 kWh 2.7 kWh
Max Output Capacity 60 Amps 60 Amps
Max Contin. Charge Current 45 Amps 25 Amps
Max Contin. Disch. Current 45 Amps 25 Amps
DC Voltage Range 20 to 28.8 40 to 57.6
Depth of Discharge up to 100% up to 100%
Operating Efficiency 98% 98%
Operating Temp -4° to 140°F (-20° to 60°C) -4° to 140°F (-20° to 60°C)
Charge Temp 32° to 120°F (0° to 49°C) 32° to 120°F (0° to 49°C)
Self-Discharge Rate <1% loss per month <1% loss per month
Cycle Life 10,000+ 10,000+
Memory Effect None None
Warranty Period 10 Years 10 Years
Dimensions 17.5 x 14 x 5 inches 17.5 x 14 x 5 inches
Weight 61 lbs (27.7 kg) 61 lbs (27.7 kg)
