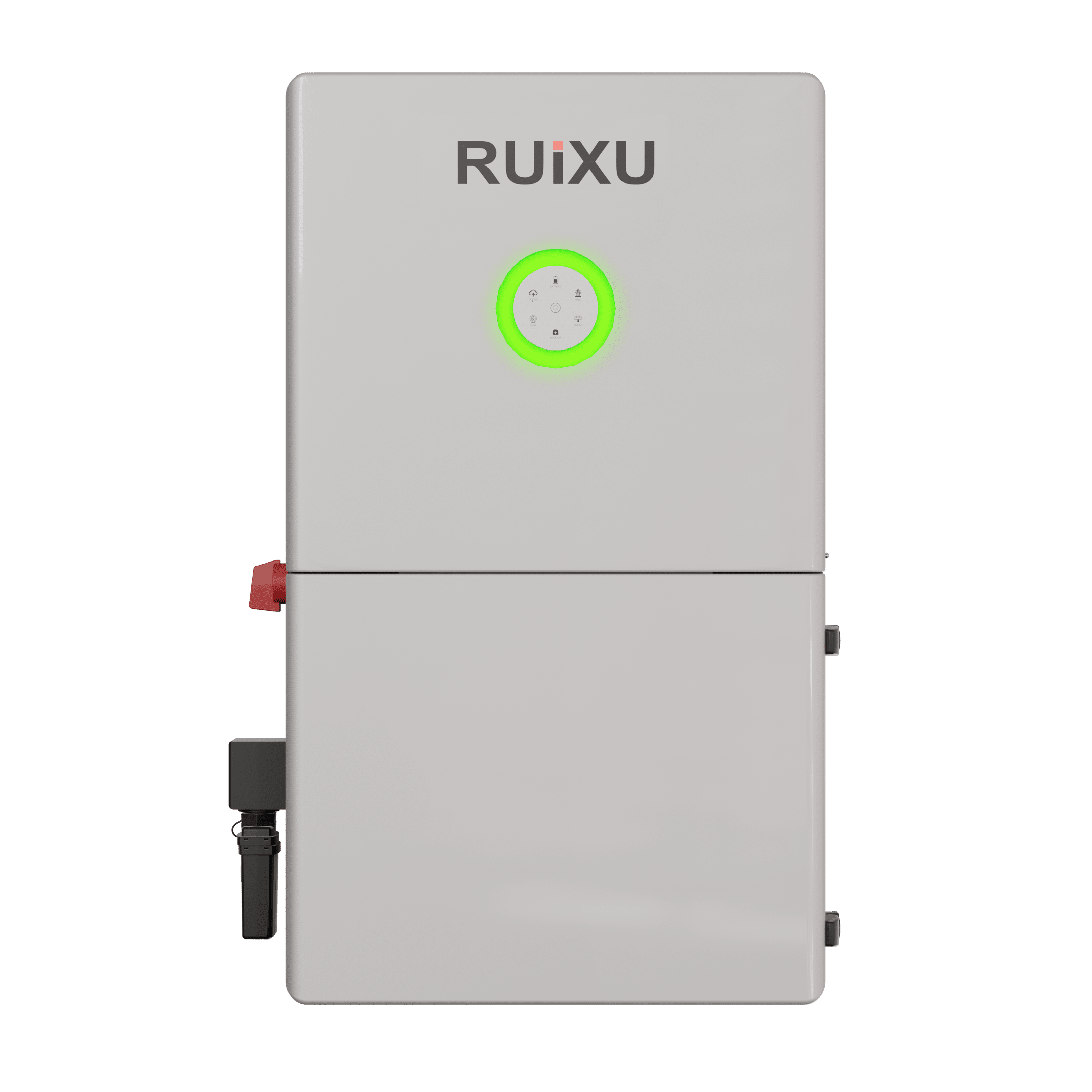

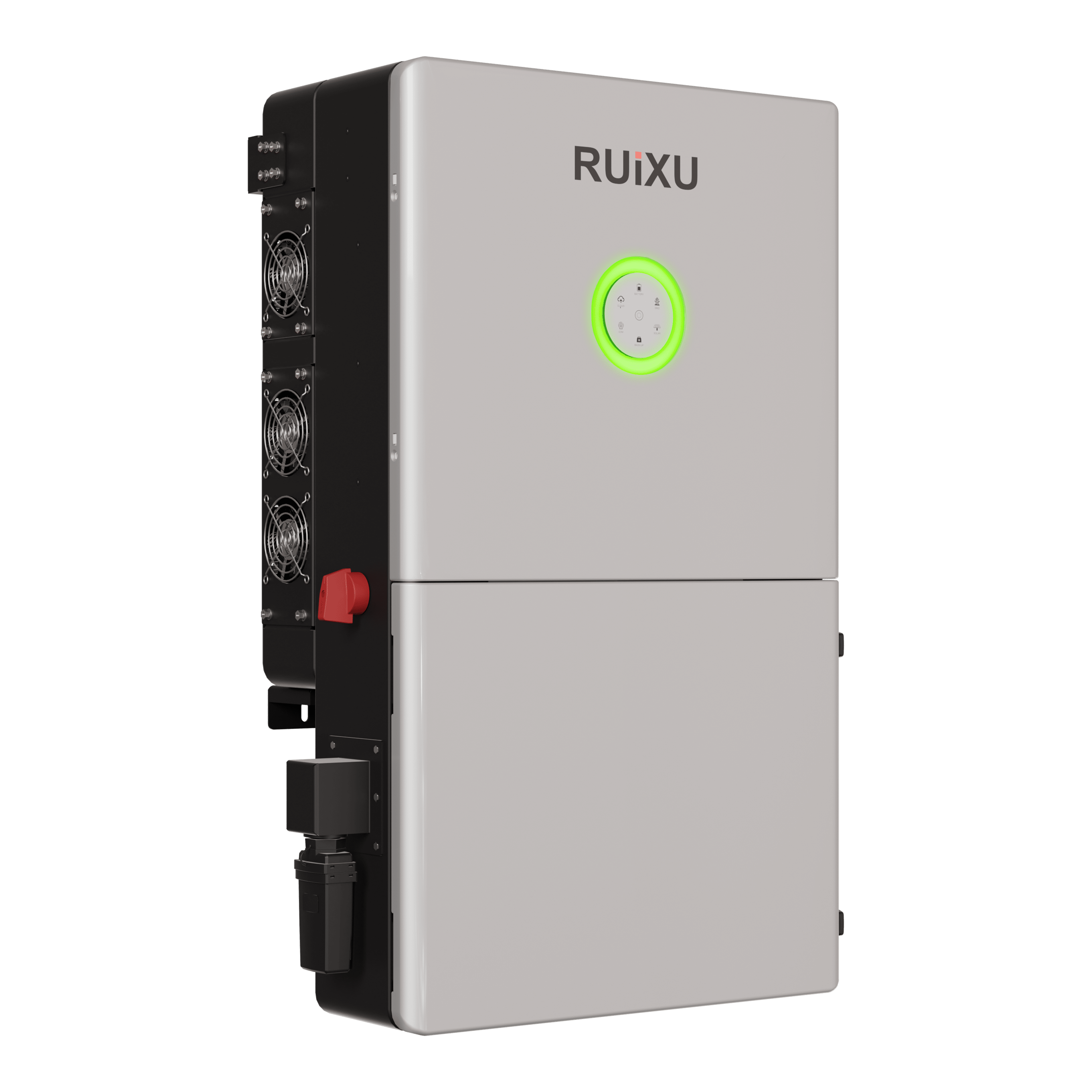

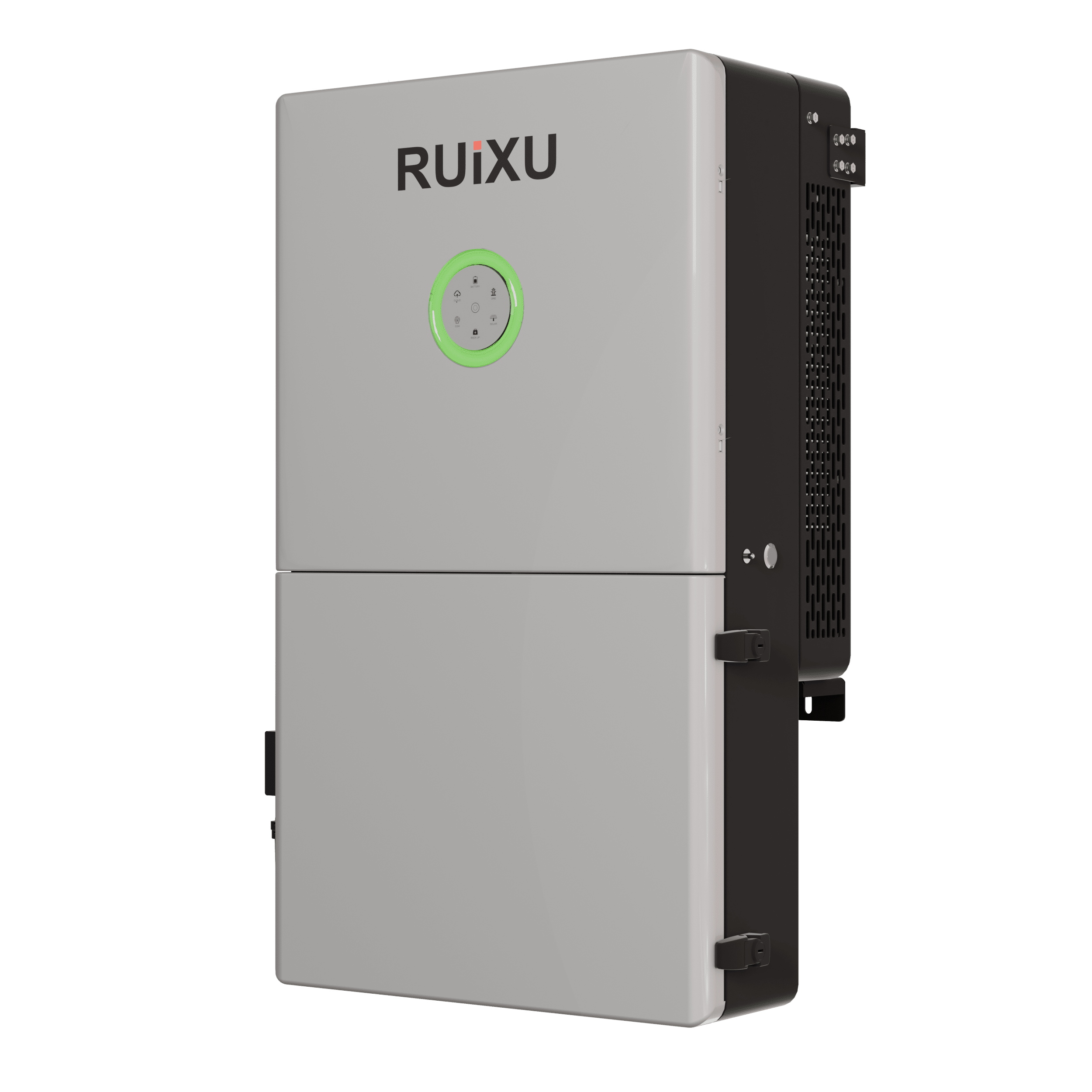

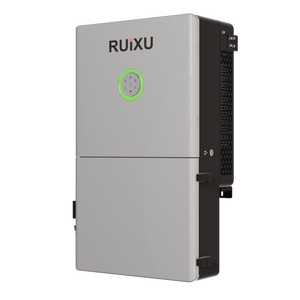

RUiXU Split Phase Hybrid Inverter
RUiXU RX-12K suitable for the US market split phase grid, photovoltaic input supports 1.5DC /AC ratio, battery input 48V flexible battery configuration, Up to 11.4kW output integrated 200A transfer Relay to support whole home backup power.
- Regular price
- $3,299.00
- Sale price
- $3,299.00
- Regular price
-
$4,879.00
Questions before you buy?
Call 877-242-2792 and we’ll work it out with you. Mon–Thu 10am–5:30pm, Fri 10am–1pm EST.
Frequently bought together
Specifications
The details.
RUiXU RX-12K suitable for the US market split phase grid, photovoltaic input supports 1.5DC /AC ratio, battery input 48V flexible battery configuration, Up to 11.4kW output integrated 200A transfer Relay to support whole home backup power.
1. AC COUPLING CAPABILITY
support to quickly retrofit existing solar systems (on-grid & off-grid)
2. ALL-IN-ONE HYBRID INVERTER
Capable of running entirely off the grid, using grid assist, or selling power back to the grid.
3. HIGH FREQUENCY, SPLIT-PHASE OUTPUT
Allows for 120/240V single unit or 120/208 service operation
4. GENERATOR-COMPATIBLE
Grid & diesel generator separately connected, support storing energy from diesel generator
5. HIGH OUTPUT POWER

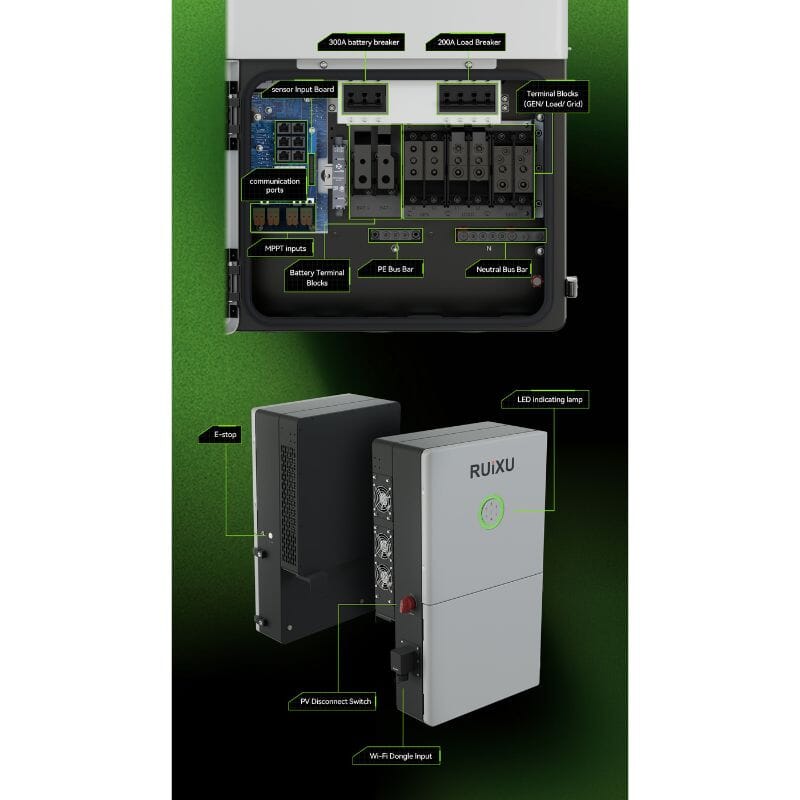

Up to 11.4kW output intergrated 200A transfer Relay , support whole home backup power.
6. RAPID SHUTDOWN FUNCTION
7. IP65 IP65

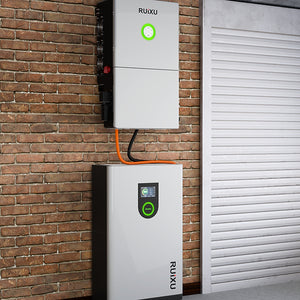

protection,support indoor and outdoor installlation.
8. MULTIPLE BATTERY COMPATIBILITY
Lithium battery and lead acid battery compatibility
9. MPPT
Up to 4MPPTs
10. UPS
With UPS function switch time ≤ 20ms
Lifetime Customer Support (Email, Live Chat & Phone)
- Isolation Type
- HF
- Standby Power Consumption [W]
- ≈20W
- Idle Power Consumption [W]
- ≈90W
- Cooling Method
- Smart Fan Cooling
- Ambient Humidity
- 0%～100% no-condensing
- Altitude
- 4000m （>3000m power derating）
- Noise [dBA]
- <40
- Ingress Protection
- NEMA 4x (IP65)
- Mounting
- Wall Mounting
- Dimensions [H*W*D][inch]
- 30.7*18.5*10.2
- Weight [kg]
- 50 (110 lbs)
- Warranty [years]
- 10
- Safety/EMC Standard
- UL 1741 CRD, IEEE 1547, UL 1699B, UL 1998, UL 9540, CAN/CSA C22.2.107.1-1, FCC, Part 15 Class B, SRD-UL1741

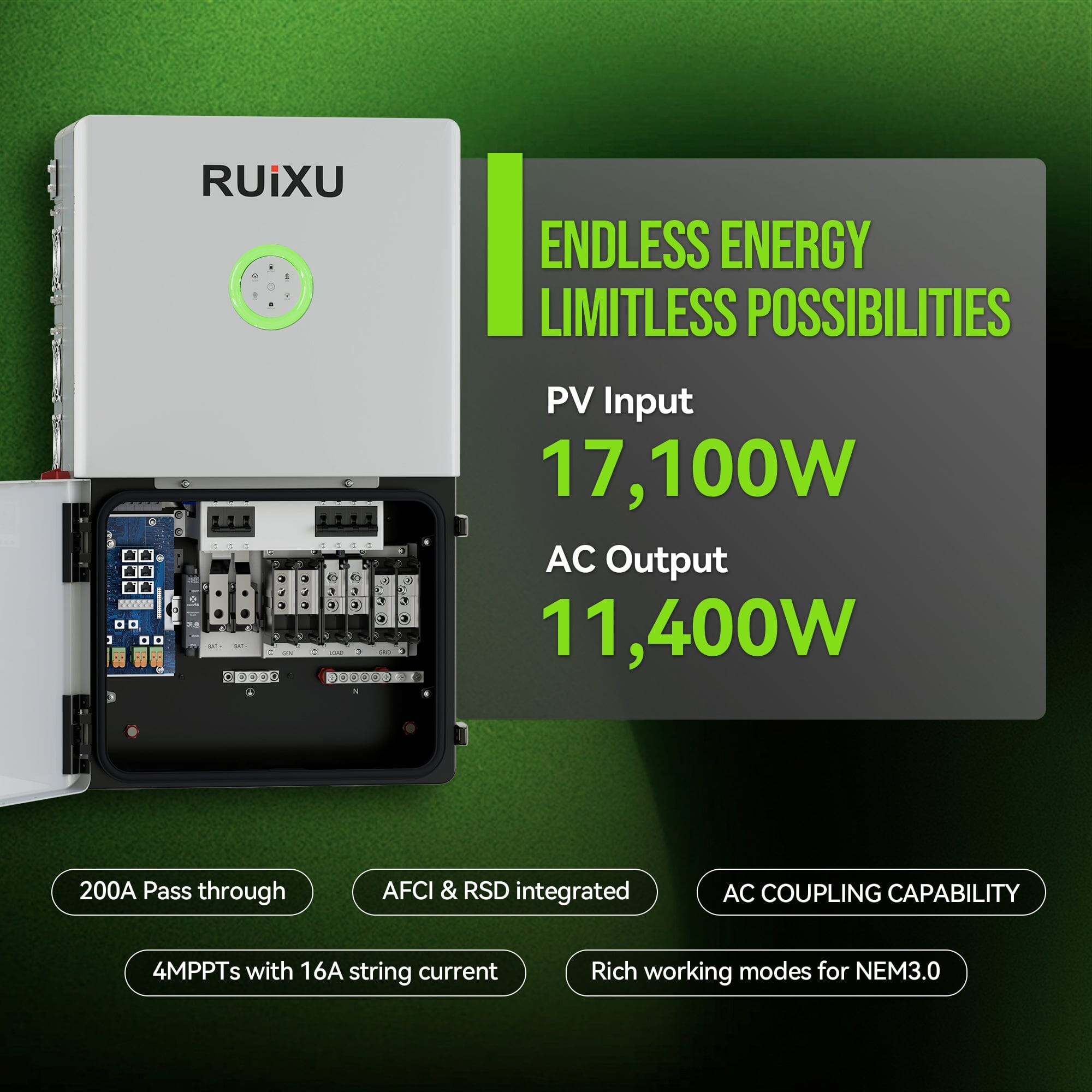

- Max PV Array Power [Wp]@STC 1
- 17100
- Max DC Voltage [V]
- 600
- MPPT Voltage Range [V]
- 90～550
- Nominal DC Voltage [V]
- 380
- Start Voltage/Min Input Voltage [V]
- 100
- Max Input Current [A]
- 16/16/16/16
