MRCOOL DIY 36K 36,000 BTU 18 SEER 4th Gen Ductless Mini Split Air Conditioner and Heat Pump - 230V - ShopSolar.com

In Stock Get yours today!

16+ sold In the last 7 days

Deliver to -

Fetching location...

Free Returns Free Returns within 30 Days of Delivery

Lifetime Customer Support Unlimited lifetime support, always available.

3000+ Storewide Reviews

In Stock

SKU DIY-36-HP-WM-230C25

by MRCOOL

MRCOOL DIY 36K 36,000 BTU 18 SEER 4th Gen Ductless Mini Split Air Conditioner and Heat Pump - 230V

Name: MRCOOL DIY 36K 36,000 BTU 18 SEER 4th Gen Ductless Mini Split Air Conditioner and Heat Pump - 230V
Brand: MRCOOL
Price: 2888.0 USD
Availability: InStock

$2,888.00

$2,978.00

Translation missing: en.product_price.item.price.range_html

$2,978.00

from $2,888.00

$2,888.00

You Saved: $90.00 3%

Financing Applications at Checkout

Quantity

MRCOOL DIY 36K 36,000 BTU 18 SEER 4th Gen Ductless Mini Split Air Conditioner and Heat Pump - 230V

Request a Free Quote

Need Help? We're Here for You!

If you need help, we're here to assist you whether you're facing issues, have questions, or need clarification.

877-242-2792

Instant Live Chat

Mon-Fri 10am-6pm EST

In Stock Get yours today!

13+ sold In the last 7 days

Deliver to -

Fetching location...

Free Returns Free Returns within 30 Days of Delivery

Lifetime Customer Support Unlimited lifetime support, always available.

General Overview

Products Details

Reviews

FAQ's

Why Choose Shop Solar

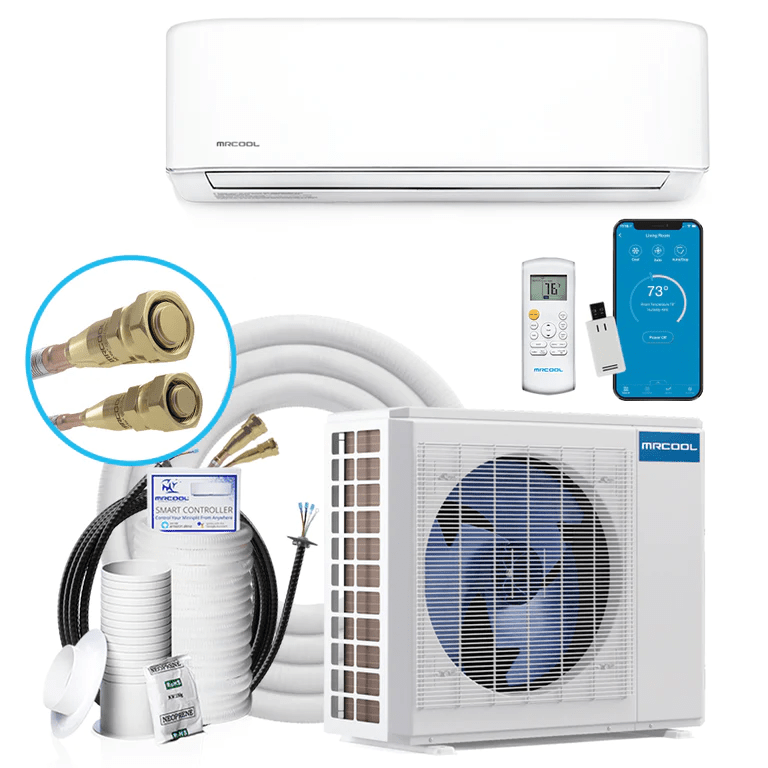

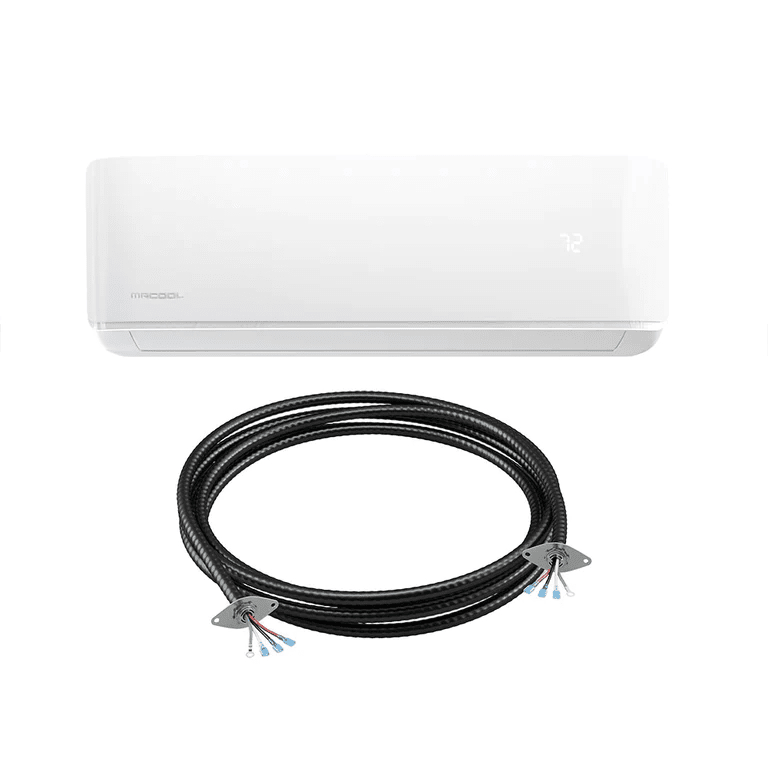

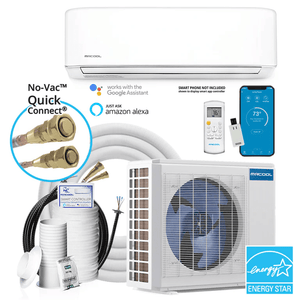

The MRCOOL 4th Generation DIY 36K BTU, 18 SEER Ductless Heat Pump is one of the most powerful single-zone systems offered in the DIY Series. This powerful single-zone system has the capability of heating and cooling an area up to 1,500 sq. ft. It comes complete with a 36K condenser, 36K air handler, and a 25 ft. line set pre-charged with R-410A refrigerant.

This complete system has the heating and cooling performance to cover an area up to 1500 sq. ft while still being able to achieve an 18 SEER efficiency rating. All of this performance is within a system that can be easily installed by a homeowner with a few hand tools thanks to the patented MRCOOL Pre-Charged Quick-Connect Line Set that makes connecting refrigerant piping as simple as turning a few wrenches. The benefits of this system are not limited to the performance and ease of installation. This system also has many operational functions and features that sets it apart. The user can select from up to six operation modes AUTO, HEAT, COOL, FAN-ONLY, DRY (dehumidification), and SLEEP.

This system features a Follow Me function which can constantly adjust the temperature of the room by sensing the temperature from the location of the handheld remote controller. This system can also be operated with an Apple or Android smartphone by downloading the Smart HVAC app. MRCOOL offers a limited lifetime compressor warranty on this system.

Key Features

Up to 18 SEER
Gold Fin® condenser: corrosion-resistant coastal living - don't worry, our condenser is built to resist long term corrosion
Variable-speed DC inverter compressor technology cuts operating costs
R-410A environmentally friendly refrigerant
Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty

Specifications

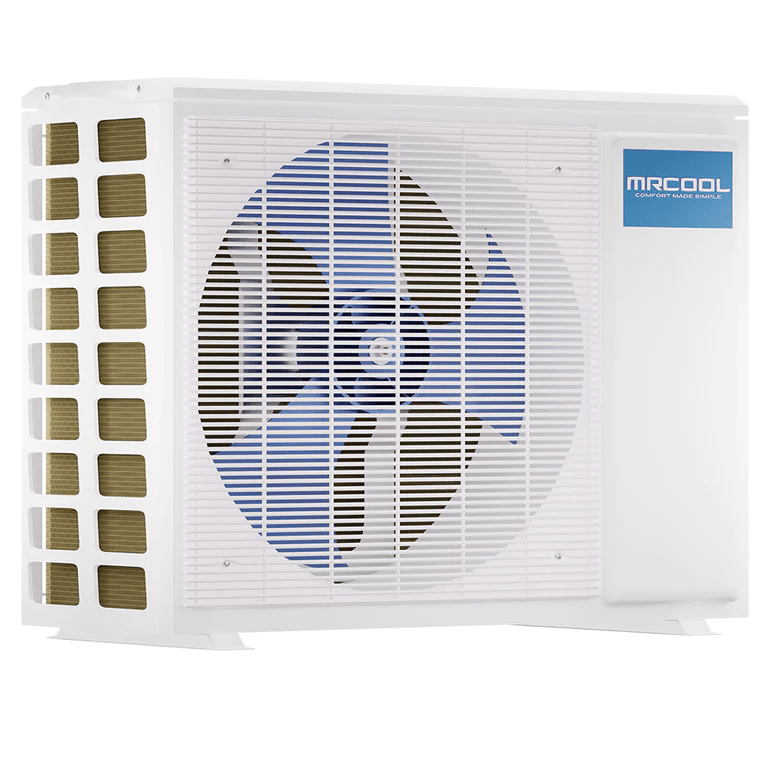

Condenser Dimensions 37.24"W x 16.14"D x 31.89"H
Condenser Weight 147.27 lbs

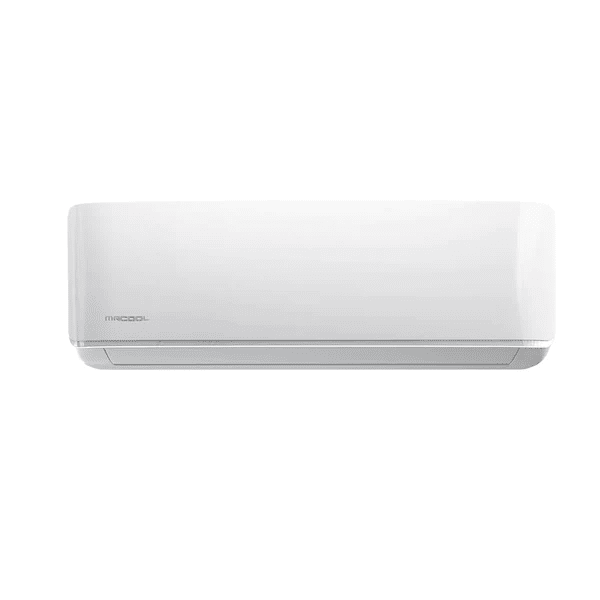

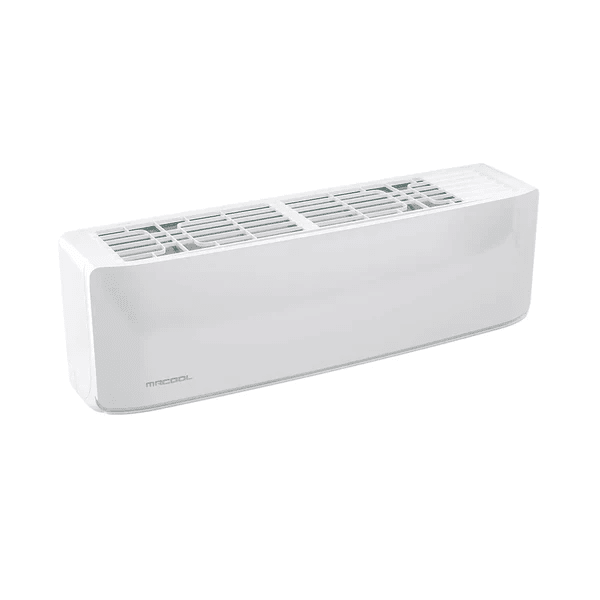

Air Handler Dimensions 49.57"W x 11.10"D x 14.25"H
Air Handler Weight 47.84 lbs SEER 18
EER 8.7
COP 47 2.81
HSPF hspf4/hspf5 : 12/9
CFM 673.53/502.94/367.65
Tonnage 3 Cooling Capacity 36,000 BTU
Heating Capacity 36,000 BTU
Voltage Requires a minimum of 208-230V/60HZ/28-35A (please check your home meets this electrical requirement prior to purchase)
Phase 1 Cycle 60 Hz
Max Fuse Breaker 35 A
Min Circuit Ampacity 28 A
Color White
Rate Load 0.50 A
Max Coverage Area Up to 1,500 sqft
Zone Capacity 1
Refrigerant Type R-410A
Refrigerant Volume 111.1 oz
Decibel Rating 52/45/34
Decibel Rating Low 34 dBA
Decibel Rating High 52 dBA
Oscillation 4-W
Inverter Yes
Min Ambient Cool 5F - 122F
Min Ambient Heat 5F - 75F
Line Set Length 25ft
Max Lineset Length 98.42 ft
Liquid Line Size 3/8 in
Suction Line Size 5/8 in
Compressor Motor Type Rotary
Condenser Fan Motor RPM 950/250
Blower Motor RPM 1200/950/750
Auxiliary Heater Available No
Modes Fan Only Quiet Mode Auto Cool
Wifi Compatibility Yes
App Compatibility Yes
Compatible with IOS Android
Includes Remote Batteries
Certifications UL Listed Energy Star AHRI
Registered Warranty 7 Years Replacement on Condenser, 5 Years Parts
Restricted States GU;PR;VI
