MRCOOL DIY 24K BTU 5th Gen Mini Split Heat Pump

Trustpilot

Enjoy efficient, year-round comfort with the MRCOOL DIY 24K BTU 5th Gen Mini Split Heat Pump System—designed for hassle-free, DIY installation with no special tools or training required.

Regular price: $3,329.00
Sale price: $3,329.00
Regular price: ~~$4,161.25~~

You save $832.25

Orders processed in 24–48 hours

30-day returns

Lifetime support by phone, chat & email

Full manufacturer warranty

Questions before you buy?

Call 877-242-2792 and we’ll work it out with you. Mon–Thu 10am–5:30pm, Fri 10am–1pm EST.

Trusted by 50,000+ Customers powered since 2018

Lifetime Support Phone, email or live chat, for good

Price Match Found it cheaper? Tell us

Ships from the USA Warehouses in CA, TX and NY

Frequently bought together

Specifications

The details.

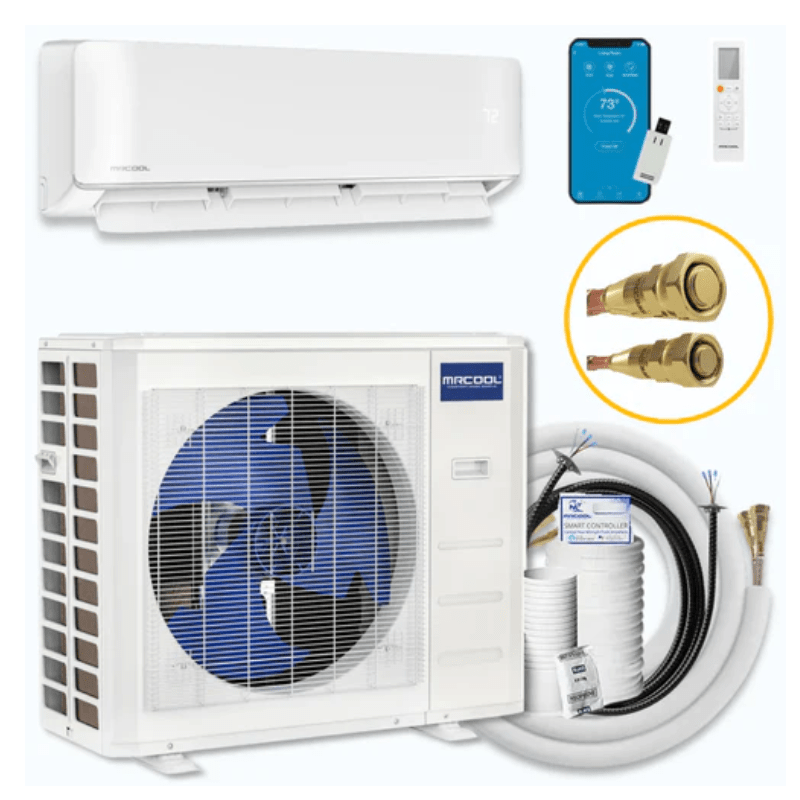

Enjoy efficient, year-round comfort with the MRCOOL DIY 24K BTU 5th Gen Mini Split Heat Pump System—designed for hassle-free, DIY installation with no special tools or training required. Perfect for spaces up to 1,050 sq. ft., this single-zone ductless system delivers powerful heating and cooling with industry-leading smart features and reliability.

Key Features & Benefits:

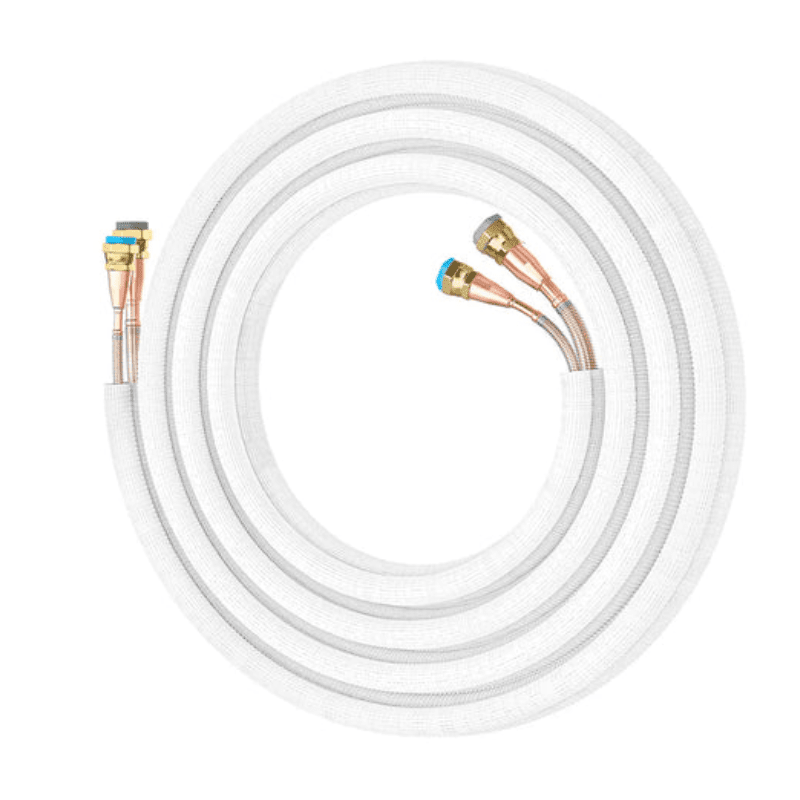

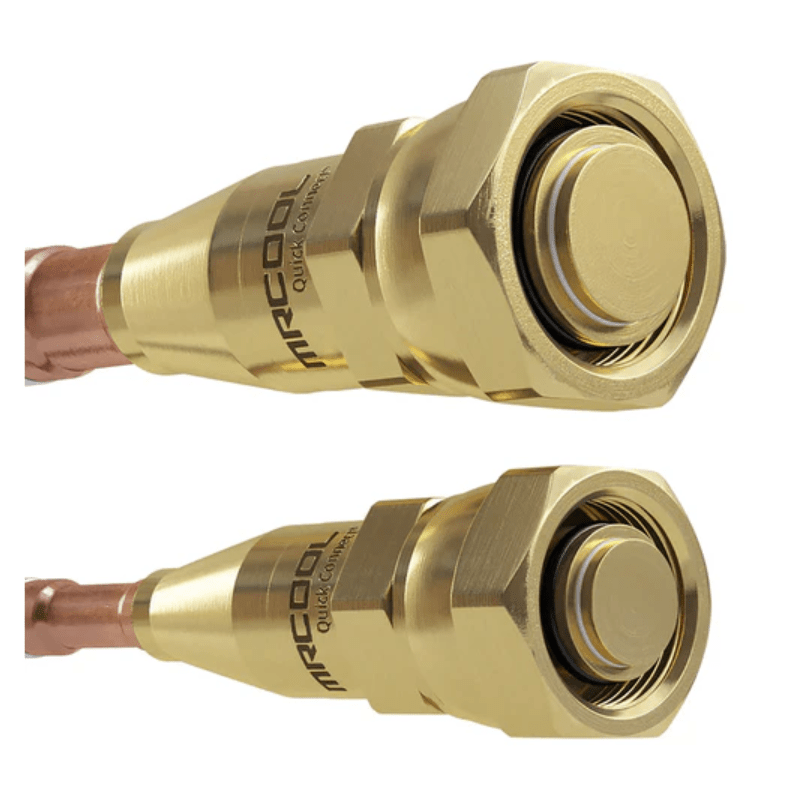

✅ DIY QuickConnect® Line Set – Pre-charged with R-454B refrigerant for fast, tool-free installation
✅ Covers up to 1,050 Sq. Ft. – Ideal for bedrooms, garages, offices & small homes

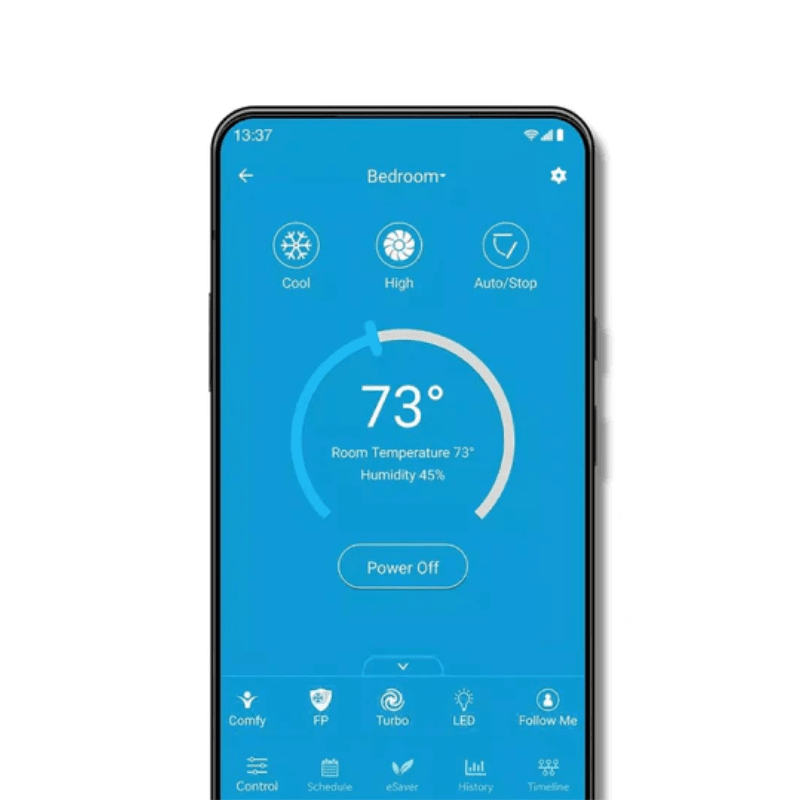

✅ Smart Control Ready – Works with Google Assistant, Amazon Alexa & SmartHVAC app
✅ Follow Me® Remote – Auto-adjusts based on your location for personalized comfort
✅ Gold Fin® Condenser – Corrosion-resistant design perfect for coastal environments
✅ Dry Mode & Dehumidification – Keeps humidity in check for better air quality

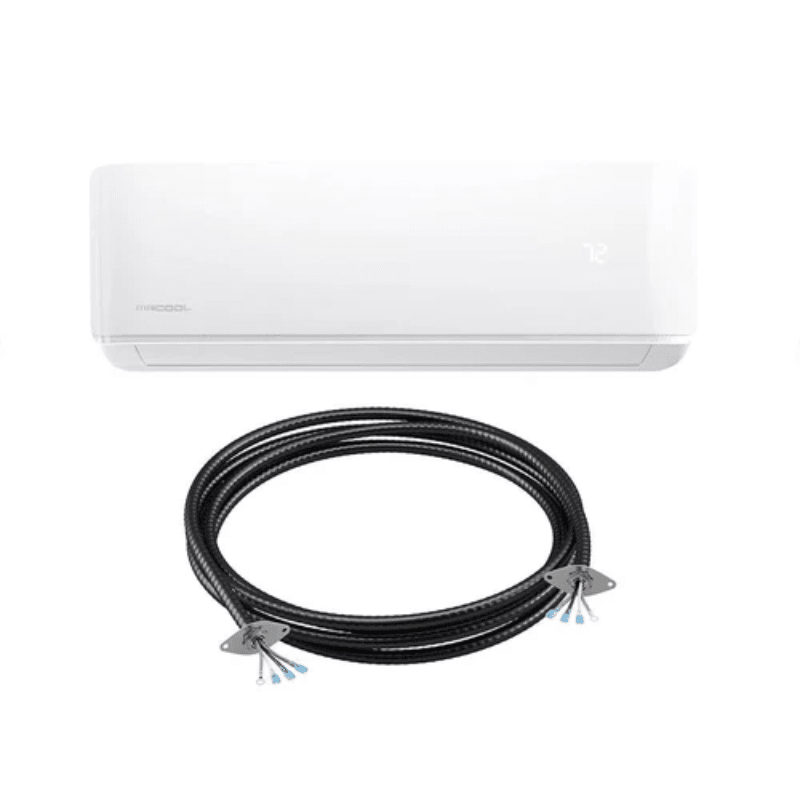

✅ Includes DIYPRO® Cable – Eliminates the need for electrical conduit, adds durability
✅ Energy Efficient – 22.7 SEER2 rating helps lower monthly energy bills
✅ Legendary Warranty – Limited Lifetime, 7-Year Compressor & 5-Year Parts Warranty
✅ Intertek Listed – Certified performance & safety (5031495)

Gain energy independence and full climate control without the extra cost of professional installation. The MRCOOL DIY 5th Gen 24K BTU system is the ultimate all-season HVAC solution for any DIYer.

User Manual / Documents:

BRAND NAME: MRCOOL
SERIES: DIY 5th gen Single-Zone Mini-splits
MODEL: DIY-24-HP-C-230D25-O

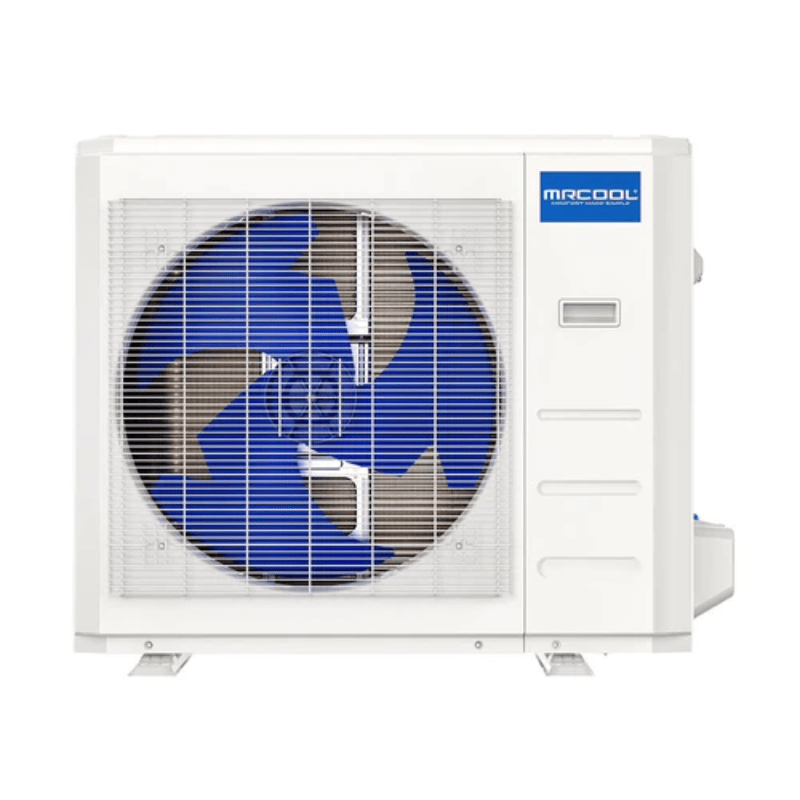

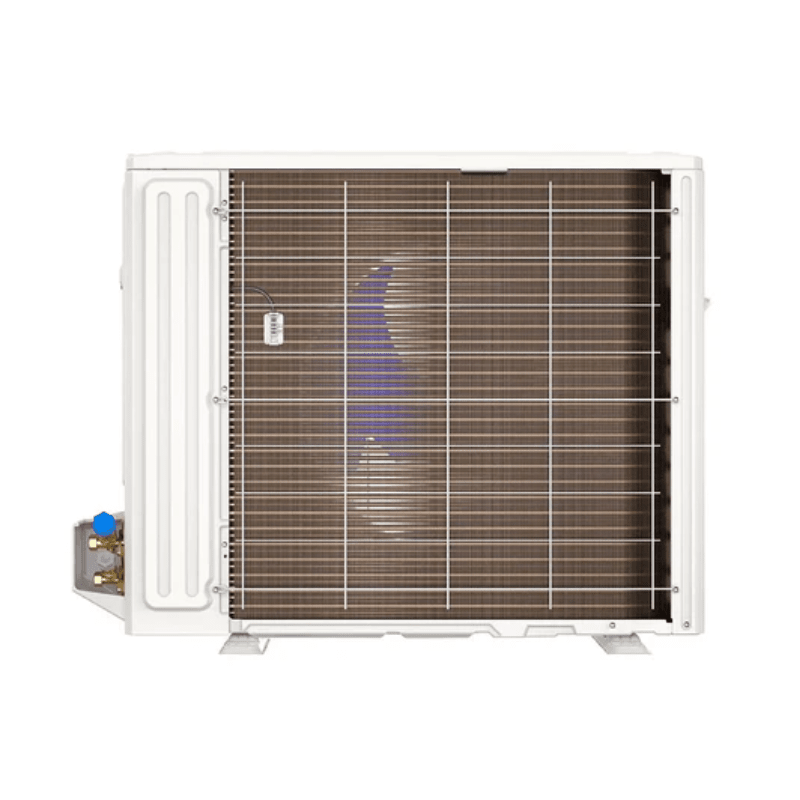

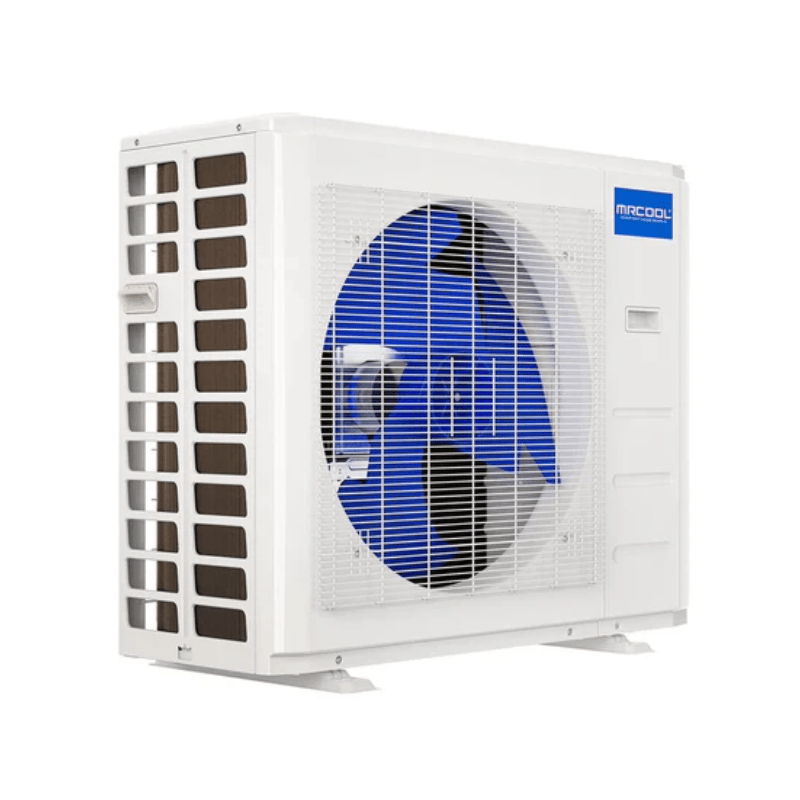

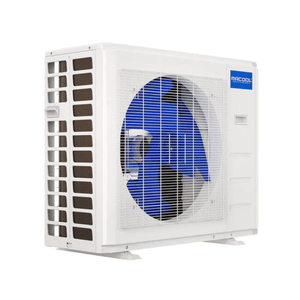

SHORT DESCRIPTION: MRCOOL® 24k DIY 5th Generation Mini-Split Condenser 230v
SEER2: 22.7
EER2: 12.7
HSPF2-4: 9.5
HSPF2-5: 7.1
TONNAGE: 2
COOLING CAPACITY (BTU): 23000
HEATING CAPACITY (BTU): 23000
VOLTAGE (V): 208/230
PHASE: 1
CYCLE: 60
MAX FUSE BREAKER (A): 25
MIN CIRCUIT AMPACITY (A): 24
COLOR: White
ZONE CAPACITY: 1
REFRIGERANT TYPE: R-454B
REFRIGERANT VOLUME (OZ): 67.37
DECIBEL RATING (DBA): 58.5
INVERTER: DC
LINE SET LENGTH: 25
MAX LINESET LENGTH (FT): 164
LIQUID LINE SIZE: 3/8
SUCTION LINE SIZE: 5/8
COMPRESSOR MOTOR TYPE: Rotary
AUXILIARY HEATER INCLUDED: No
AUXILIARY HEATER AVAILABLE: No
FAN ONLY OPTION: Yes
QUIET MODE: Yes
AUTO COOL: Yes
WIFI COMPATIBILITY: Yes
APP COMPATIBILITY: Yes
WORKS WITH IOS: Yes
WORKS WITH ANDROID: Yes
UL LISTED: Yes
ETL LISTED: Yes
ENERGY STAR CERTIFIED: Yes
AHRI CERTIFIED: Yes
REGISTERED WARRANTY: Extended Limited Lifetime*
BASE PARTS WARRANTY: 5
BASE COMPRESSOR WARRANTY: 7
HAS BATTERIES: Yes
CONTAINS ELECTRONICS: Yes
CONTAINS CHEMICALS: Yes
CONTAINS AEROSOL: Yes
CONTAINS COMPRESSED GAS: Yes
PROPOSITION 65 WARNING: Yes
NET DEPTH (IN): 16.14
NET HEIGHT (IN): 31.89
NET WIDTH (IN): 37.24
NET WEIGHT (LBS): 122.8
GROSS DEPTH (IN): 19.88
GROSS HEIGHT (IN): 37.01
GROSS WIDTH (IN): 42.91
GROSS WEIGHT (LBS): 155.64
BRAND NAME: MRCOOL
SERIES: DIY 5th gen Single-Zone Mini-splits
MODEL: DIY-24-HP-WMAH-230D25-O

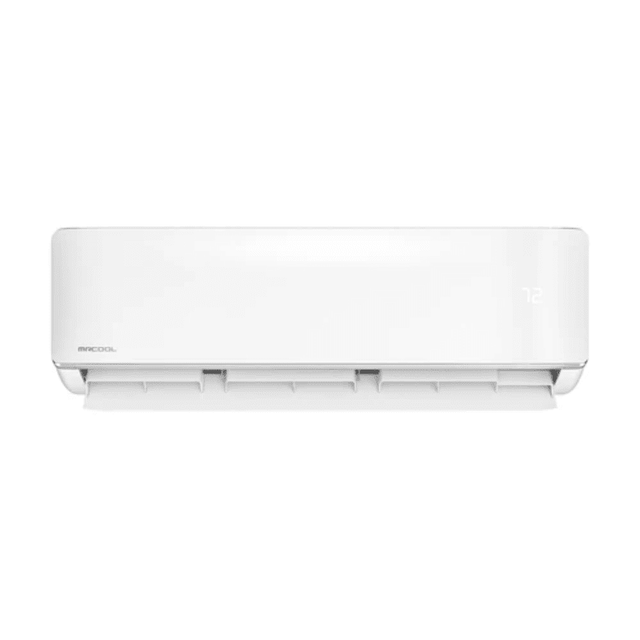

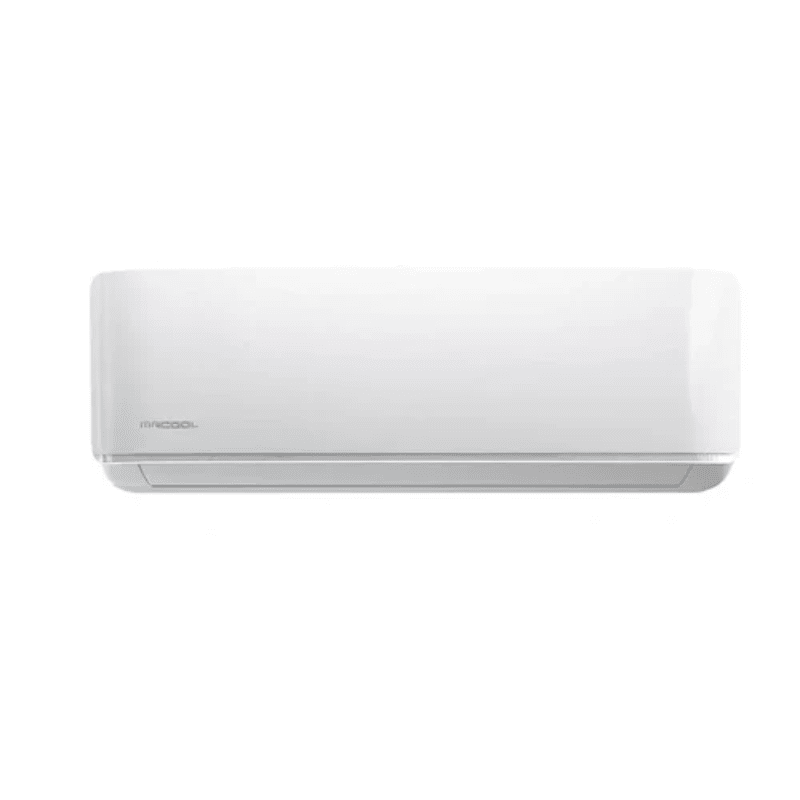

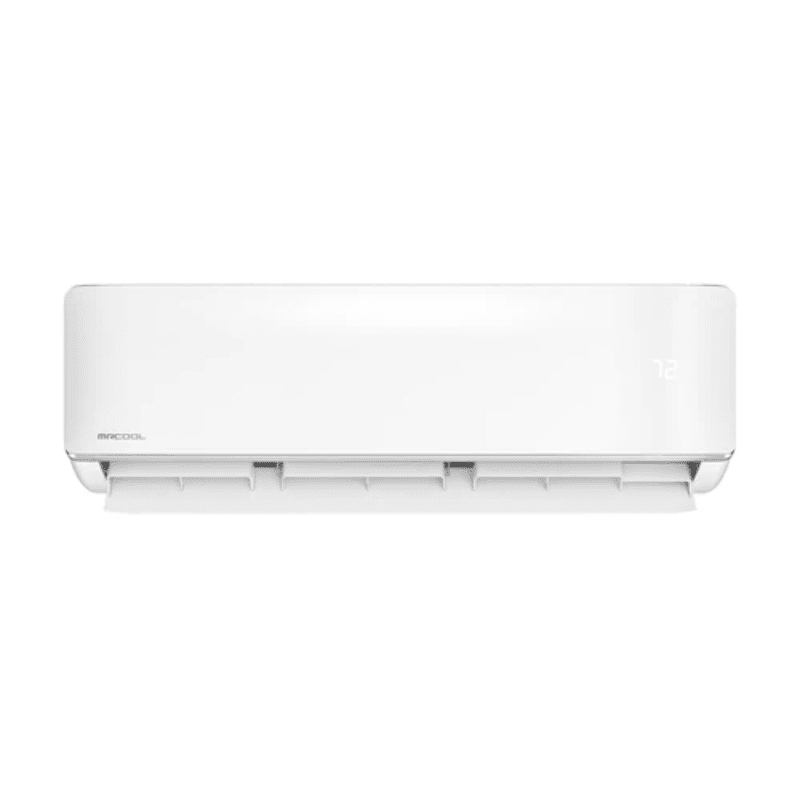

SHORT DESCRIPTION: MRCOOL® 24k DIY 5th Generation Mini-split Air Handler 230v
TONNAGE: 2
VOLTAGE (V): 208/230
PHASE: 1
CYCLE: 60
MAX FUSE BREAKER (A): 15
MIN CIRCUIT AMPACITY (A): 3
MOUNT TYPE: Wall
COLOR: White
MAX COVERAGE AREA: 1050 sqft
DECIBEL RATING LOW (DBA): 20
DECIBEL RATING HIGH (DBA): 54
NUMBER OF SPEEDS: 5
OSCILLATION: Yes
LIQUID LINE SIZE: 3/8
SUCTION LINE SIZE: 5/8
FILTER TYPE: Reusable
AUXILIARY HEATER INCLUDED: No
AUXILIARY HEATER AVAILABLE: No
FAN ONLY OPTION: Yes
QUIET MODE: Yes
AUTO COOL: Yes
WIFI COMPATIBILITY: Yes
APP COMPATIBILITY: Yes
WORKS WITH IOS: Yes
WORKS WITH ANDROID: Yes
REMOTE CONTROL INCLUDED: Yes
UL LISTED: Yes
ETL LISTED: Yes
ENERGY STAR CERTIFIED: Yes
AHRI CERTIFIED: Yes
REGISTERED WARRANTY: Extended Limited Lifetime*
BASE PARTS WARRANTY: 5
BASE COMPRESSOR WARRANTY: 7
HAS BATTERIES: Yes
CONTAINS ELECTRONICS: Yes
CONTAINS CHEMICALS: Yes
CONTAINS AEROSOL: Yes
CONTAINS COMPRESSED GAS: Yes
PROPOSITION 65 WARNING: Yes
NET DEPTH (IN): 8.9
NET HEIGHT (IN): 13.19
NET WIDTH (IN): 42.52
NET WEIGHT (LBS): 35.93
GROSS DEPTH (IN): 17.68
GROSS HEIGHT (IN): 14.29
GROSS WIDTH (IN): 46.73
GROSS WEIGHT (LBS): 49.82
