Mango Power

SKU: MPS01US1N006

Mango Power Smart Gateway Lite

Trustpilot

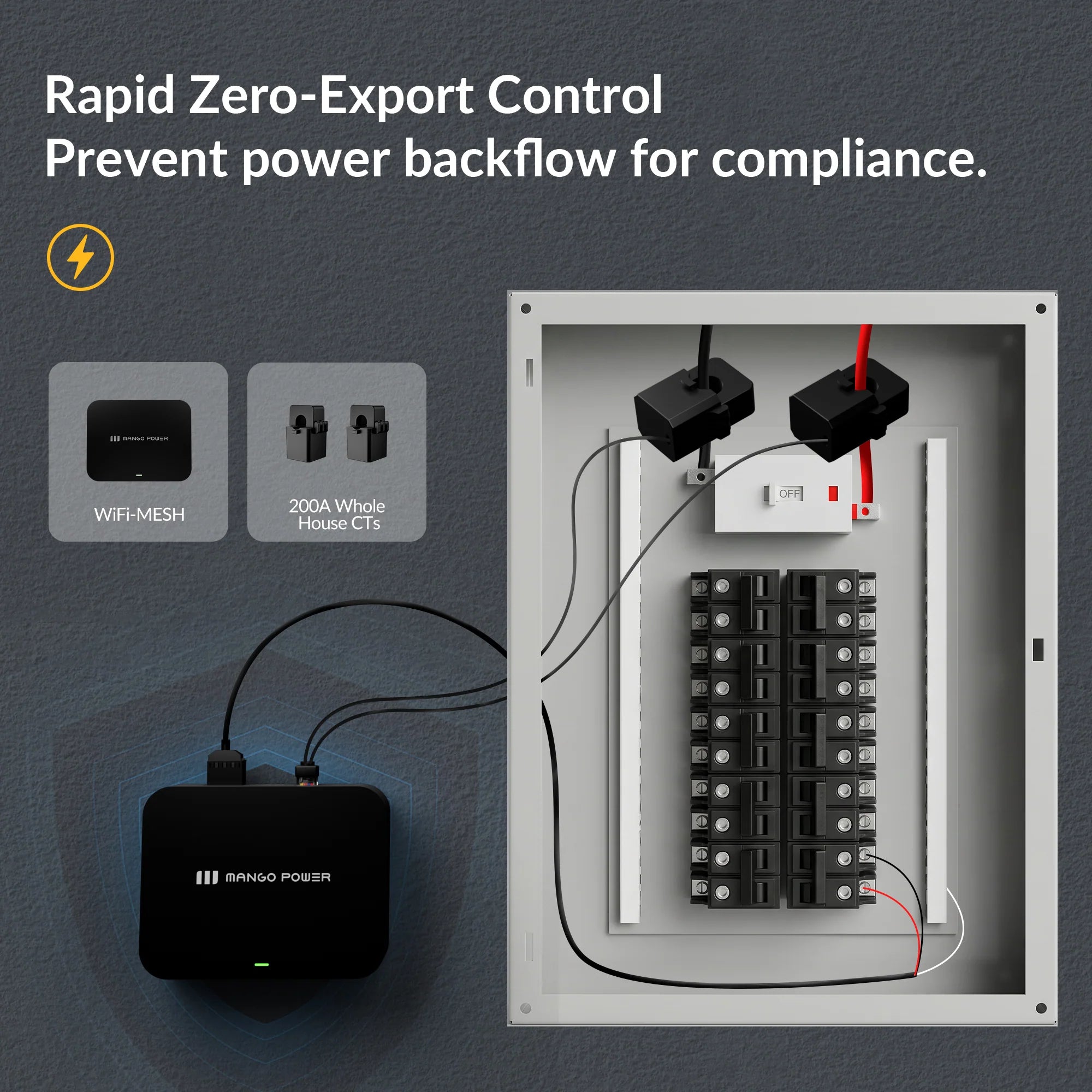

The Mango Power Smart Gateway Lite delivers whole-home energy management with high-precision 200A metering and ±0.5% accuracy. Its rapid ≤0.25s zero-export response prevents unwanted power backflow to the grid to comply with utility backfeed regulations.

$299.00
$299.00
Pay over time at checkout.
Orders processed in 24–48 hours
30-day returns
Lifetime support by phone, chat & email
Full manufacturer warranty

Questions before you buy?

Call 877-242-2792 and we’ll work it out with you. Mon–Thu 10am–5:30pm, Fri 10am–1pm EST.

Trusted by 50,000+ Customers powered since 2018
Lifetime Support Phone, email or live chat, for good
Price Match Found it cheaper? Tell us
Ships from the USA Warehouses in CA, TX and NY

Frequently bought together

The details.

The Mango Power Smart Gateway Lite delivers whole-home energy management with high-precision 200A metering and ±0.5% accuracy. Its rapid ≤0.25s zero-export response prevents unwanted power backflow to the grid to comply with utility backfeed regulations.

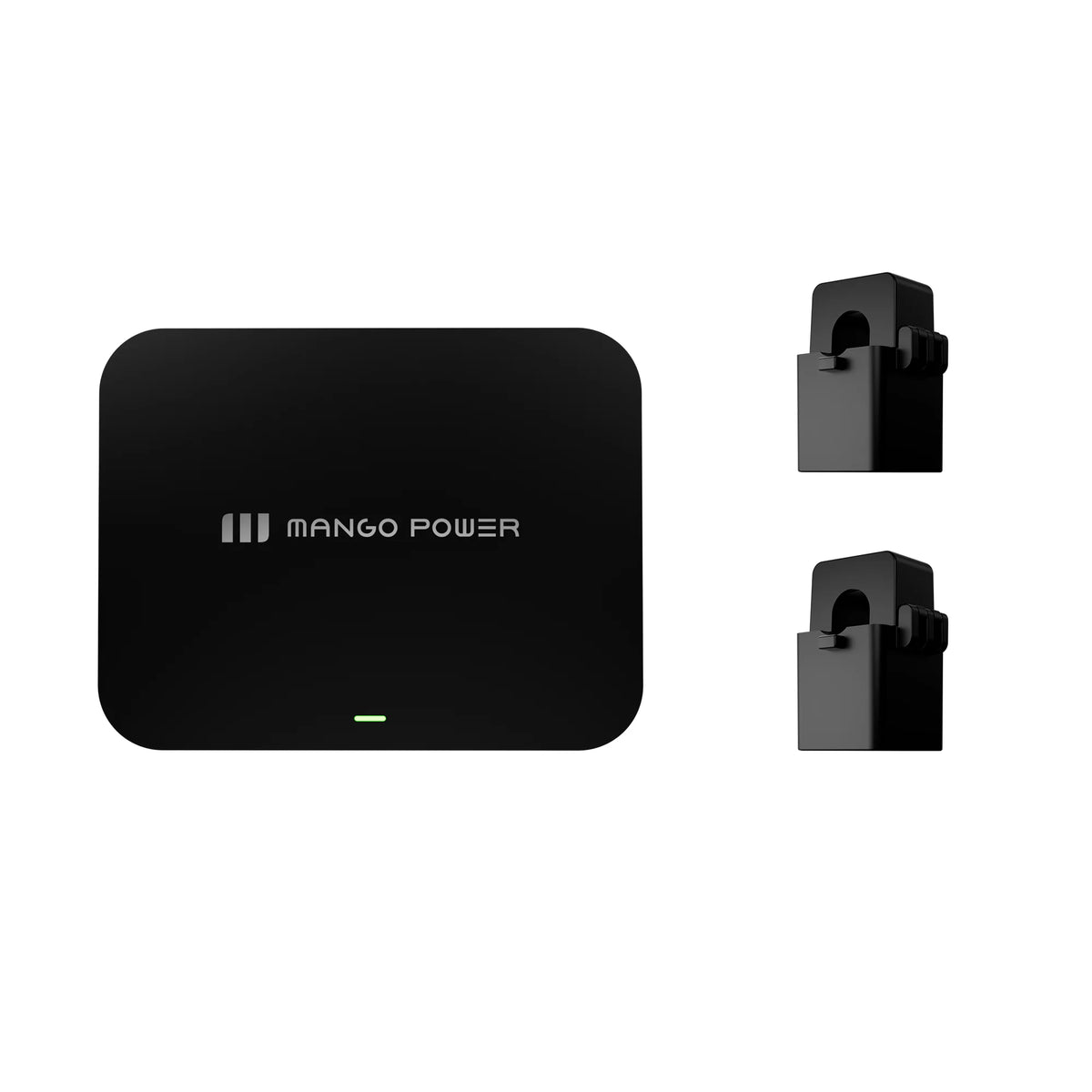

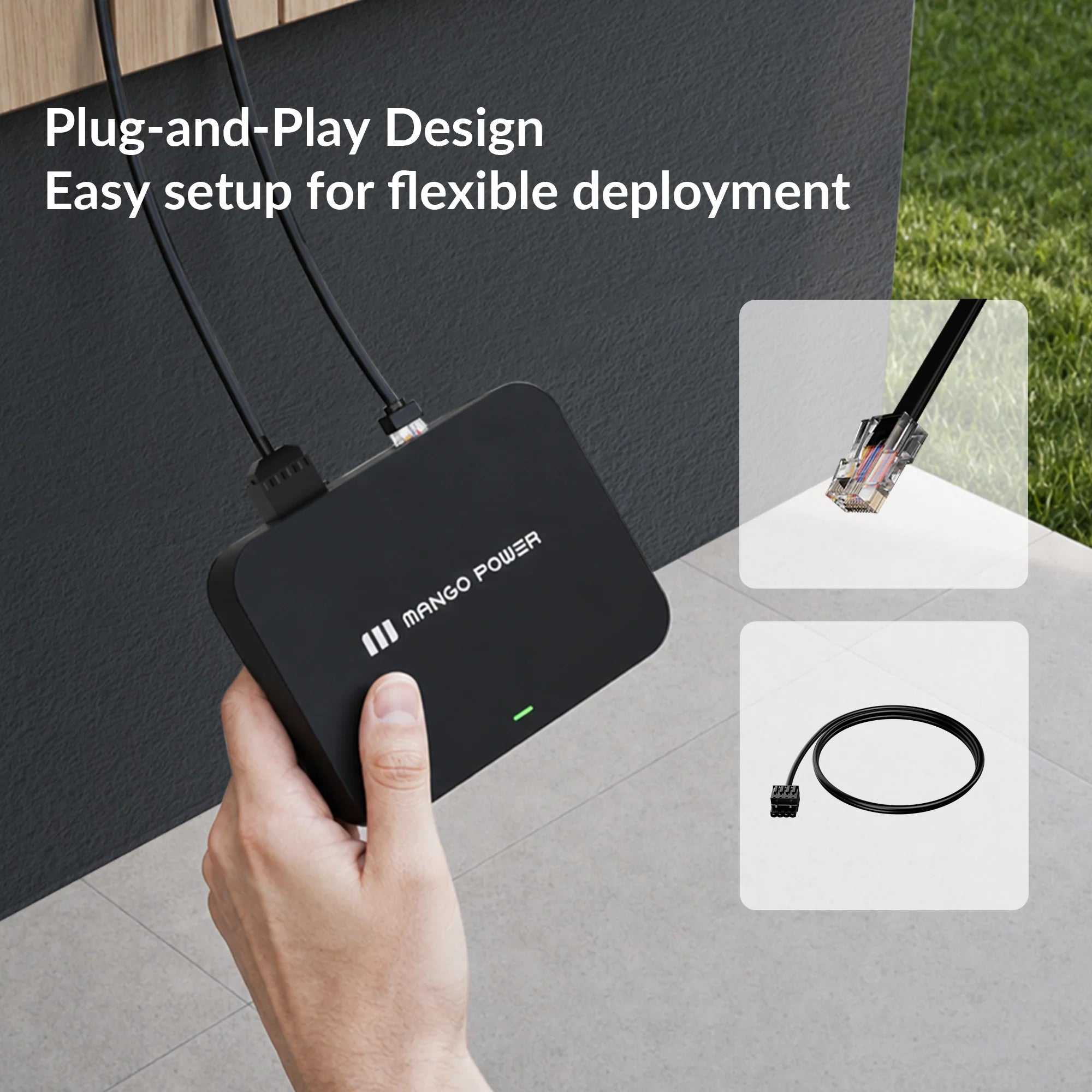

Equipped with 2.4GHz Wi-Fi connectivity, this device lets you monitor and manage energy usage in real time via the mobile app. The flexible plug-and-play design supports both plug-in and hard-wired setups with automatic CT and phase error detection for straightforward installation.

Key Features

Brand Mango Power
SKU MPS01US1N006
AC Input Voltage Range 100~240 Vac (L-N)
Nominal AC Frequency 60 Hz
Max. Operating Current 200 A
Time Measurement Accuracy ≤0.25s/T
Voltage Accuracy ±0.5%
Power Accuracy ±0.5%
Mains Frequency Accuracy 45~65Hz, ±0.2%
Interface Wi-Fi (2.4GHz)
Max. RF Power <20 dBm
Weight 0.4 lb
Dimensions 4.9 in × 3.8 in × 1.1 in
Operating Temperature Range -13 °F～131 °F (-25°C～55°C)
Storage Temperature Range -40 °F～185 °F (-40°C～85°C)
Operating Altitude ≤6562 ft (2000 m)
Ingress Protection Rating IP20
Warranty 3 years

Warranty

3-year manufacturer's warranty

Frequently asked questions

What is the primary function of the Smart Gateway Lite?

It provides whole-home energy management and metering with an ultra-fast ≤0.25s zero-export response to stop solar power from backfeeding into the grid.

How do you monitor home energy data with this device?

It connects via 2.4GHz Wi-Fi, allowing real-time monitoring and management through the mobile application.

What installation methods are supported?

It features a flexible design supporting both plug-in and hard-wired installations, alongside automatic detection for CT and phase errors.

What is the warranty period for the Smart Gateway Lite?

The product includes a 3-year warranty.
