IntegraRack AnchorSpike Solar Mounting Kit

Heavy-Duty Ground Mounting for Solar Racks – No Concrete Needed

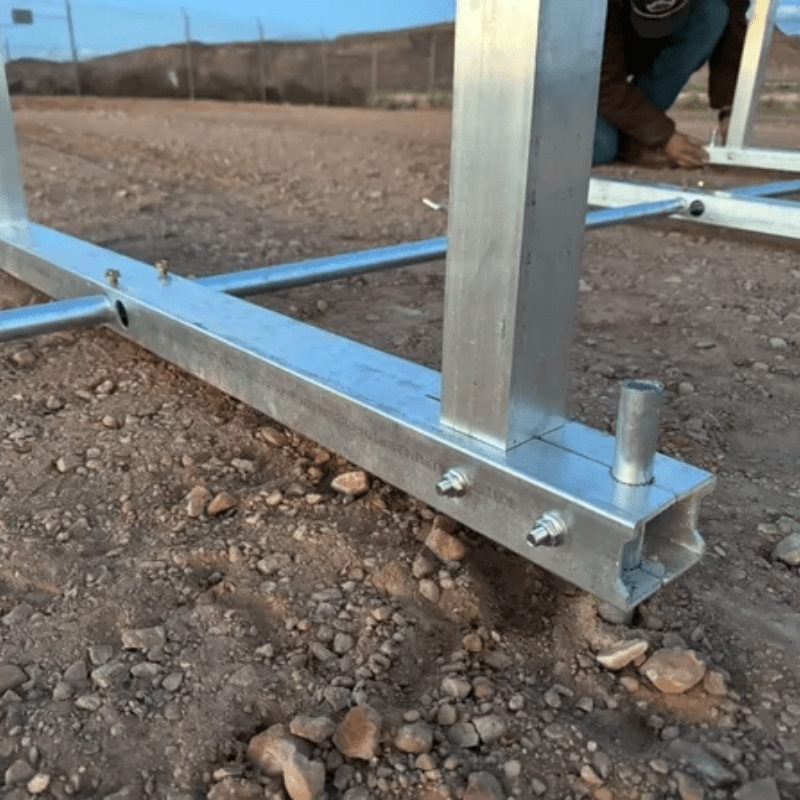

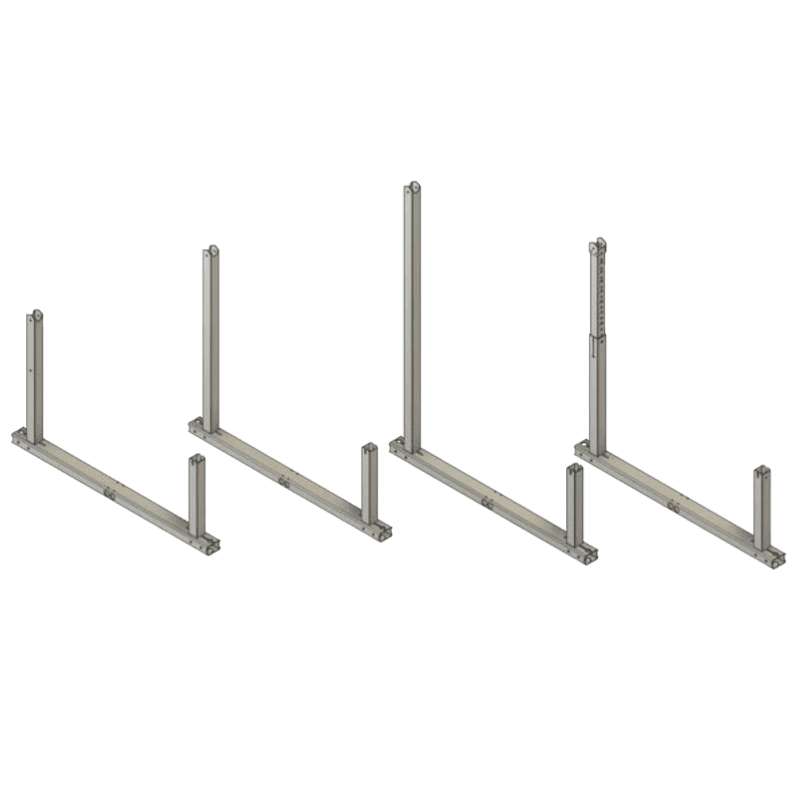

The IntegraRack IR AnchorSpike Mounting Kit is a field-proven solution for securely anchoring solar racking systems in tough soil conditions—without the need for concrete footings. Designed for use with IntegraRack IR-15 and IR-45ASA BallastRack™ frames, each kit includes heavy-duty barbed aluminum spikes and industrial-grade epoxy that bonds deep into the ground, creating a high-strength anchor rated up to 1,000 lbs of uplift per spike.

Choose from:

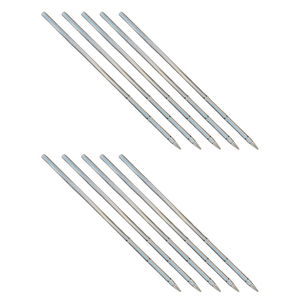

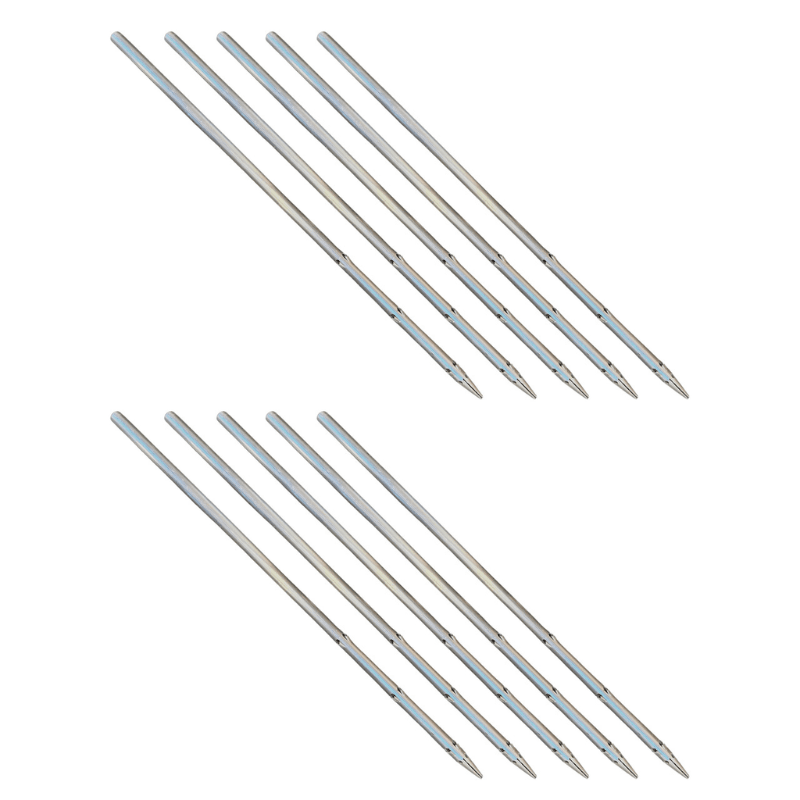

• ✅ 10-Pack – Anchors up to 5 BallastRack™ frames

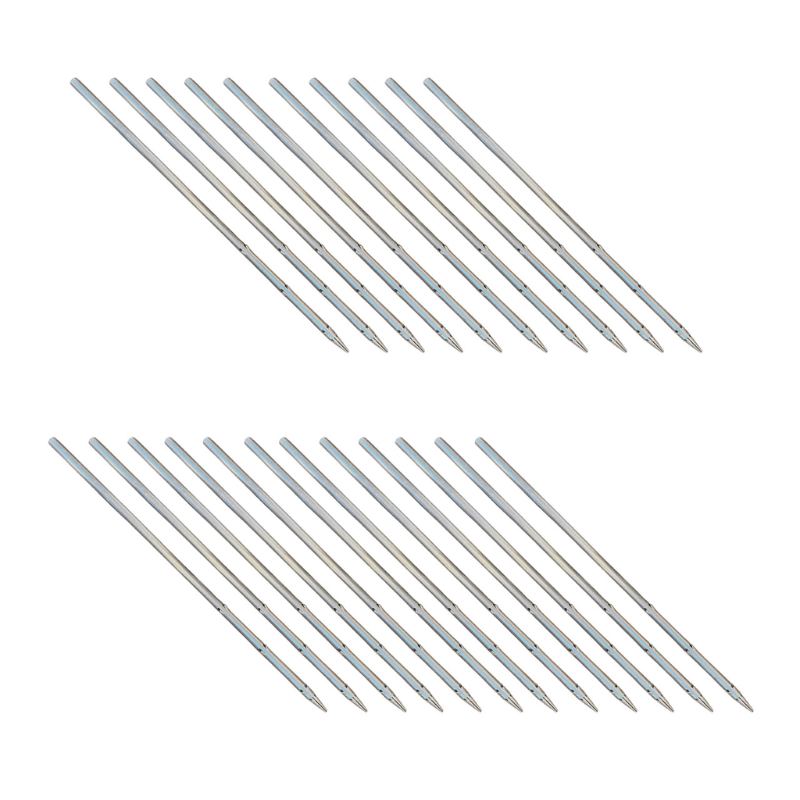

• ✅ 22-Pack – Anchors up to 10 BallastRack™ frames

Both kits include everything you need for a fast, DIY-friendly installation—even in sandy or rocky terrain.

Key Features & Benefits:

• Maximum Holding Strength – Barbed 19.5" spikes + epoxy create ultra-strong, soil-locked anchors

• Up to 1,000 lbs Uplift Resistance – Perfect for high-wind or loose soil environments

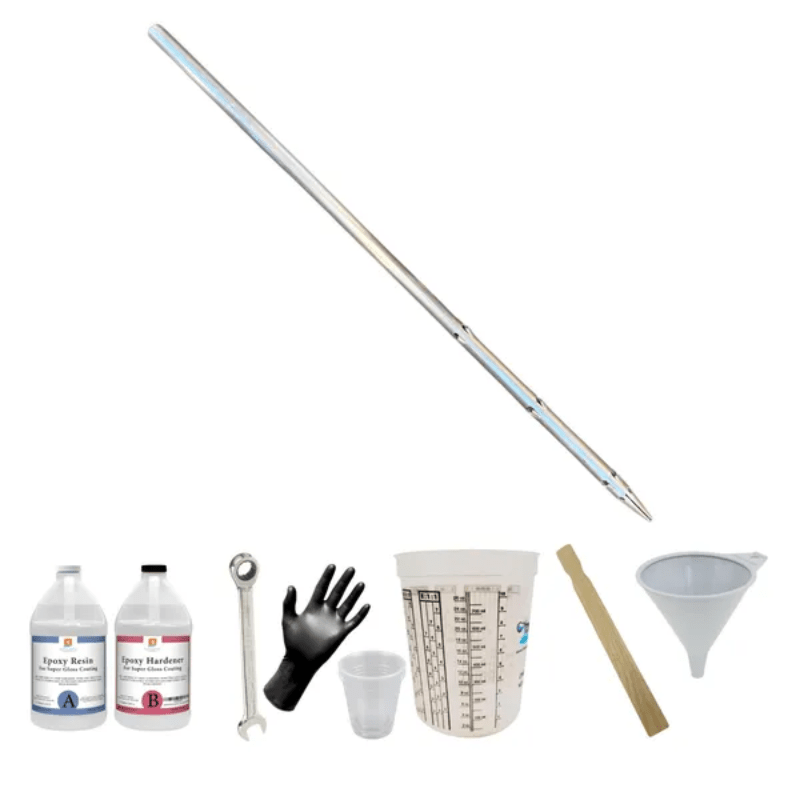

• DIY-Ready Kit – Includes epoxy, cups, gloves, and ratchet wrench for easy setup

• Fast Installation – Designed for simple leveling and quick frame attachment

• Versatile Ground Mounting – Ideal for off-grid, mobile, and permanent solar setups

⚠️ Minimum uplift resistance must be verified on-site (1,000 lbs per spike recommended).
⚠️ Requires SDS Hammer Drill + ¾" x 21" or 30" SDS-Max Carbide Bit – not included.

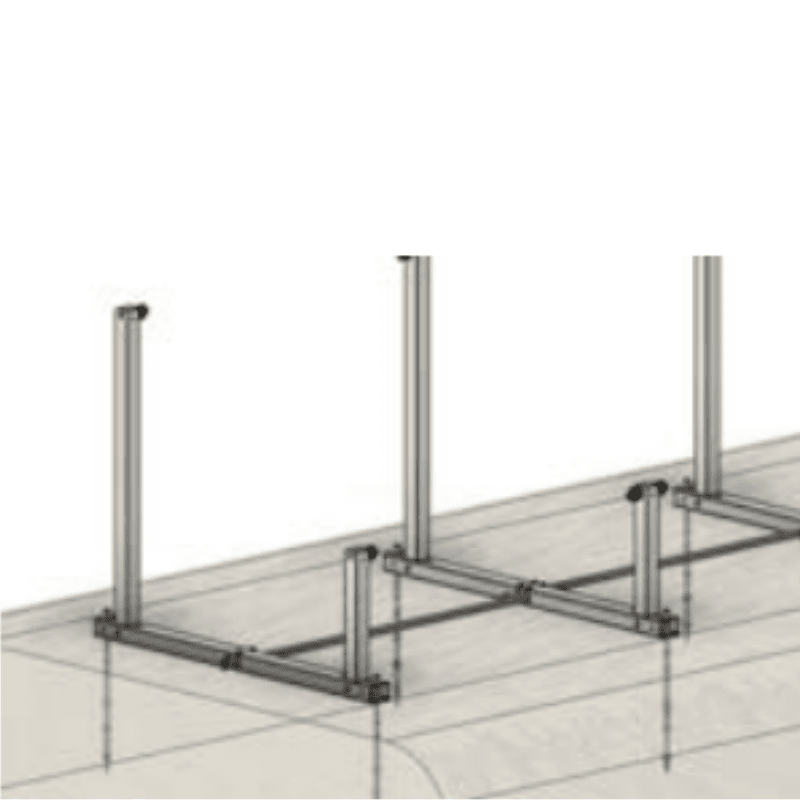

⚠️ 1" Conduit Pipe/EMT (not included) required to connect BallastRack frames.

User Manual / Documents:

• IntegraRack IR AnchorSpike Mounting Kit Installation Guide
• IntegraRack IR AnchorSpike Mounting Kit Data Sheet
