IntegraRack IR EarthBallast Mounting Kit

Achieve a stable, permit-free ground-mount solar install—no concrete required.
The IntegraRack IR EarthBallast™ Mounting Kit offers a fast, DIY-friendly solution for securely installing solar panels on compacted soil, crushed rock, or sand—without ground penetration or concrete footings.

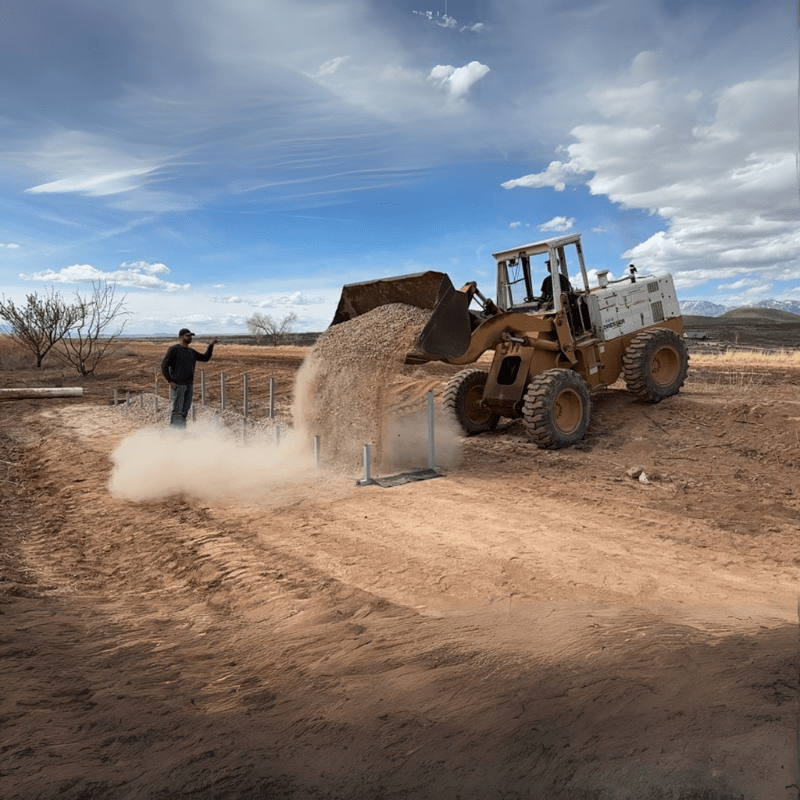

Ideal for residential, off-grid, or remote installations, this system uses a durable geotextile material and earth fill to create a solid, environmentally blended ballast foundation. Simply stretch and epoxy the geotextile across your rack frame, fill with earth using a skid-steer or tractor, and you're ready to install panels.

Key Features & Benefits:

• DIY-Friendly & Fast Setup – No digging or concrete; install with basic tools and heavy equipment.

• No Ground Penetration Required – Perfect for sensitive terrain or where permitting is an issue.

• Increased Bifacial Gain – Use light-colored fill (e.g., sand or white rock) for optimized rear-side solar panel performance.

• Clean, Natural Aesthetic – Blends into the environment with minimal visual impact.

• Compatible Systems – Supports IR-15, IR-30, IR-45, IR-35A, and IR-45ASA racks.

• 12-Panel Capacity – One kit supports 12 IR-30 modules in a single-row configuration.

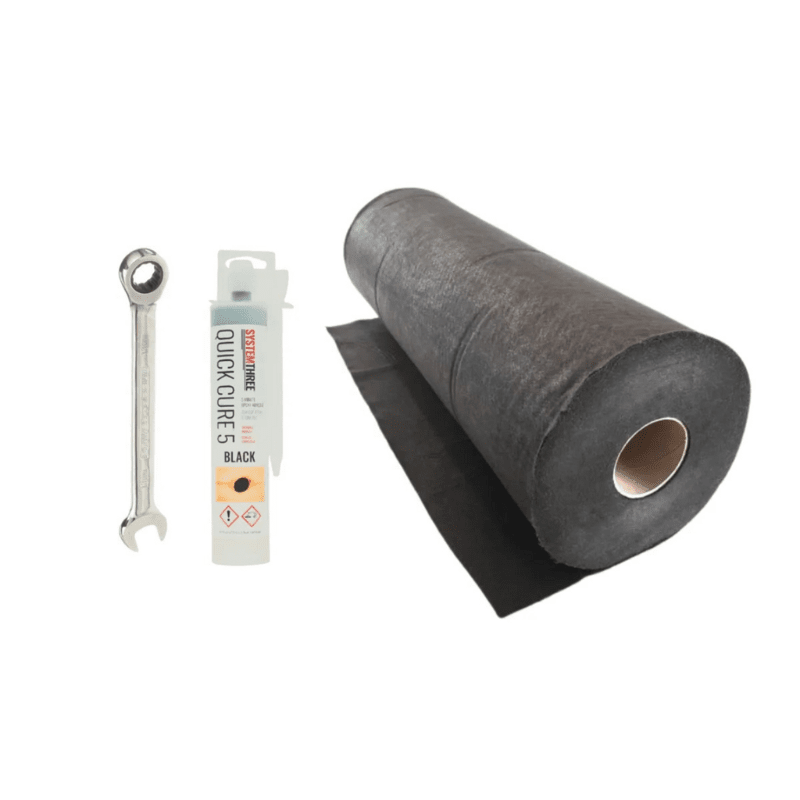

Includes:

• 3 ft x 50 ft Geotextile Material Roll

• High-Strength Epoxy w/ 2 Nozzles

• Scuff Pad & Alcohol Wipes

• Premium Ratchet Wrench

Requires approx. 1,000 lbs of soil or rock per panel
1" EMT conduit and 3/4" round stakes recommended (not included)
IBC® Chapter 1, Section [A] 105.2 compliant – No building permit required
