EcoFlow · Portable Power Station
SKU: TITAN-5000-PLUS

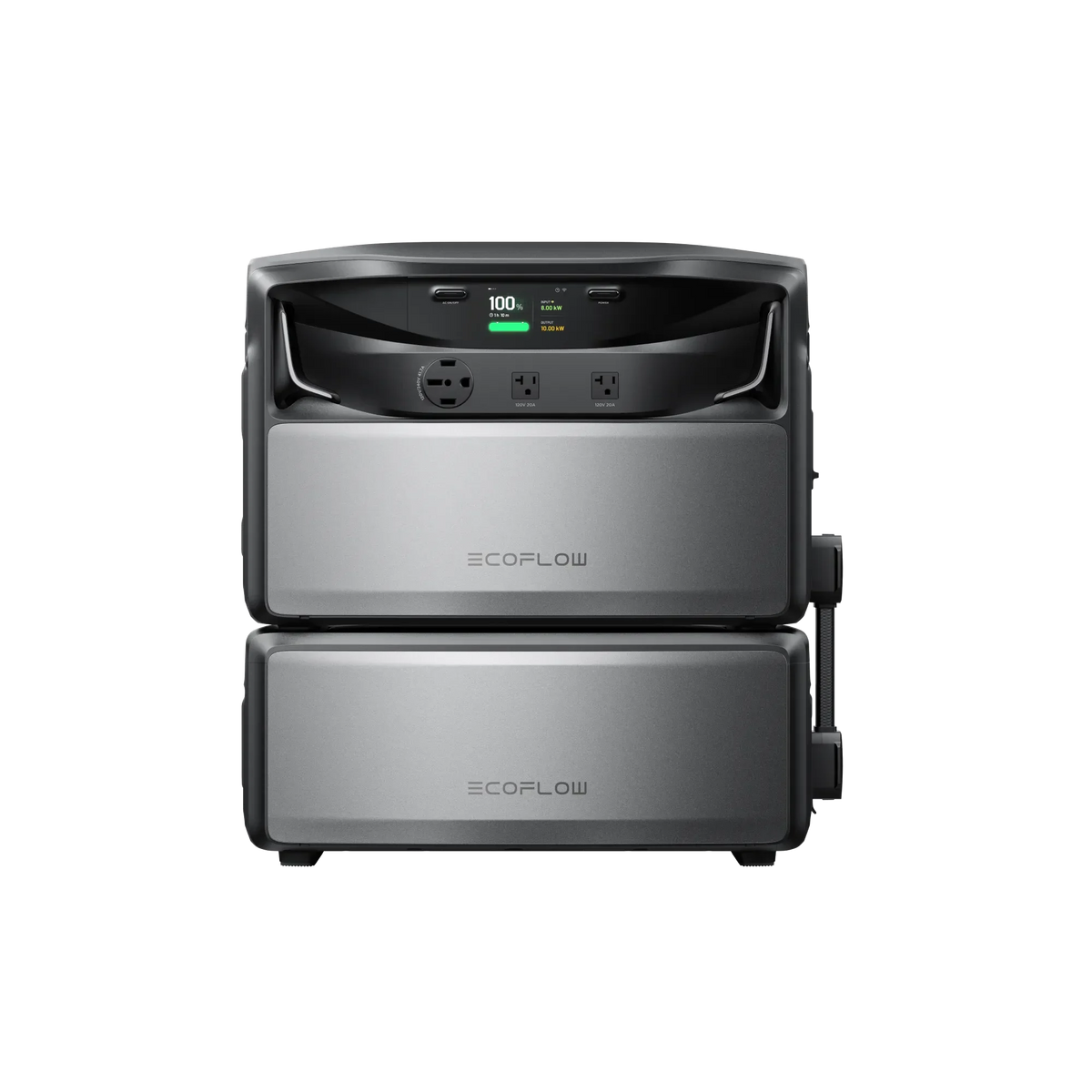

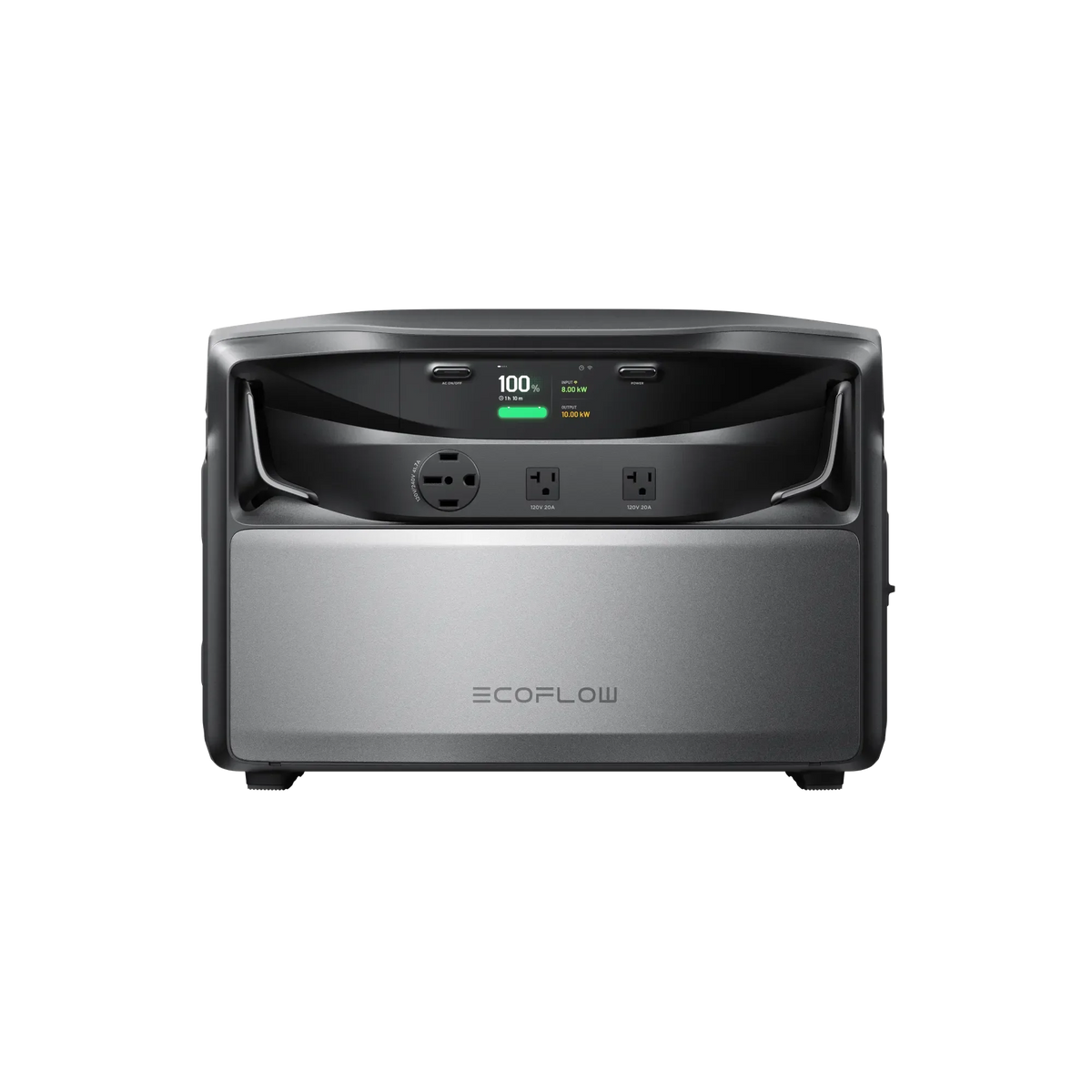

EcoFlow TITAN 5000 Plus Whole Home Battery
The top TITAN: a 5kWh LFP home battery with 7,200W of 120V/240V split-phase output (up to 10,000W when solar is running) and 8,000W of solar input across two MPPTs. Expand to 30kWh with up to five TITAN 5kWh batteries.
Choose this kit if…
- You want to back up the whole home, including 240V loads like a 3-ton central AC, without a soft starter
- You have or plan a large solar array and want 8,000W of solar input
- You want the most output in the TITAN line and room to grow to 30kWh
- Regular price
- $3,699.00
- Sale price
- $3,699.00
- Regular price
-
$4,629.00
Grows With You. Add up to five TITAN 5kWh batteries as your needs grow, and pair it with the Smart Home Panel 10 to keep the whole house on in an outage.
Quiet Indoor Power. No engine, fuel or fumes, so it can live in the garage or utility room and run the house without a generator's noise.
Built to the Top Standard. EV-grade LFP cells with 24/7 battery monitoring, certified to North America's highest standard for home energy storage.
Lifetime Support. Free help by phone, chat and email, from sizing your system before you buy to troubleshooting years later.
Need more help choosing the right kit?
Tell us what you want to power and we will size the system with you, free, before and after you buy. The team picks up the phone Mon–Thu 10am–5:30pm and Fri 10am–1pm EST.
Frequently bought together
EcoFlow TITAN 5000 Plus Whole Home Battery
·
TITAN 5000 Plus
$3,699.00
Specifications
The numbers
- Battery capacity
- 5,017.6Wh LFP
- Expandable to
- 30kWh (main unit + 5 TITAN 5kWh batteries)
- AC output
- 7,200W continuous; up to 10,000W with solar
- Output voltage
- 120V/240V split-phase, 60Hz
- Solar input
- 8,000W max, 2 ports at 4,000W each, 40-450V, 16A
- AC charging
- 7,660W max (10,000W with solar)
- Switchover
- Under 20ms with Smart Home Panel 10
- AC outlets
- 2 x NEMA 5-20R, 1 x NEMA L14-50R
- Noise
- Below 39dB at 5,000W
- Weight
- 121.3 lbs (55kg)
- Dimensions
- 24.5 x 13.2 x 16.9 in
- Certifications
- UL 9540, tested to UL 9540A
- Operating temperature
- Discharge 14 to 113°F, charge 32 to 113°F
- Warranty
- 5 years
In plain English
What that means for you
How long it lasts
What it can run
Charging speed
Moving it around
Room to grow
Scales are the ShopSolar team's read of the manufacturer's published specs.
Overview
Whole-home power, with room for a big solar array.
The TITAN 5000 Plus stores 5,017Wh in EV-grade LFP cells and puts out 7,200W of 120V/240V split-phase power, enough to start a 3-ton central AC without a soft starter. When solar is running, output rises to 10,000W.
Two 4,000W solar inputs take up to 8,000W of panels, twice what the TITAN 5000 accepts, so a large array can run the house and refill the battery in the same day. From the wall it charges at up to 7,660W.

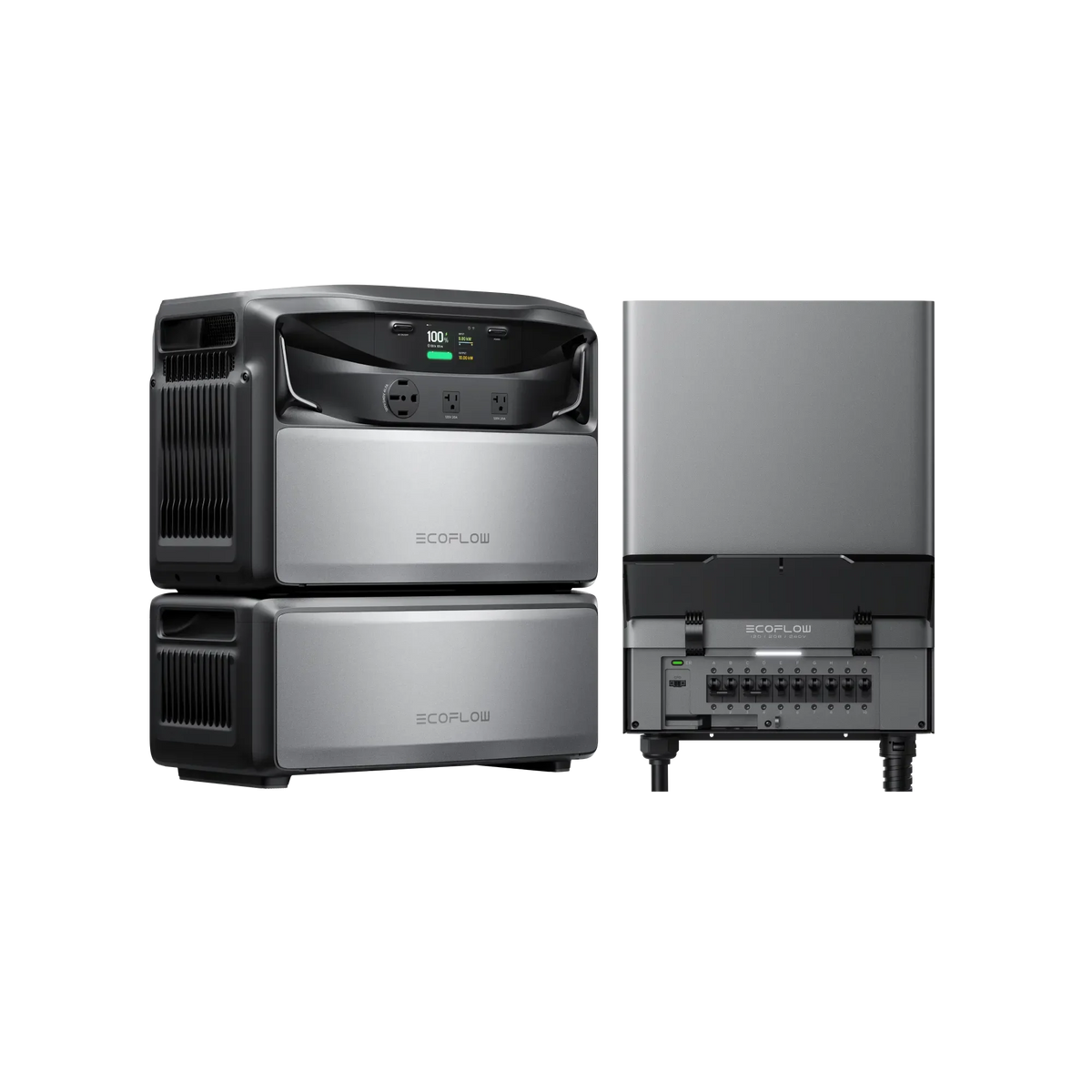

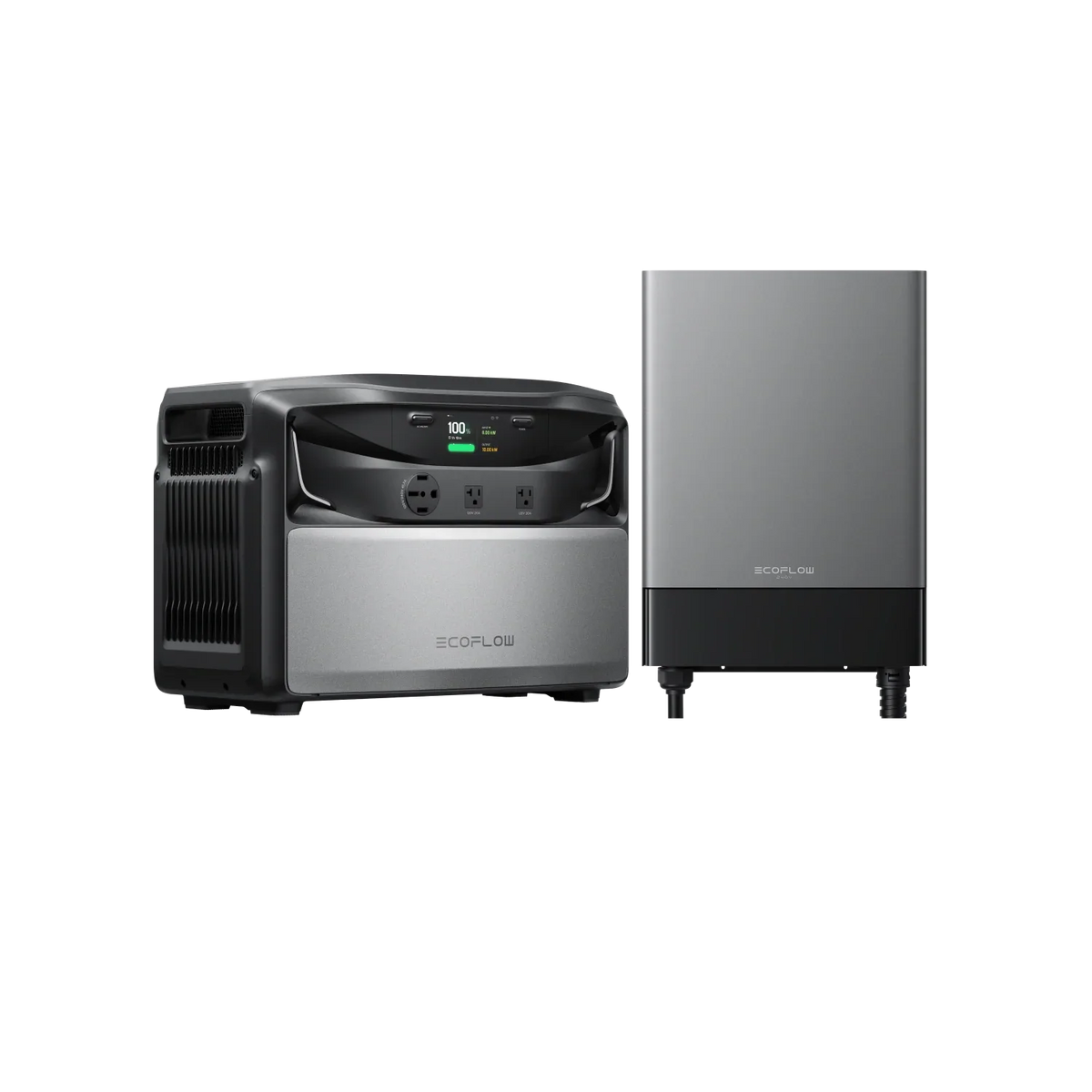

Start at 5kWh and add up to five TITAN 5kWh batteries for 30kWh. Wire it to your home with the Smart Home Panel 10 (240V) and it switches over in under 20ms when the grid drops. With the panel and a CT sensor it also works alongside an existing rooftop solar system.
It is UL 9540 certified and tested to UL 9540A, with 24/7 battery monitoring, and runs below 39dB at 5,000W. EcoFlow covers it for 5 years.
Choose your kit
Build it around how you'll use it.

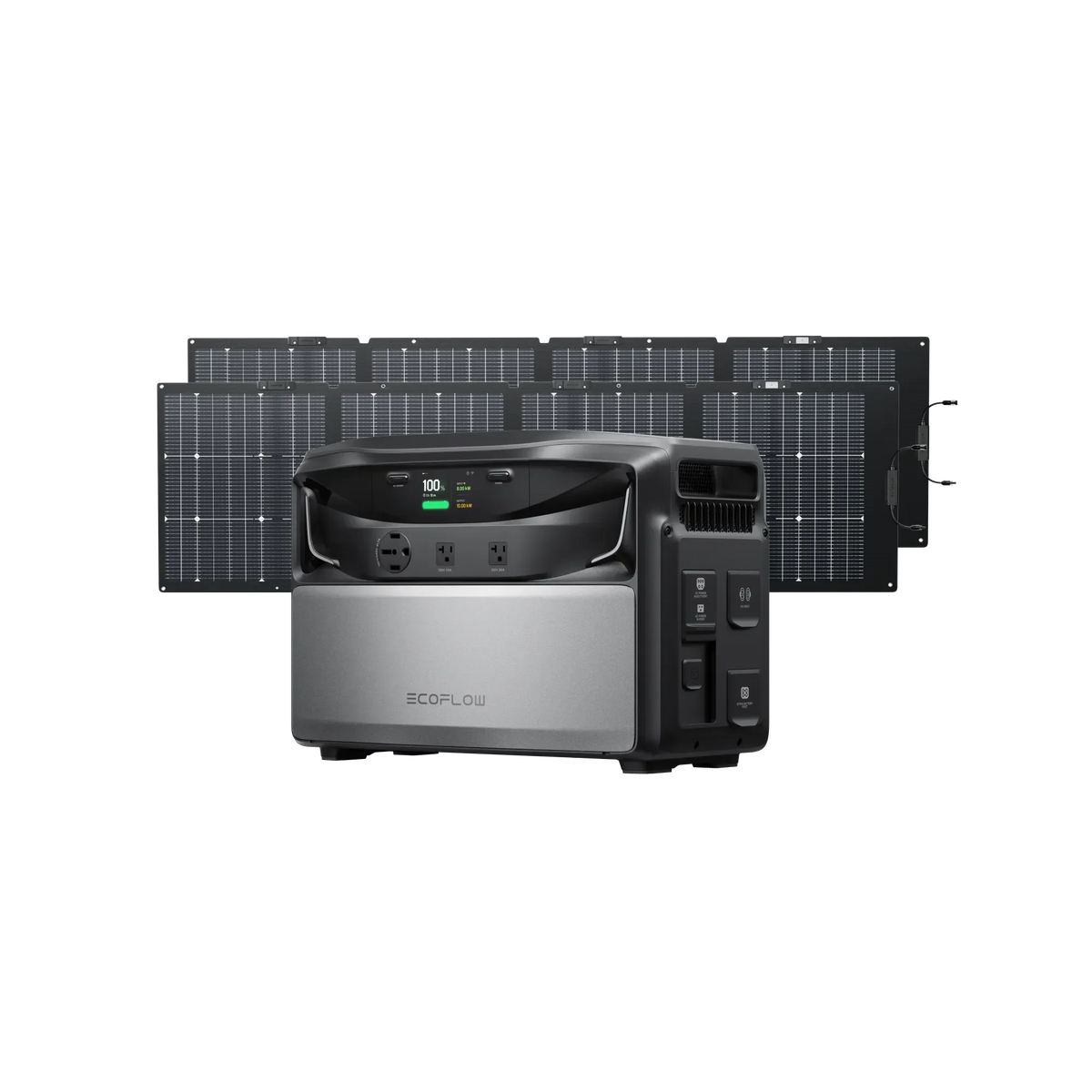

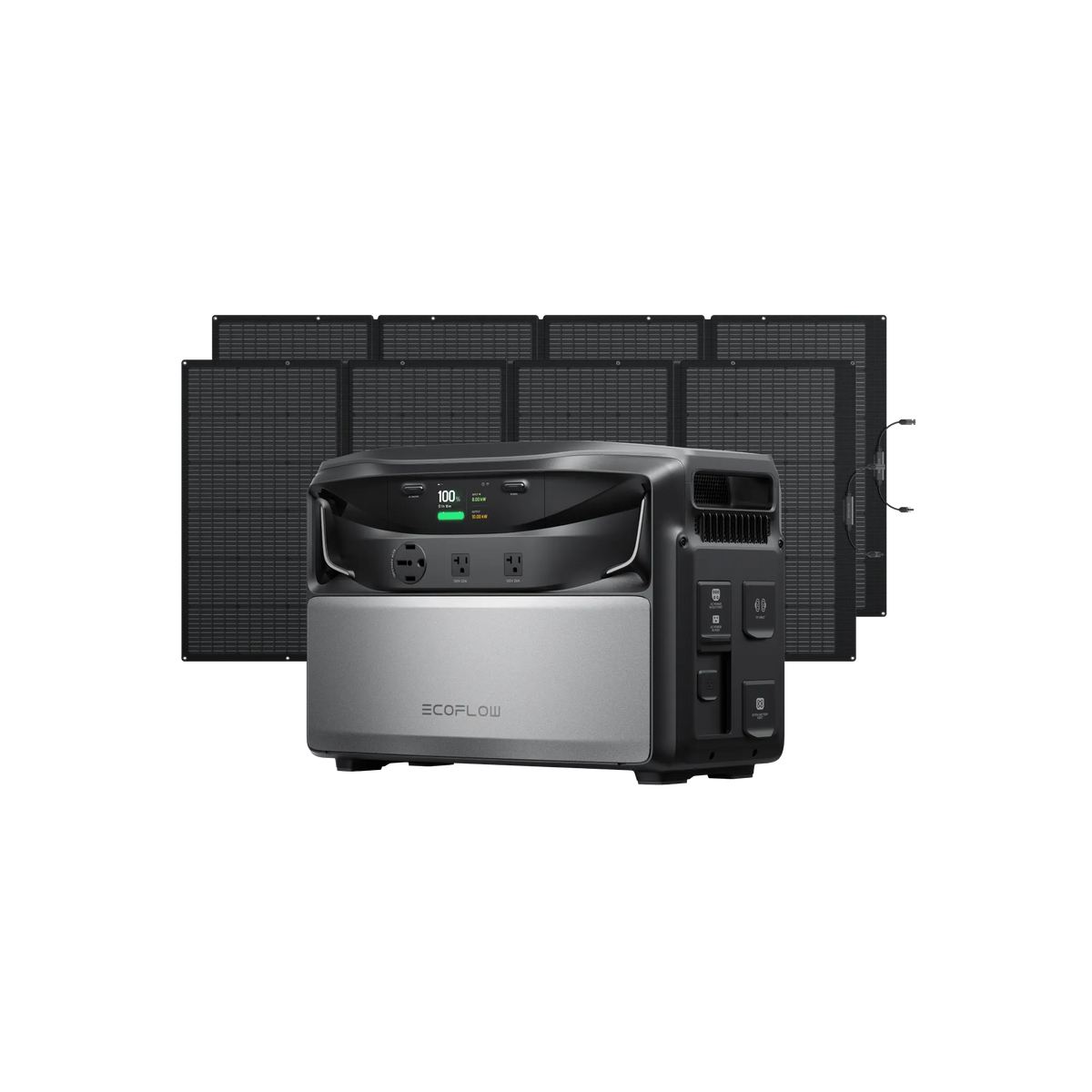

Every kit starts with the same power station. What changes is the panels, and whether it connects to your home.
- Pick your starting point Choose the power station on its own if you already have panels, or a kit if you are starting from scratch.
- Match the panels to your life Folding panels pack away for the RV and campsite. Rigid panels suit a cabin, shed or backyard. The transfer switch connects to your home.
- Let us help you set it up Every order comes with our setup guide and lifetime support from the team, before and long after delivery.
TITAN 5000 Plus | |
|---|---|
| Price |
$3,699.00 |
|
|
What it powers
What it keeps running when the grid goes down.
Estimated run times on one fully charged unit, from the manufacturer's published figures. Add panels and it keeps topping itself up.
17.8days
LED lights · 10W
4.4days
CPAP machine · 40W
1.6days
50" TV · 110W
3days
Fridge · 120W
3.6days
Chest freezer · 100W
4.3hours
Microwave · 1,000W
