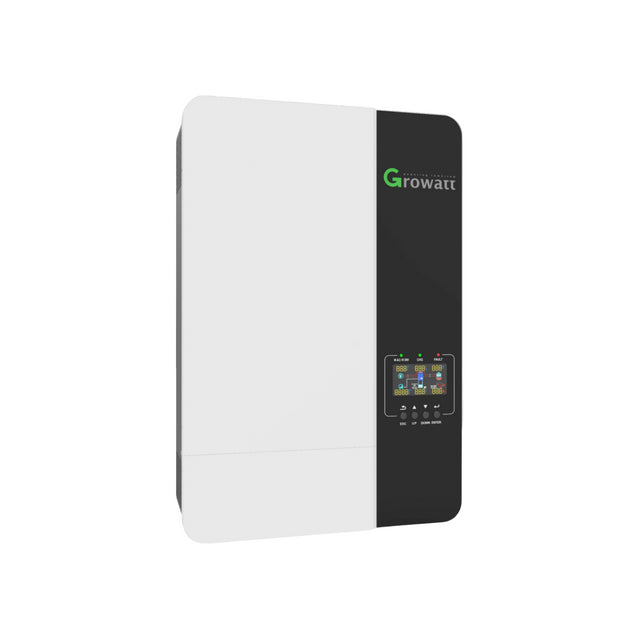

Growatt Stackable Off-Grid Inverter
Growatt 3kW Stackable Off-Grid Inverter: Multifunctional off grid solar inverter, integrated with a MPPT solar charge controller, a high frequency pure sine wave inverter and a UPS function module all in one machine.
- Regular price
- $750.00
- Sale price
- $750.00
- Regular price
-
$939.00
Not sure which one you need?
Call 877-242-2792 and we’ll work it out with you. Mon–Thu 10am–5:30pm, Fri 10am–1pm EST.
Frequently bought together
Specifications
The details.
Growatt 3kW Stackable Off-Grid Inverter: Multifunctional off grid solar inverter, integrated with a MPPT solar charge controller, a high frequency pure sine wave inverter and a UPS function module all in one machine. Perfect for off grid backup power and self-consumption applications. The 250V MPPT makes fewer strings, no combiner box and power can travel longer at high voltage, which makes it perfect for easier install.
Included
(1) Paralleling Kits
Growatt 3kW Stackable Off-Grid Inverter Features
- Rated power 3KW, power factor 1
- MPPT ranges 120V~250V, 250Voc/VDC
- High frequency inverter with small size and light weight
- Pure sine wave AC output
- Solar and utility grid can power loads at the same time
- With CAN/RS485 for BMS communication
- Parallel operation up to 6 unit (only with battery connected)
- WIFI/ GPRS remote monitoring (optional)
Still have questions? Give us a call at 877-242-2792
- Battery Voltage
- 48VDC
- Battery Type
- Lithium/Lead-acid
- Rated Power
- 5000VA/ 5000W
- Parallel Capability
- Yes, 6 units maximum
- AC Voltage Regulation (Battery Mode)
- 230VAC ± 5% @ 50/60Hz
- Surge Power
- 10000VA
- Efficiency (Peak)
- 93%
- Waveform
- Pure sine wave
- Transfer Time
- 10ms typical, 20ms Max
- Maximum PV Array Power
- 6000W
- MPPT Range @ Operating Voltage
- 120VDC ~ 430VDC
- Maximum Solar Charge Current
- 100A
- Protection Degree
- IP20/NEMA Type 1
- Dimension (W/H/D)
- 330/485/135mm(13/19.1/5.3in)
- Net Weight
- 12kg(26.5lb)
