Growatt · Inverter/Charger
SKU: 1519099

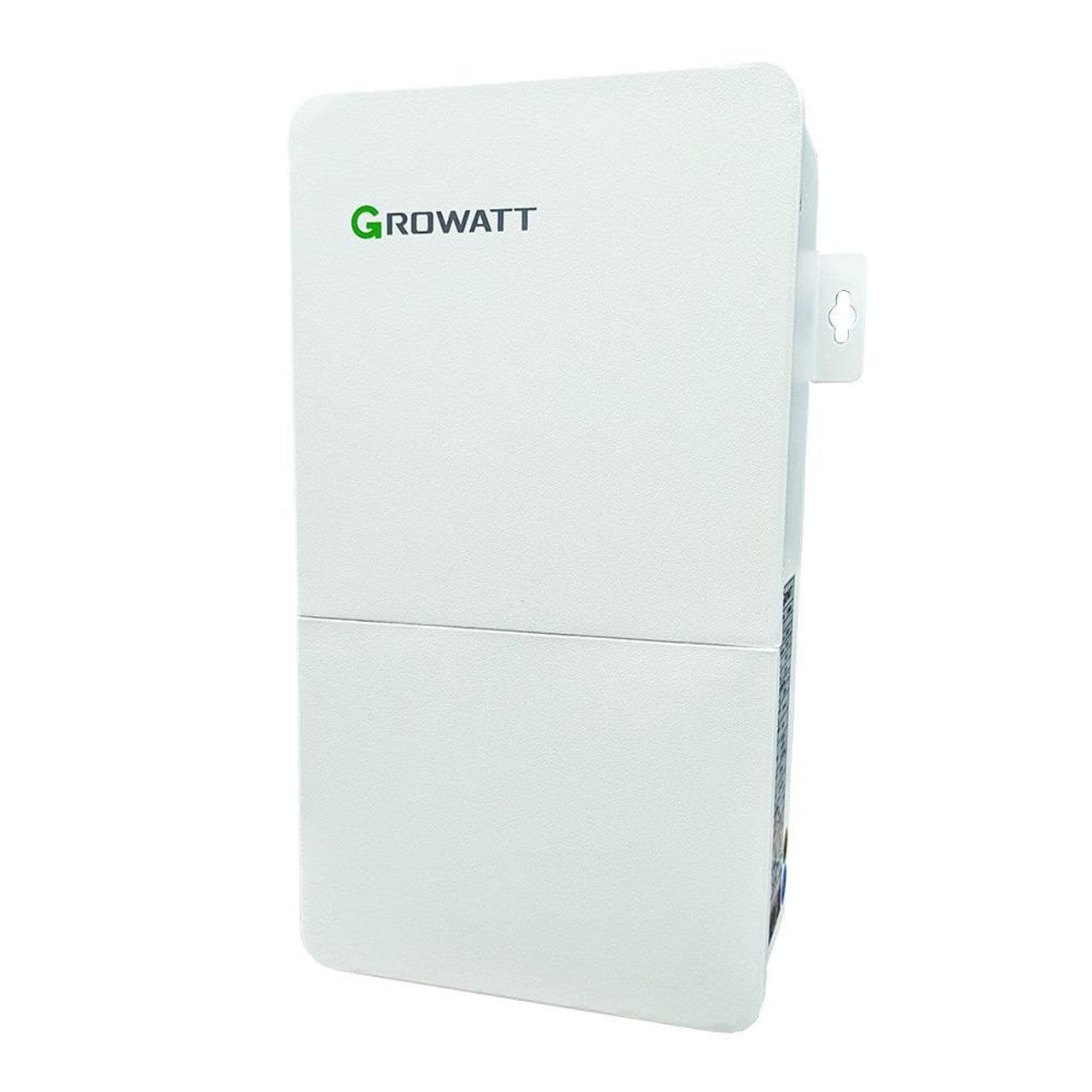

Growatt 5kW Split Phase Transformer
The ATS 5000T-ES transformer takes Single Phase 240Vac (L/N) electricity output and creates true Split Phase 120Vac/120Vac (L/L/N). This addition to our line sheet increases the user's safety and ease of use with designated input and output locations to simplify connecting this transformer to your system.
- Regular price
- $299.00
- Sale price
- $299.00
- Regular price
-
$379.00
Questions before you buy?
Call 877-242-2792 and we’ll work it out with you. Mon–Thu 10am–5:30pm, Fri 10am–1pm EST.
Frequently bought together
Specifications
The details.
The ATS 5000T-ES transformer takes Single Phase 240Vac (L/N) electricity output and creates true Split Phase 120Vac/120Vac (L/L/N). This addition to our line sheet increases the user's safety and ease of use with designated input and output locations to simplify connecting this transformer to your system. Perfect for use with the Growatt 5kW ES off-grid inverter
Growatt 5kW Split Phase Transformer Features
- ATS-ES comes with a built-in transformer
- ATS 5000T-ES has a maximum sum of L1-N and L2-N simultaneous output is 5000VA
- Please note, the maximum imbalance between L1/L2 is 2500W (E.g. 1250/3750 L1/L2) purchase two if you believe your needs will exceed
Still have questions? Give us a call at 877-242-2792
- Input Rated Voltage
- 240/208V
- Input Rated Frequency
- 50/60Hz
- Input Rated Current
- 21A/24A
- Load Rated Voltage
- 120/240V or 104/208V (split phase)
- Load Max. Continued Current (L-L)
- 21A/24A
- Load Max. Continued Current (L-N)
- (21A/24A)*2
- Load Rated Power (L-L)
- 5000VA
- Load Rated Balanced Power (L-N)
- 2500VA*2
- Load Max. Unbalanced Power (L-N)
- 2500W
- Cooling Concept
- Natural
- Ingress Protection
- IP 20
- Installation
- Wall Mountable
- Weight
- 13.5kg/30lb
- Size
- 385 x 210 x 105mm/15.16 x 8.27 x 4.13in
