EG4 · Appliances
SKU: KIT-E0022-5-2
EG4 12K BTU Hybrid Solar Mini-Split Kit
Stay comfortable year-round while slashing your energy costs with the EG4 12k BTU Hybrid Solar Mini-Split Kit. This DIY-friendly system pairs high-efficiency solar panels with an advanced hybrid inverter to heat and cool spaces up to 650 sq.
- Regular price
- $2,415.49
- Sale price
- $2,415.49
- Regular price
-
$3,299.00
Orders processed in 24–48 hours
30-day returns
Lifetime support by phone, chat & email
Full manufacturer warranty
Not sure which one you need?
Call 877-242-2792 and we’ll work it out with you. Mon–Thu 10am–5:30pm, Fri 10am–1pm EST.
Trusted by 50,000+
Customers powered since 2018
Lifetime Support
Phone, email or live chat, for good
Price Match
Found it cheaper? Tell us
Ships from the USA
Warehouses in CA, TX and NY
Frequently bought together
Specifications
The details.
Stay comfortable year-round while slashing your energy costs with the EG4 12k BTU Hybrid Solar Mini-Split Kit. This DIY-friendly system pairs high-efficiency solar panels with an advanced hybrid inverter to heat and cool spaces up to 650 sq. ft. By running directly off solar DC power during the day and automatically switching to grid power at night, it offers a seamless, eco-friendly solution for homes, cabins, and off-grid structures.
Key Features & Benefits
-
True AC/DC Hybrid Operation — Runs directly on solar power during the day and intelligently switches to AC grid power at night or during cloudy weather for maximum savings.
-
Plug-N-Cool DIY Simplicity — Designed for easy installation with quick-connect components, removing the need for specialized HVAC tools or professional vacuuming.
-
Next-Gen R32 Refrigerant — Built to meet the latest EPA standards, providing superior cooling efficiency with a lower environmental impact.
-
Extreme Weather Reliability — Engineered to keep you comfortable in any season, with cooling performance down to 0°F and heating capabilities as low as -15°F.
-
Smart App & Remote Control — Easily adjust temperatures, set schedules, and switch modes using the included IR remote or the integrated smartphone app.
-
100% Daytime Energy Savings — Achieve total energy independence during sunny hours by powering your climate control entirely from the sun.
-
5-Year Limited Warranty — Experience peace of mind with a robust warranty that stands behind the reliability of your system.
Specs at a Glance
-
Capacity: 12,000 BTU
-
Coverage Area: Up to 650 sq. ft.
-
Power Input: 115VAC (Grid) and/or Direct DC (Solar)
-
Solar Panel Options: 2,250W (Peimar) or 2,730W (URE Peach) total capacity
-
Refrigerant: R32
-
Warranty: 5-Year Limited Warranty

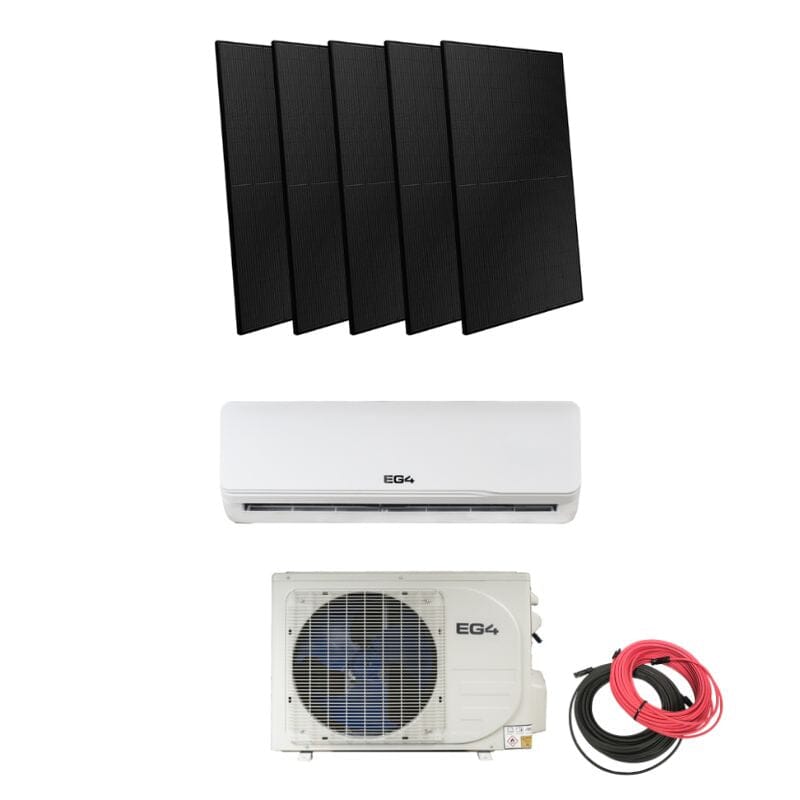

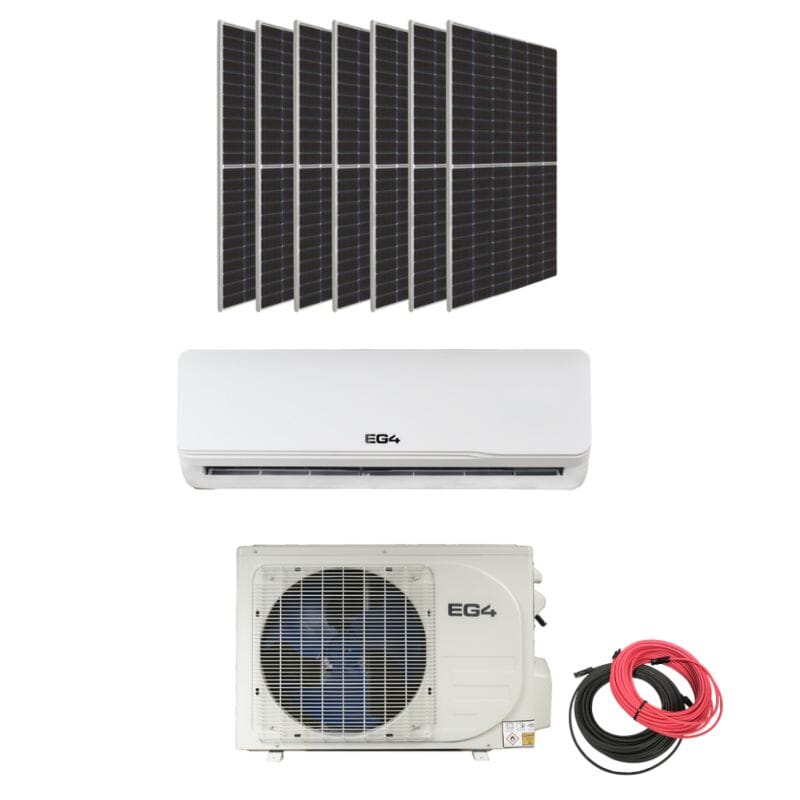

What’s Included
-

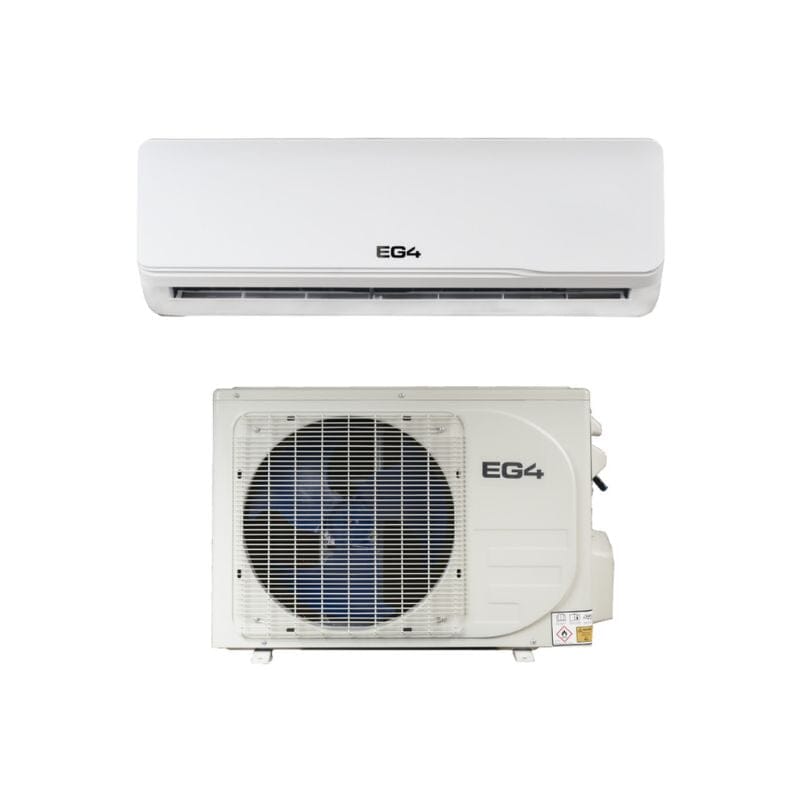

1 x EG4 12k Hybrid Mini Split V1 (Indoor & Outdoor Units)
-

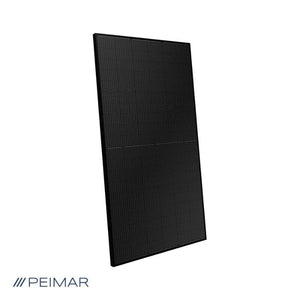

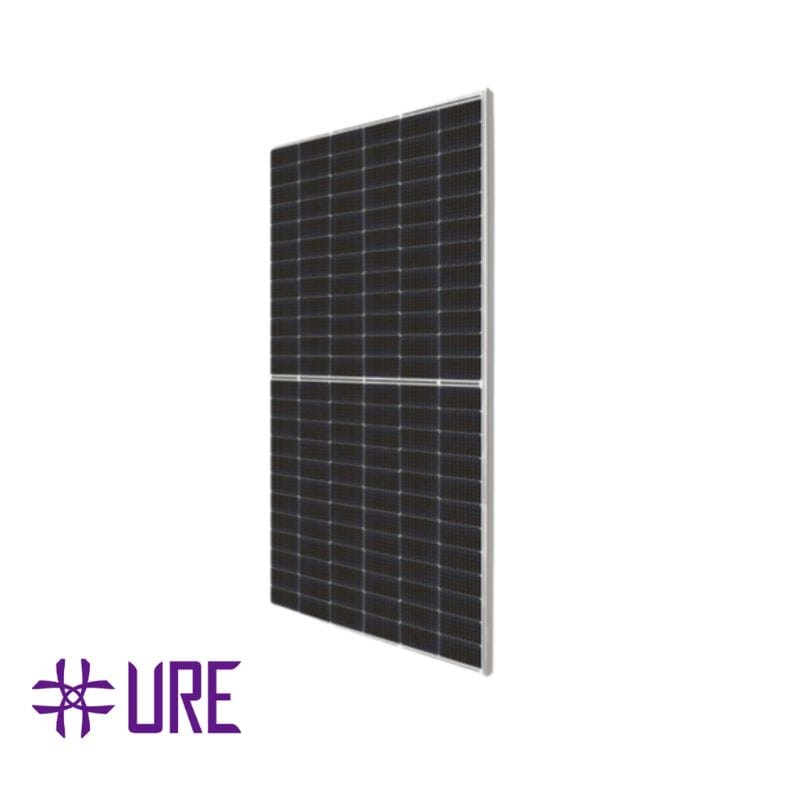

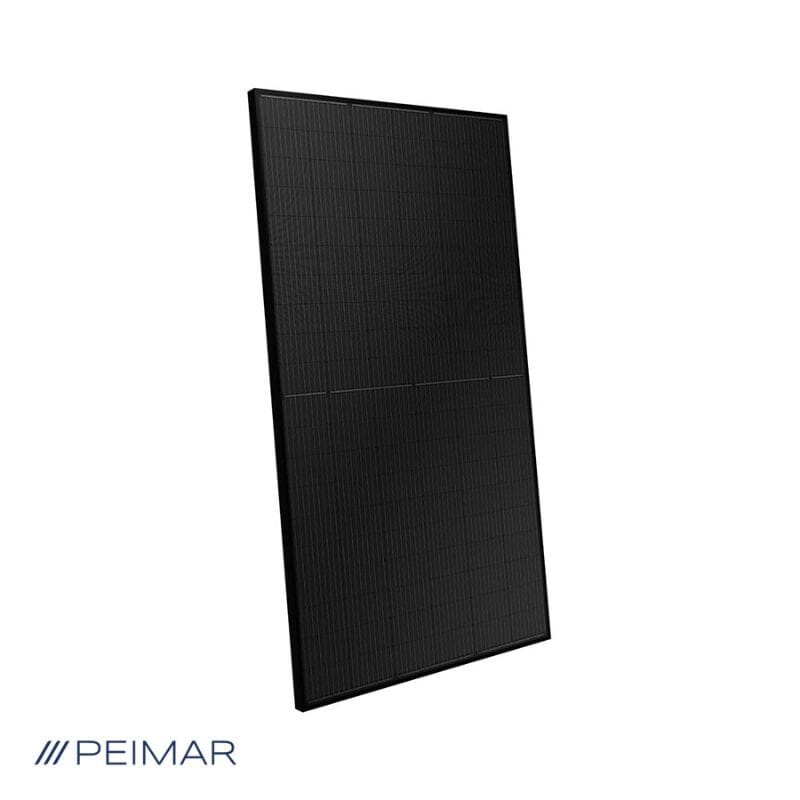

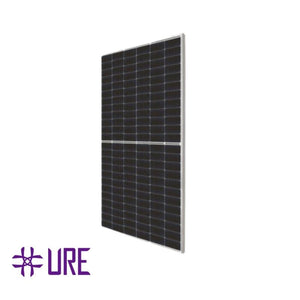

Your Choice of: 5 x Peimar 450W Mono PERC Panels OR 7 x URE Peach 390W Solar Panels
-

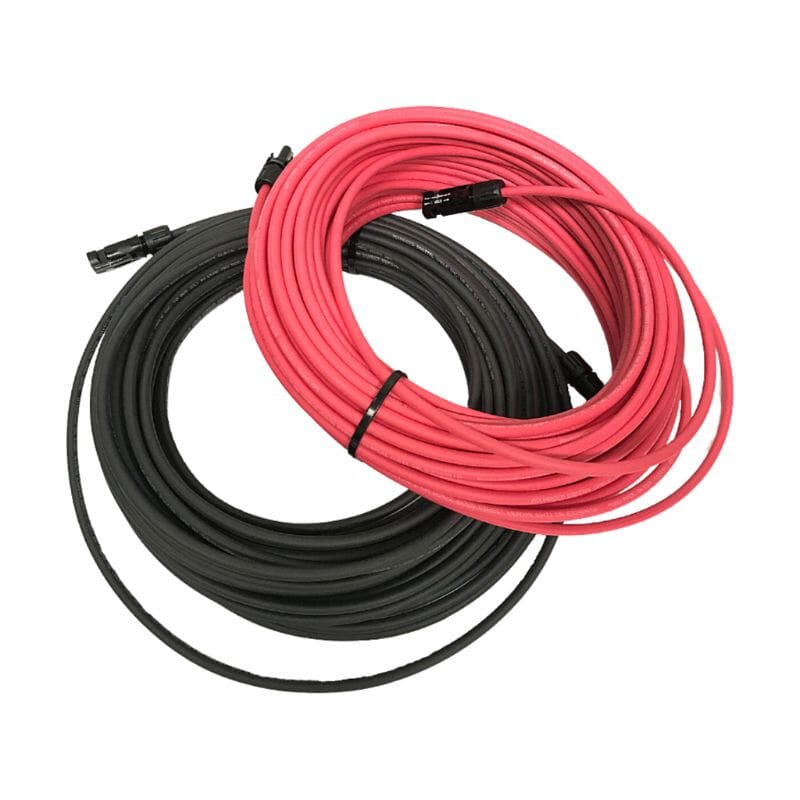

1 x 50ft 10 AWG Copper PV Wire
-
1 x IR Remote Control
Ideal For
-
Small Spaces: Perfect for tiny homes, master bedrooms, home offices, or workshops up to 650 sq. ft.
-
Off-Grid Cabins: Efficient heating and cooling that doesn't require a massive battery bank to operate during the day.
-
Cost-Conscious Homeowners: Reduce monthly utility bills by utilizing direct solar energy for one of the home's largest energy draws.
User Manual / Specifications:
- RATED VOLTAGE
- 115 VAC
- RATED CURRENT
- 8.3A
- RATED INPUT POWER
- 190W – 1100W
- FREQUENCY
- 60 Hz
- MINIMUM CIRCUIT AMPACITY
- 19.05A
- MAXIMUM BREAKER SIZE
- 20A
- MAXIMUM STARTING CURRENT
- 4A
- RATED VOLTAGE
- 90 – 380 VDC
- RATED CURRENT
- 2.4 – 9.1A
- MAXIMUM PV VOLTAGE (VOC)
- ≤380 VOC
- MAXIMUM PV AMPERAGE (ISC)
- ≤12A
- RATED PV WATTAGE
- 1100W
- NOMINAL CAPACITY
- 12,000 BTU/h
- OPERATING RANGE
- 3,000 – 12,500 BTU/h
- RATED POWER
- 950W
- RATED CURRENT
- 8.35A
- EER (BTU/W)
- 12.6
- SEER (W/W)
- 20.8
- SEER2 (W/W)
- 22.5
- NOMINAL CAPACITY
- 12,000 BTU/h
- OPERATING RANGE
- 3,000 – 13,000 BTU/h
- RATED POWER
- 980W
- RATED CURRENT
- 8.6A
- COP (BTU/W)
- 12.25
- HSPF2-5 (W/W)
- /
- HSPF2-4 (W/W)
- 9.7
- DESIGN PRESSURE (PSIG)
- <651 PSI
- REFRIGERANT
- R32/27.52 oz. (0.81 L)
- PRE-CHARGED REFRIGERANT LINE
- 16.4 ft. (5 m)
- CHARGE REQUIRED PER ADDITIONAL FT
- 0.16 oz. (4.73 ml)
- LIQUID VALVE DIAMETER 1/4 in.
- (6.35 mm)
- GAS VALVE DIAMETER 3/8 in.
- (9.52 mm)
- MAX REFRIGERANT PIPE LENGTH
- 49.2 ft. (15 m)
- MAX ELEVATION BETWEEN UNITS
- 26.2 ft. (8 m)
- TYPE
- Rotary
- MAX. INPUT POWER
- 834W
- RATED LOAD AMPERAGE (RLA)
- 5.7A
- OUTPUT POWER
- 15W
- RATED LOAD AMPERAGE (RLA)
- 0.4A
- SPEED (TURBO/5/4/3/2/1)
- 1250/1100/1000/900/800/750 r/min
- AIR FLOW (TURBO/5/4/3/2/1)
- 340/320/300/280/260/250 CFM
- SOUND PRESSURE (TURBO/5/4/3/2/1)
- 41.5/37.5/34.5/32/31/29 dB(A)
- MOISTURE REMOVAL
- 2.65 pt/hr. (1.3 L/hr.)
- UNIT DIMENSIONS (W×D×H)
- 33.1 x 8.1 x 11.6 in. (840 x 205 x 295 mm)
- PACKAGING DIMENSIONS (W×D×H)
- 36.2 x 11.4 x 14.2 in. (920 x 290 x 361 mm)
- UNIT/PACKAGED WEIGHT
- 20.9/26.0 lbs. (9.5/11.8 kg)
- OPERATING TEMPERATURE (COOLING)
- 61 – 90°F (16 – 32°C)
- OPERATING TEMPERATURE (HEATING)
- 32 – 90°F (0 – 32°C)
- OUTPUT POWER
- 35W
- RATED LOAD AMPERAGE (RLA)
- 0.42A
- SPEED (HI/MED/LO)
- 800 r/min
- AIR FLOW (HI/MED/LO)
- 1,060 CFM
- SOUND PRESSURE (HI/MED/LO)
- 52 dB(A)
- UNIT DIMENSIONS (W×D×H)
- 31.6 x 12.7 x 22.2 in. (802 x 323 x 564 mm)
- PACKAGING DIMENSIONS (W×D×H)
- 35.8 x 15.9 x 24.5 in. (909 x 404 x 622 mm)
- UNIT/PACKAGED WEIGHT
- 70.6/81.6 lbs. (32.0/37.0 kg)
- OPERATING TEMPERATURE (COOLING)
- 32 – 131°F (0 – 55°C)
- OPERATING TEMPERATURE (HEATING)
- 5 – 86°F (-15 – 30°C)
- CONTROL
- Remote
- SIGNAL CABLE
- 18 AWG (4 Stranded)
- INSTALLATION LINESET LENGTH
- 16.4 ft. (5 m)
- LIMITED WARRANTY*
- 5-Year limited warranty
