Complete Grid-Tie Solar Kit - [12 x 400 Watt] Tier-1 Solar Panels + 6 x DS3-S Microinverters | 4,800W of Solar + Includes Communication Gateway [MIK-MAX]

by MIK

people are currently viewing this product
Current price $5,489.00
Original price $7,299.00
Translation missing: en.product_price.item.price.range_html
Original price $7,299.00
from $5,489.00
Current price $5,489.00
You Saved: $1,810.00 25%

40,000+ Happy Customers!

We Beat All Competitors Prices.

Includes Lifetime Customer Support!

Fast & Reliable Shipping - While Supplies Last.

Support Agent

Have a question? We're here to help.

Friendly Phone Support:  877-242-2792

Instant Live Chat:  Chat Now

Mon-Fri 10am-6pm EST

This 7,200 watt microinverter solar kit is a great mid range power option. The 18 x 400W solar panels will fit nicely on almost any roof and the power they produce will be enough to offset a large portion of your electricity usage each month. From lighting, television and kitchen appliance uses to more. Easily expandable in the future as well if you ever want to add more solar panels.

The 600-700kWh of power generated by the MIK-MAX solar kit is perfect for those looking to offset more than half of the average homes electricity usage, depending on how conservative you are. The average American uses just over 900kWh of electricity per month. Based on that average, this system could provide 70-80% of that, for free. If you're a below average consumer, this solar power system might cover your entire electric bill.

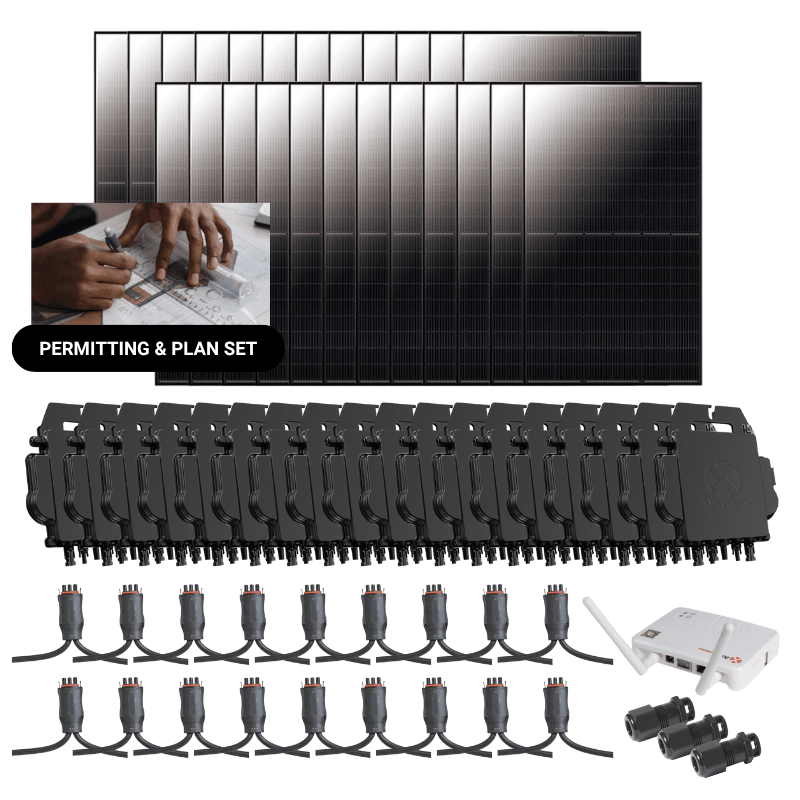

What's Included:

  • 12 x 400/405W Monocrystalline Solar Panels - 25years Linear Performance Warranty

  • 6 x APSystems DS3 Microinverters - 10 Years Warranty Standard, 25Years Optional (2 panels per microinverter)

  • 6 x APSystems Y3 Bus Cable - 2m - 12AWG

  • 2 x DS3/QS1/QT2 AC Bus End Cap

  • 1 x APS ECU-R Gateway

  • 1 x Standard Wiring Schematic and Setup Guide

  • Lifetime Customer Support (Phone, Email, Live Chat)

Product Specifications:

APSystems DS3 Microinverter Features
Efficiency - 97.0%
Warranty - 25 Years
Nominal Voltage - 240VAC
Maximum Output Power - 0.88kW (880 Watts each)
Built In Meter
Panel-level Optimization
Smart Inverter Phase 1
Smart Inverter Phase 1 with Tested
Minimum Voltage - 26.0VDC
Maximum Voltage - 60.0VDC
400/405 Watt Solar Panel Specs
Cell Type Monocrystalline
Optimum Operating Voltage (Vmp) 31~35V
Optimum Operating Current (Imp) 11~14A
Open Circuit Voltage (Voc) 37~42V
Short Circuit Current (Isc) 12~14
Module Efficiency 20.5~20.8
Dimensions 1094~1134 x 1722~1754
Warranty 25years Linear Performance Warranty
Operating Characteristics
Max. System Voltage DC 1500V 792
Operating Parameters -40℃ ~ +85℃
Max. Fuse Rated Current 30A
Front Static Load(snow,wind) 5400Pa(112lb/ft2 )
Bifaciality 70%±10%
Fire Resistance UL Type 1
Back Static Load(wind) 2400Pa(50lb/ft2 )
Electrical Characteristics
Maximum Power at STC (Pmax) 400W
Optimum Operating Voltage (Vmp) 31.01V
Optimum Operating Current (Imp) 12.90A
Open Circuit Voltage (Voc) 37.07V
Short Circuit Current (Isc) 13.79A
Operating Module Temperature 20.5%
Maximum System Voltage Power Tolerance
Operating Module Temperature Maximum Series Fuse Rating

What Type of Solar Panels Are Included?

We only include Tier-1 / Grade A solar panels in our solar kits. They are always monocrystalline and come with at least a 25-year power output warranty. We only source and supply solar panels from reputable brands that have been in business for many years. For more information on your solar panels, click to watch our video.

What Kind of Batteries Are Included?

We almost only include lithium iron phosphate batteries in our solar kits. This is because they are the longest lasting and safest battery option available today. We only source and supply batteries from reputable brands that ideally have US based operations and support teams. We stand behind the batteries we sell and because of that, your lithium batteries will always be covered by a long-term, comprehensive warranty. For more information on your battery bank, click to watch our video.

Does This Kit Come With Setup Instructions?

In addition to guaranteed lifetime customer support, we also provide you with a custom wiring diagram and commissioning guide for setting up your solar kit. Whether you are planning to hire a professional or install it yourself, this information will set you up for success when it comes to getting your solar power system up and running properly. In addition, you’ll also unlock lifetime access to The Solar Hub, where you’ll find instructional videos, articles, troubleshooting guides and tips, so that you can level up your solar knowledge and get the most out of this kit.

What is the Shop Solar Kits returns policy?

Returns are free in the first 30 days with no restocking or processing fees, although the customer must pay for the return shipping costs. See our complete return policy on our Shipping, Deliver, and Returns page.

What’s covered by the Shop Solar Kits returns policy?

Our returns policy covers all purchases made through Shop Solar Kits. For warranty issues, as authorized distributors, we honor the full manufacturer warranty of ALL the brands on our website. See our complete returns and warranty policies on our Shipping, Deliver, and Returns page.

How long will it take to receive my Shop Solar Kits order?

All orders are processed within 72 hours and you can expect delivery within 5 to 10 business days. You will receive access to our customer portal after ordering, where it is easy to track all your shipments. See our Shipping, Delivery and Returns page for more details.

What are the financing and payment options at Shop Solar Kits?

We offer several ways to pay to make getting your solar kit simple:

  • Credit Card: if the purchase is greater than your card’s limit, you can split the cost onto multiple cards as well as Paypal, financing through Affirm, and ACH/bank transfer
  • You can arrange financing during the checkout process, see our Financing page for more details

How does the Shop Solar Kits Lifetime Support work?

Our legendary lifetime customer support has helped make us the #1 solar kit retailer.

We have a dedicated team of solar professionals standing by to help you navigate the world of solar with ease. From selecting the perfect solar kit to installation and beyond, we provide support and expertise at every step of the journey.

If you need help with ordering, shipping, troubleshooting, expanding your system, warranty issues, or anything else you have questions about for as long as you own your Shop Solar Kits equipment, we’ve got you covered: we’re always only a phone call or email away.

Unlock Savings, Tax Benefits, and Impressive ROI!

Maximize your return on investment with a solar kit from Shop Solar Kits. Slash or eliminate electricity costs, leverage the 30% tax credit, and make a strategic move that yields both financial and practical rewards. It's not just a solar kit—it's a smart investment with compelling returns!.

Solar ROI Calculator

30% Federal Tax Credit
Estimated Annual Electricity Savings
Cost After Incentives & Savings
Estimated Home Value Increase

These are estimates based on the national averages.

Please use these as strictly estimates and not exact amounts.

Simplified Solar Solutions

Simplified Solar Solutions

Our carefully curated solar kits combine the best components to create an ideal solution for your individual power needs. So whether you need to get off the grid, to save on your electric bill, for emergency backup power, or to fuel your next adventure - we eliminate the need for a designer or custom solution, and pass those savings on to you without compromising on performance.

Best Components, Lowest Prices

Best Components, Lowest Prices

We cut out the bloat of traditional solar companies and pass those savings off to you. Plus, we provide free shipping on all solar kits and lifetime customer service on everything we sell.

Expert Guidance

Expert Guidance

Our team of solar professionals is here to help you navigate the world of solar with ease. From selecting the perfect solar kit to installation and beyond, we provide support and expertise at every step of the journey.

We’re people just like you

We’re people just like you

We’re not corporate and neither are our customers. We’re just a group of 50+ solar enthusiasts who are passionate about providing an honest, no-BS way for anyone, anywhere to improve their lives and the world around them with solar power.

Trusted Solar Authority

Trusted Solar Authority

With over 30,000 solar kits sold, 2,500+ positive reviews, and years of experience in the industry, we’re proud to say we’re America’s #1 solar kit retailer. So you can trust us to provide you with top-notch products and legendary customer service at every step of the way.
